ABC，AAC，ACSR Cable

The following is an overview of LINT TOP's "turnkey project" for a new ABC cable plant in Africa during the period 2020-2021.

(1) Cable product information

1) Reference standard: NF C33-209

2) Conductor: Aluminium/aluminium alloy (class 2)

(3) Insulation: XLPE

4) Cable construction

2*16mm2, 2*25mm2, 4*16mm2, 4*25mm2, 3*35+54.6+2*16mm2, 3*70+54.6+2*16mm2, 3*150+70+2*16mm2, etc.

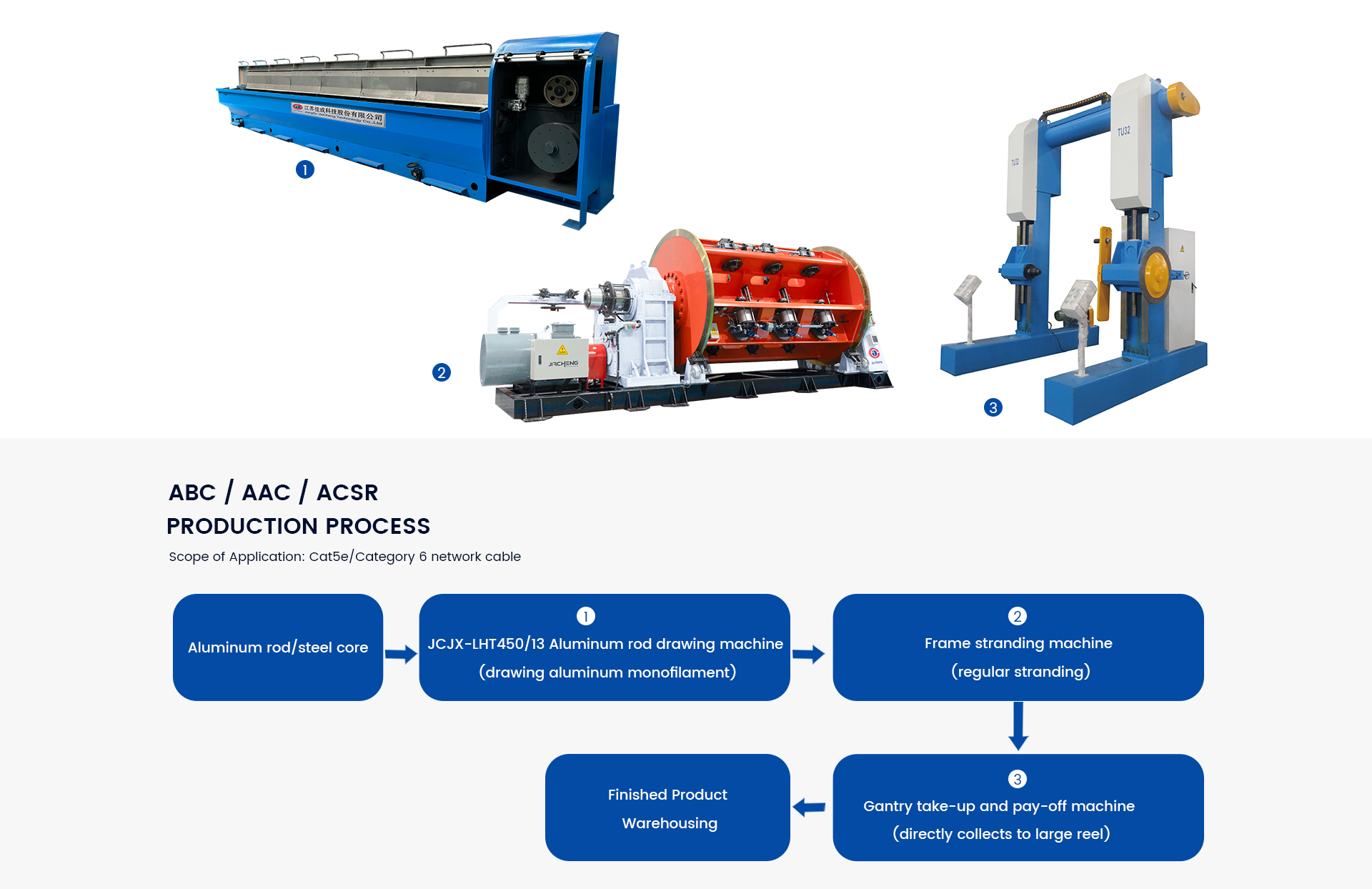

(2) Production equipment we provided

1) Drawing: 13-mode aluminium/aluminium alloy large draw

2) Ageing treatment: 40-station single door single trolley ageing furnace

3) Conductor stranding: 630/1+6 tube stranding machine, 630/1+6+12 frame stranding machine

4) Insulation extrusion: 90 extrusion line

5) Cable formation: 1600/1+5 bow-forming cable

6) Rewinding: 1600 rewinding line

(3) Testing equipment we provided

1) Vernier calipers

2) Micrometer

3) Cable diameter ruler

4) Wall thickness projector

5) Digital bridge + bridge fixture

6) Handheld resistance tester

7) AC withstand voltage tester (50kVA/5.0kV)

8) Insulation resistance tester

9) Constant temperature water tank

10) Natural air exchange aging test chamber

11) Specimen slicer and dumbbell knife mould

12) Slicing machine for specimen

13) Double-headed grinding machine

14) Tension testing machine (5kN)

15) Heat extension test device

(4) Auxiliary equipment we provided

1) Air compressor (37kW, 0.8MPa)

2) DST-200L cooling tower (100m3/h)

3) Tie head threading machine

4) Water pump, oil pump

5) Plate type heat exchanger (22m2)

6) LT-100 aluminium powder separator

7) UN-2 butt welding machine (aluminum/aluminum alloy wire: 1.0mm-4.0mm)

8) UN-45 butt welder (aluminium/aluminium alloy wire: 5.0mm-13.0mm)

9) Die: wire drawing die, stranding die, extrusion die

10) Wire reels (630 double layer high speed wire reels, 1250 corrugated wire reels, 1600 corrugated wire reels, 2000 corrugated wire reels) etc.

In addition to providing the above equipment, we can also provide technical services, including project schedules, production processes, equipment installation and commissioning, operational training, advice on the use of materials and the whole turnkey project. In other words, from the raw material to the finished product, the customer saves a lot of time, energy and financial resources to choose the equipment and understand the process. All production processes and equipment selection are based on the actual production experience of more than 7000 cable factories in China. At the same time our equipment is of high quality and is used by large international cable factories such as NEXAN, Prysmian, Dordg, Elsewedy, Fukuta, etc. While ensuring high quality, China's large industrial system reduces costs and the cables produced by our equipment are competitively priced in the market, which is a prerequisite for our customers' rapid development. This is a prerequisite for our customers' high growth.
