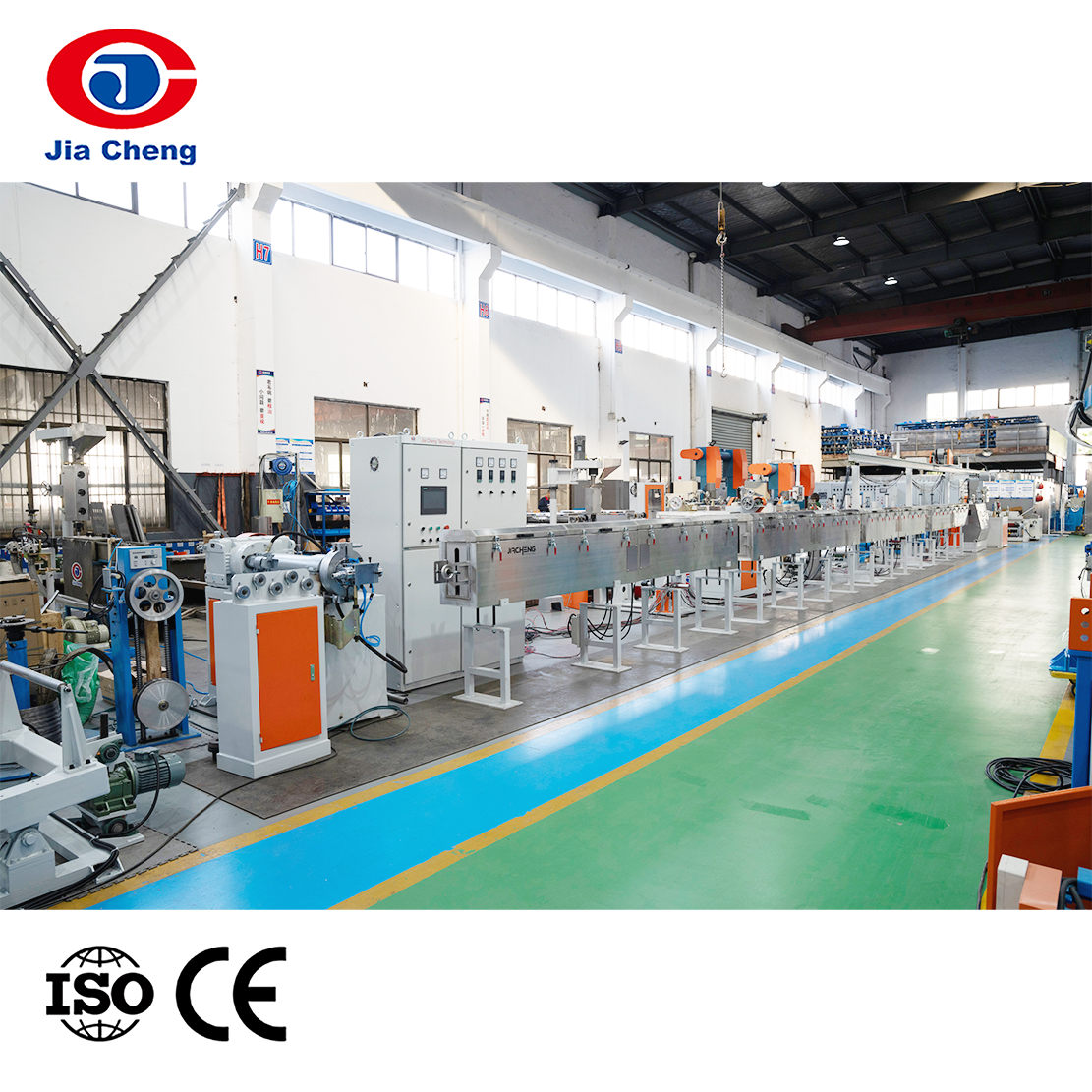

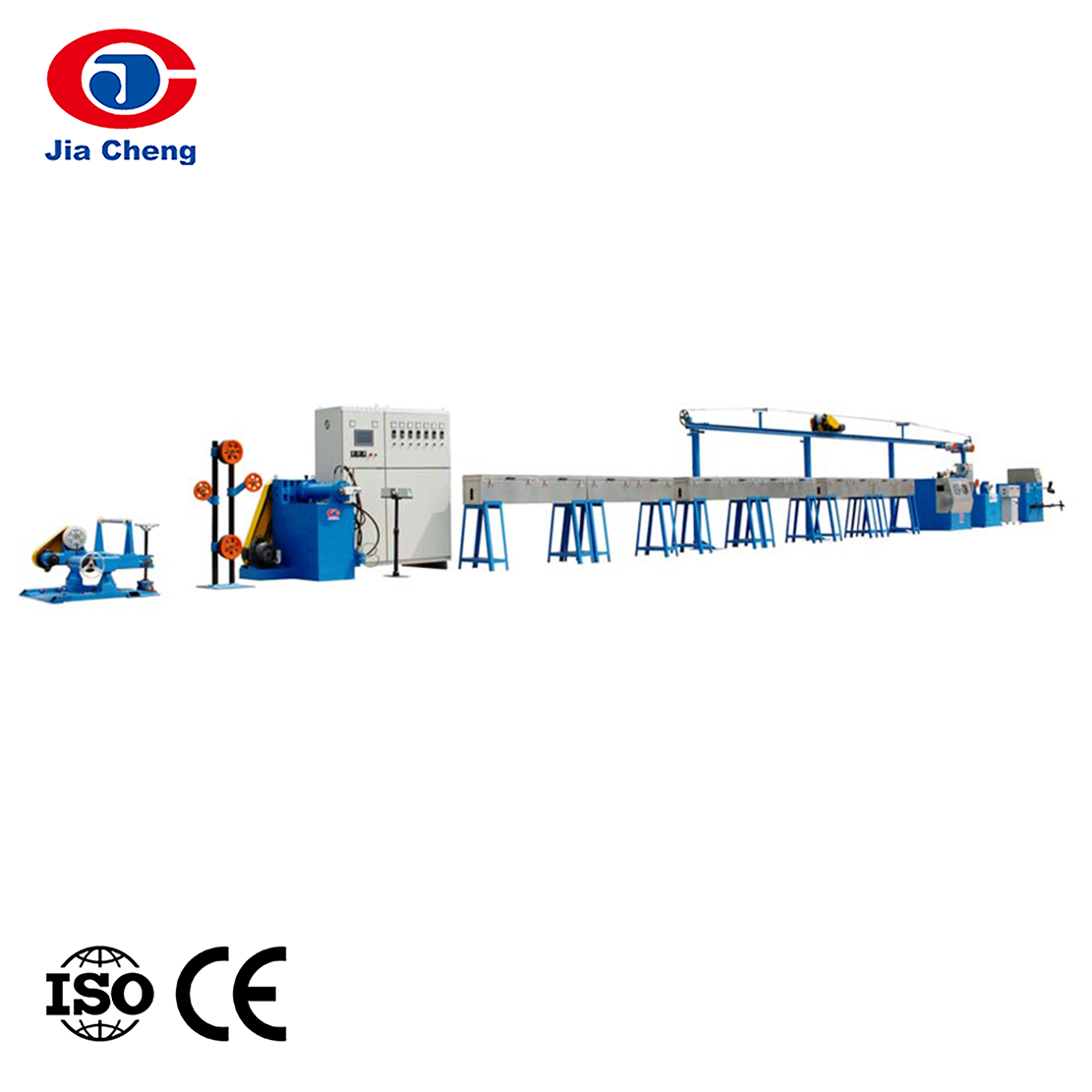

Applying to all kinds of high temperature silicone rubber cable and high temperature sheaths.
Main feature:

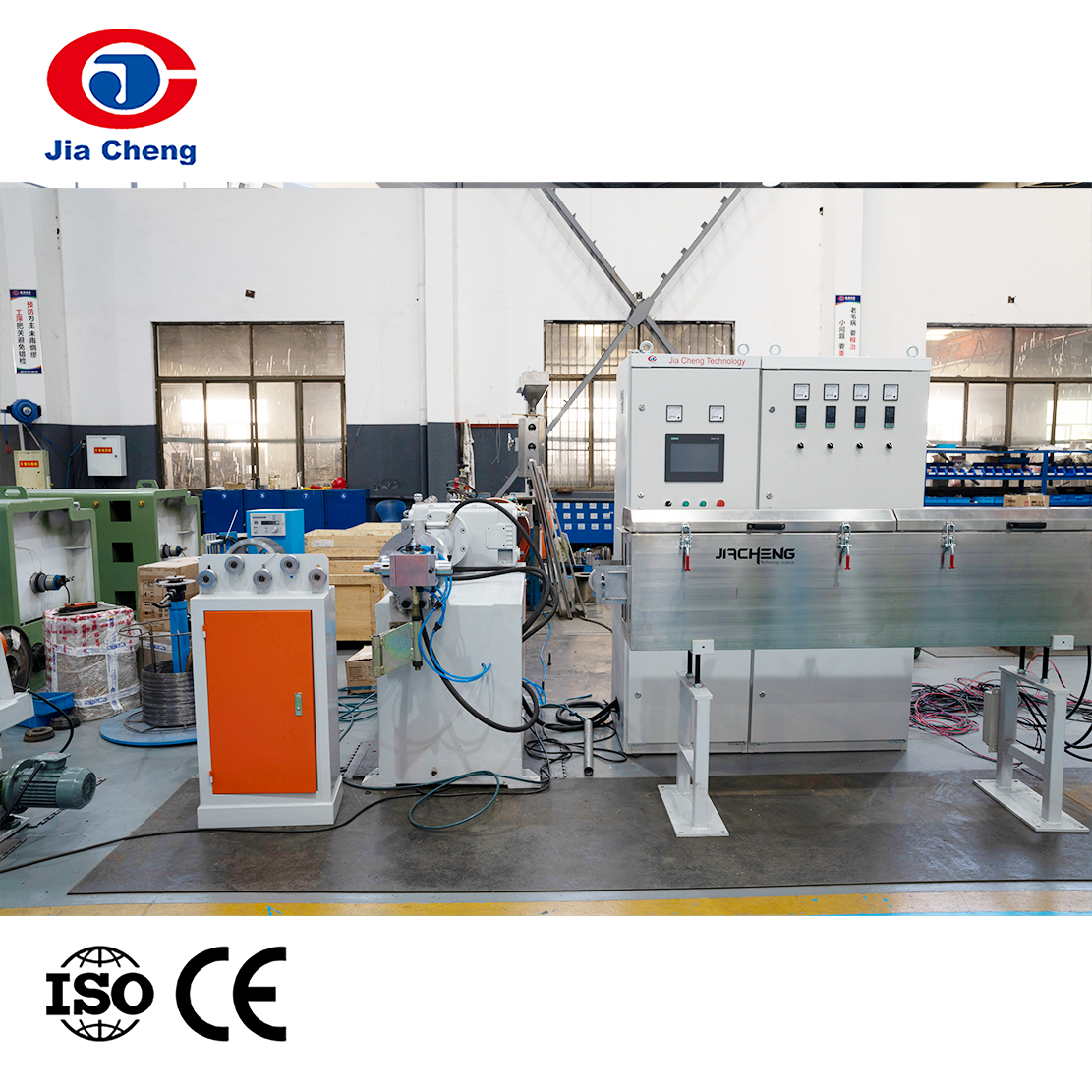

1. PLC+ Touch screen control, adjusting and monitoring parameters of the whole production line.
2. Silicone rubber used screw and barrel, crosshead and dies to prevent inner vulcanization.
3. Silicone rubber used, avoiding adjusting the die-head, water cooling system, automatic control, or manual control.
4. With a precision testing feedback system to ensure accurate wire diameter, so as to reduce cost.
Specification：
|
Model |
JCJX-45 |
JCJX-70 |
JCJX-90 |
JCJX-120 |
|
Main machine power(kw) |
11 |
22 |
37 |
45 |
|
Extrusion capacity(kg/h) |
30 |
80 |
135 |
260 |
|
Screw diameter(mm) |
Φ45 |
Φ70 |
Φ90 |
Φ120 |
|
Screw L/D ratio |
12:1 |
14:1 |
14：1 |
14:1 |
|

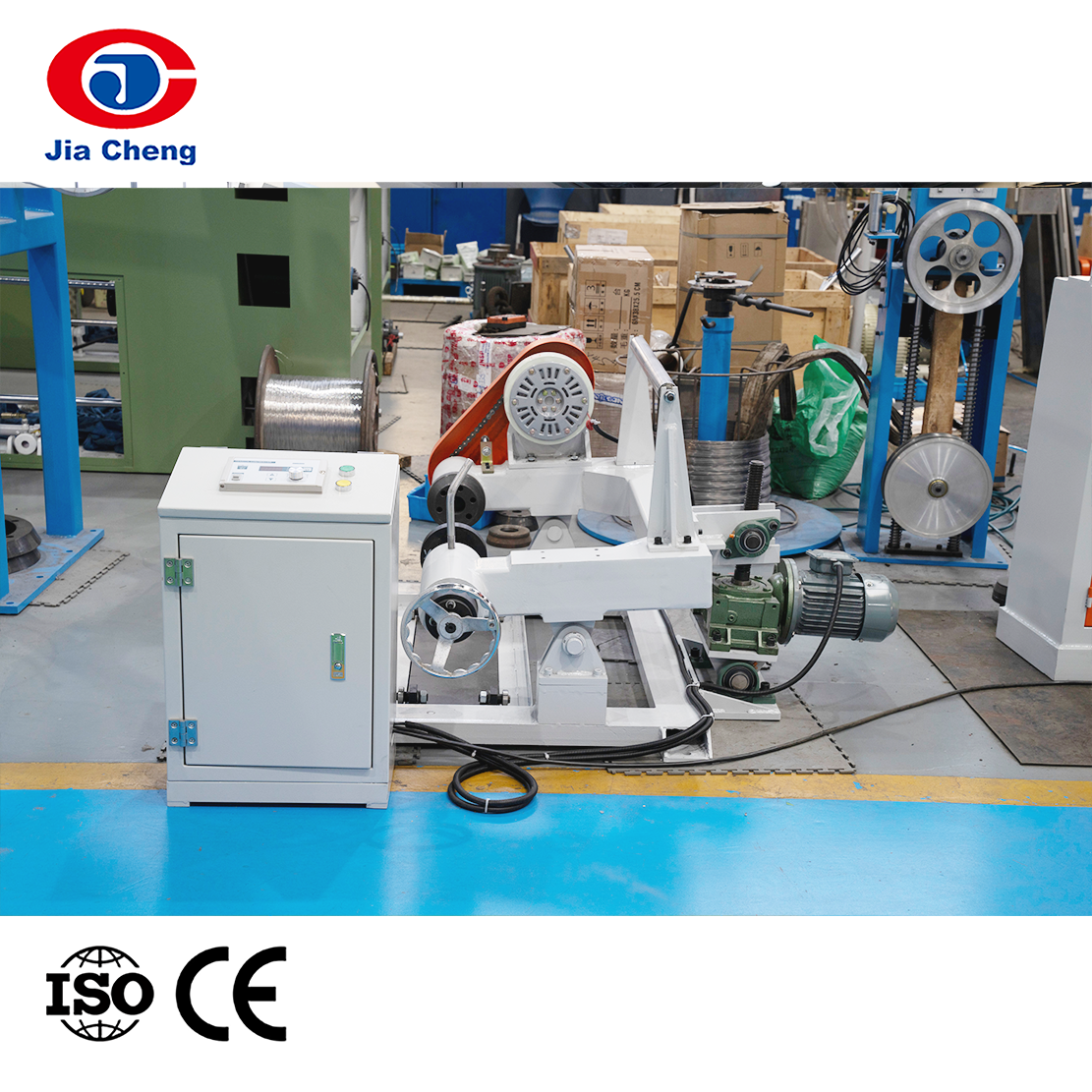

Pay-off bobbin size(mm) |
Φ300-Ø400 |
Φ400-Ø630 |
Φ400-Φ630 |
Φ1000-Φ1200 |
|
Conductor sizes(mm) |
Φ0.2-Φ3.0 |
Φ1.5-Φ6.0 |
Φ2.1-Φ10 |
Φ5.0-Φ15 |
|
Finished cable sizes(mm) |
Φ0.8-Φ5.0 |
Φ1.8-Φ8.0 |
Φ3.0-Ø12 |
Φ8.0-Φ20 |
|

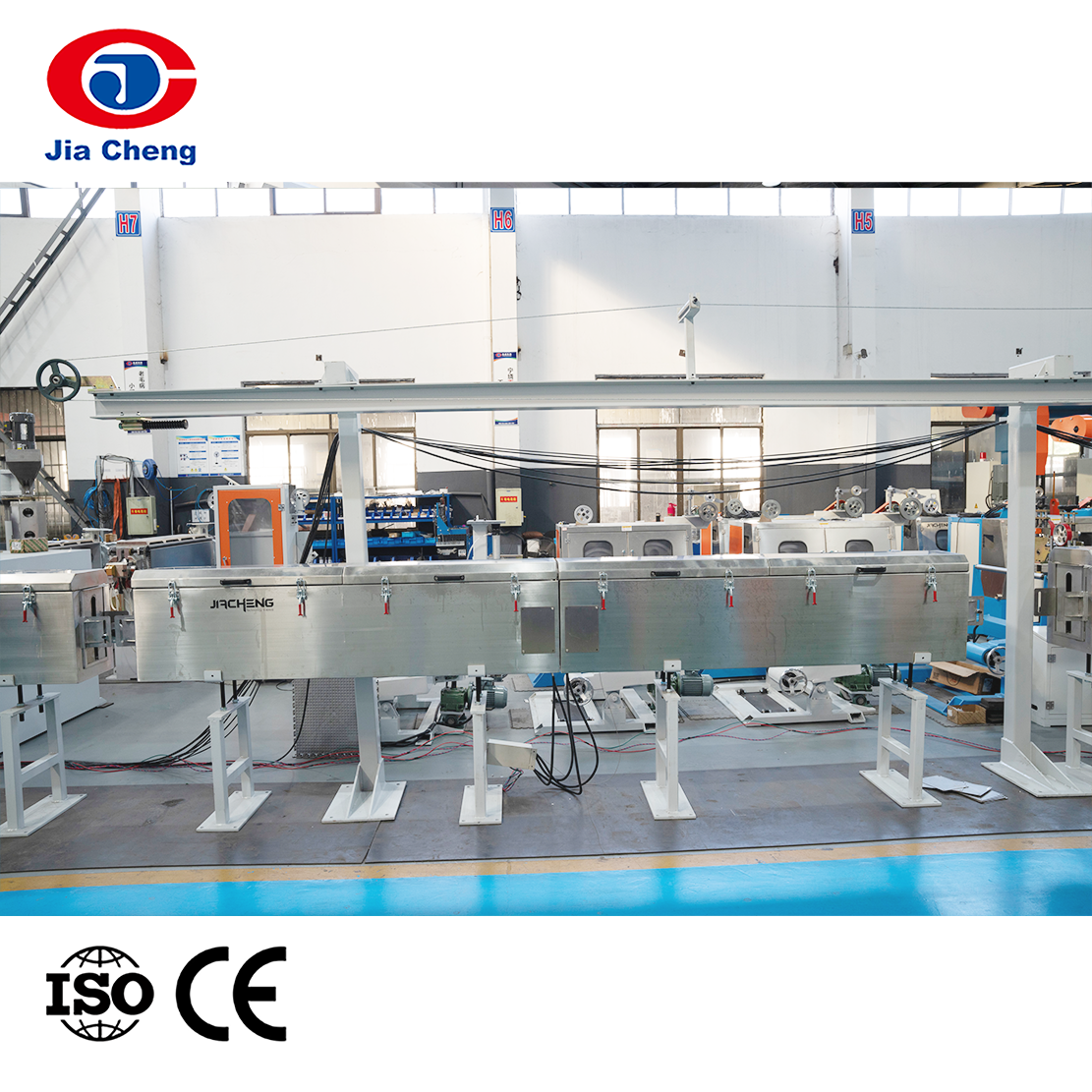

Vulcanization tank length(m) |
12 |
16 |
24 |
24 |
|
Heating power |
Section 36kw |
Section 48kw |
Section 72kw |
Section 84kw |
|
Traction motor(kw) |
2.2 |
4 |
7.5 |
11 |
|
Production speed(m/min) |
10-200 |
10-200 |
4-40 |
4-40 |
|

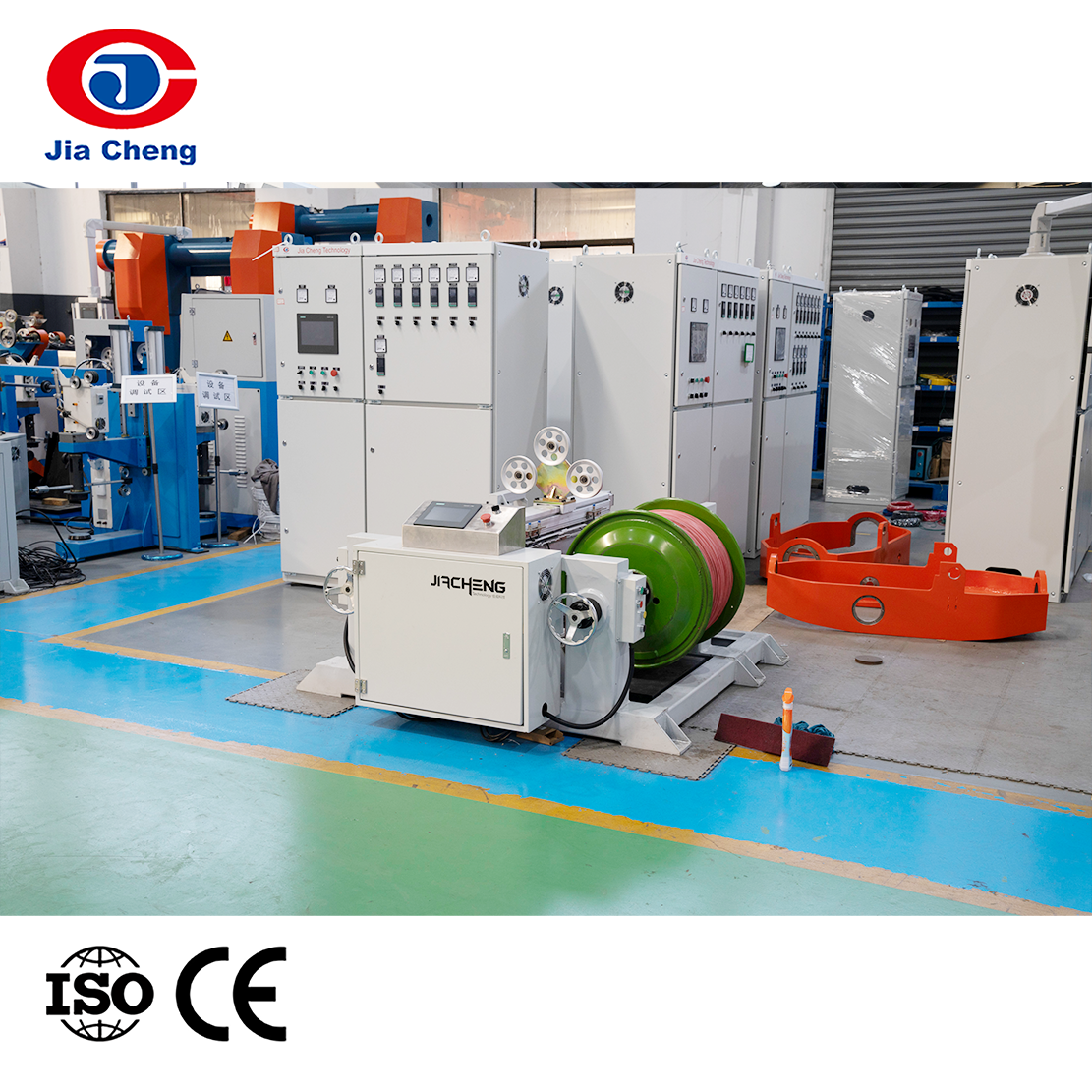

Take-up bobbin sizes(mm) |
Φ400-500 |
Φ400-630 |
Φ1250-1600 |
Φ1250-2000 |
