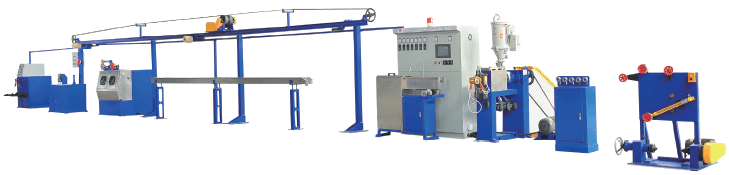

Extremely fine teflon cable extrusion production line

Product Introduction

The Teflon cable extruder machine is a high-end equipment designed specifically for the production of PTFE cables. This extruder, with precise process control, converts polytetrafluoroethylene raw materials into high-quality cable insulation layers or sheaths, meeting the strict requirements of various industries for high-performance cables.

PREV：High Speed Cross-Linked Extrusion Production Line NEXT：Chemical Foaming Cable Extrusion Line

Feature
Specification

Suitable for FEP (gather the whole fluorine B propylene, also called F46), FPA, and ETFE (also called 40) fluorplastic production .

Feature:
Screw cylinder: Adopt the new steel No.3 GH113 (with the American GDA material), able to bear the high temperature corrosion.
Aircraft nose: Adopt the new steel No.3 GH113 material, a special-purpose avoids aircraft nose or adjusting the aircraft nose.
Heats up system: Suitable to able to bear the high-temperature copper alloy.
Quality control: Provides the outer diameter detection feedback device, controls the product's outside diameter, and concentric limit.etc craft parameter.
Electrical control: Import conversion + touch screen to control.

Type	JCJX-15		JCJX-20	JCJX-25	JCJX-30
Core diameter (mm)	AWG46-40		AWG42-36	AWG40-32	AWG40.5-3.0
Screw length/diameter	25:1		25:1	25:1	25:1
Temperature control	3+2		3+2	3+2	3+2
Heating power	5		6	8	12
Main servo motor(kw)	3		3	4	5
Traction servo motor(kw)	1.3		1.3	1.3	2
Max extrusion capacity(kg/h)	2.5		5	8	13
Max line speed(m/min)	150		180	180	180
Accumulate length (m)	100		100	100	100
Pay-off	Shaft active pay-off, with tension indicating, wire breaking protection
Take-up	Double shaft take-up, 1.5 kw motor with inverter control
Size (m)	8×1.2×2.1	8×1.4×2.1		9×1.6×2.1	12×1.8×2.1
Weight (T)	3	3.5		4	5

High temperature Teflon electronic wire extruding machine

Type	JCJX-40		JCJX-45	JCJX-50	JCJX-65
Core diameter (mm)	Φ0.8-Φ2.5		Φ1.0-Φ3.0	Φ1.5-Φ5.0	Φ2.0-Φ8.0
Screw length/diameter	25:1		25:1	25:1	25:1
Temperature control	4+2
Heating power(kw)	15		18	18	25
Main servo motor(kw)	11		11	11	25
Traction servo motor(kw)	2.2		2.2	3.7	3.7
Max extrusion capacity(kg/h)	30		35	45	100
Max line speed(m/min)	180		180	180	180
Pay-off	Shaft active pay-off 300-500
Take-up	400-630 shaft take-up machine with motor: 3kw+inverter+screw traversing
Size (m)	20×1.5×2.1	20×1.6×2.1		20×1.7×2.1	20×2.5×2.1
Weight (T)	7	7.5		8	9.5
