Chemical Foaming Cable Extrusion Line

Product Introduction

The Chemical Foaming Cable Extruder Machine is an advanced equipment specifically designed for producing chemical foamed cables. The amount of foaming agent and foaming process can be precisely controlled, and the produced cable insulation layer has fine, uniform, and independent bubbles. The bubble diameter can be precisely controlled within a very small range. This not only effectively reduces the dielectric constant of the cable, improves signal transmission performance, but also enhances the flexibility and buffering performance of the cable.

PREV：Extremely fine teflon cable extrusion production line NEXT：Physical Foaming Cable Extrusion Line

Feature
Specification

Application:
Applying to all kinds of high-frequency cables, communication cables, data cables, coaxial cables, RF(radio-frequency)cables, RG, and other core wires, double co-extrusion chemical foam core wire extrusion.

Feature:
Complete machinery composition:

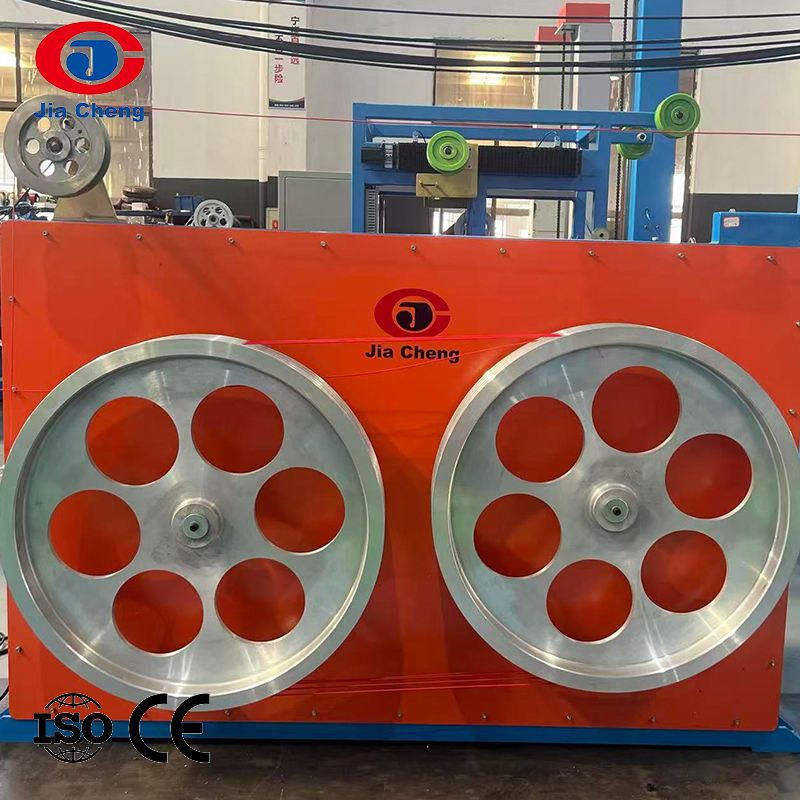

pay-off, preheating unit, main machine, double color machine, thermostatic sink, 10m fixed sink,haul-off, accumulator, capacitance in water, and take-up.

Specification：

Type	JCJX-40+30	JCJX-45+35	JCJX-50+35	JCJX-55+40
Screw L/D Ratio	28:1
Screw compression ratio	2.7-3.2
Extrusion Material	PE/PP/PU
Main machine power	7.5KW	11KW	11KW	15KW
Injection machine power	2.2KW	2.2KW	2.2KW	5.5KW
Haul-off power	2.2KW	3KW	3KW	3KW
Heating power	6KW	8KW	11KW	15KW
Max. Extrusion Output(kg/h）	30	40	50	60
Max. Line speed(m/min)	400	500	500	500

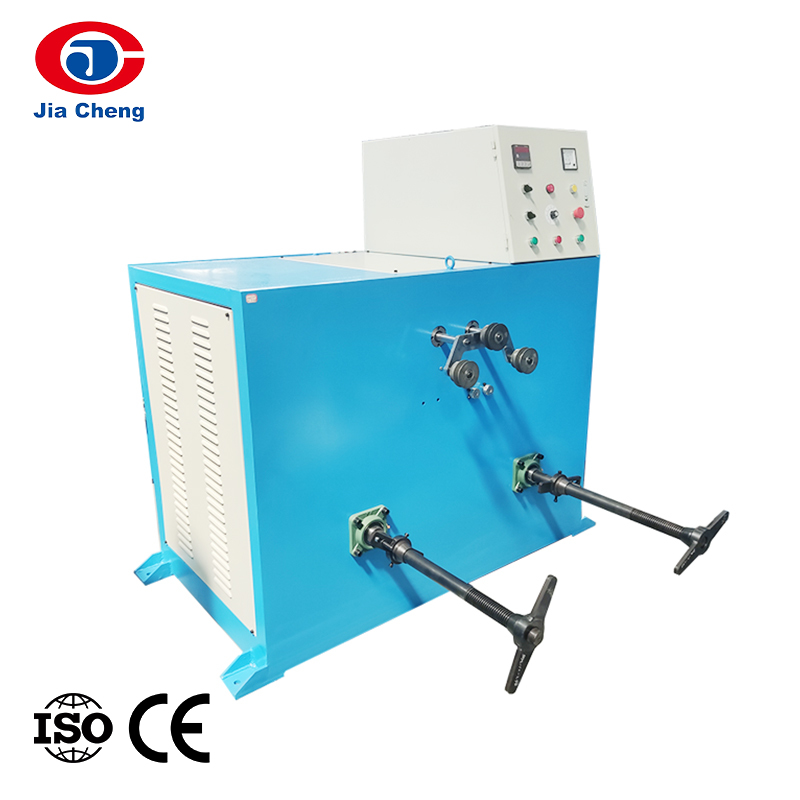

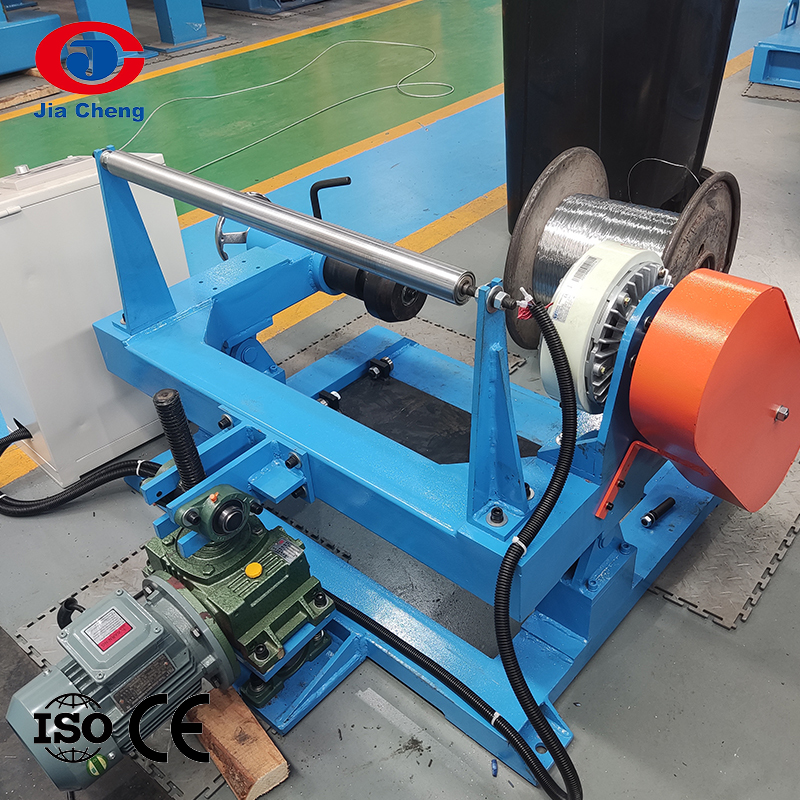

Pay-off	Φ300-500 Shaftless Passive Type Pay-off
Take-off	Φ400-630 Shaft Active Type Take-up 3kw Inverter Motor
Insulated Dia.(mm)	Φ0.2-2.5	Φ0.6-3.0	φ0.6-5.0	Φ0.6-6.0
Complete Machine size(m)	201.52.1	201.62.1	201.72.1	201.82.1
Weight(T)	8	8.5	9	10.5
Electric Control	Frequency control, Touch Screen PLC Full Automatic Control
