Data Cable

Product Overview

Project	Content
Product Name	Data Cable (Network Cable)
One-sentence positioning	Precision data cables that meet the requirements of high-speed data transmission are suitable for structured cabling systems.
Product Category	Category 5e (Super 5) / Category 6 (Cat.6)
Frequency range	100MHz – 250MHz
Transmission rate	1000Mbps (Category 5e) / 1000Mbps+ (Category 6)
Implementation Standards	TIA-568-C.2、ISO/IEC 11801、GB/T 18015
Features	Stable transmission performance, strong anti-interference ability, low insertion loss, and excellent return loss.

Application Scenarios

Serial Number	Application scenarios	illustrate
1	Structured cabling system	Structured cabling for office buildings, residences, schools and other buildings
2	Data center network	Horizontal and backbone connections between server racks
3	Intelligent building information network	Integrated transmission of voice, data, and video in smart buildings
4	5G base station connection	Data connection between 5G base station equipment and control room

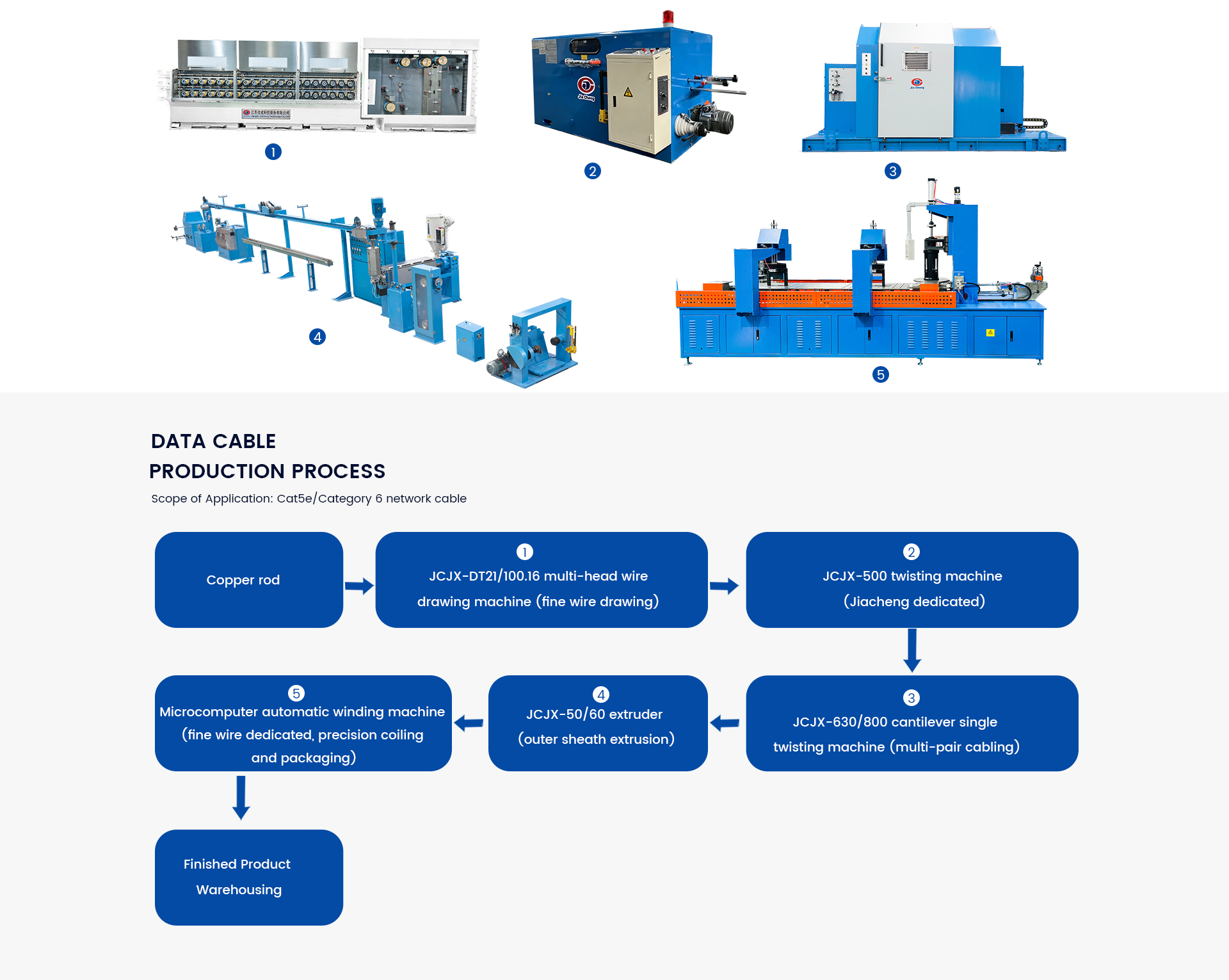

Product Manufacturing Process

Data-Cable

The Turnkey Project Service

The following is an overview of the “turnkey project” provided by LINT TOP for a new data cable factory in North Africa in 2021.

(1)Cable product information
1)Reference standard: EN50173
2)Product model: CAT.6（U/UTP、F/UTP）、CAT.6A（U/UTP、F/UTP）

(2)The production equipment we provide
1)Drawing, annealing, preheating, solid insulation tandem extrusion production line

2）LT-500 horizontal pair twisting machine with backtwist

3)LT-800 single twist cabling line(including cross frame pay-off stand, ground wire pay-off stand)

4)LT-65 sheathing extrusion machine

5)Reel packaging machine

(3)The test equipment we provide
1)Vernier caliper
2)Micrometer
3)Wall thickness projector
4)Tensile testing machine
5)Natural ventilation aging test chamber
6)Bundle combustion tester
7)Smoke density testing machine
8)multimeter
9)Network analyzer

10)FLUKE

(4)The auxiliary equipment we provide
1)Air compressor
2)Chiller
3)Water pump
4)Die: drawing die, pair twisting die, cabling die, extrusion die for tandem wire
5)Bobbin(500 plastic reel, 800 plastic reel, 1000 metal bobbin), etc.
In the past data cable turnkey projects, LINT TOP also provided customers with drawing, annealing, preheating, and foam insulation tandem line for the foam insulation production of CAT6A and CAT7. After actual testing by users, the performance of the finished product fully meets the requirements of data cable international standards.

We also provide the main raw materials and auxiliary materials for data cables such as foamed PE insulation material, aluminum foil Mylar tape, polyester tape, cross frame, tear rope, etc., which not only saves the cost of raw materials, but also effectively guarantees the stability of finished product performance.

While providing the above equipment and materials, we can also provide technical services, including the project schedule, production process, equipment installation and commissioning, operation training, material use suggestions and other entire turnkey projects. From raw materials to finished products, customers save a lot of time, energy and financial resources to select equipment and understand the process. All production technology and equipment selection are based on the actual production experience of more than 7,000 cable factories in China. At the same time, our equipment with high quality is selected by large international cable factories such as NEXAN, Prysmian, Dordg, Elsewedy, Fukuta, etc. While ensuring high quality, Chinese huge industrial system reduces costs. The price of the cable is competitive because it is produced by our equipment, which is a necessary condition for the rapid development of customers.
