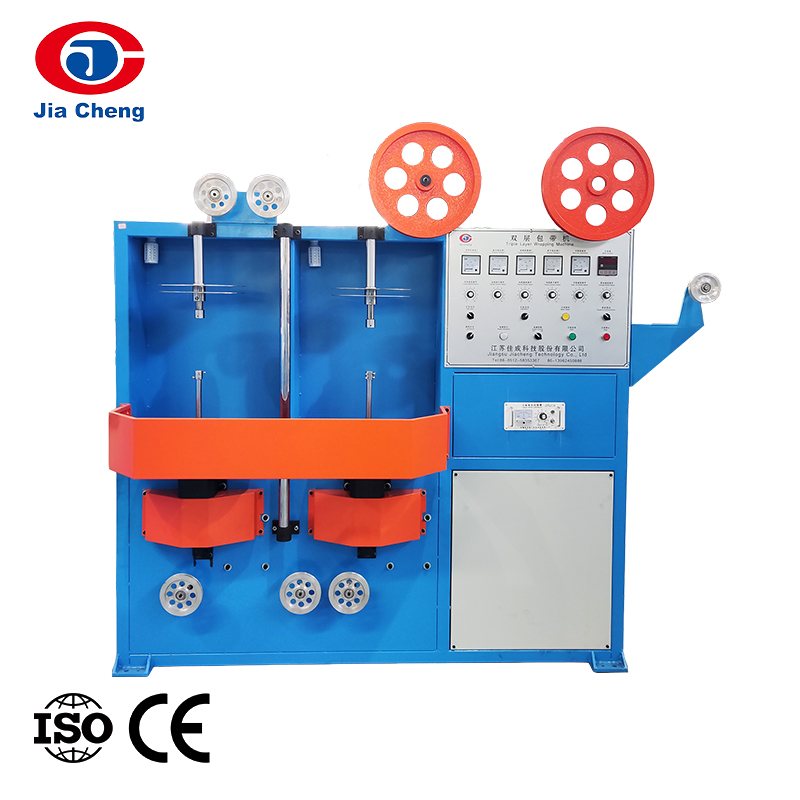

Double Layer And Multi Layer Wrapping Machine

Product Introduction

Applying to core wire, copper wire, polyester wrap, mica wrap, aluminum foil wrap, and transparent wrap. etc.

Components:
1. Single payoff. medium 400~medium 630mm: 1 set.
2. Paper wrapping main machine, 630mm single layer: 1 set.
3. Single take-up machine, medium 400~medium 630mm: 1 set.
Color and Direction: right-hand or left-hand machine, the customer can appoint the color.

PREV：Fully-Automatic Coiling And Packing Machine NEXT：Horizontal Concentric Type Cable Wrapping, Wrapping Machine For Mica Tap

Feature
Specification

Specification：

Model	JCJX-630	JCJX500-800 double	JCJX500-800 triple
Use	Copper wire or cable surface’s wrapping; For example: copper wrap, mica wrap, aluminum foil, polyester wrap, transparent wrap, myra wrap and non-woven, etc
Applicable Wire Dia.	ConductorΦ0.5mm-Φ3mm, The Core Of Φ0.9mm-Φ8mm
Applicable Wrapping Reel Dia.	Φ100mm-Φ280mm
Take-up Bobbin Dia. (mm)	Φ400- 630	Φ500-800	Φ500-800
Motor Power	Three-phase 380V, 1.5KW, Frequency Conversion Power Line, 16N.M
Wrapping Speed	2000r/min
Wrapping Tension	Homotaxial magnetic power break control	Adjustable spring friction hand
Take-up Tension	Torque Motor Control
