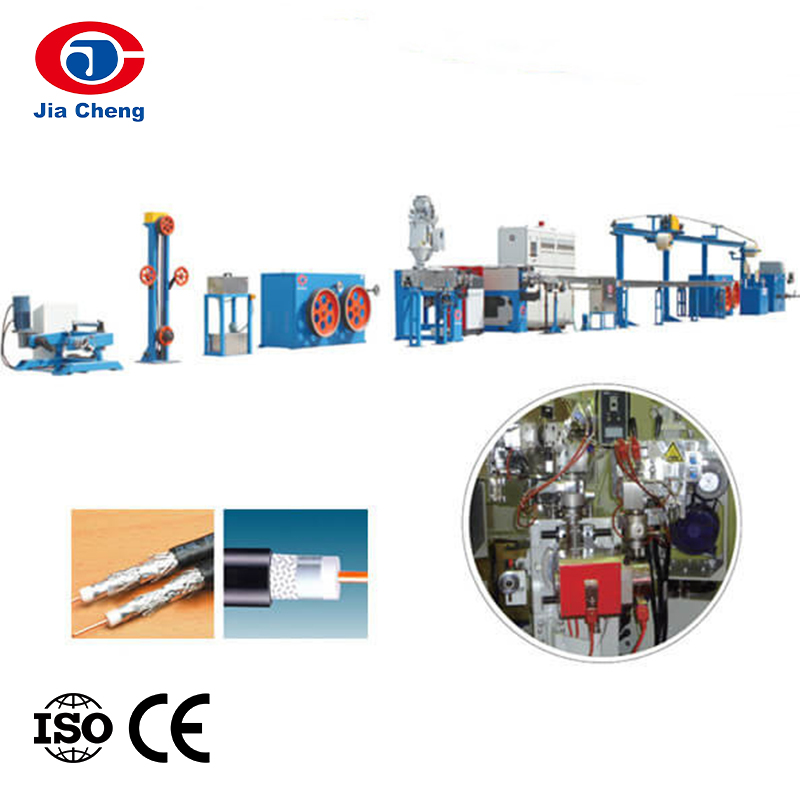

Physical Foaming Cable Extrusion Line

Product Introduction

The Physical Foaming Cable Extruder Machine uses physical methods to form a foamed structure in the insulation layer of the cable, effectively improving the electrical and physical properties of the cable and meeting the demand for high-performance cables in modern communication, power and other industries. Capable of producing cables of various specifications, ranging from thin communication cables to thick power cables. Widely used in the manufacturing of various communication cables, such as coaxial cables, Ethernet cables, fiber optic composite cables, etc.

PREV：Chemical Foaming Cable Extrusion Line NEXT：Silicone Rubber Cable Extrusion Production Line

Feature
Specification

Applying to all kinds of low-consumption wire extrusion, coax cable, communication cable, and transmission cable. such as IEEE 1394, CAT5, CAT6, DVI, ATA, UL29919 Foam wire.

Applying to material: FM-PE,PE.
Quality standard: industrial standard.
Foaming percentage: imported high-pressure nitrogen injection system;(MAX):82%;low-pressure nitrogen injection system;(MAX):75%.
Quality control: outer diameter test$capacitance detector, control the diameter and foaming during the whole process.
Crosshead: special physical foaming crosshead.
Electrical control: inverter with touch screen.
Selective: high-pressure nitrogen injection system or low-pressure nitrogen injection system.

Specification：

Model	JCJX-45+30	JCJX-65+35	JCJX-90+35
Pay off bobbin dia.(mm)	Active or passive pay off
Pay off bobbin dia.(mm)	Φ400-500	Φ500-630	Φ800-1000
Single wire diameter(mm)	0.4-1.0	0.8-2.0	1.0-5.0
Dia. Of insulation wire(mm)	1.5-5.0	3.0-14.0	5.0-45.0
Screw diameter	Φ45	Φ65	Φ90
Screw L: D	34:1 special-use screw	36:1 special-use screw
Extrusion capacity (kg/h)	30	60	150
Main motor	15HP	30HP	60HP
Cooling length(m)	25	36	45
Haul-off wheel dia.(mm)	Φ630	Φ800	Φ1000
Haul-off power	Double haul-off 5HP		Double haul-off 7.5HP
line speed(m/min)	10-180	10-150	10-100
Taking up type	Double spools
Taking up bobbin dia.(mm)	Φ500-630	Φ630-800	Φ800-1000
Electricity control	Inverter +PLC touch screen（optional）
