Annealing Machine

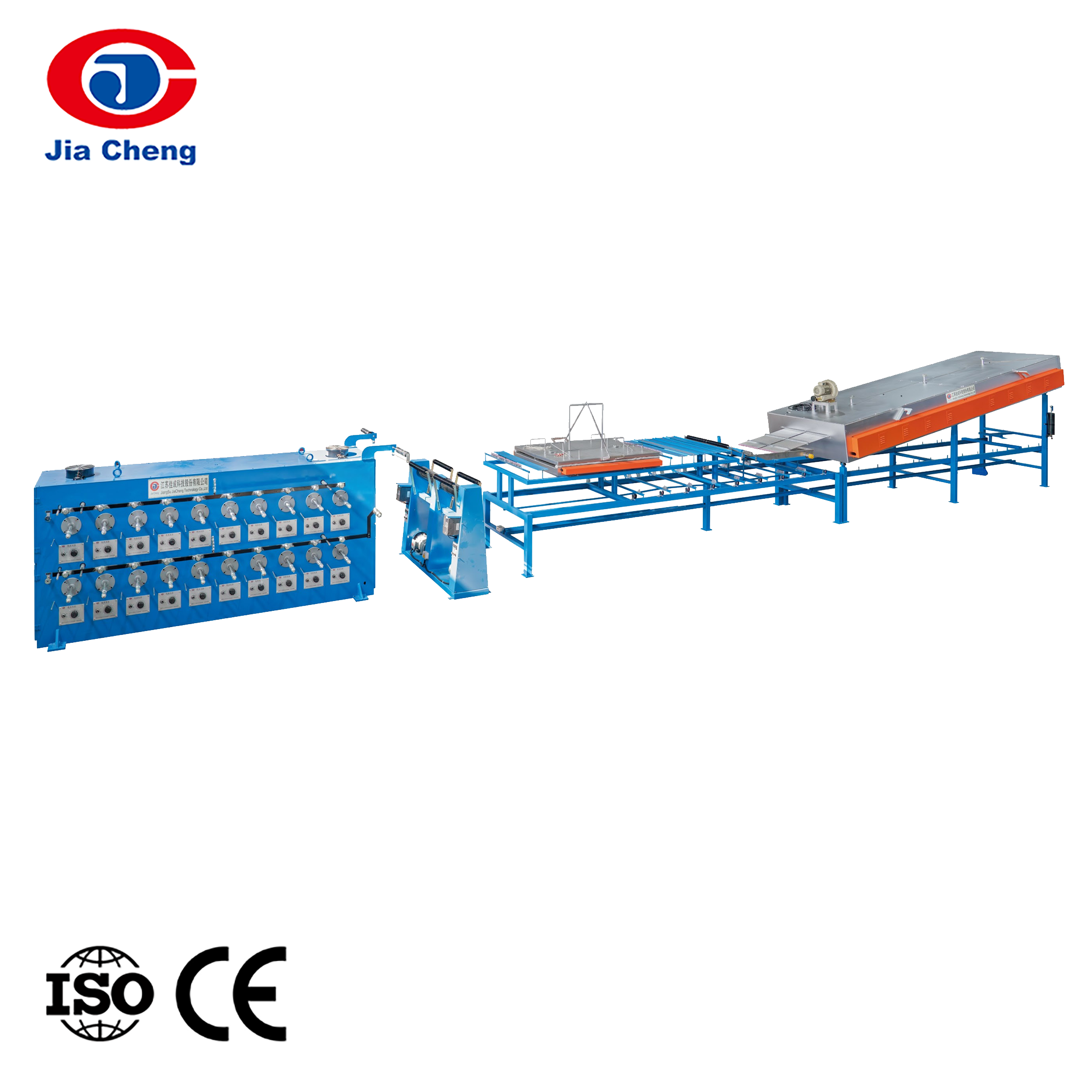

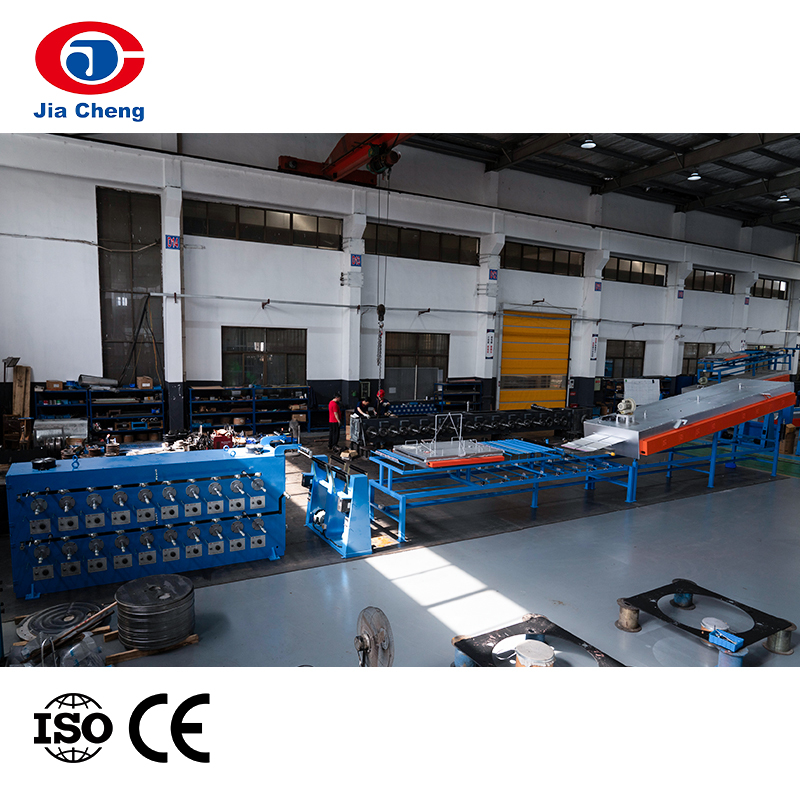

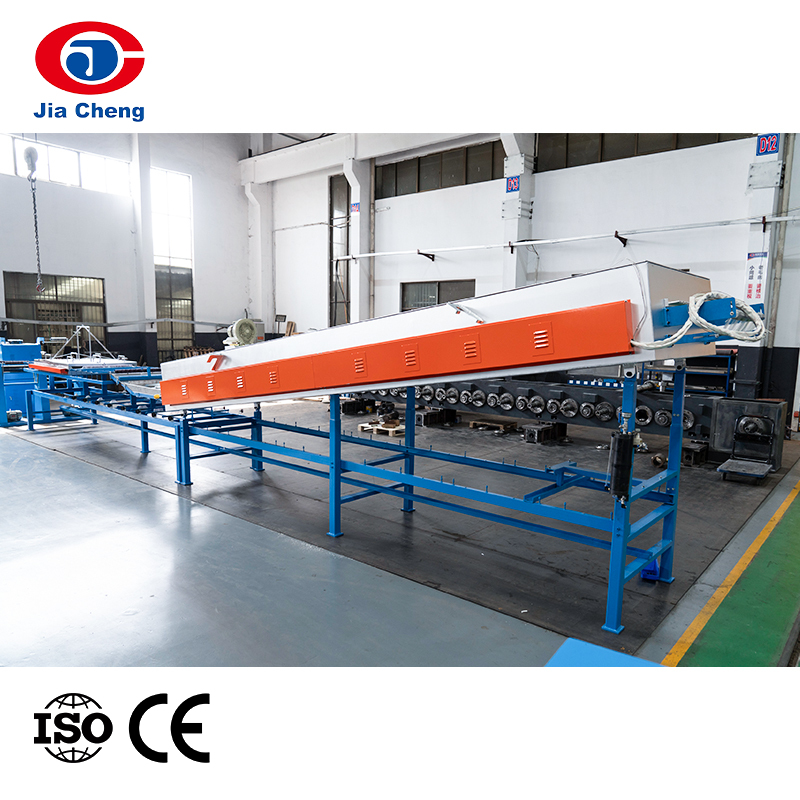

Offline Annealing and Tin-coating Machine

Product Introduction

Offline Annealing and Tin Machine is an advanced equipment specifically designed for offline annealing and tin plating processes. It uses advanced tin plating technology to ensure a uniform layer of tin is deposited on the metal surface, forming a good protective layer and conductive layer. Tin plating can enhance the corrosion resistance of metals and improve their weldability, providing convenience for subsequent processing and use.

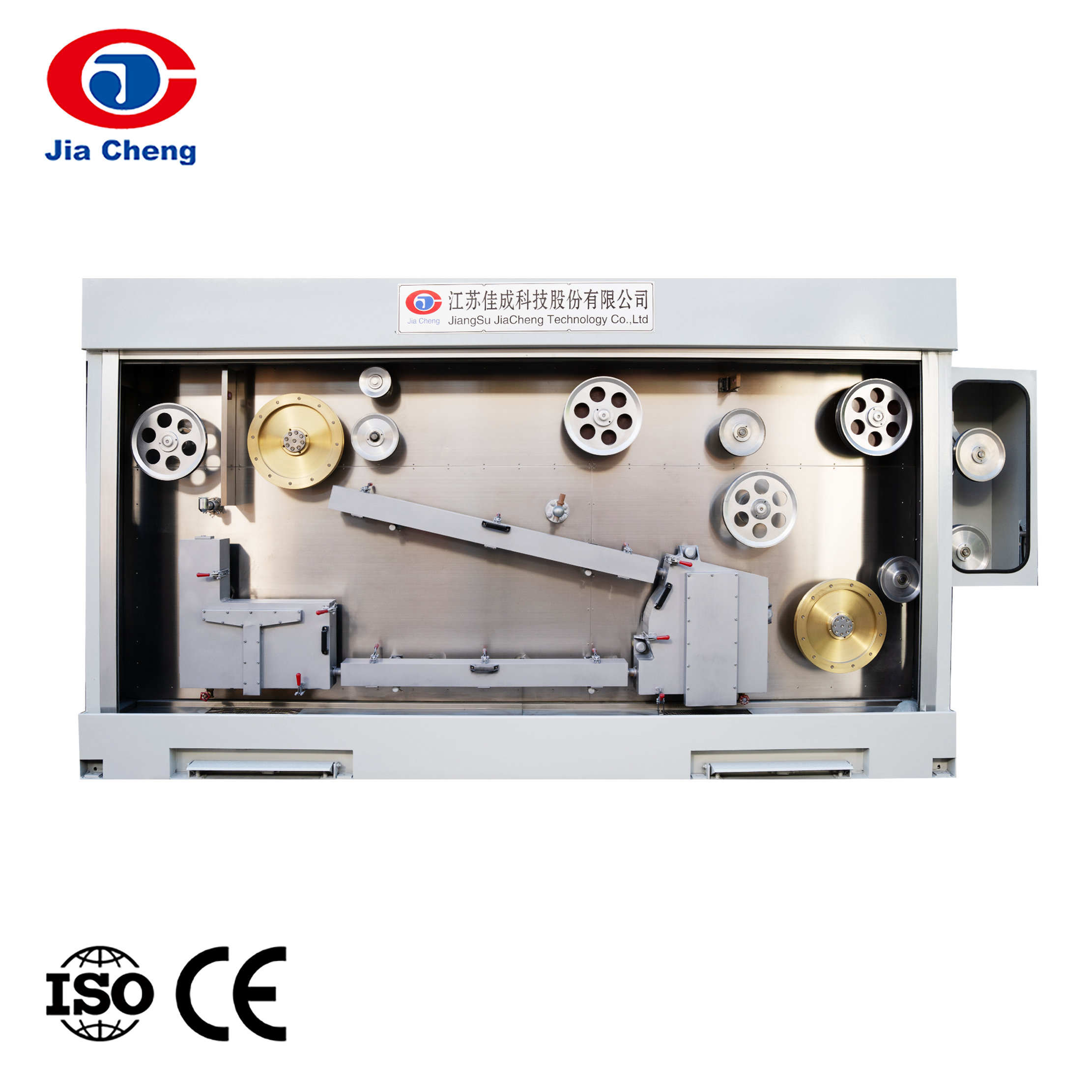

PREV：Online Annealing Machine NEXT：No next article

Feature
Specification

1. It is used for annealing and tinning copper wire from 0.1 mm to 0.7 mm.
2. Add one room inside the annealer can make the temperature distribution.

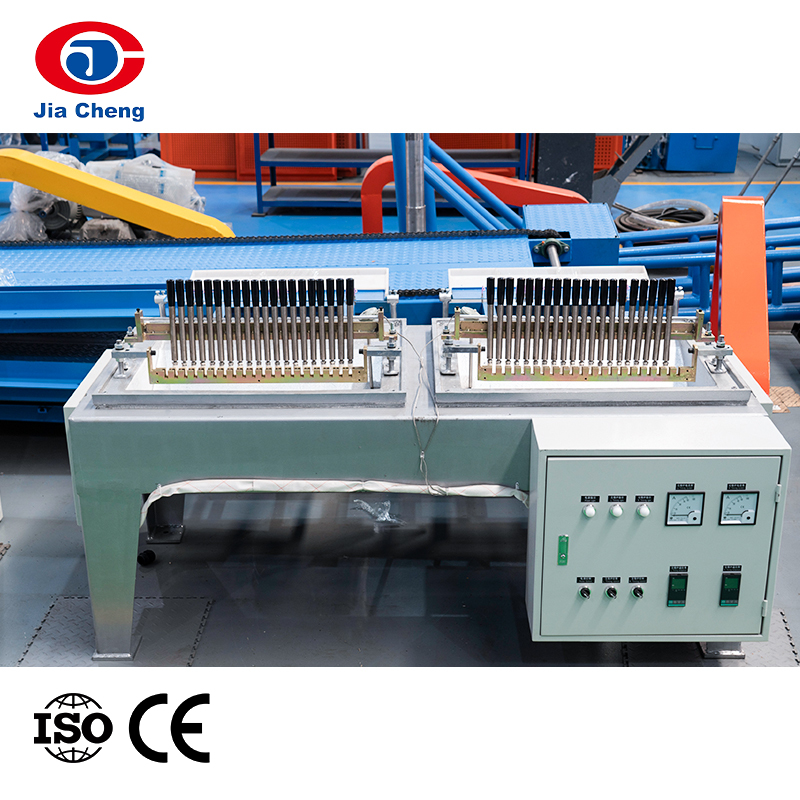

3. Dual tinning tank design, which can produce two kinds of tin-coated copper wire at the same time.

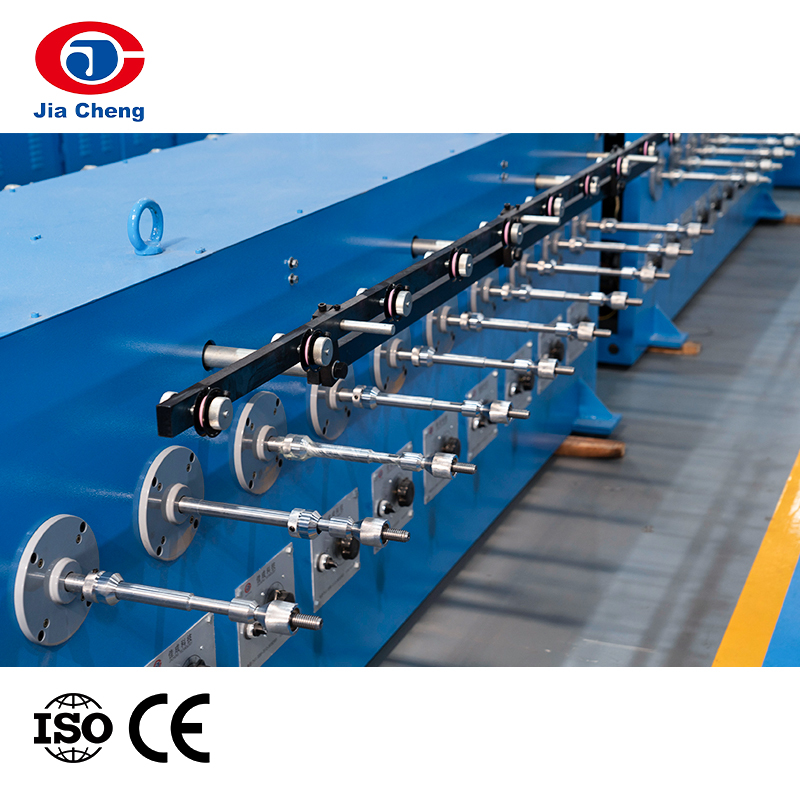

4. Spooler arranged in a double layer can save space. 5.It is energy-saving(good heat preservation effect) and high efficiency(low maintenance rate).

Usage:
This kind of machine is special for annealing and tinning 40 copper wires, CCA wire, and Al-mg wire at the same time.

Specification：

Machine Type	JCJX-12H	JCJX-32H/3.5	JCJX-40H/4.5	JCJX-40H/6	JCJX-40H/7.5
No. of wire	12	32	40	40	40
Wire Dia.(mm)	Φ0.35-Φ1.05	Φ0.038-Φ0.08	Φ0.08-Φ0.32	Φ0.10-Φ0.65	Φ0.1-Φ0.7
Pay-off type	Overhead	Brush		Brush or overhead
Max.speed(m/min)	100	300	300
Annealing type	/	Radiation heating+ water seal protection
Tinning type	Hot coating	Hot coating
Pay off bobbin	Φ300--Φ630	Φ250	Φ300
Take-up type	Coiling type	Motor+ Inverter control
Total power(kw)	20	50	50	65	75
Take-up bobbin size	Φ300Φ150Φ365	4”-5”	5”-8”	5”-10”	5”-10”
