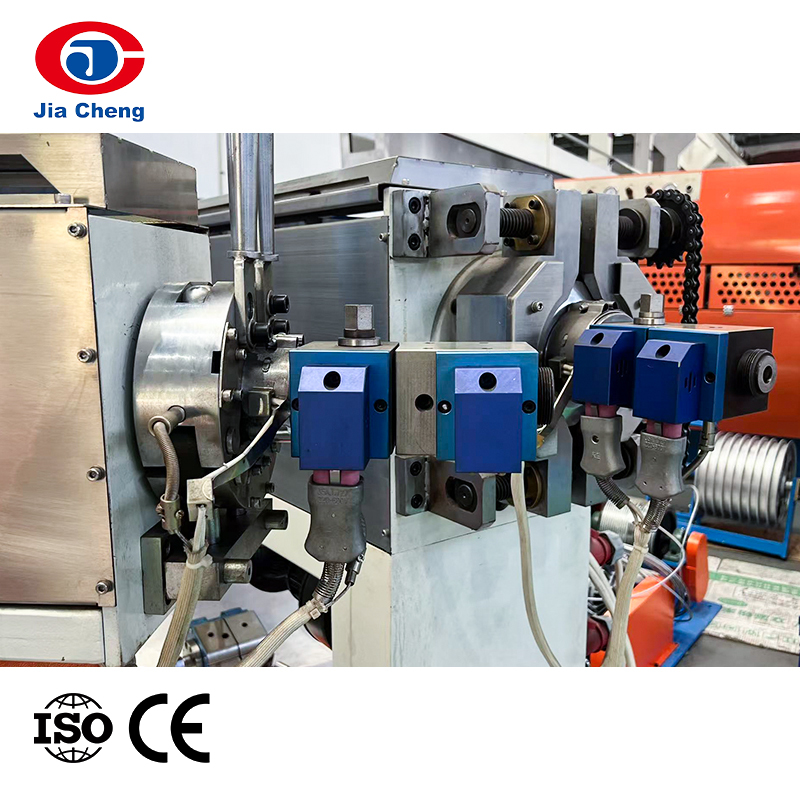

Double Triple Layers Co-Extrusion Production Line

Product Introduction

Double- and triple-layer co-extrusion production lines are comprehensive production equipment designed to meet the high-performance and special structure wire and cable needs of various industries. It integrates advanced mechanical, electrical, temperature control, and automation control technologies, and can accurately manufacture special cables with double-layer or three-layer different materials and functional combinations.

PREV：Silicone Rubber Cable Extrusion Production Line NEXT：High Speed Wire Insulation Production Line

Feature
Specification

Apply to all kinds of nylon sheath, low-smoke zero halogen cables, and all kinds of data transmission cables. car lines extrusion.

Specification：

Type	Srew		Extrusion Output	Finished Dia.	Pay-off	Haul-off	Accumulator length(m)	Take-up	Line Speed(m/min)
	L/D Ratio	Dia.(mm)			Bobbin Size(mm)	Type		Bobbin Dia.(mm)
JCJX- Ø20	25:1	Φ20	11	0.12	200/300	Belt Clamp	200	250/300	10-600
JCJX- Ø30		Φ30	38	0.2-1	300/400	Capstan	220	400/500	10-600
JCJX- Ø40		Φ40	50	0.4-3	300/500	Capstan	220	400/630	10-600
JCJX- Ø50		Φ50	70	0.8-5	400/630	Capstan	220	400/630	10-600
JCJX- Ø60		Φ60	80	1-8	500/630	Capstan	220	630	10-500
JCJX- Ø70		Φ70	135	2-15	500/630	Capstan	220	630/800	10-500
JCJX- Ø80		Φ80	180	3-20	500/630	Capstan	220	630/800	10-500
JCJX- Ø90		Φ90	230	5-30	800/1250	Capstan/ Caterpillar	220	1500/2000	10-250
JCJX- Ø100		Φ100	280	8-40	1250/2000	Capstan/ Caterpillar	220	1500/2000	10-100
JCJX- Ø120		Φ120	400	15-45	1500/2500	Caterpillar		2000/2500	10-100
JCJX- Ø150		Φ150	600	20-80	1500/2500	Caterpillar		2000/3000	6-60
