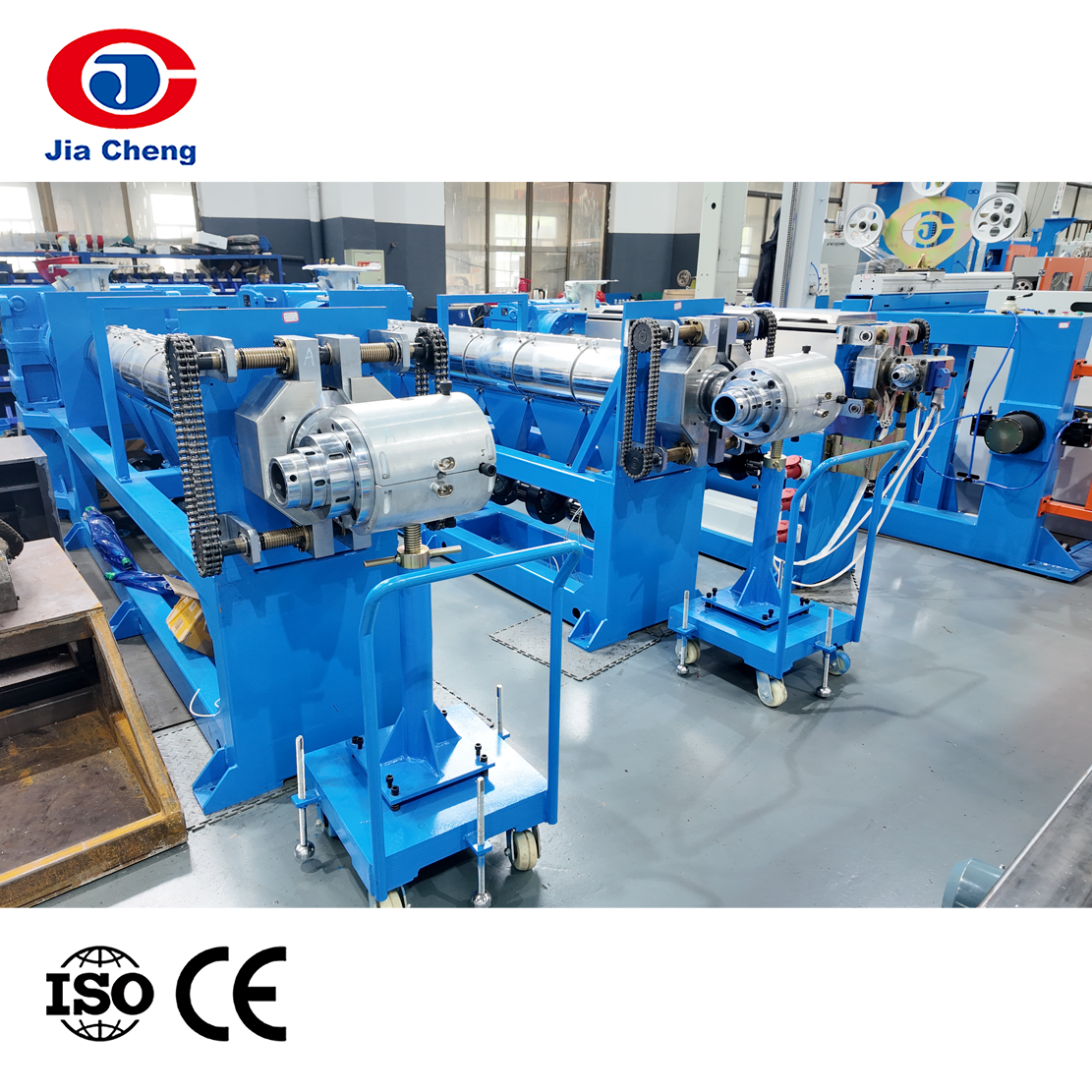

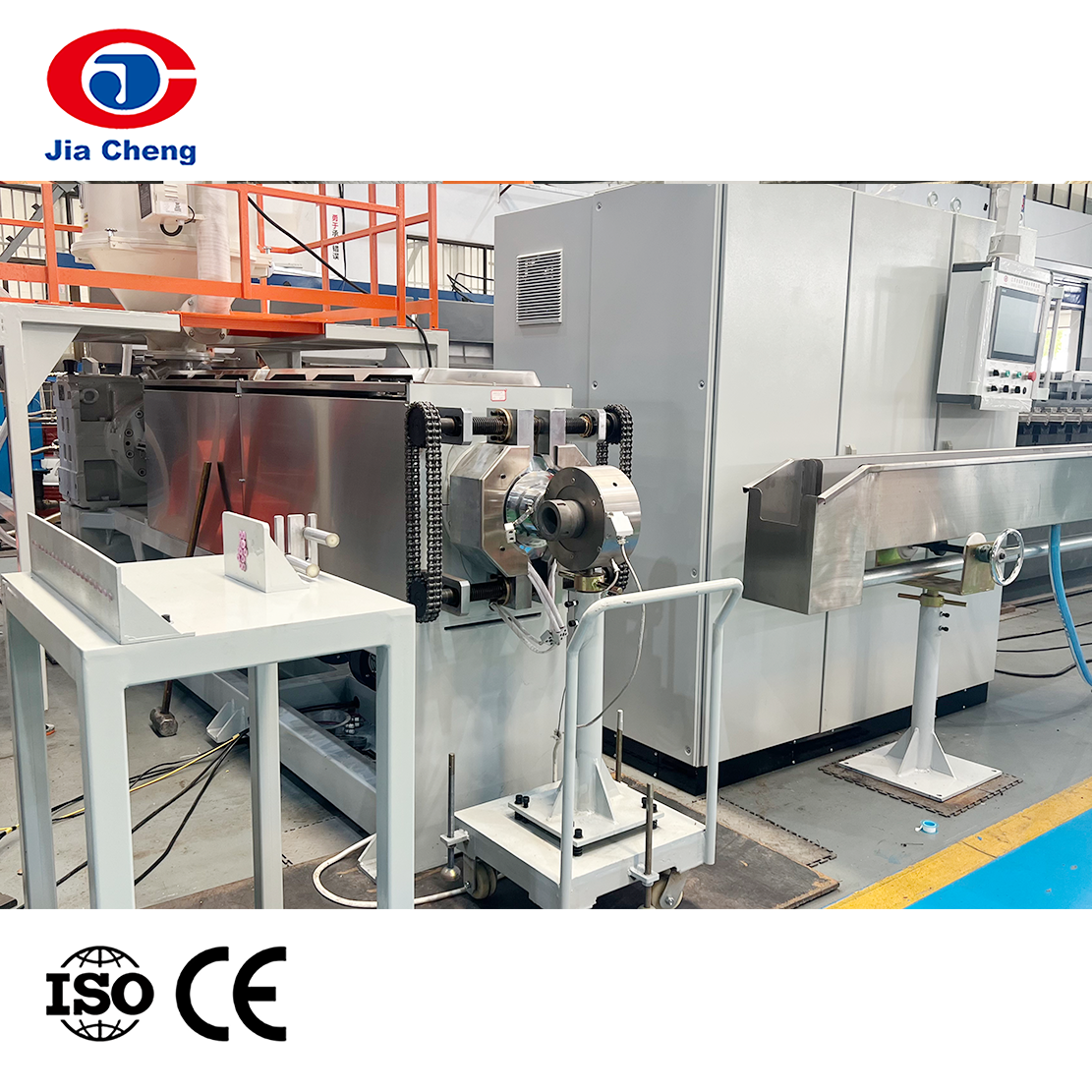

Cable Sheath Extruder Machine

Product Introduction

Using advanced process technology, PVC, LDPE, NYLON, TPU and other materials are precisely extruded and wrapped around the outer layer of cable cores or cable core combinations, forming a protective sheath with multiple functions such as protection, insulation, wear resistance, and weather resistance. Integrate advanced automation control systems to achieve full process automation operations, reduce manual intervention, lower labor intensity, and improve production stability and product consistency.

PREV：High Speed Wire Insulation Production Line NEXT：No next article

Feature
Specification

It's used for the insulation of cable with PVC, LDPE, NYLON, and TPU.

Main Feature:

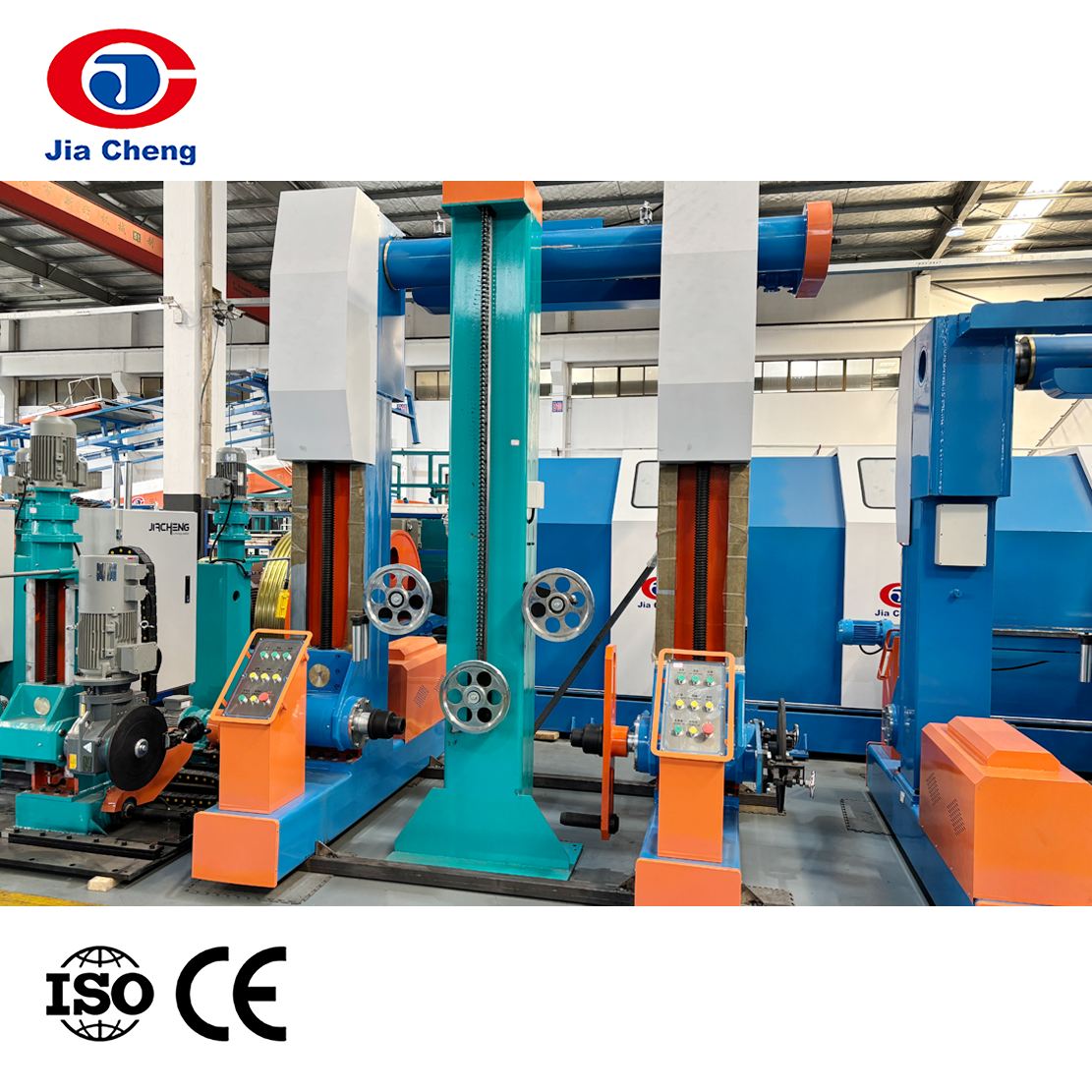

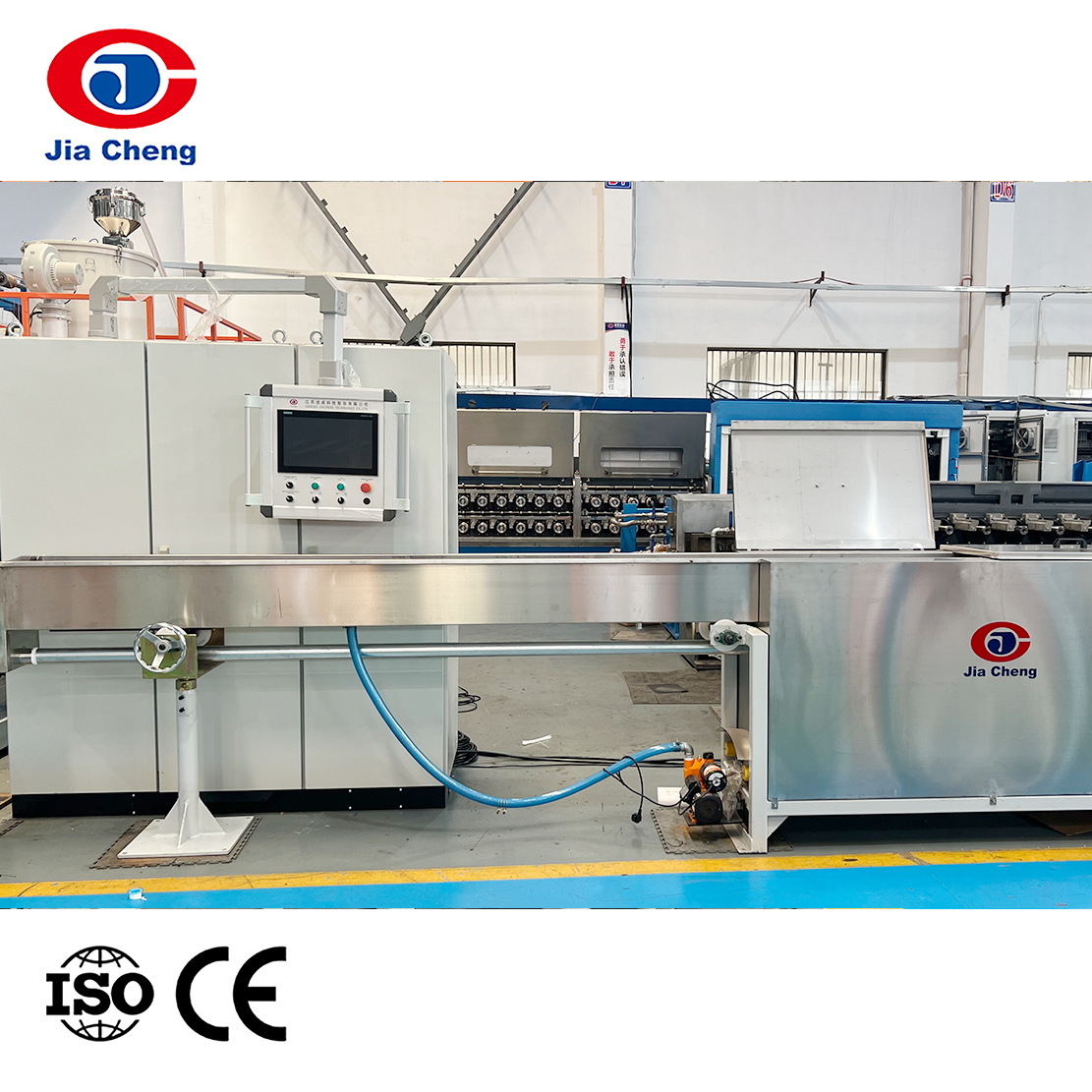

Production line:pay-pff, main machine, main cabinet, fixed trough, traction, take-up

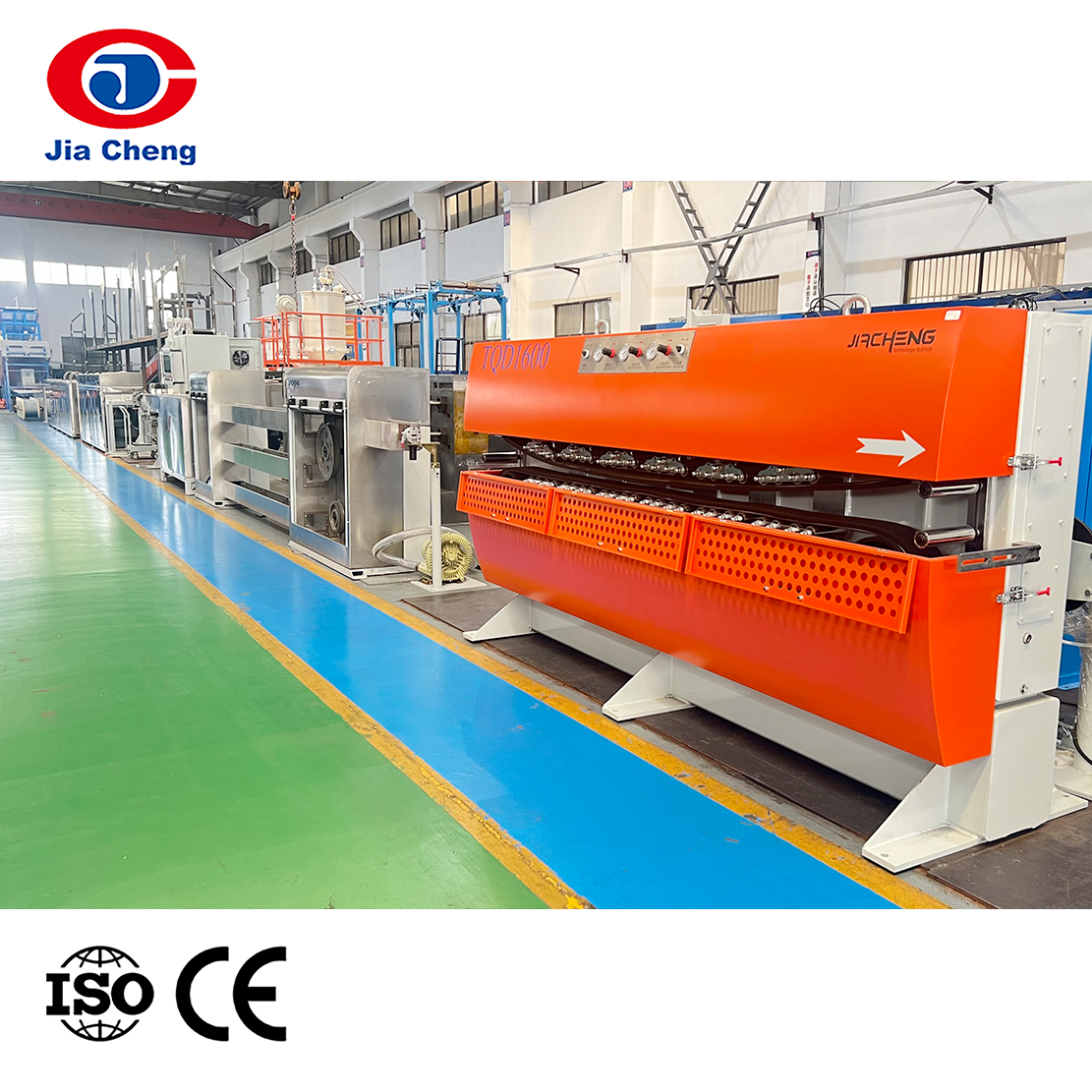

optional parts: caterpillar, sparking machine,diameter-testing laser gauge, LSZH screw, gantry-type take-up and pay-off, end-shaft-type take-up and pay-off,

Feature:
precise design of the screw, durable, non-mucus, does not take off chrome, changes color quickly, with high capacity, high quality, the concentricity of wire is more than 90%, with high precision +-0.3, with touch screen+PLC control, easy operation, more homomization.

Specification：

Type	Screw Parameters				Power	Discharge Dia.(mm)			Haul-off Unit
	Dia.(mm)	L/D Ratio	Rotation Speed (r/min)	Extrusion Capacity kg/h	Main Motor Power (kw)		Finished Wire Dia.(mm)	Bobbin Dia.(mm)	Front caterpillar haul-off	back caterpillar haul-off	Line Speed (m/min)	Consisting Componets
JCJX-70 Extrusion	Φ70	25:1	100	130	30	3-15	4-30	630-1250		800	5-200	Pay-off/straightening/Extruder/Water trough/Haul-off/Accumulator/Take-up
JCJX-80 Extrusion	Φ80	25:1	95	180	75	3-20	4-40	800-1600		1250	5-180	Pay-off/straightening/Extruder/Water trough/Haul-up/Accumulator/Take-up
JCJX-90 Extrusion	Φ90	25:1	90	280	90	3-35	4-45	800-1600	500	1250	10-150	Pay-off/straightening/Extruder/Water trough/Haul-up/Accumulator/Take-up
JCJX-100 Extrusion	Φ100	25:1	85	330	110	4-50	5-60	1000-2000	800	1600	10-120	Pay-off/straightening/Extruder/Water trough/Haul-up/Take-up
JCJX-120 Extrusion	Φ120	25:1	80	420	132	8-70	8-80	1250-2500	1250	2000	10-90	Pay-off/straightening/Extruder/Water trough/Haul-up/Take-up
JCJX-150 Extrusion	Φ150	25:1	70	780	160	8-100	15-120	1600-3150	2000	2500	10-60	Pay-off/straightening/Extruder/Water trough/Haul-up/Take-up
JCJX-200 Extrusion	Φ200	25:1	60	1000	250	30-140	35-145	1600-3150	2500	3150	2-60	Pay-off/straightening/Extruder/Water trough/Haul-up/Take-up
