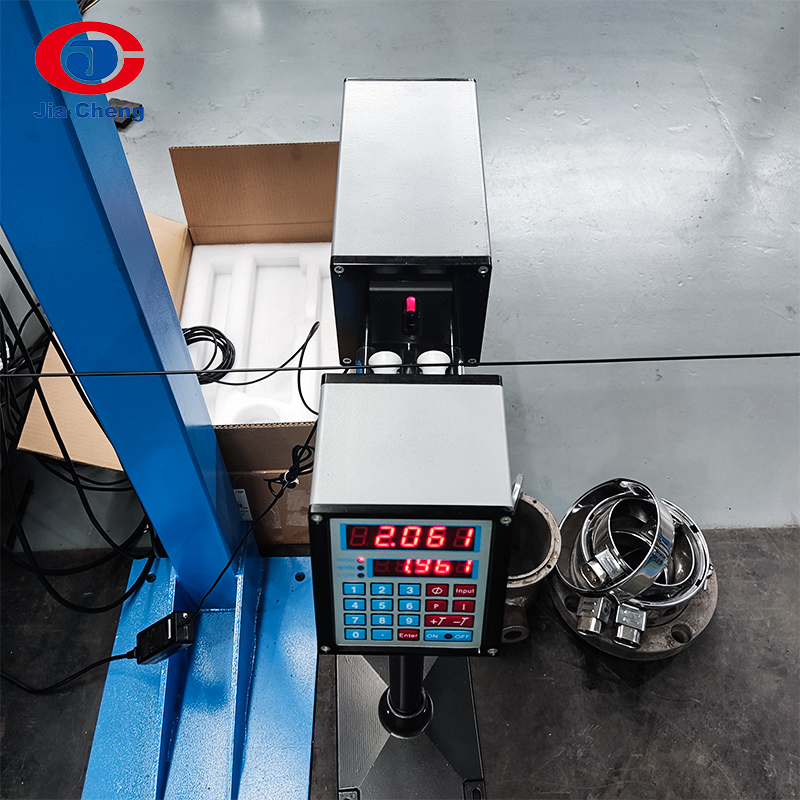

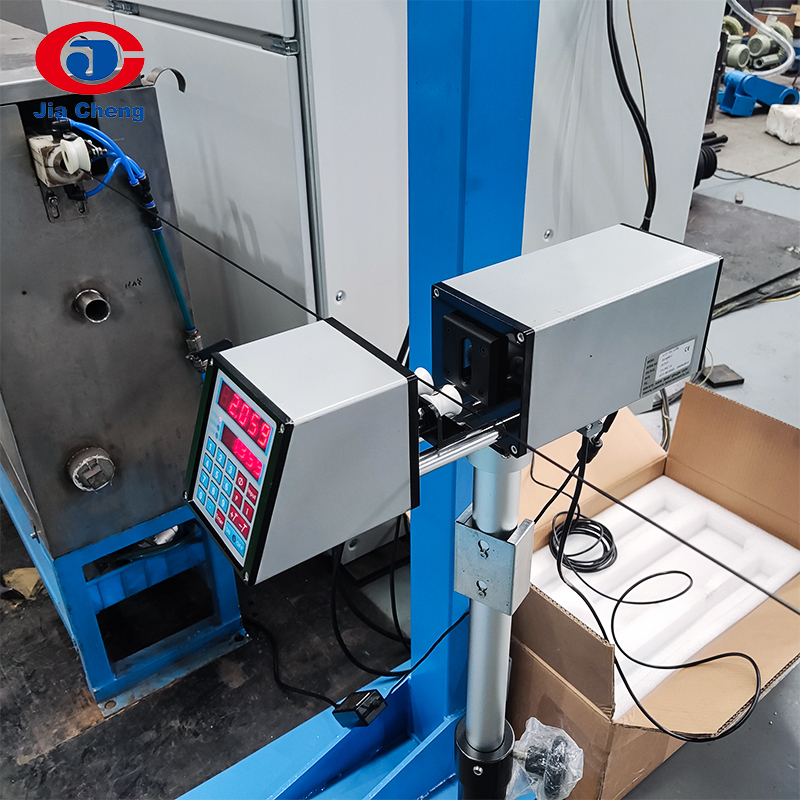

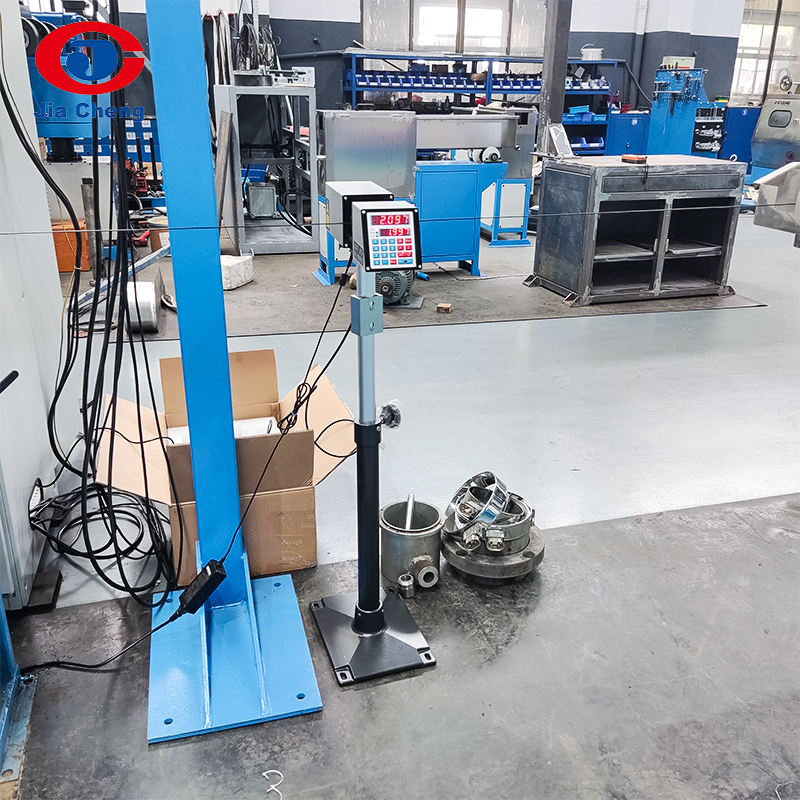

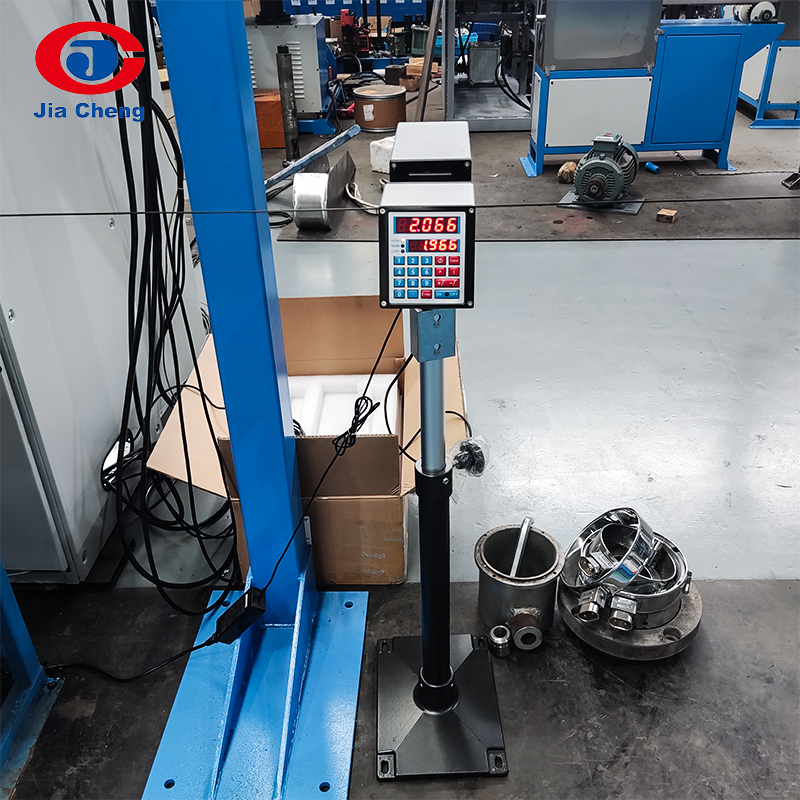

LGD-25 Diameter gauge

Product Introduction

Diameter gauge is a professional measuring instrument used for accurately measuring the diameter dimensions of various circular objects, widely used in manufacturing industries such as wires and cables, pipes, rods, and metal wires. This instrument can quickly and accurately obtain diameter data of the measured object, providing key basis for product quality control and production process optimization, ensuring that product dimensions meet standard requirements.

PREV：Ink printer NEXT：12m Horizontal wire accumulator

Feature
Specification

1) It uses a laser scanner technique, then it with a big measuring range.
2) It uses an SMD circuit. Small volume, light weight, and strong anti-interference.
3) Testing range:0.100-25.000mm
4）Precision: 0.002±0.02%D
5）High measurement precision
6） RS-485 communication interface, it can communicate with PLC and PC.
7) With real-time measurement data and Printing capabilities
8）It is used F mirror with high precision, measurement of the swing does not affect the normal
9) Free from light and smoke, then it will not affect the measurement stability
10）Scanning rate: 600t/s
