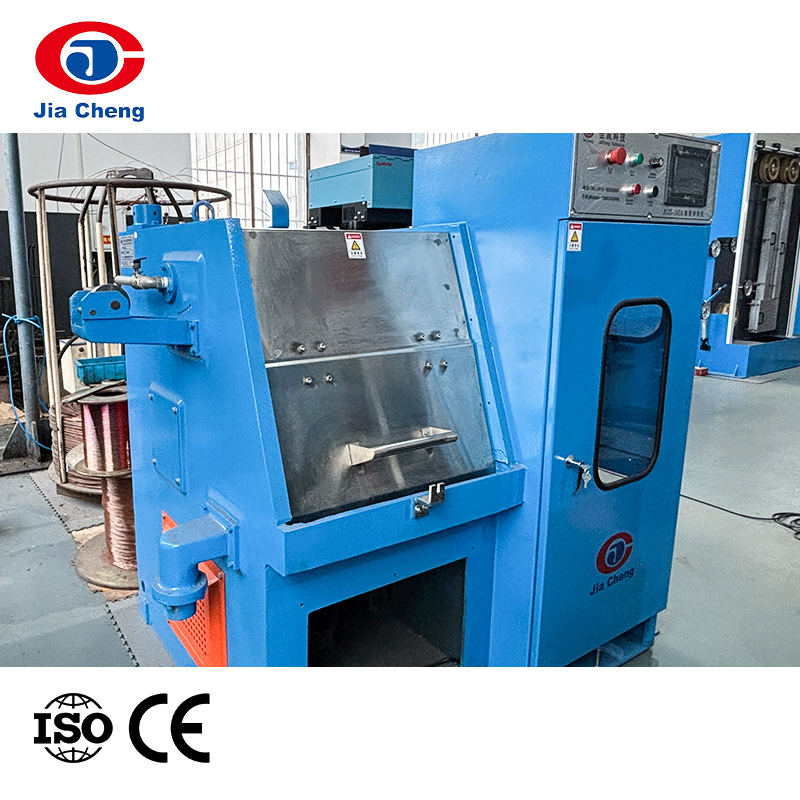

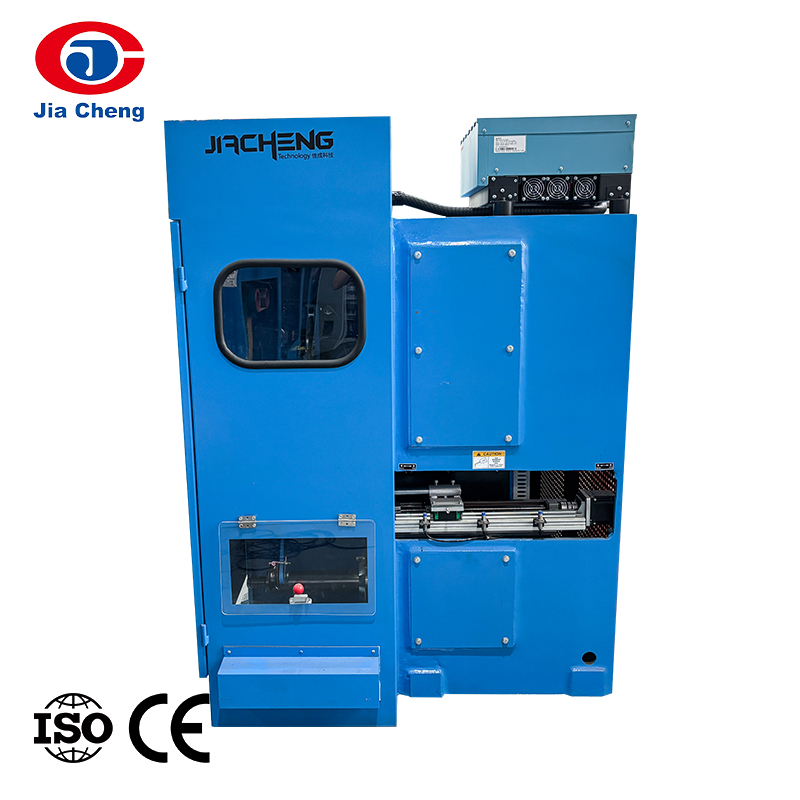

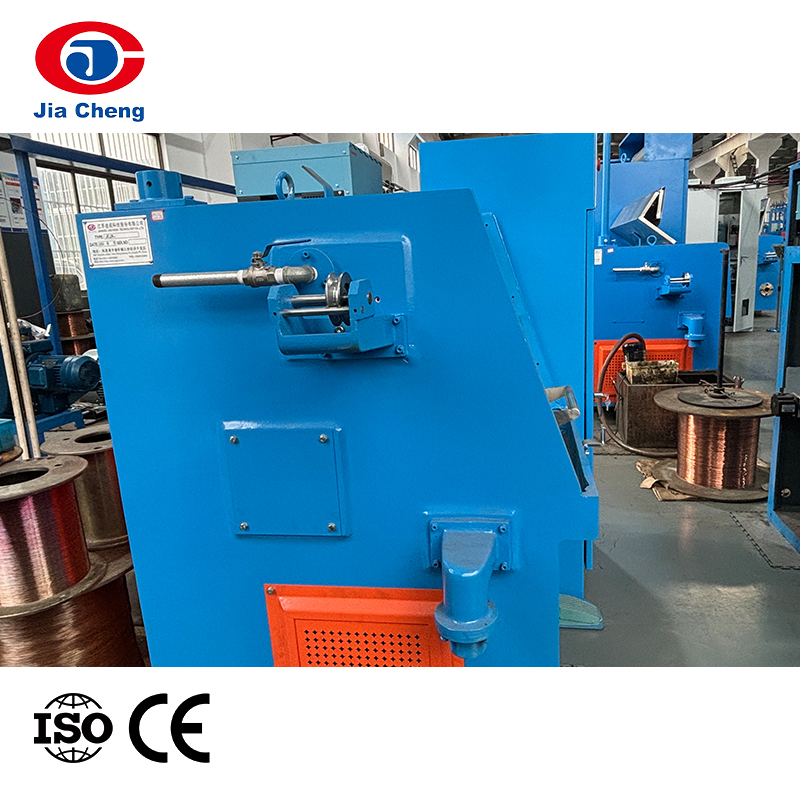

Fine Wire Drawing Machine

Wire Drawing Machine(Alloy Wire Series)

Product Introduction

A wire drawing machine (Alloy wire series) is a device specifically designed to process alloy materials into alloy wires of different diameters and specifications. Used for producing various high-performance and high-precision alloy wire materials. With high drawing speed and stable operating performance, it can achieve continuous and automated production, greatly improving production efficiency.

PREV：Fine Wire Drawing Machine M/C With Annealer NEXT：Intermediate Wire Drawing Machine for CCA Wire

Feature
Specification

Drawing alloy wires from a big size to a small size.

Main feature:
1. Double motor inverters, small slip, high quality.

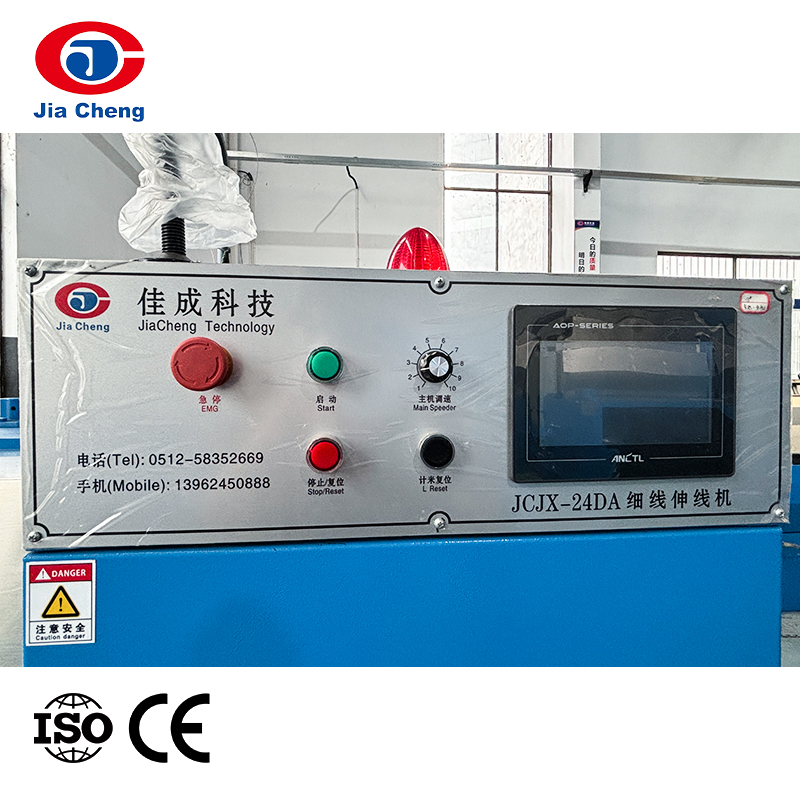

2. Tension auto control system.
3. High tension, durably flat belt gains convenient replacement and low noise in operation.

Specification：

Machine type	JCJX-B17	JCJX-14D	JCJX-24DL	JCJX-24D	JCJX-24DA	JCJX-28D
Inverter control	Double inverter control

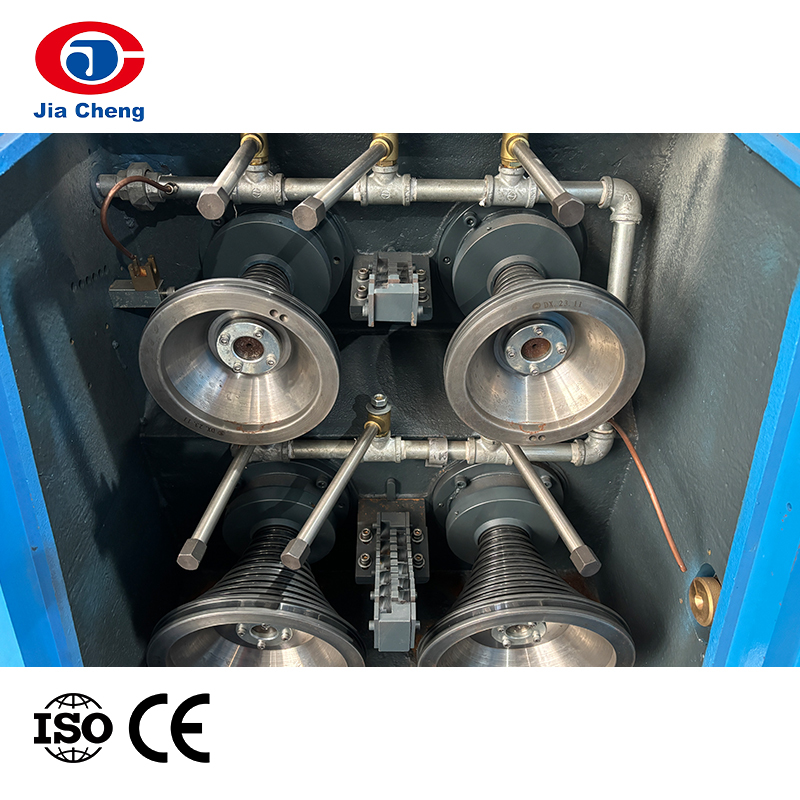

Body structure	Four cones in horizontal	Two cones in horizontal	Four cones in vertical
Max. Inlet Dia. (mm)	Ф1.6(Ф2.05)		Ф1.2
Outlet Dia. (mm)	Φ0.30~Φ0.8	Φ0.25~Φ0.50	Φ0.1~Φ0.3	Φ0.1~Φ0.4
Max. Die No.	17	14	24			28
Max. Line speed (m/min)	1500	1200	2000	2000	2500	2500
Body structure	Welded by a steel plate	Ironed cast
Drawing capstan	Ceramic plasma capstan
Slip ratio of m/c ( % )	15	15	10	13	13	13
Fix speed capstan Dia. (mm)	Φ200	Φ268	Φ160	Φ160	Φ206	Φ206
Transmission type	Synchronous belt	Belt
Take-up bobbin size (mm)	Φ300/Φ400		Φ300
Traversing type	Synchronous motor +belt
Tension control	Weight balance type
Lubrication type	Full immersion	Spray
Brake	Magnetic brake
Weight (KG)	2600	2200	2000	2000	2000	2300
