Double Twist Bunching Machine

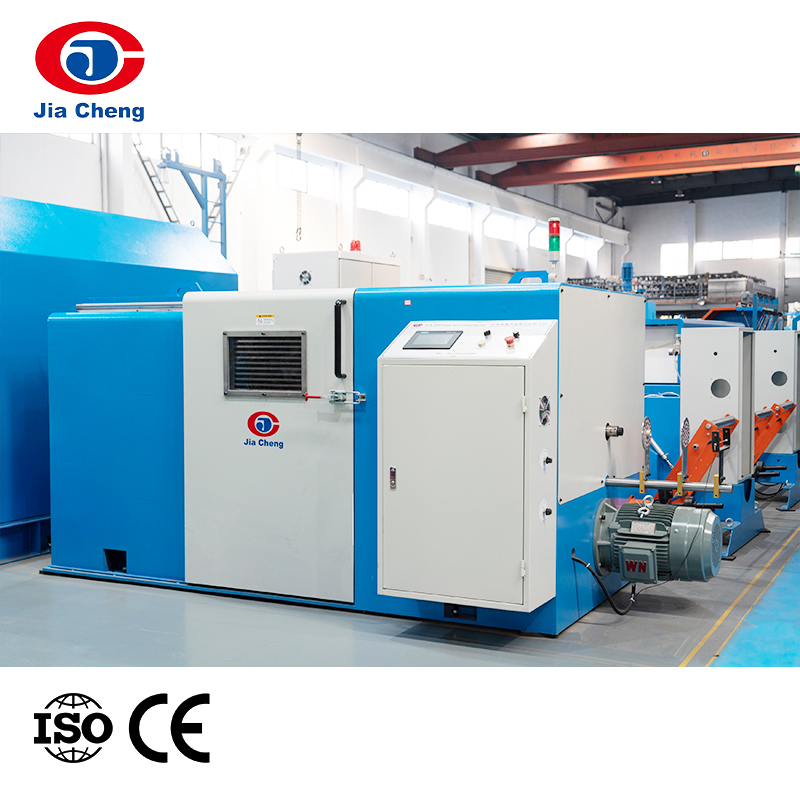

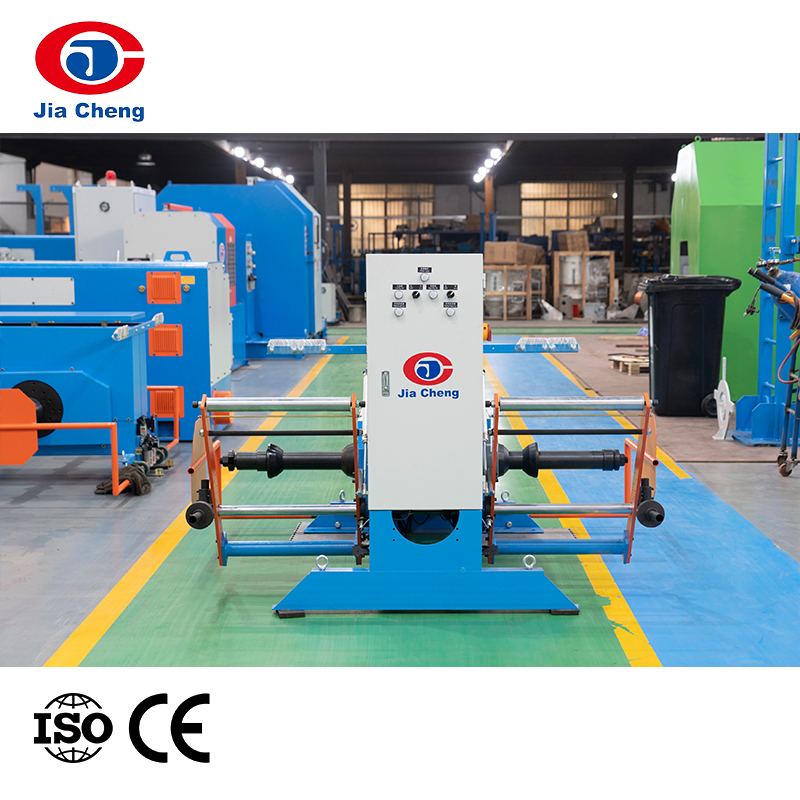

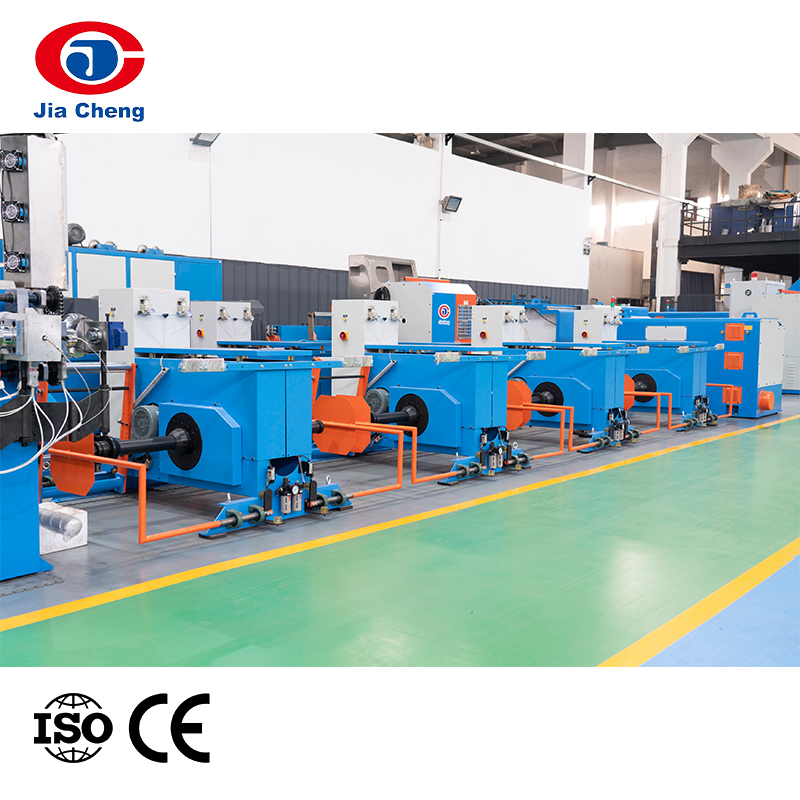

P Automatic Double Twist Bunching Machine

Product Introduction

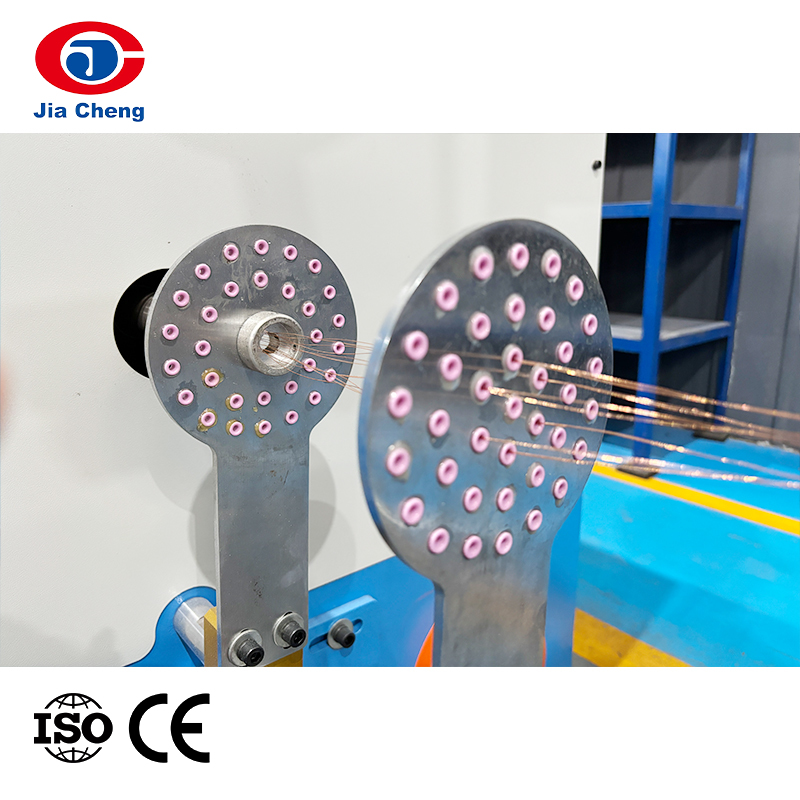

It is adapt to twist the bare copper wire, tin-coating wire and varnished wire which are more than 7 strands, Magnetic brake, which brake automatic when wire break, tension adopts magnetic powder clutch type. (PLC control output)

PREV：Automatic High Speed Twist Bunching Machine NEXT：No next article

Feature
Specification

Description:

1) Transducer adopts INOVANCE brand, Bearings are imported brands.

2) The motor adopts the national first-class brand

3) Low voltage on-off, brake adopt the top grade brand home and abroad.

Applications:

For bunching 7 bare copper, tinned wire, enameled wire.

Specification：

Machine Type	JCJX-300P	JCJX-500P	JCJX-500PB
Use	For bunching 7 bare copper, tinned wire,enameled wire
Control Type	PLC+HMI+Inverter control
Twisting Section area(mm2)	0.035-0.45	0.05-2.50	0.05-4.00
Copper Wire Dia.(mm)	Φ0.05-Φ0.25	Φ0.10-Φ0.45	Φ0.10-Φ0.52
Twisting Pitch(mm)	2.00-17.17	6.30-50.40	6.30-80.5
Twisting Direction	S or Z
Take-up Tension	Tension Controlled by magnetic clutch
Max Main Shaft Speed(r/min)	3000	3000	2500
Traversing Type	Transverse and distance can be adjusted by bearing transverse
Bearing Lubrication	Lubricating nipple with high temperature oil	Thin oil lubrication, circulation cooling
Bobbin Loading&Unloading Type	Hydraulic type
Max. Bobbin Dia.	Φ300	Φ500	Φ500
Auto Stop Unit	Auto stop while reach setting length,and wire broken inside and outside
Brake	Magnetic brake
Motor Power(kw)	4	5.5	5.5
Main Shaft Center Height(mm)	630	700	700

Machine Type	JCJX-650P	JCJX-800P	JCJX-1000
Use	For bunching 7 bare copper, tinned wire, enameled wire
Control Type	PLC+HMI+Inverter control
Twisting Section area(mm2)	0.18-6.00	2.5-16.00	8.00-20.00
Copper Wire Dia.(mm)	Φ0.18-Φ1.00	Φ0.50-Φ1.20	Φ0.72-Φ6.0
Twisting Pitch(mm)	11.61-99.04	22.51-152.32	22.73-173.66
Twisting Direction	S or Z
Take-up Tension	Tension Controlled by magnetic clutch
Max Main Shaft Speed(r/min)	2000	1200	800
Traversing Type	Transverse and distance can be adjusted by bearing transverse
Bearing Lubrication	Thin oil lubrication, circulation cooling	Lubricating nipple with high temperature oil	Lubricating nipple with high temperature oil
Bobbin Loading&Unloading Type	Hydraulic type
Max. Bobbin Dia.	Φ630	Φ800	Φ1000
Auto Stop Unit	Auto stop while reach setting length,and wire broken inside and outside
Brake	Magnetic brake
Motor Power(kw)	7.5	11	22
Main Shaft Center Height(mm)	850	900	1100
