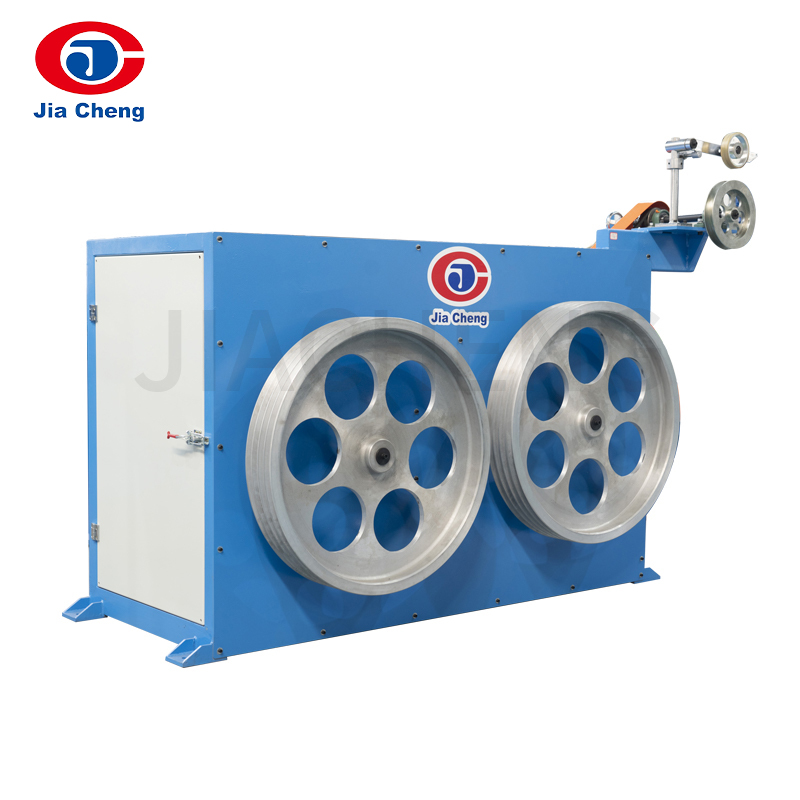

Double wheel haul off is mainly used for stable and efficient traction operation of products on the production line, ensuring that products can be continuously produced at the set speed and tension, and guaranteeing the consistency and stability of product quality.
1) Motor: 2.2KW, 5HP motor.
2) Type: water tank with two wheels.
3) Maximum Take-line speed: 350m/Min(determined by the completion OD).
4) Lead to take round: Material: aluminum alloy wheels: Φ500mm driving wheel, Φ500mm passive
wheels: U 4-channel to 4-channel (balance adjustment).
5) Cabinet: Fully enclosed cabinet door.
6) U-type drying device drying.
7) A meter wheel, mounted on wheels to take on the lead part, with the number of shows on the main control box.
8) a, water tanks installed at the CAPSTAN outlet end of the cable using high-pressure air to dry the surface of the water to keep the scene clean.
b, air pressure can be adjusted, with a group switch, adjust the air pressure size.
c, specially designed to lead to the alignment between the meter wheel, fitted with a U-groove to take the water tank, to facilitate the rapid production of alignment.
