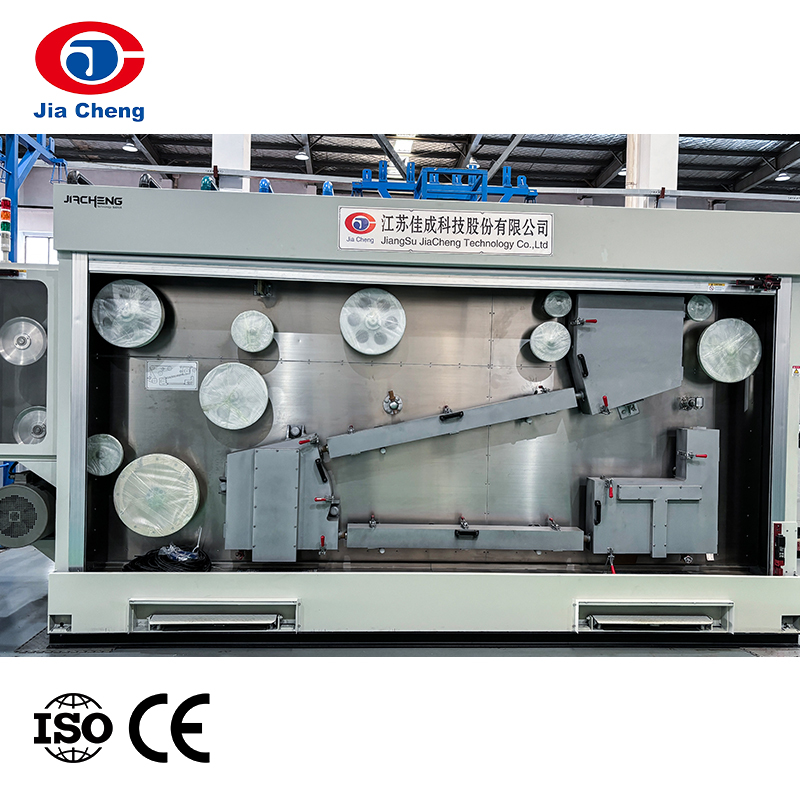

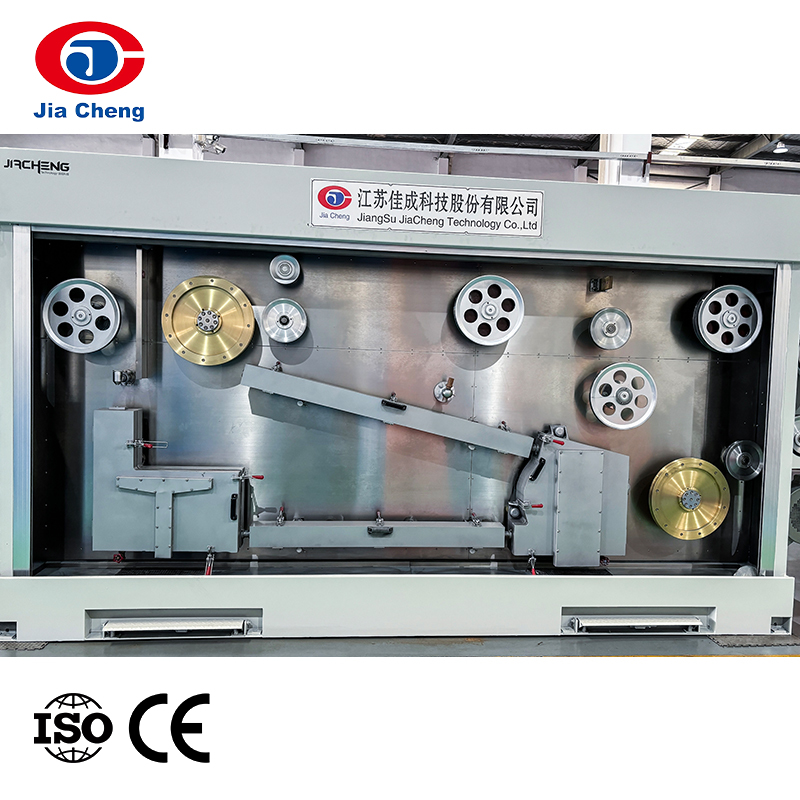

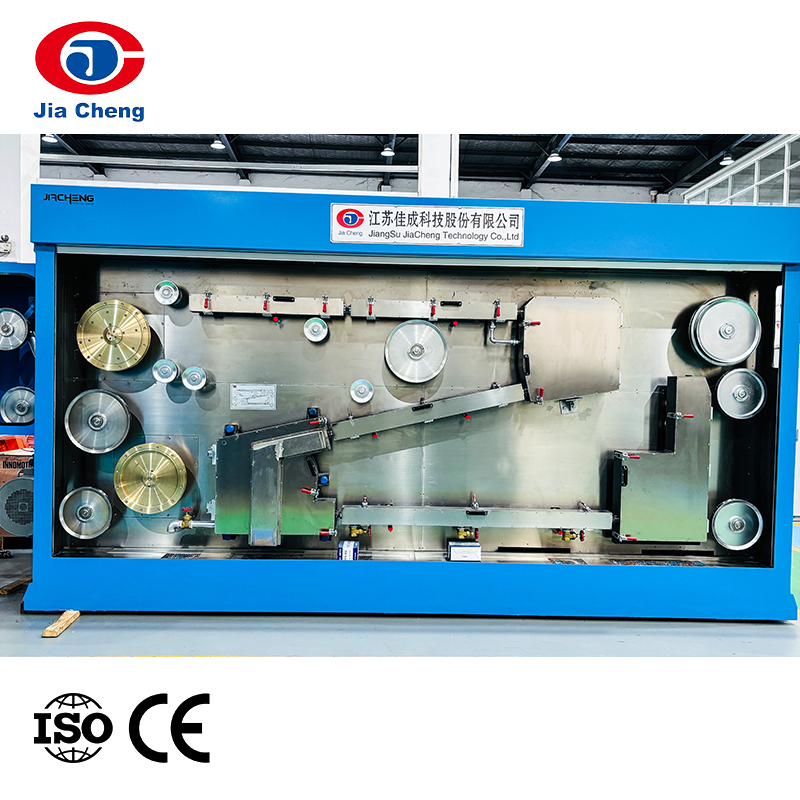

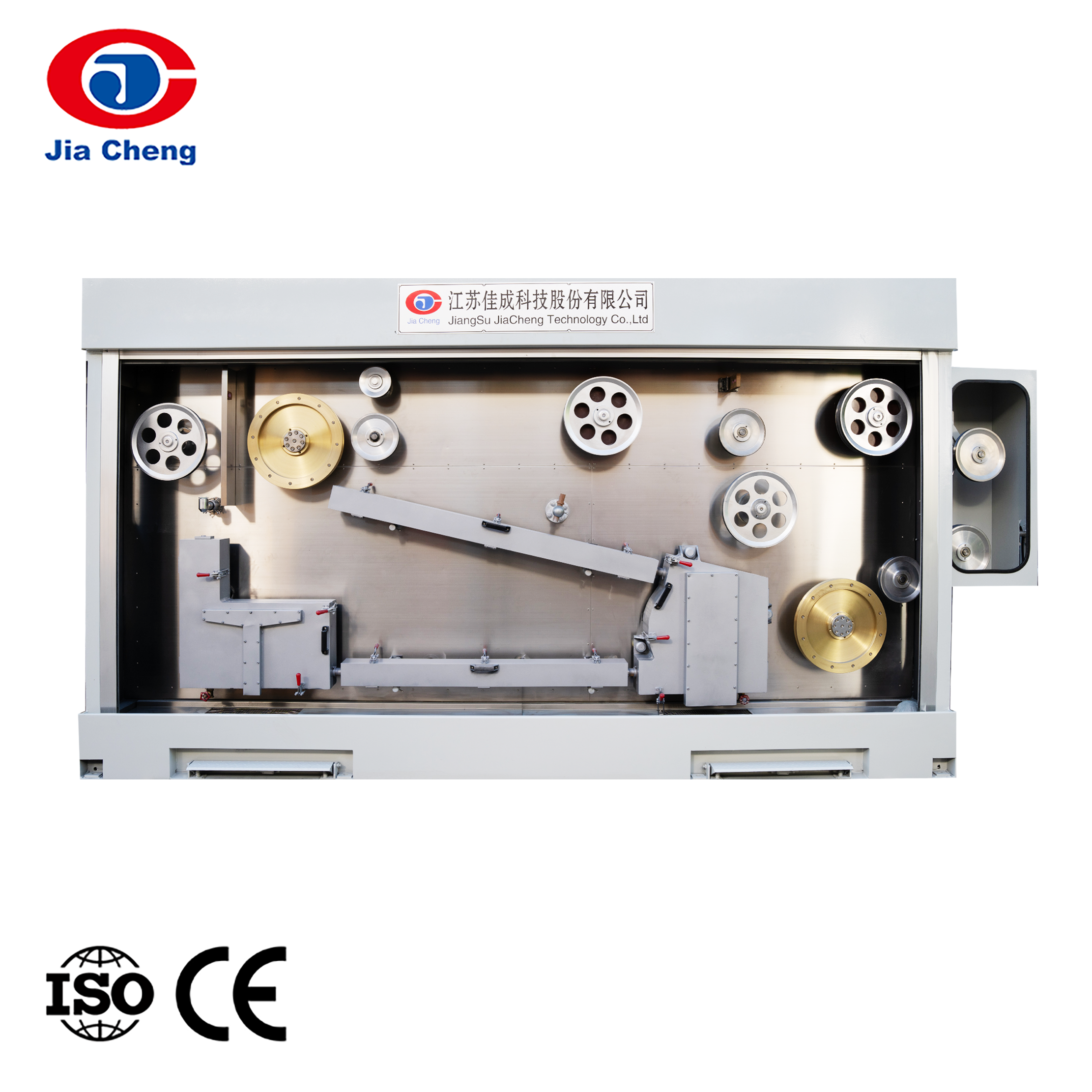

There are two options for annealing structures: horizontal type and vertical type. Depending on the product model, the applicable wire diameter range includes: 35mm~4.5mm, with a max. annealing speed of 25m/min
Description:
1. There are multiple models to choose from according to your needs
2. Wide range of applicable wire diameters
Applications:
This machine is suitable for manufacturing plants, especially in the cable industry, for efficient continuous production.
Specifications:
|
Online continuous annealer |
||||||
|
Machine type |
JCJX-450T |
JCJX-450TB |
JCJX-350T |
JCJX-350TB |
JCJX-250T |
JCJX-250T/B |
|
Application size(mm) |
Φ1.2~Φ3.5 |
Φ1.2~Φ4.5 |
Φ0.8~Φ3.2 |
Φ1.2~Φ4.0 |
Φ0.38~Φ1.6 |
Φ0.6~Φ2.2 |
|
Annealing stucture |
Horizontal type |
Vertical type |
||||
|
MAx.Annealing voltage(DC) |
65V |
55V |
60V |
50V |
60V |
|
|
MAx.Annealing current(DC) |
6000A |
5500A |
2500/4000A |
4500A |
1000`2000A |
|
|
Annealing wheel dia(mm) |
Φ450 |
Φ350 |
Φ250 |
|||
|
Max.line speed(m/min) |
25 |
25 |
20 |
25 |
25 |
25 |
