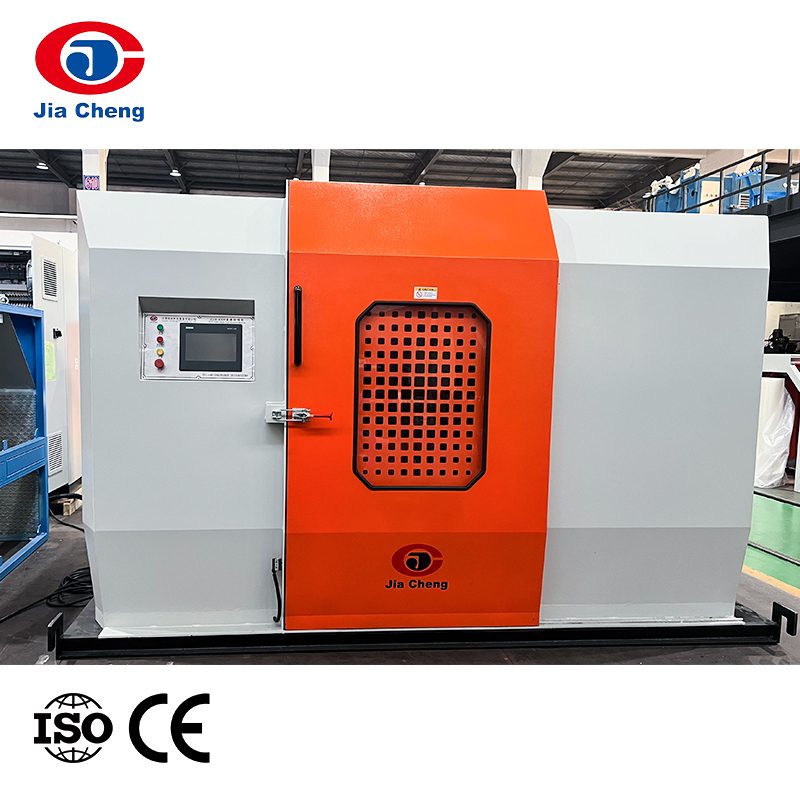

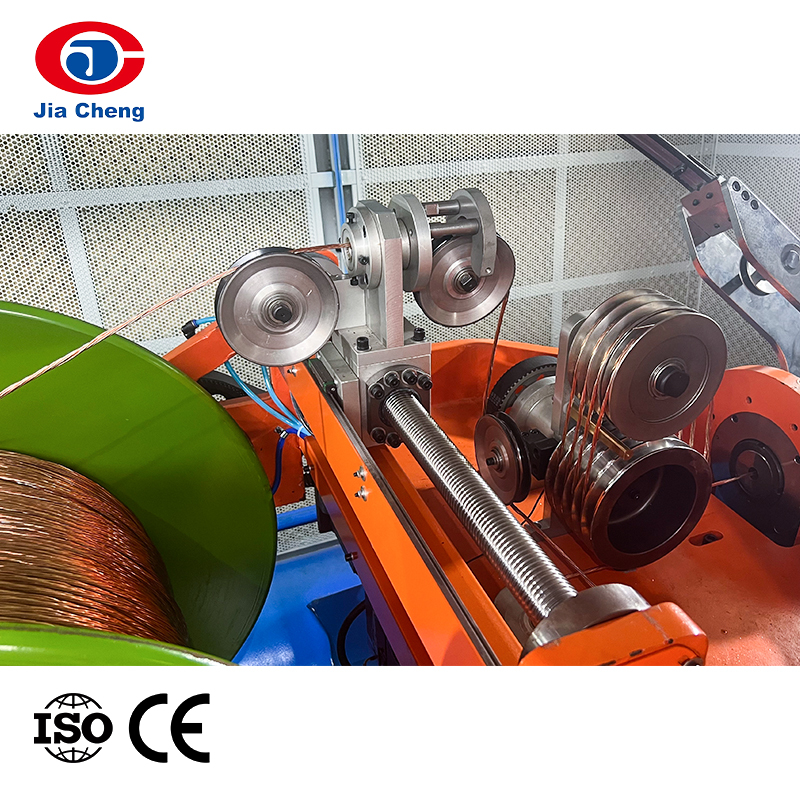

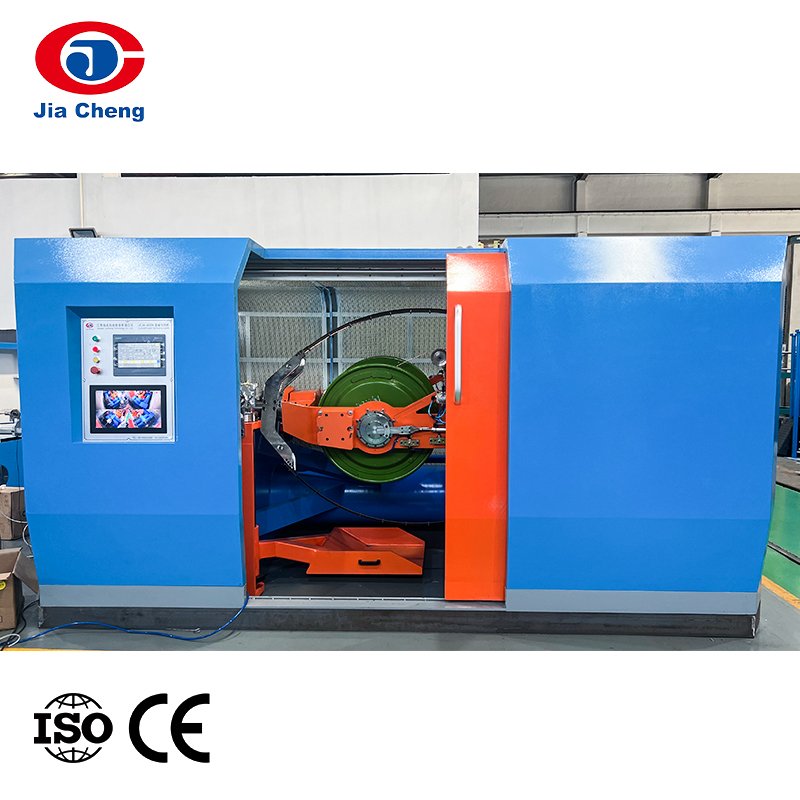

Automatic high speed twist bundling machine is suitable for twisting 7 or more bare copper wires, tinned wires, enameled wires, etc. Used for producing conductor bundles of various power cables, communication cables, control cables, etc., to improve the conductivity, mechanical strength, and flexibility of cables.
Specification：
|
Model |
JCJX-500C |
JCJX-630C |
JCJX-630H |
JCJX-800H |
|
Usage |
Suitable for bunching 7 bare copper, tinned wire, enameled wire |
|||
|
Control type |
PLC+ Man-machine interface control |
|||
|
Twisting pitch(mm2) |
0.05-2.5 |
0.25-6.0 |
0.25-6.0 |
0.5-16.0 |
|
Single wire Dia.(mm) |
0.1-0.45 |
0.18-1.0 |
0.18-1.0 |
0.15-1.35 |
|
Twisting pitch control |
Electronic wring pitch, the man-machine interface |
|||
|
Max. lay-up Dia.(mm) |
0-60 |
6-90 |
6-100 |
15-160 |
|
Take-up control |
The independent motor, tension automatic control |
|||
|
Max. Rotate speed(rpm) |
3000 |
2000 |
3000 |
2000 |
|
Traversing type |
Light rod arrangement |
|||
|
Max.take-up bobbin size(mm) |
500 |
630 |
630 |
800 |
|
Main motor power(kw) |
5.5 |
7.5 |
12 |
18.5 |
