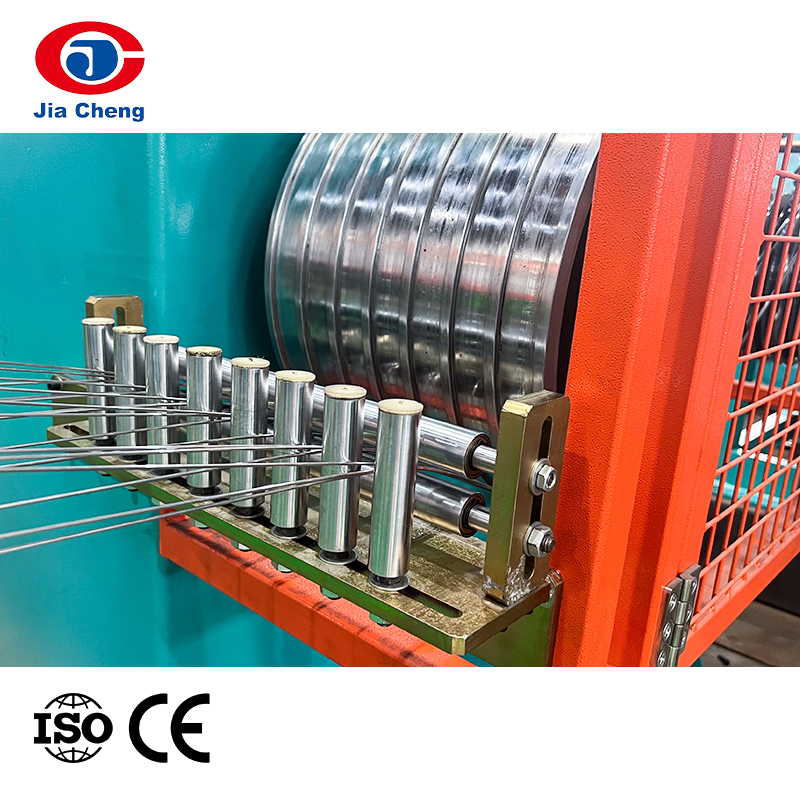

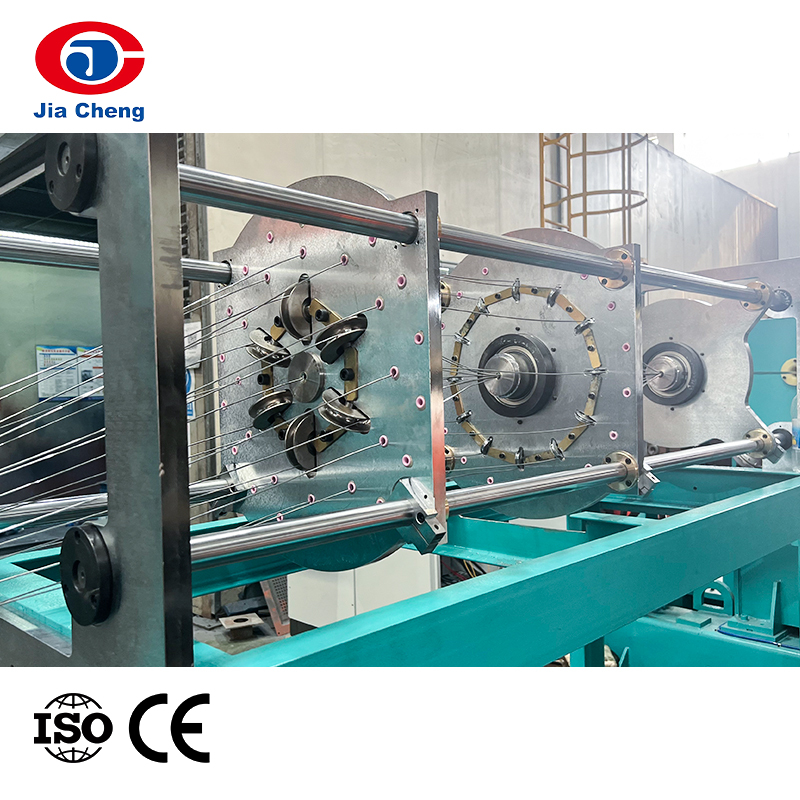

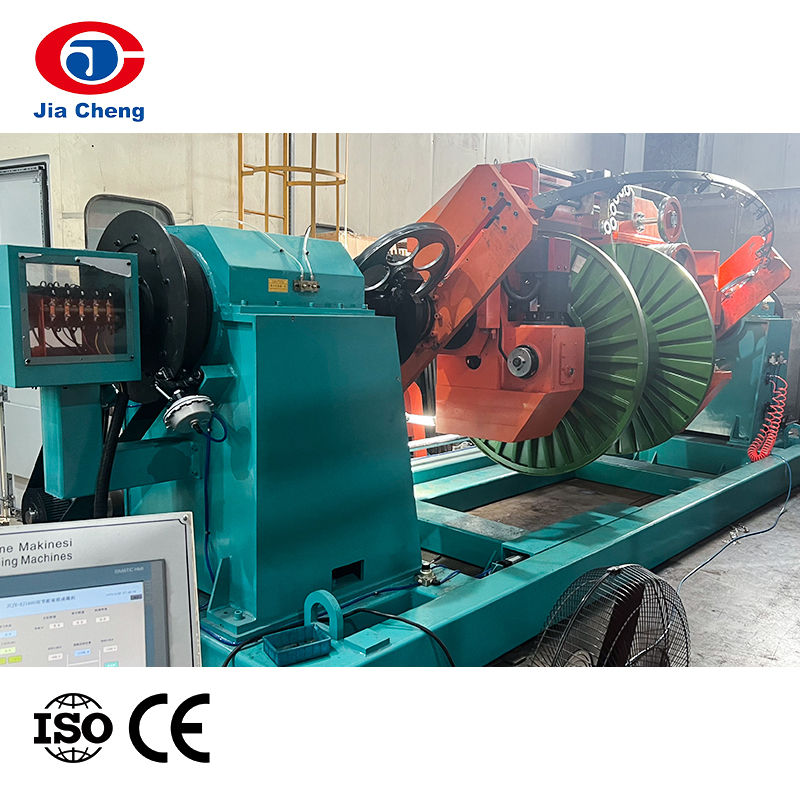

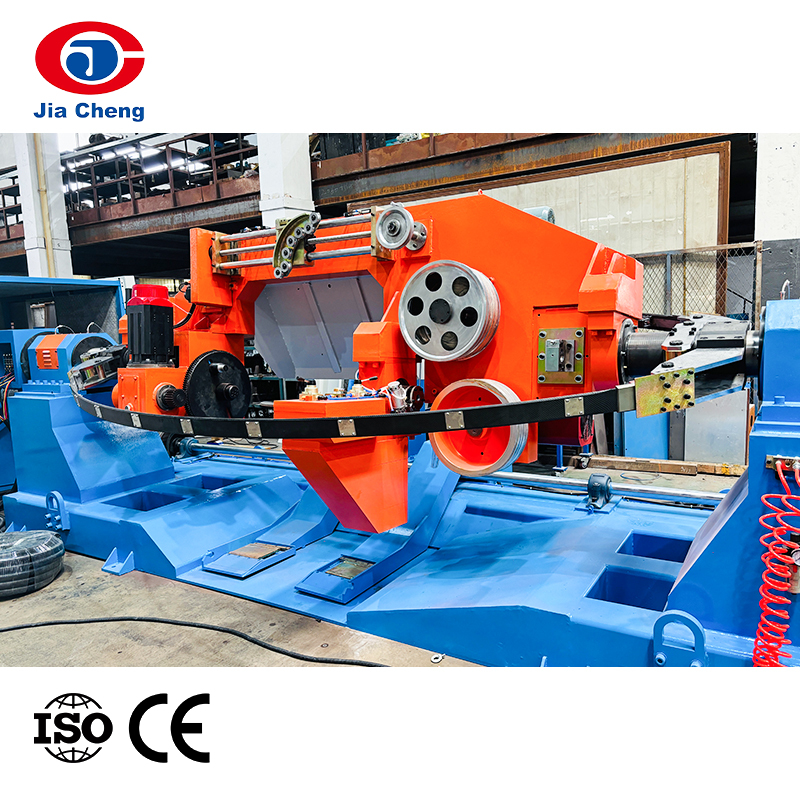

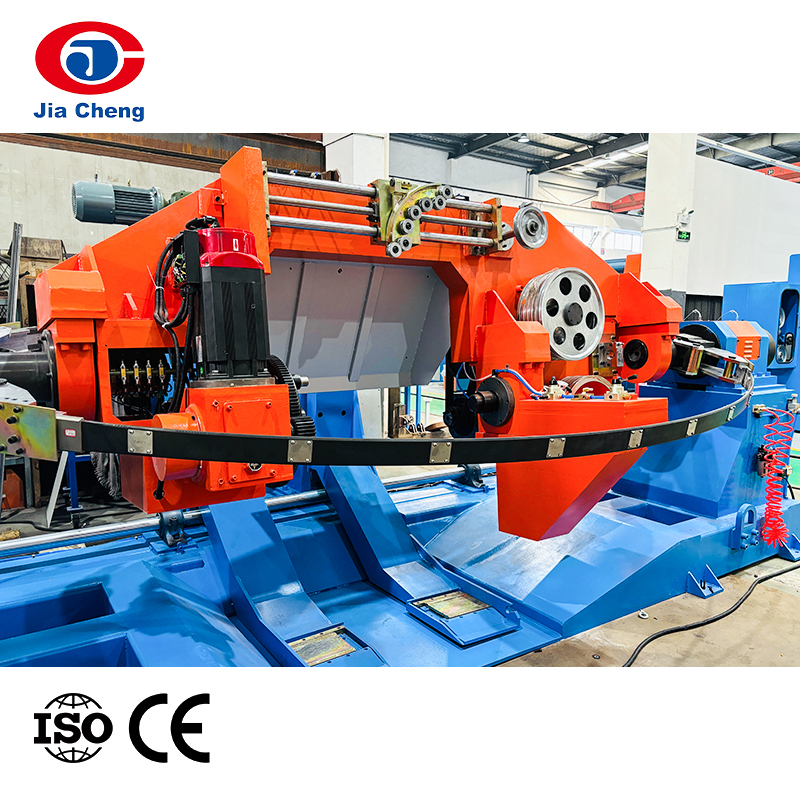

P automatic Double twist bunching machine is supply to the twisting of bare copper wires, tin-coated wires and enameled wires with more than 7 strands.Finished wire can be used for making Electronic cable, earphone cable, telephone cable, power cable, audio cable, video cable, Automotive Wire and network cable, etc.
For bunching bare copper, tinned wire, enameled wire.
Specification：
|
Model |
SJ800 |
SJ1000 |
SJ1250 |
|||
|
Types of wire products |
Used to produce communication cable, computer, instrument cable |
|||||
|
Finished wire dia.(mm) |
8.00mmΦ/max |
8.00mmΦ/max |
Copper wireΦ3.0-10mm PVCΦ5.0-15mm |
|||
|
Twisting sec. area |
0.80-22.00mm2/max |
1.20-38.00mm2/max |
3.50-50.00mm2/max |
|||
|
(Soft copper)wire dia. |
0.38-1.60mmΦ/max |
0.45-2.00mmΦ/max |
1.00-2.60mmΦ/max |
|||
|
Insulated wire dia. |
1.00-2.50mmΦ/max |
1.00-2.50mmΦ/max |
2.00-6.50mmΦ/max |
|||
|
Line speed/max |
150mpm/max |
150mpm/max |
150mpm/max |
|||
|
Twisting pitch range |
17-200mm |
20-200mm |
40-350mm |
|||
|
Swivel speed |
1200rpm/max |
1000rpm/max |
800rpm/max |
|||
|
Max. Loading capacity |
900kg |
1500kg |
3000kg |
|||
|
Stranding direction |
S,Z Direction |
|||||
|
Main Motor |
22kw DC motor |
30kw DC motor |
50kw DC motor |
|||
|
Driving of capstan |
11kw DC motor |
15kw DC motor |
30kw DC motor |
|||
|
Drive of take-up |
3.7kw DC motor |
5.5kw DC motor |
7.5kw DC motor |
|||
|
Traversing drive |
0.75kw Inverter control |
0.75kw Inverter control |
0.75kw Inverter control |
|||
|
Drive of loading&unloading |
0.75kw Reducer motor |
0.75kw Reducer motor |
1.5kw Reducer motor |
|||
|
Power control |
Digital DC Control |
|||||
|
Revise system |
Line speed synchronous auto control |
|||||
|
Spool bobbin size |
OD: Φ800mm/max |
OD:Φ1000mm/max |
OD: Φ1250mm/max |
|||
|
Spooler OW size |
OW:600mm/max |
OW:750mm/max |
OW:950mm/max |
|||
|
Control system |
Touch screen and LCD controller |
|||||
|
Tension control of spool |
Constant tension control |
|||||
|
Lay set |
Digital setting on the screen |
|||||
|
Operating direction |
Left/Right hand machine |
|||||
|
Traversing width |
500mm/max |
700mm/max |
900mm/max |
|||
|
Traversing unit |
Digital setting according to wire diameter |
|||||
|
Fixed way of take-up bobbin |
Pneumatic shaftless |
|||||
|
Way of reel loading and unloading |
Motor-driven platform lifter, auto location |
|||||
|
Brake system |
Disc brake |
|||||
|
Lubrication way of bearing |
Adding grease periodically |
|||||
|
Air pressure |
6kg/cm2 |
|||||
|
Voltage |
380V 50Hz |
|||||
|
Noise level |
85db |
|||||
|
Size(L*W*H) |
3750*2100*2050 |
4300*2200*2200 |
6000*2200*2200 |
|||
|
Weight |
4900kg |
6500kg |
13500kg |
|||
|
Model |
SJ1600 |
SJ2000 |
|
|
Types of wire products |
Special use for twisting aluminum and copper round compacted conductor |
||
|
Finished wire dia.(mm) |
25mmΦ/max |
35mmΦ/max |
|
|
Section of stranding(Flexible strand) |
16÷240mm2 (6AWG-450MCM) |
||
|
Section of stranding(Semi-frame twisting 1+6) |
16÷50mm2(6-1/0AWG) |
||
|
CU compacted section Cu |
16÷240mm2 |
16÷240mm2 |
|
|
AI compacted section AI |
16÷400mm2 |
16÷400mm2 |
|
|
Line speed/Max. |
170m/min |
100mpm/max |
|
|
Range of strand pitch |
50-700mm |
60-600mm |
|
|
Swivel speed |
600rpm/max |
350rpm/max |
|
|
Max. Loading capacity |
8000kg |
10000kg |
|
|
Max.compacted angle |
13% |
13% |
|
|
Traction pulley |
2*Φ600mm |
2*Φ1000mm |
|
|
Stranding direction |
S,Z Direction |
||
|
Main Motor |
90kw DC motor |
100kw DC motor |
|
|
Driving of capstan |
55kw DC motor |
60kw DC motor |
|
|
Drive of take-up |
18.5kw DC motor |
22kw DC motor |
|
|
Traversing drive |
1.1kw Inverter control |
1.1kw Inverter control |
|
|
Drive of loading and unloading |
1.5kw Reducer motor |
1.5kw Reducer motor |
|
|
Power control |
Digital DC Control |
||
|
Revise system |
Line speed synchronous auto control |
||
|
Spool bobbin size |
OD: Φ1600mm/max |
OD: Φ2000mm/max |
|
|
Spooler OW size |
OW:1180*800*80 |
OW:1500*1250*10 |
|
|
Control system |
PLC+Man-machine interface |
||
|
Tension control |
Coiling motor indicating tension control |
||
|
Lay set |
OLC digital setting |
||
|
Operating direction |
Left/Right hand machine |
||
|
Traversing width |
1000mm/max |
||
|
Traversing unit |
Digital setting according to wire diameter |
||
|
Fixed way of take-up bobbin |
Pneumatic shaftless |
||
|
Way of reel loading&unloading |
Liquefaction automatic positioning |
||
|
Brake system |
Disc brake |
||
|
Lubrication way of bearing |
Oiling regularly |
||
|
Air pressure |
8kg/cm2 |
||
|
Voltage |
380V 50Hz |
||
|
Noise level |
85db |
||
|
Size(L*W*H) |
11000*5500*4500 |
14000*5500*450 |
|
|
Weight |
4900kg |
13500kg |
|
