Rod Breakdown Machine

JCJX-Wire Drawing Machine for Brass Wire

Product Introduction

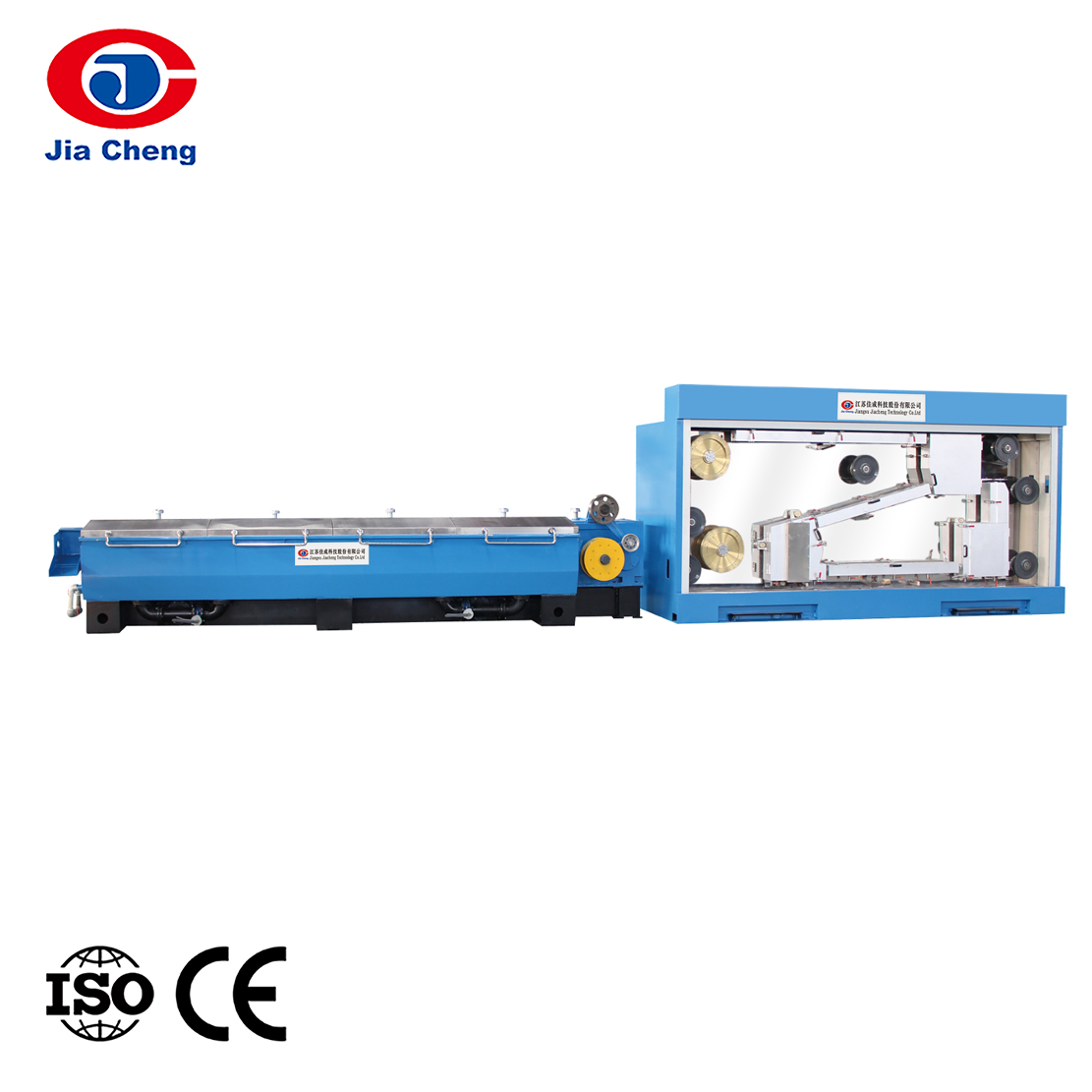

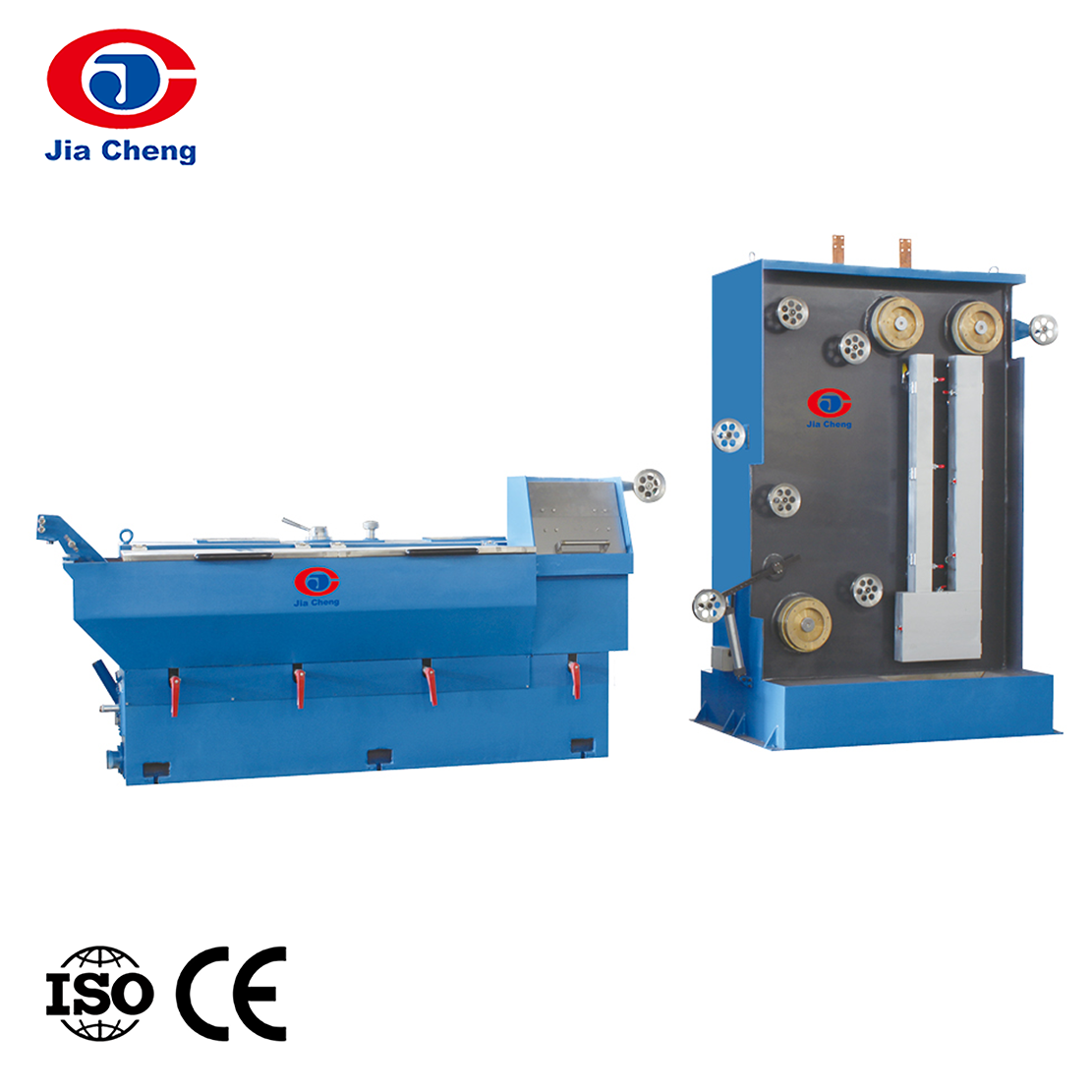

The 400 brass wire medium-speed large wire drawing machine is a wire drawing equipment specifically for brass wires. It is marked by a wire drawing drum diameter of 400mm, and is suitable for the continuous drawing of brass wires with an incoming wire diameter of Φ3.5-6.5mm and an outgoing wire diameter of Φ0.8-3.0mm.

PREV：No previous article NEXT：JCJX-LHT400 Middle Speed Copper Rod Breakdown

Feature
Specification

Description:

1).High-precision ground gear transmission is adopted.

2).PLC + touch screen human-machine interface, with closed-loop control of wire drawing tension and take-up speed, automatic shutdown when the wire breaks, reducing waste and improving yield.

3).The pay-off, wire drawing, cooling, and take-up modules are independent, supporting quick replacement of dies and reels.

Applications:

Suitable for brass wire drawing with incoming wire diameter of 3.5-6.5mm and outgoing wire diameter of 0.8-3.0mm.

Specifications:

Machine type	400/9	400/7	280/13DLH/D
Inlet diameter(mm)	Φ6.5	Φ5.2	Φ3.5
Outlet diameter(mm)	Φ2.5-3.0	Φ2.5-3.0	Φ0.8-1.6
Die No.	9	7	13
Max. line speed(m/min)	500	500	1200
Fix speed capstan diameter	400	400	280
Transmission type	By high precision grinding gear
Main motor power	132	132	45
Lubrication type	Immersion
Optional equipment	1.Continuous annealing device 2.Coiler 3.Spool take-up 4.Static coiler
Lubrication type	Immersion type
Take-up Type	1. 350T continuous annealing device 2. Double take-up 3. Coiler 4. QD630 Single take-up
Optional Function	Fast die change (PLC automatic compute)

Online continuous annealing device
Type	450T/B	250T/B
Machine structure	horizontal	vertical
Annealing wheel Dia.(mm)	Φ450	Φ250
Annealing wire dia.	Φ2.0-Φ3.2	Φ0.8-Φ1.6
Annealing voltage	0-85V(AC)	0-85V(DC)
Annealing current	0-3500A(AC)	0-1200A(DC)
Annealing current	0-4500A(DC)	0-4500A(AC)
