Rod Breakdown Machine

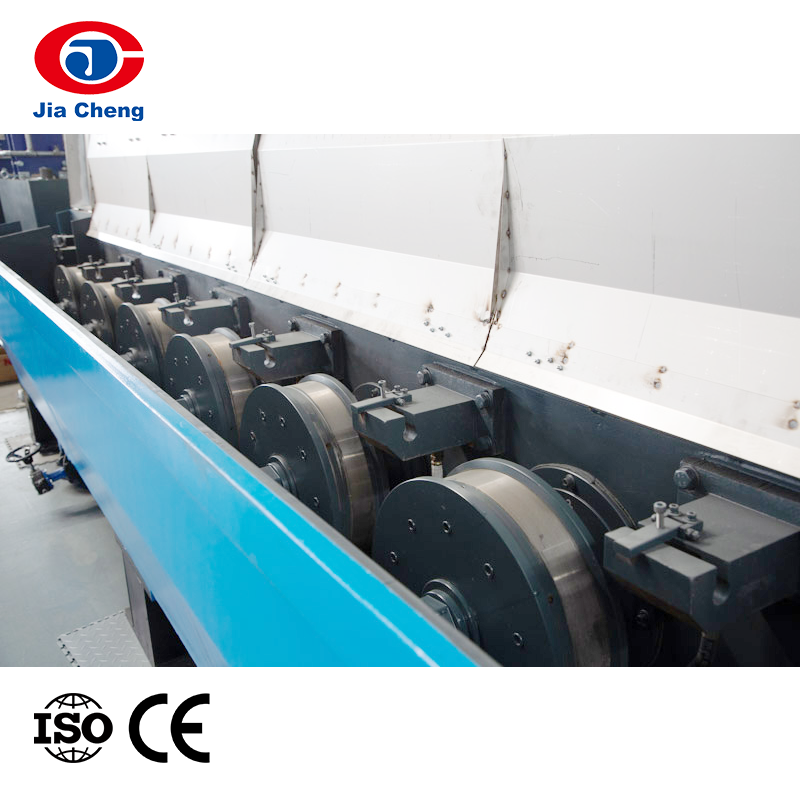

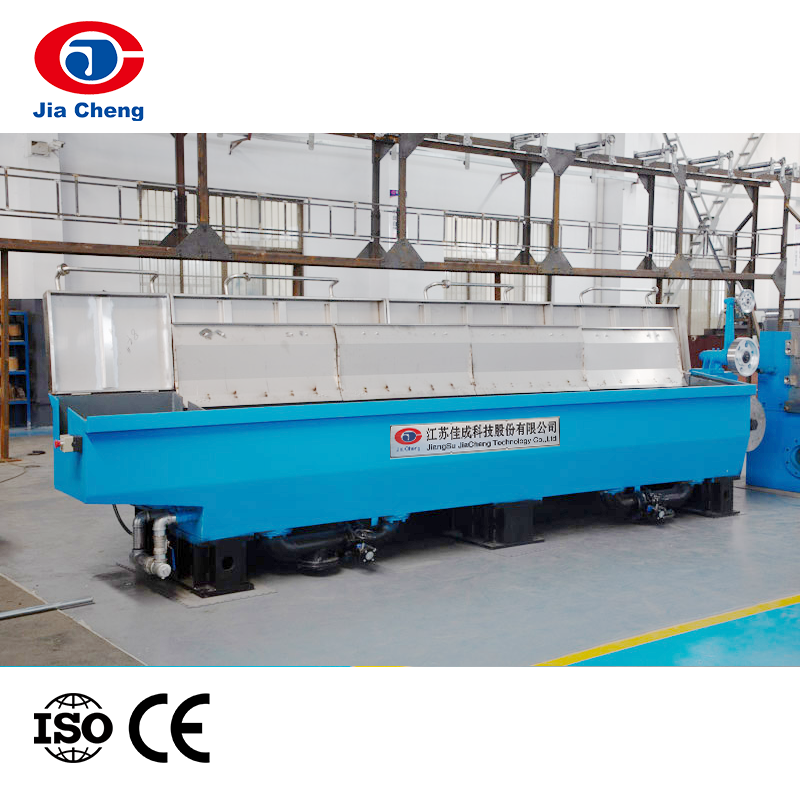

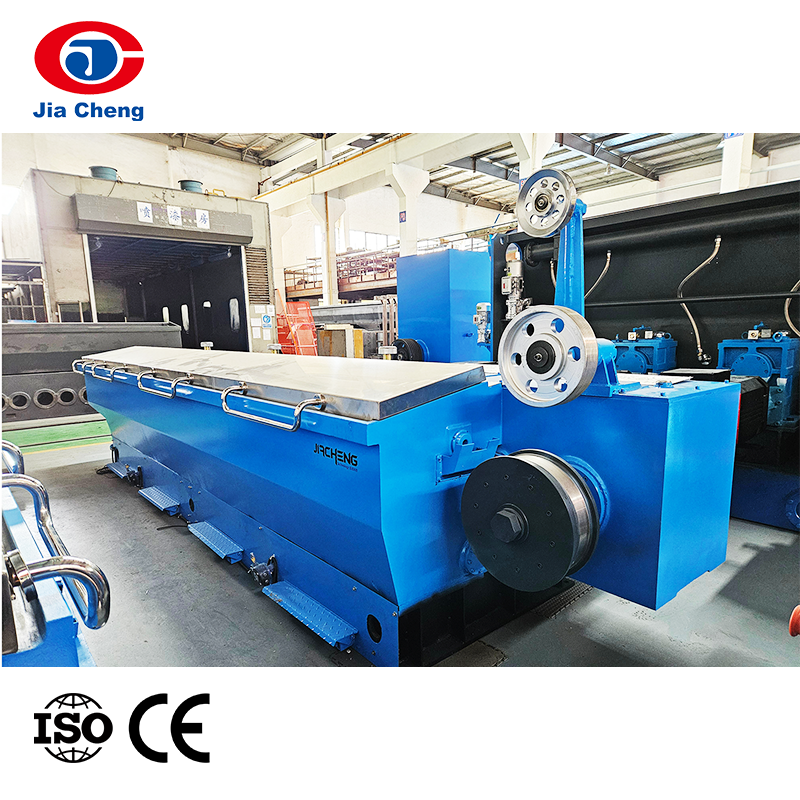

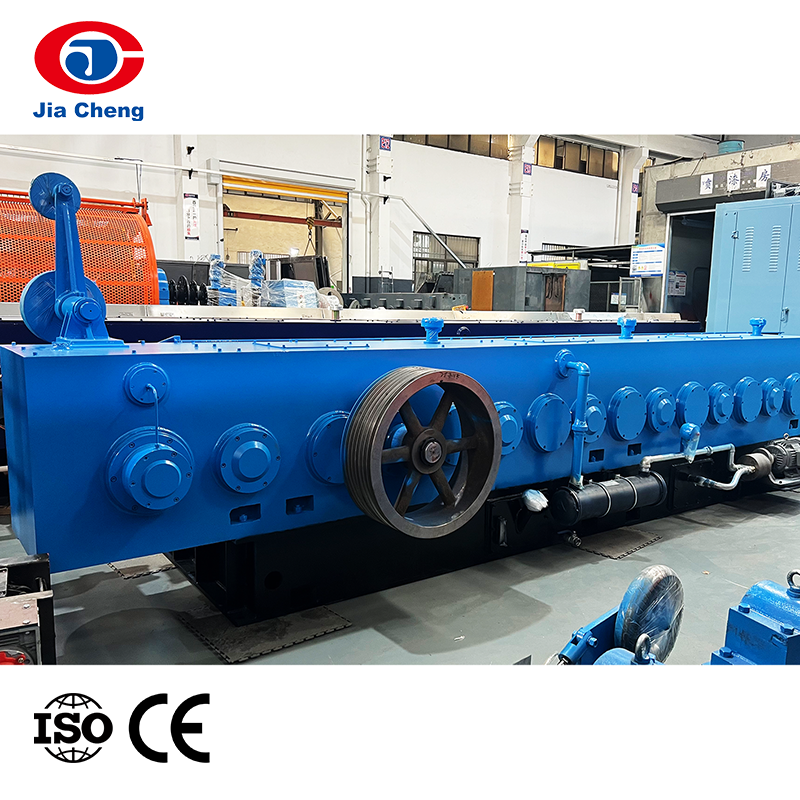

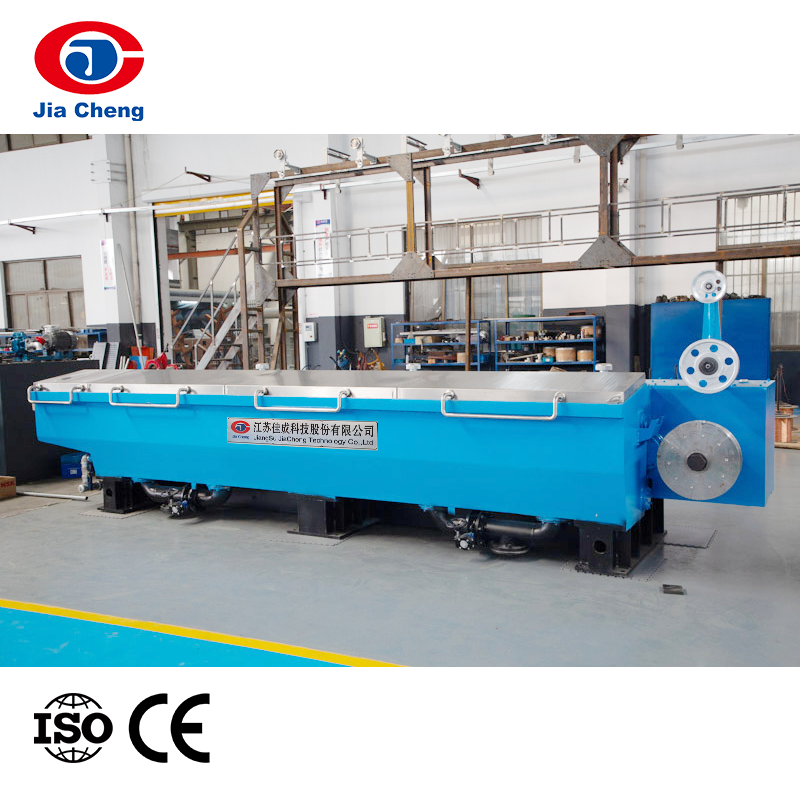

JCJX-LHT400 Middle Speed Copper Rod Breakdown

Product Introduction

This equipment is mainly used to wire copper rods with a diameter of 8mm into single copper wires with a diameter between 1.2mm and 3.2mm.

Input diameter: 8mm

Output diameter range: varies from 1.2mm to 3.2mm depending on different models

Maximum wire drawing speed: ranging from 12m/s to 20m/s, depending on specific model

Description:

1. Ironed cast.

2. High precision gear transmission, high efficiency, low noise.

3. Fully immersed way to lubricate and cool, which can guarantee the high quality of drawing wire.

4. 4. Annealing device is inclined, which is convenient for workers to cross the wire. Special designed air pipe to send air to the axis for annealing wheel.

5. The lubrication way is immersion, which can guarantee the quality of drawing wire.

6. Special designed air pipe to send air to the axis of annealing wheel.

7. Dual lay door design for better protection.

Applications:

This machine is suitable for manufacturing plants, especially in the cable industry, for efficient continuous production.

Specifications:

Machine Type	LHT400/13	LHT400/11		LHT400/9	LHT400/8	LHT400/7	LHT400/6
Inlet Dia.(mm)	Φ8
Outlet wire dia.(mm)	Φ1.2-Φ3.2	Φ1.6-Φ3.2		Φ2.3-Φ3.2	Φ2.6-Φ3.2	Φ2.6-Φ3.2	Φ3.0
Max. Die No.	13	11		9	8	7	6
Max. Drawing Speed(m/s)	20	18		12	12	12	12
Body Structure	Ironed cast
Transmission Type	By high precision grinding gear
Fix Speed Capstan Dia.(mm)	Φ400
Drawing Capstan	Coated by tungsten
Main Motor Power(KW)	160		132	132	132	132	132
Lubrication type	Immersion type
Take-up Type	1. 350T continuous annealing device 2. Double take-up 3. Coiler 4. QD630 Single take-up
Optional Function	Fast die change (PLC automatic compute)

Online continuous annealing device
Type	350T	350TB
Machine structure	Horizontal type
Annealing wheel Dia.(mm)	Φ350
Annealing wire Dia.(mm)	Φ1.2- Φ3.2	Φ1.2- Φ4.0
Annealing protection type	Steam or nitrogen
Annealing voltage	0-60V(DC)	0-50V(AC)
Annealing current	0-4500A(DC)	0-4500A(AC)
