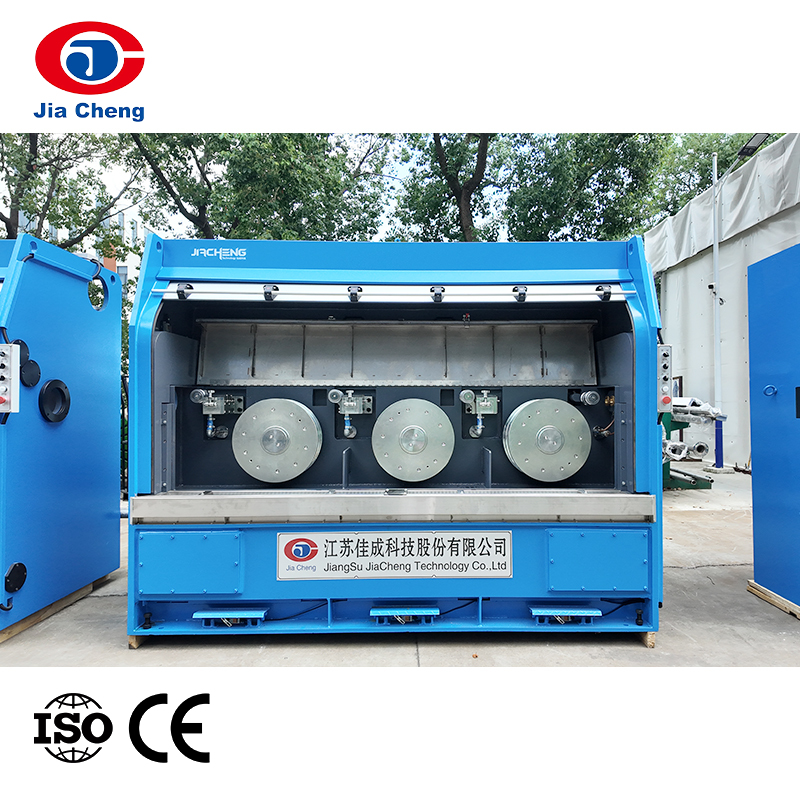

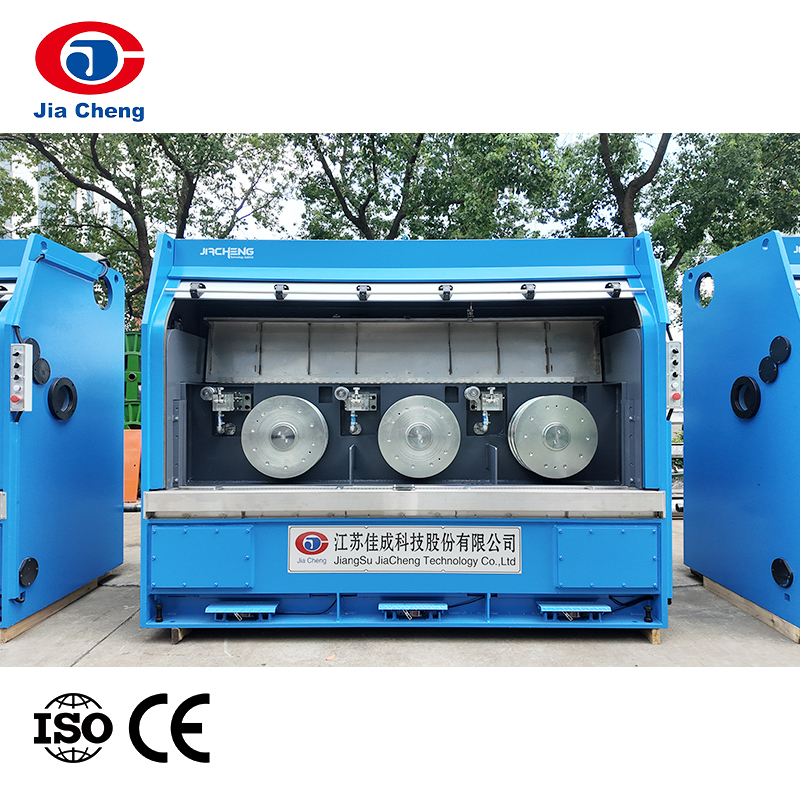

LSD450-2 Two Wires Rod Breakdown Machine

Product Introduction

The Two Wires Rod Breakdown Machine is a high-performance equipment designed specifically for metal wire drawing processes, integrating advanced mechanical manufacturing technology and intelligent control systems. It performs excellently in improving production efficiency and ensuring product quality, and is widely used in the wire and cable industry.

PREV：LSD450 Non-silp Rod Breakdown Machine NEXT：No next article

Feature
Specification

The machine is non-slip type with individual motors. It’s used for drawing copper wire from 8mm to 1.2-4.2mm, drawing AL or Al Alloy wire from 9.5mm to 1.7-5.0mm.

Feature:
1.) The machine is used for drawing copper wire from 8mm to 1.2-4.2mm or drawing aluminium/AL-alloy from 9.5mm to 1.7-5.0mm.

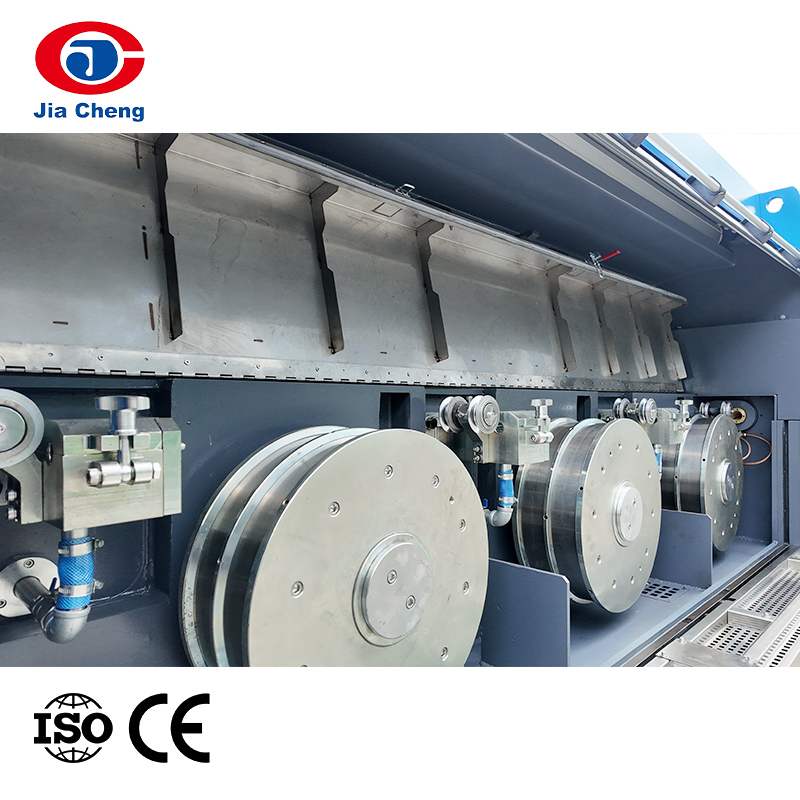

2.) It is non-slip type and every drum is transmitted by single motor, the tensile rate can be adjustable, it can also realize fast die change.
3.) Full immersion, can gurantee the wire's cooling and lubrication.

Specification：

Machine Type		LSD450/13-2	LSD450/11-2	LSD450/9-2
Drawing Wire No.		2 Wires
Drawing Capstan Dia.(mm)		Φ450
Max. Die No.		13*2	11*2	9*2
Inlet wire dia.(mm)	Copper	2*Φ8
	Al, Al Alloy	2*Φ9.5
Outlet wire dia.(mm)	Copper	2Φ1.2-Φ3.5 1Φ3.5-Φ4.5	2Φ1.2-Φ3.5 1Φ3.5-Φ4.5	2Φ2.0-Φ3.5 1Φ3.5-Φ4.5
	Al,Al Alloy	2*Φ1.7-Φ5.0	2*Φ2.2-v5.0	2*Φ2.8-Φ5.0
Max. Drawing Speed(m/s)		30m/s	28m/s	20m/s
Main Motor(KW)		45/55/75/132KW(AC)
Capstan Arrangement		Horizontal Type

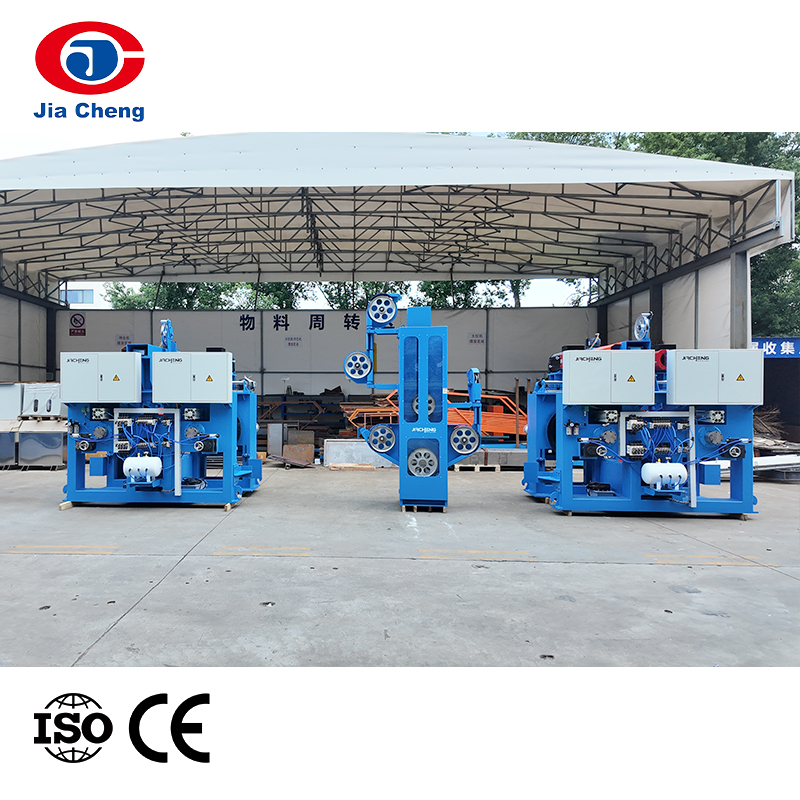

Take-up Type(Optional)		Double Take-up/Single Take-up/Coiler
Optional Equipment		Online horizontal annealing

On-line Continous Annealing Device
Machine Type	450T-2
Annealing Wire No.	2 Wires
Annealing Wire Dia. (mm)	2Φ1.2-Φ3.2mm,1Φ3.5-Φ4.5mm
Annealing Voltage(V)	0-55V
Annealing Current(A)	0-8000A
Max. Annealing Speed(m/s)	25m/s
