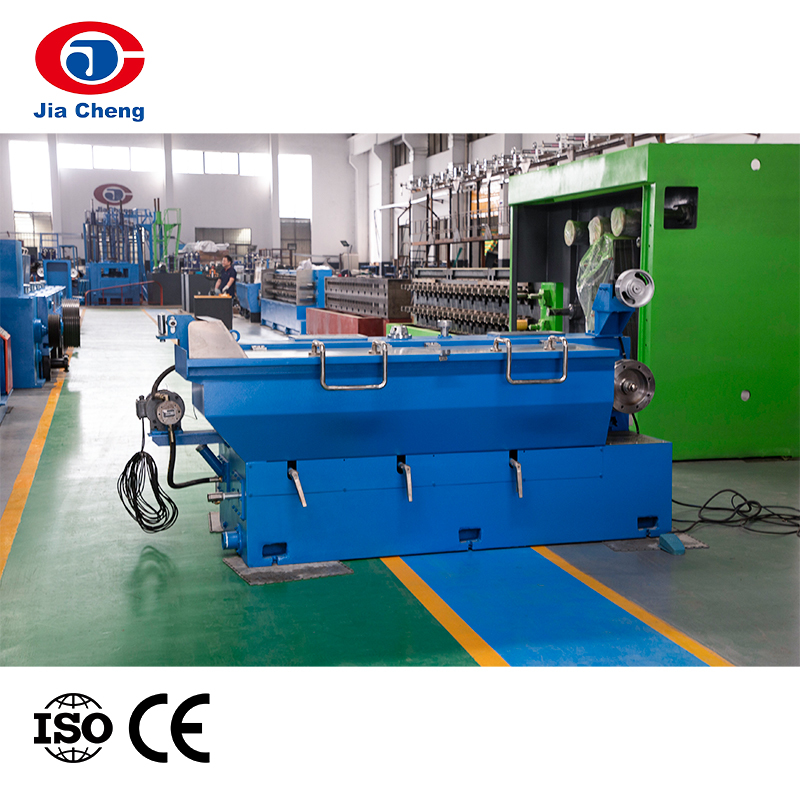

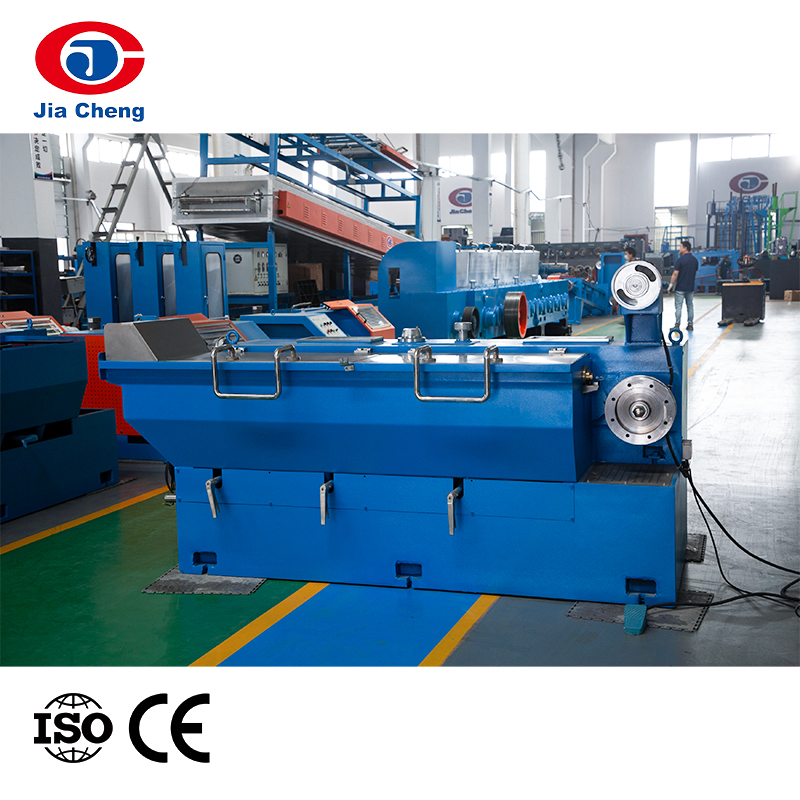

Double Intermediate Wire Drawing Machine

Product Introduction

It is an efficient upgraded equipment in the field of metal wire processing, which can simultaneously perform multiple drawing processes on two independent wires, accurately drawing coarse metal wires into medium diameter finished or semi-finished wires.

PREV：No previous article NEXT：Intermediate Wire Drawing Machine M/C With Annealing

Feature
Specification

Features：
1. The equipment is equipped with two independent and symmetrical wire drawing mold sets, which can simultaneously process two metal wires.

2. Compared to traditional single-strand processing intermediate wire drawing machines, the dual line parallel processing design has increased the amount of wire processed per unit time by the equipment.

3. Compared to the single-line intermediate drawing machine, the operation and maintenance are more convenient, and the energy consumption and cost are better

Specification：

Machine Type	JCJX-9DH-2	JCJX-13DH-2		JCJX-17DH-2
Drawing Wire No.	2 Wires
Inlet Dia.(mm)	Φ2.5~Φ3.5
Outlet Dia. (mm)	2*Φ1.0~Φ1.8	2*Φ0.68~Φ1.2		Φ0.4~Φ1.0
	1 * 2.8 Max.	1 * 2.8 Max.		1*2.0 Max.
Max. Die No.	9	13		17
Max. Line Speed (m/min)	1200	2000		2000
Body Structure	Ironed Cast

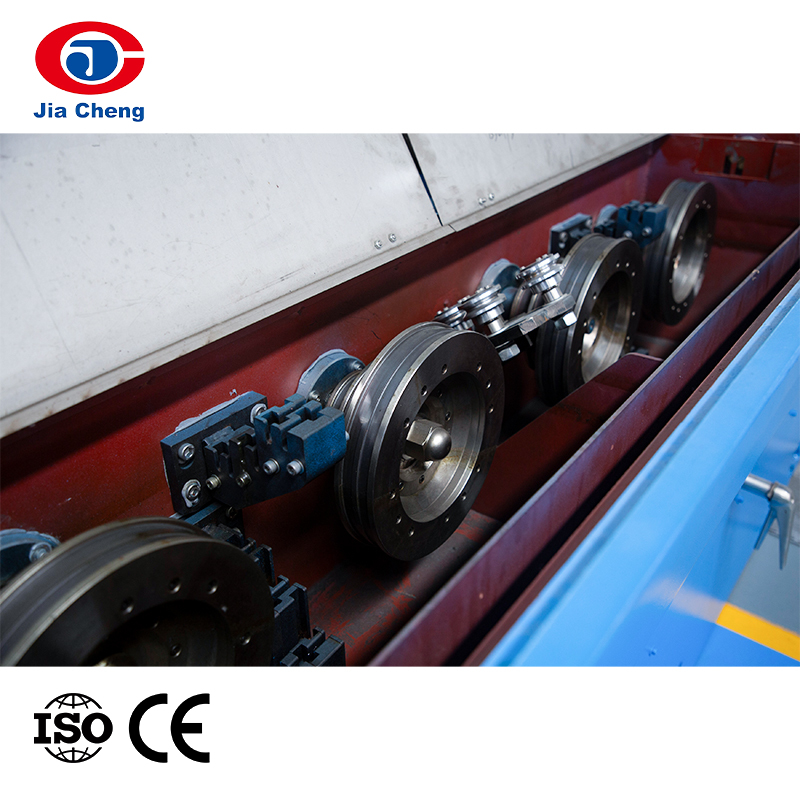

Drawing Capstan	Tungsten Plasma Capstan
Main Motor Power (kw)	75
Take-up Motor (kw)	15
Capstan Dia.(Max.)(mm)	Φ300	Φ280		Φ250
Fix Speed Capstan Dia.(mm)	Φ300	Φ280		Φ250
Transmission Type	By Gear
Lubrication Type	Full Immersion
Tension Control	Air Pressure Type

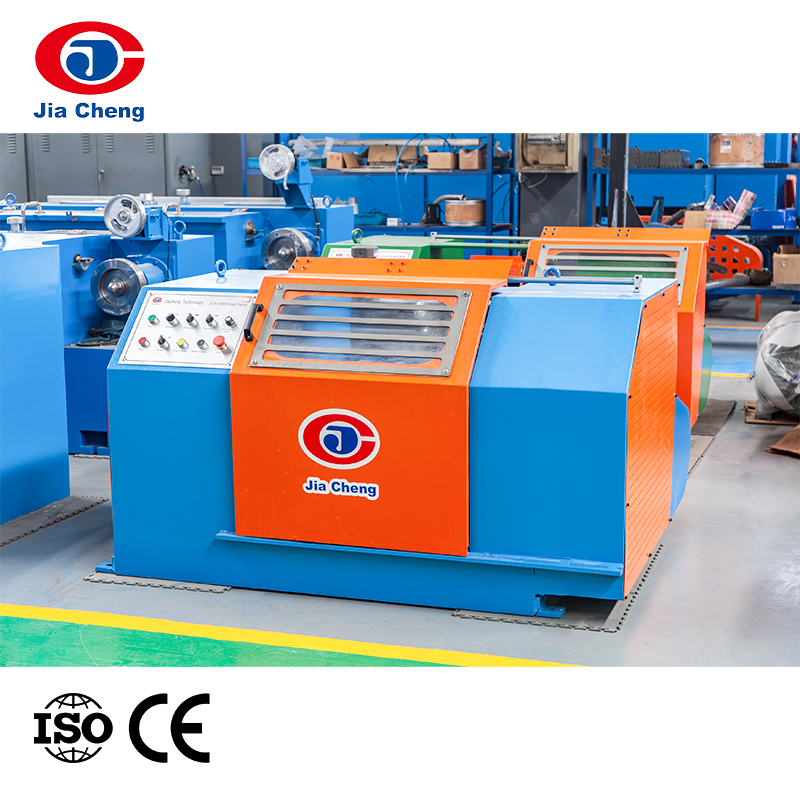

Take-up Type	Shaftless Type
Take-up Bobbin Size (mm)	Φ500 ( Aperture Φ127)
	Φ630 ( Aperture Φ127)
Traversing Type	Motor Type
Brake	Disc Brake

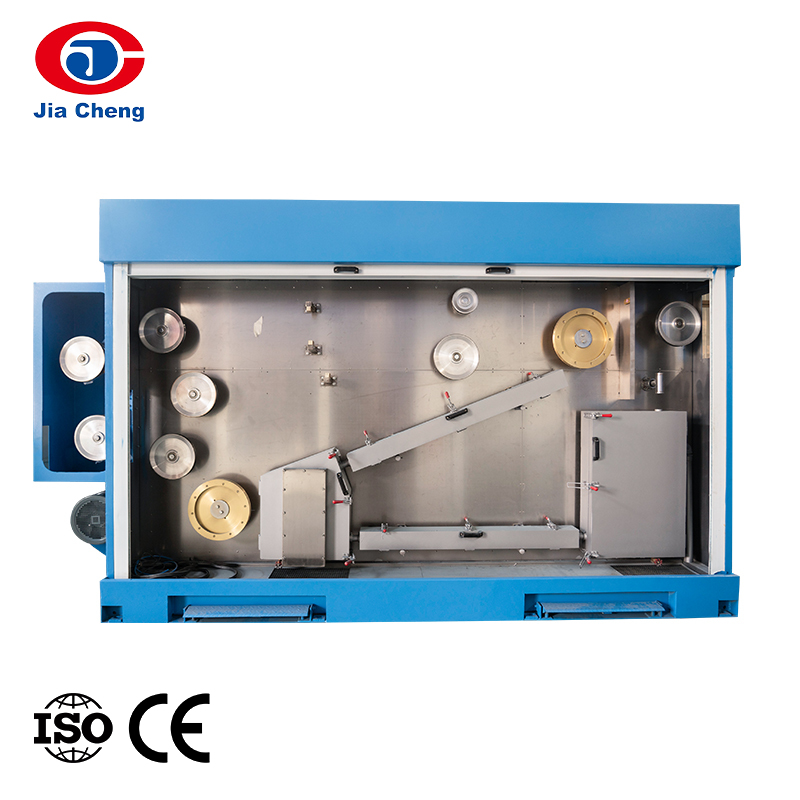

On-line Continuous Annealing Device
Type	350T-2		250TB-2
Annealing Structure	Horizontal		Vertical
Annealing Wire Dia.(mm)	2*Φ0.8~1.8		2*Φ0.4~1.2
	1*Φ2.8 Max.		1*Φ2.0 Max.
Annealing Voltage ( V )	0 ~ 60		0 ~ 60
Annealing Current ( A )	0~4000A		0~3000A
