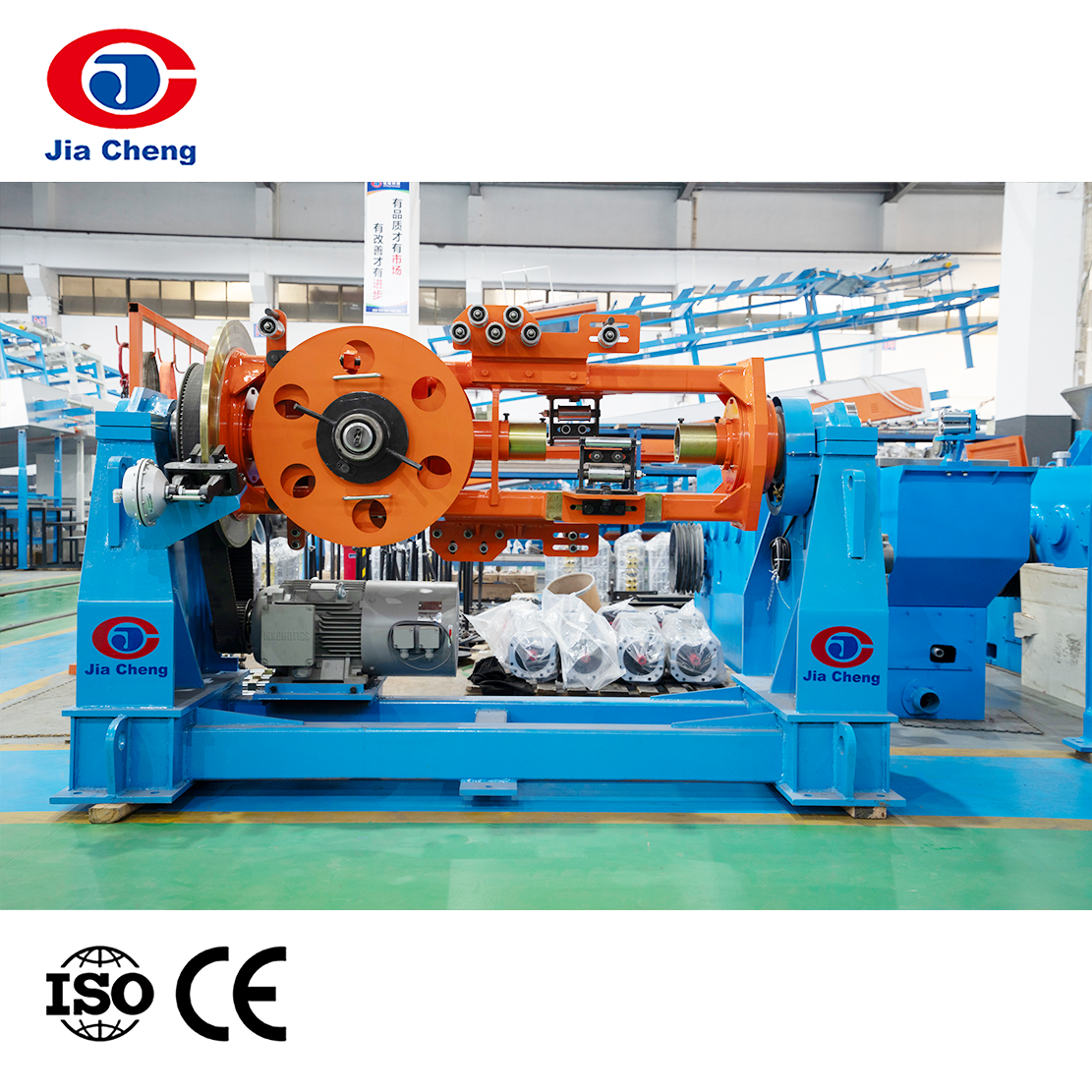

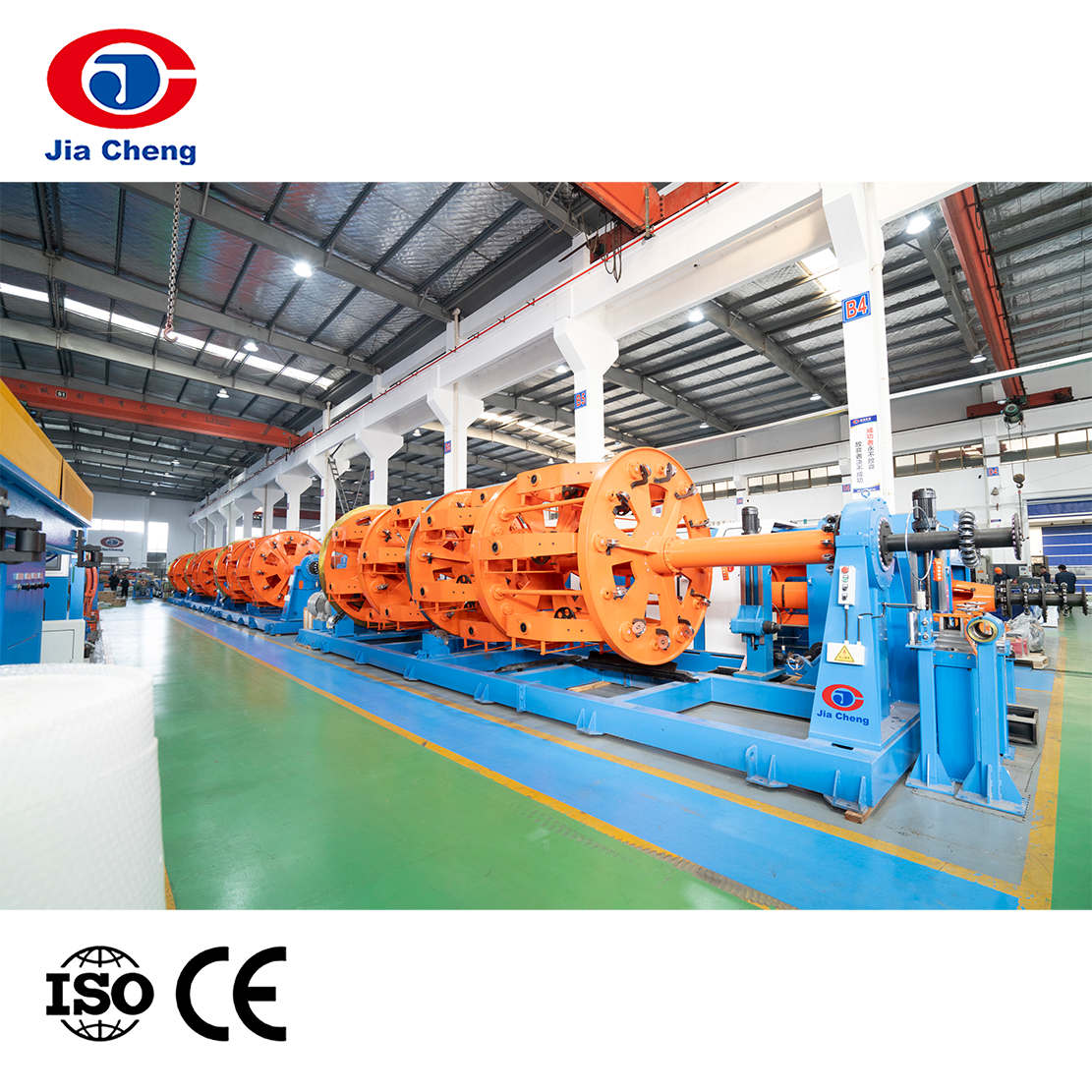

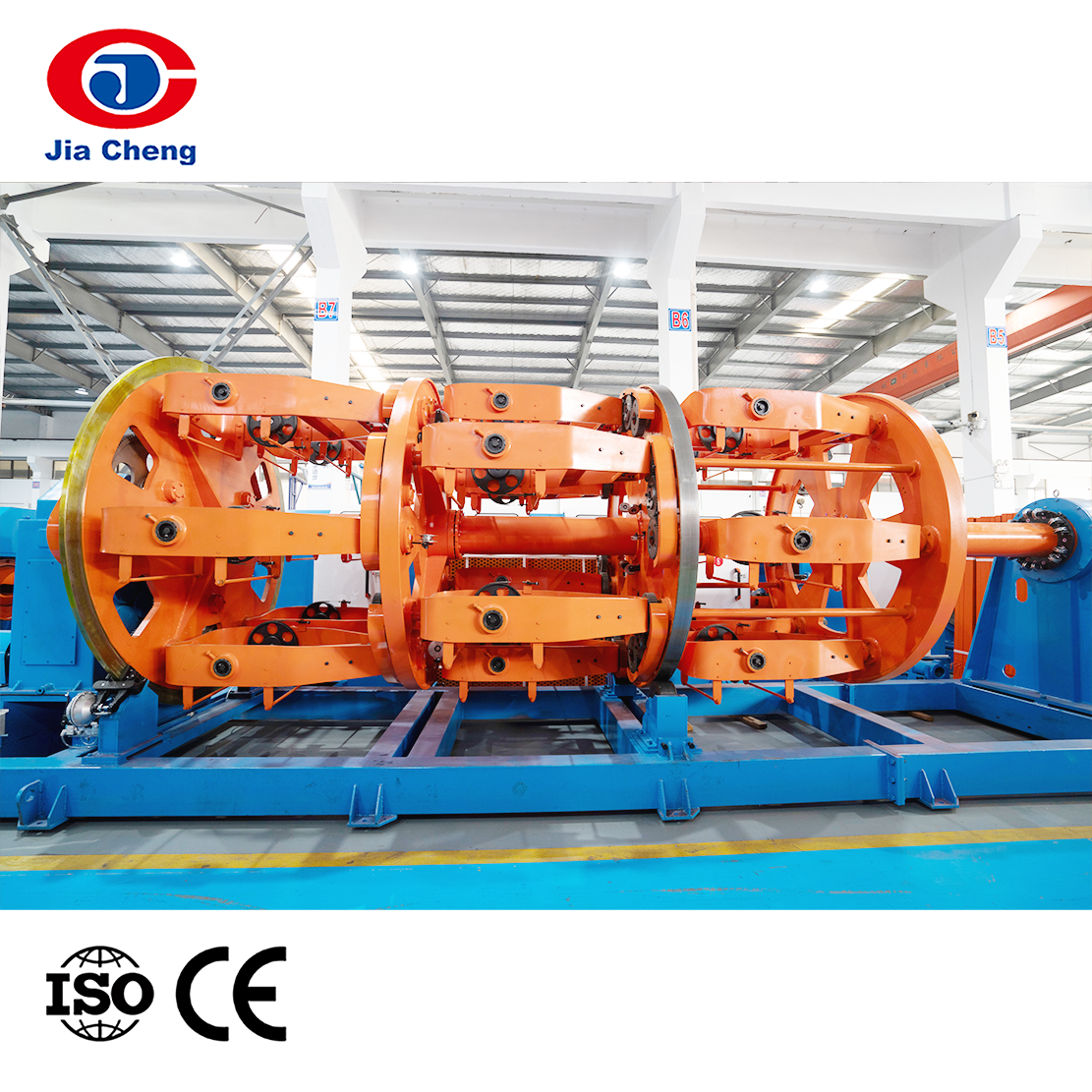

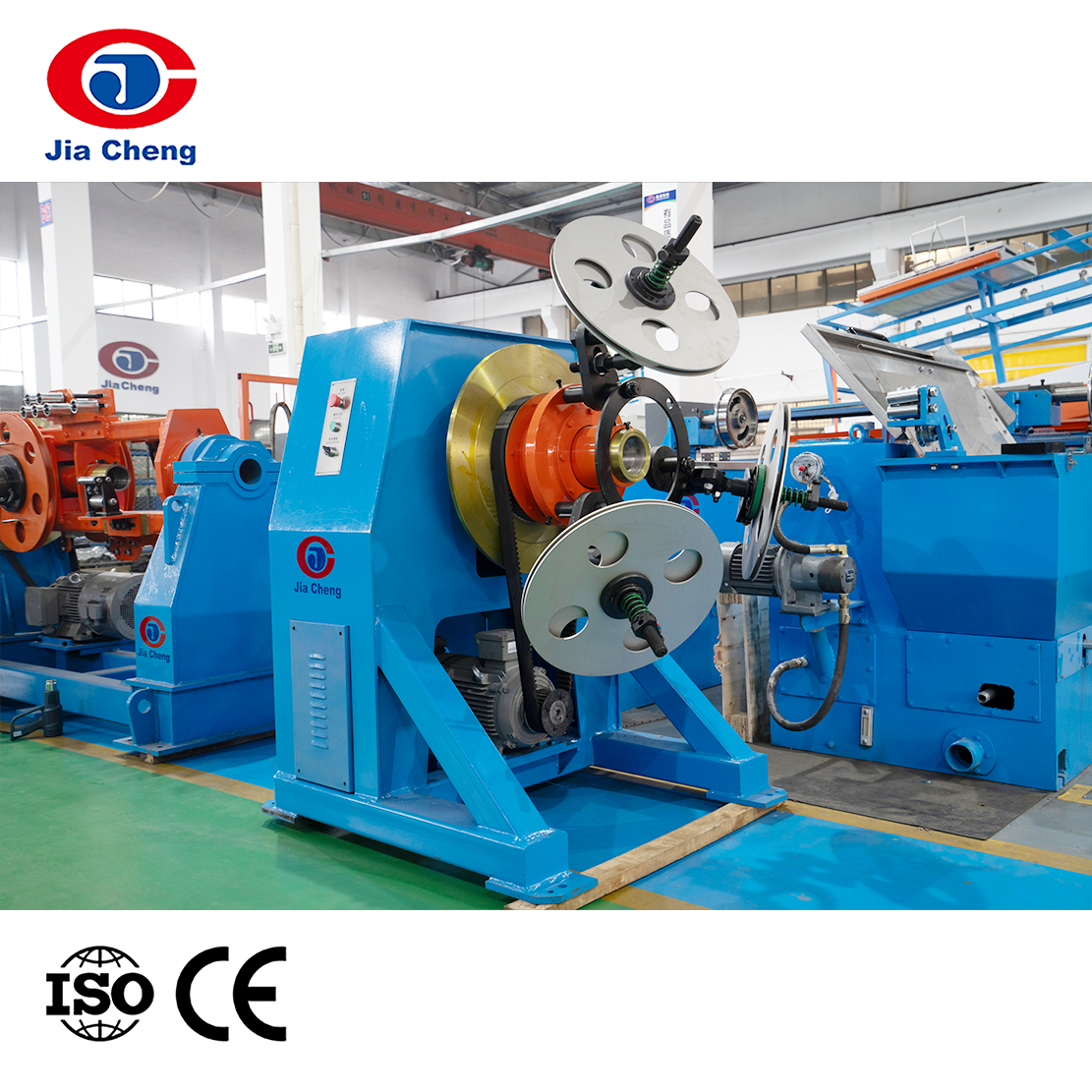

Planetary Stranding Machine

Product Introduction

Planetary Stranding Machine has become a high-quality choice in the cable manufacturing industry due to its unique planetary twisting principle, high production efficiency, precise twisting control, wide adaptability, and reliable performance. It can handle cable materials of various specifications and materials, including but not limited to common cable materials such as copper wire, aluminum wire, and steel wire. It can provide users with high-quality and high-performance cable twisting solutions, meeting the diverse needs of cable products in different fields.

PREV：Twisting Machine + Double Head Backing Twisting Pay Off NEXT：Skip Stranding Machine

Feature
Specification

This machine is used for stranding and cabling the insulated cores, or ACSR, bare aluminum wire, and conductor.

Specification：

Name	Part	JCJX-JL400		JCJX-JL500		JCJX-JL630
Name	Part	6+12+18/400	6+12+24/400	6+12+18/500	6+12+24/500	6+12+18/630	6+12+24/630
Pay-off	Pay-off drum specifications	Φ400mm	Φ400mm	Φ500mm	Φ500mm	Φ630mm	Φ630mm
Strander	Monofilament diameter	Φ1.2-3.0mm		Φ1.2-5.0mm
	Cabling diameter	Φ21mm	Φ27mm	Φ35mm	Φ45mm	Φ35mm	Φ45mm
	Cage rotary speed	20-100 r/min	30-80 r/min	35-85 r/min	35-85 r/min	33-77r/min	33-77r/min
	Pitch	119	103	119	103	88	77
	Bobbin size inside of cage	Φ400mm	Φ400mm	Φ500mm	Φ500mm	Φ630mm	Φ630mm
	Motor power	22kw	30kw	30kw	37kw	45kw	55kw
Capstans haul-off	Capstan diameter	Φ1600mm		Φ1800mm	Φ2000mm	Φ1800mm	Φ2000mm
Capstans haul-off	Haul-off speed	4.65-28m/min		4.65-32.86m/min		5.1-36.9m/min
Take-up	Take-up bobbin	PN800-1600mm	PN1000-2000mm		PN1250-2500mm
