Fine Wire Drawing Machine

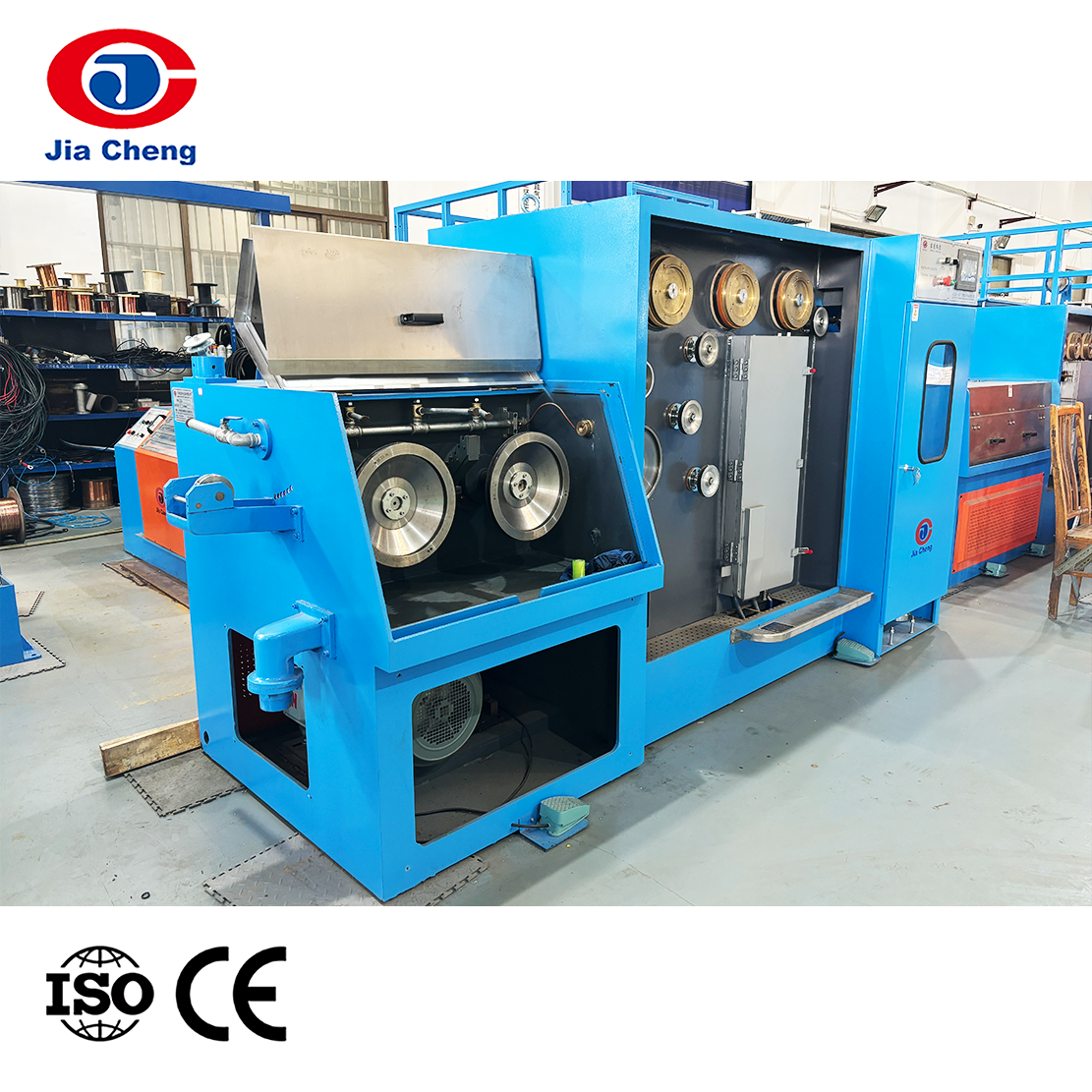

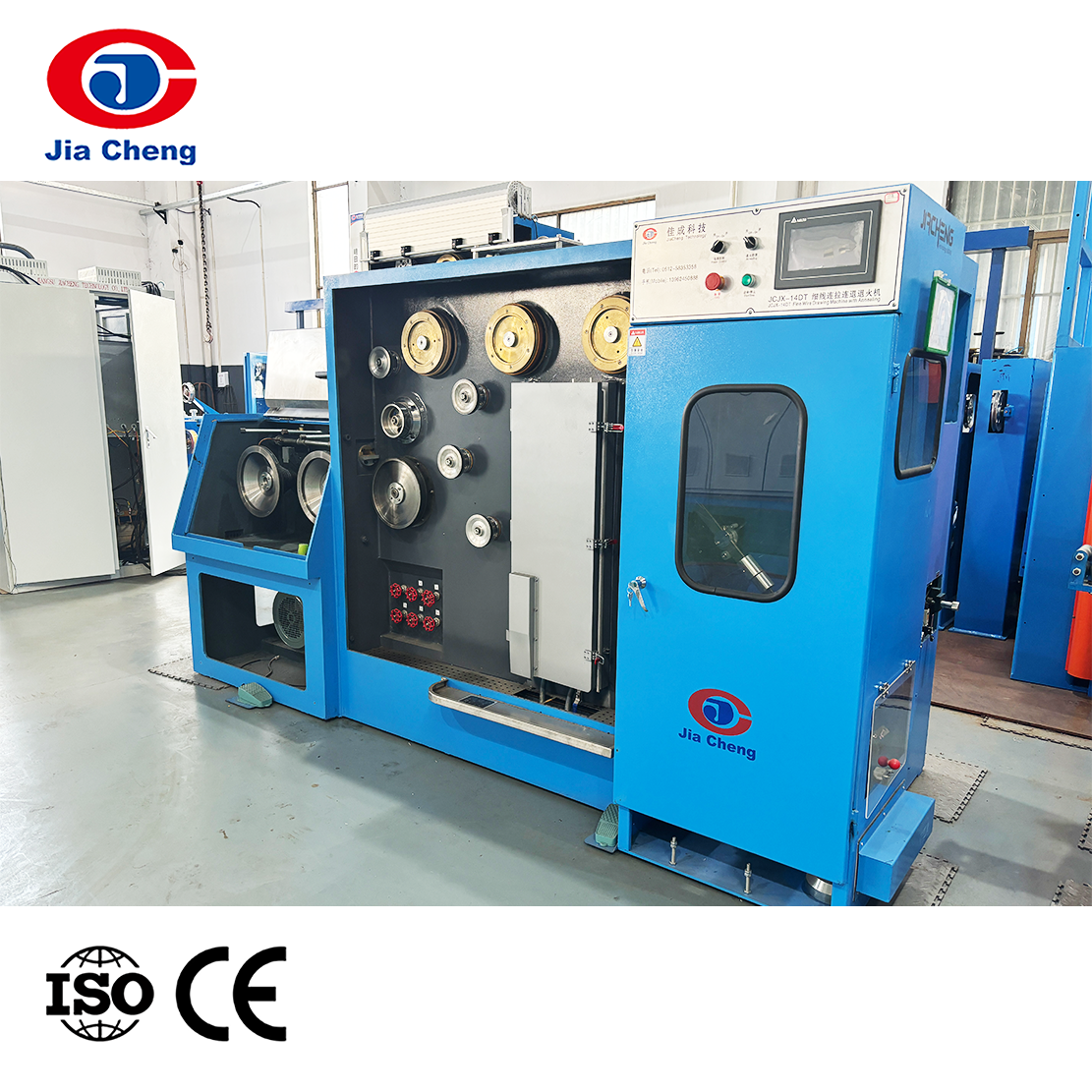

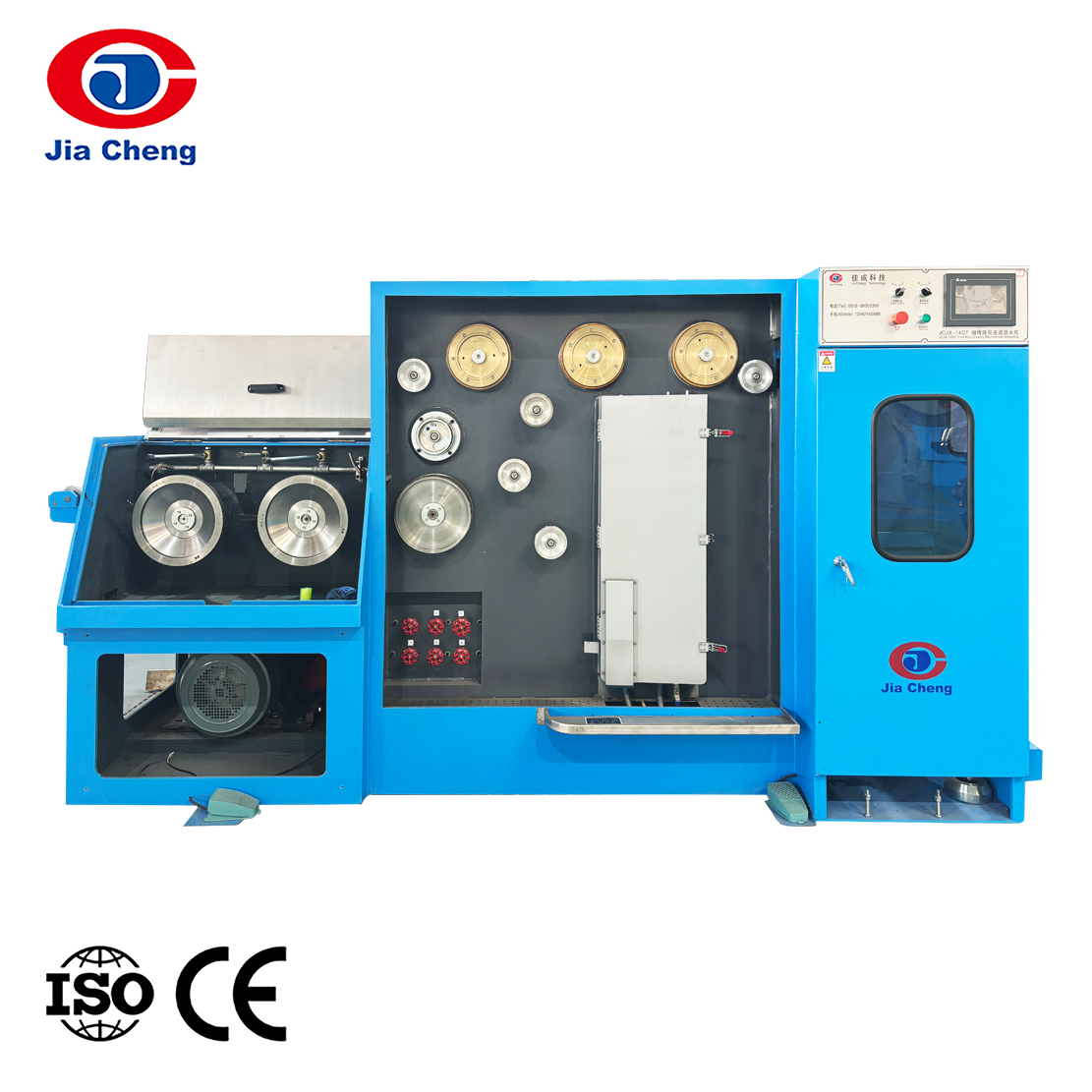

Fine Wire Drawing Machine M/C With Annealer

Product Introduction

Wire drawing and annealing are completed on the same line, eliminating intermediate transfer and secondary clamping. It realizes the continuous whole process of "pay-off → wire drawing → annealing → cooling → take-up", supports simultaneous processing of two wires, and the wire outgoing speed can reach 1800m/min, which significantly shortens the production cycle.A PLC+HMI synchronous control system is adopted, with closed-loop linkage of wire drawing tension, annealing temperature and take-up speed.

PREV：Double Fine Wires Drawing Machine NEXT：Wire Drawing Machine(Alloy Wire Series)

Feature
Specification

Description:

1）Double inverter control control

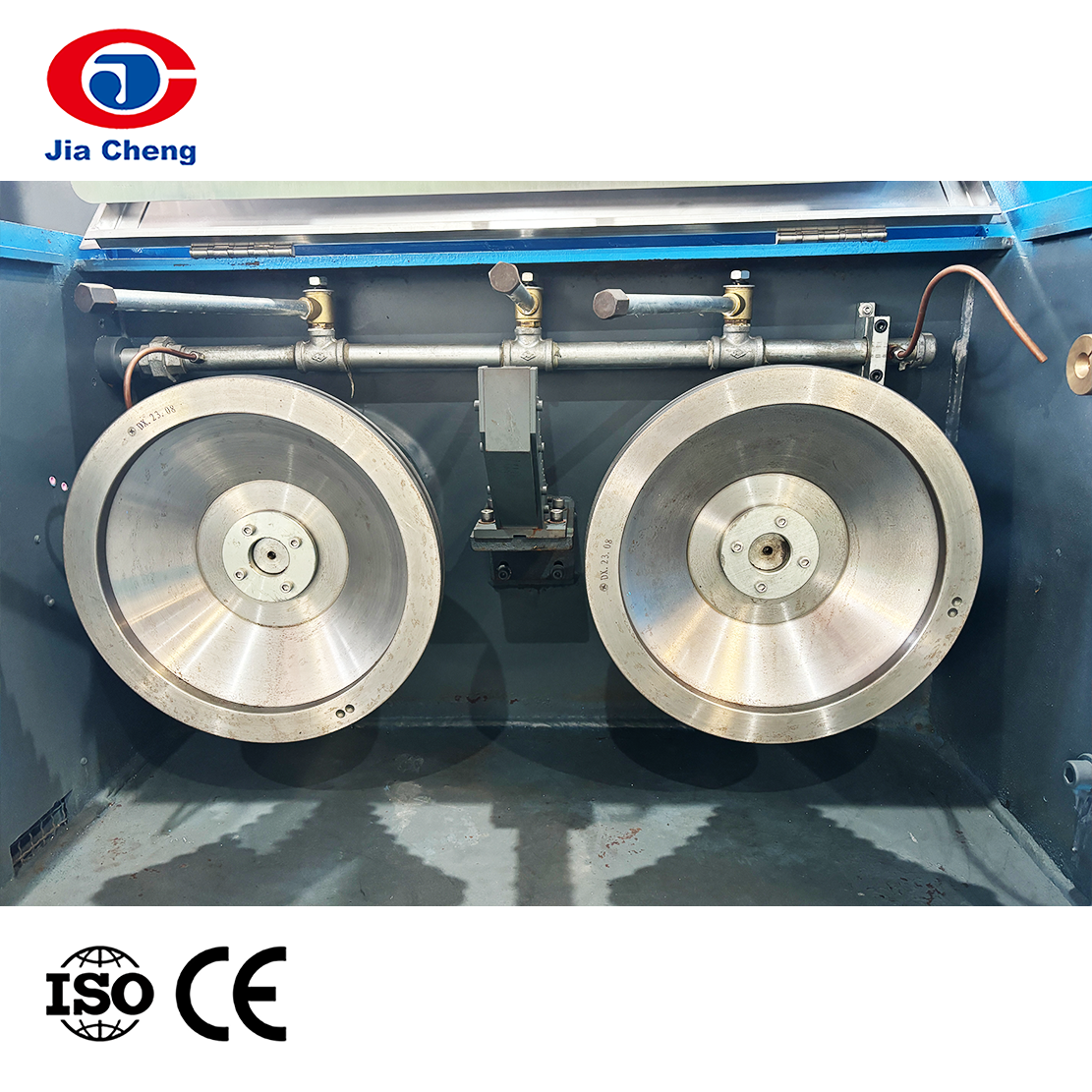

2）Wire drawing drum wheel with porcelain spraying treatment,，load and unload adopt Conical pressing fixed, easy to operate.

3）The machine adopts four contact wheel three-step annealing mode, to be used with copper wire drawingmachine, through the flat belt connected to the back of host。

Applications:

It is used for drawing copper and online annealing copper wire.

Specification：

Machine type	JCJX-DT14	JCJX-DT17	JCJX-DT22	JCJX-DT24
Inverter control	Double Inverter control
Max. Inlet diameter(mm)	Φ1.6	Φ1.5-Φ2.6	Φ1.2-Φ1.38	Φ1.0
Outlet diameter(mm)	Φ0.25- Φ0.65	Φ0.3-Φ0.8	Φ0.1-Φ0.45	Φ0.08-Φ0.35
Max. Drawing dies No.	14	17	22	24
Drawing line speed	1200m/min	1500m/min	1800m/min
Body structure	Welded by steel plate
Drawing capstan	Ceramic plasma capstan
Main motor power(kw)	18.5	18.5-37	11(15)
Take-up motor(kw)	5.5	4-15	4
Fix speed capstan Dia.(mm)	Φ268	Φ200	Φ160
Transmission type	Belt
Max. annealing voltage(DC)	60V
Max. annealing current(DC)	600A	400A-800A	200A(250A)
Take-up bobbin size(mm)	Φ300/Φ400	Φ300- Φ630	Φ300
Lubrication type	Spray
Traversing type	Synchronous motor+ belt
Brake	Magnetic brake	Magnetic/ Pneumatic	Magnetic brake
Tension control	Weight balance	Pneumatic/ Weight	Weight balance
