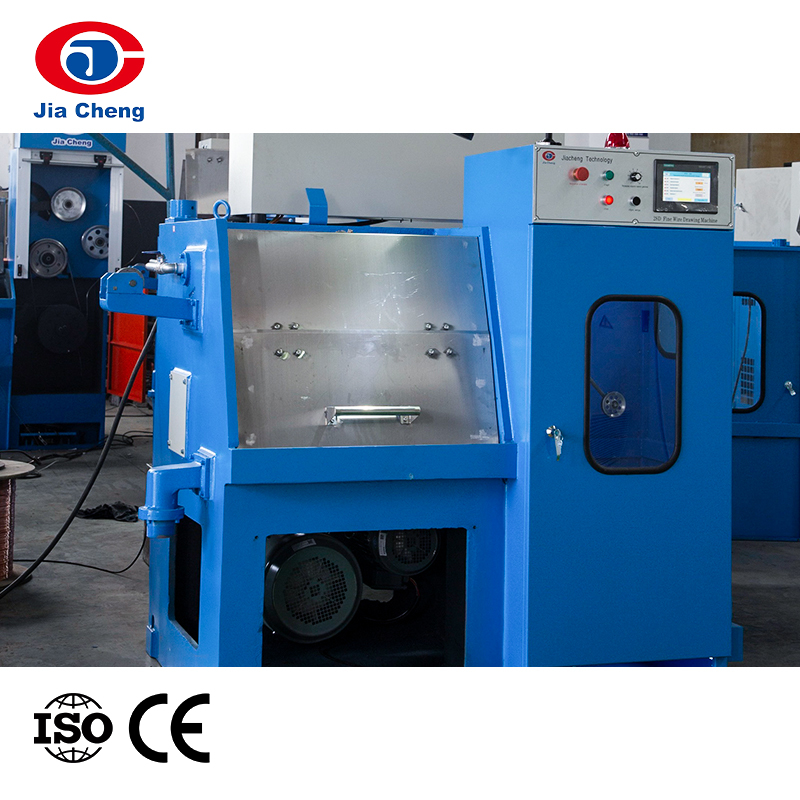

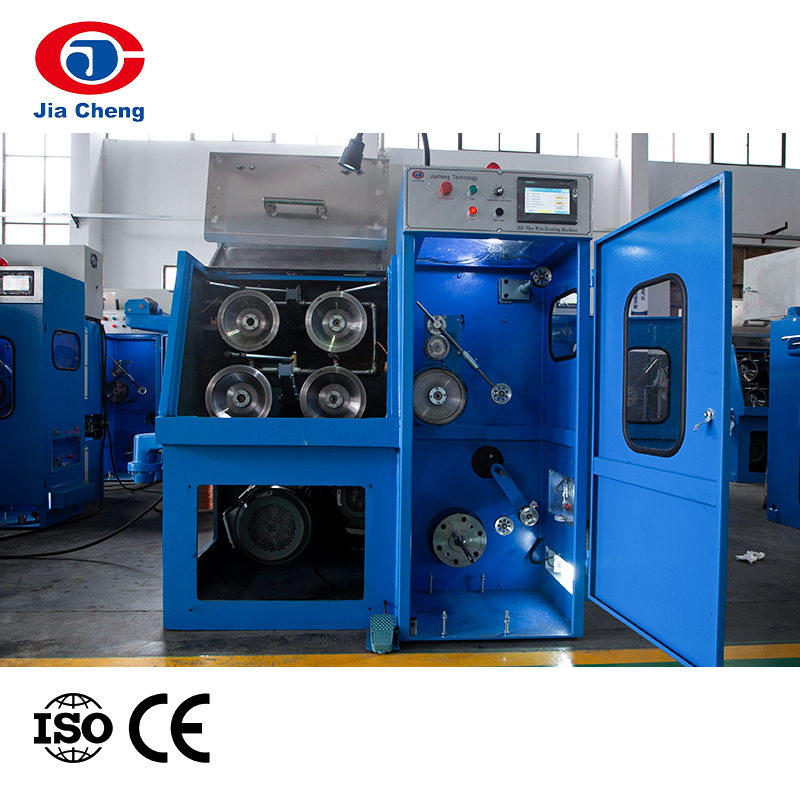

Extremely Fine Wire Drawing Machine

Product Introduction

The Extremely Fine Wire Drawing Machine adopts advanced processing technology and precision component manufacturing, combined with high-precision tension control and mold system, to achieve ultra-high precision drawing of extremely fine wires. The wire diameter tolerance can be controlled within a very small range, meeting the demanding requirements of high-end products for wire size accuracy.

PREV：Intermediate Wire Drawing Machine for CCA Wire NEXT：Intermediate & Fine, Fine Wire Drawing Machine

Feature
Specification

Main feature:
1. Double motor inverters, small slip, high quality.
2. Tension auto control system.
3. High tension, durably flat belt gains convenient replacement and low noise in operation.

Specification：

Machine type	JCJX-20D	JCJX-20DA	JCJX-24VD	JCJX-15VD
Inverter control	Dual inverter contol
Main machine structure	Four cones in vertical			Two cones in horizontal
Max. Inlet diameter(mm)	Φ0.12-Φ0.45			Φ0.03-Φ0.08
Outlet diameter(mm)	Φ0.05-Φ0.12	Φ0.06-Φ0.15	Φ0.04-Φ0.12	Φ0.02-Φ0.04
Max. Die No.	20	20	24	15
Max. Line speed(m/min)	1800	2200	1800	1000
Body structure	Ironed cast			Welded by steel plate

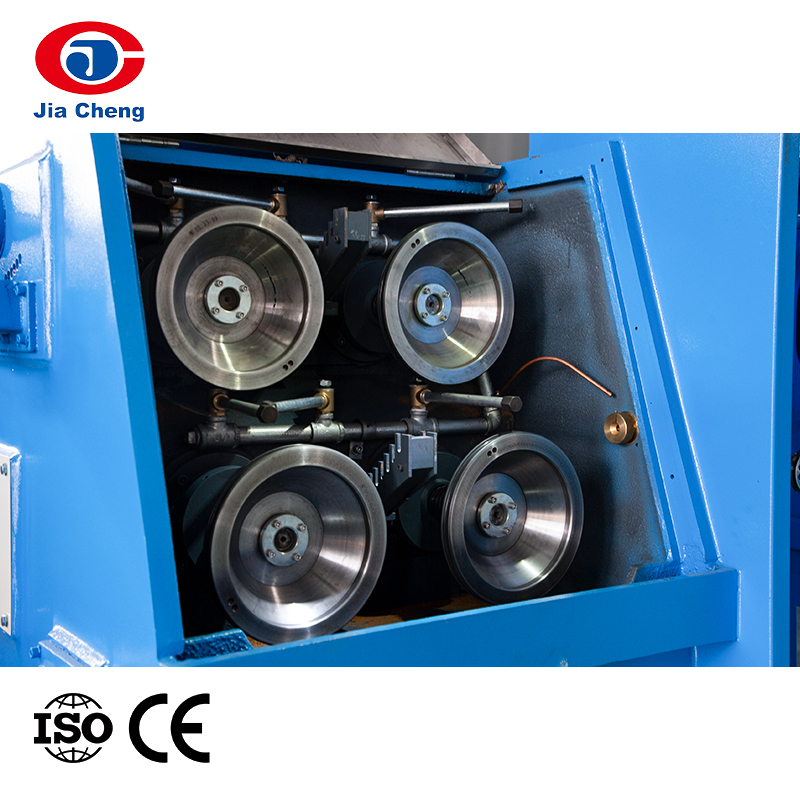

Drawing capstan	Ceramic plasma capstan
Slip ratio of m/c (%)	10.5
Main motor power(kw)	4	5.5	4	2.2
Take-up motor(kw)	2.2	2.2	2.2	0.75
Fix speed capstan diameter(mm)	Φ120	Φ150	Φ120	Φ80
Transmission type	Belt

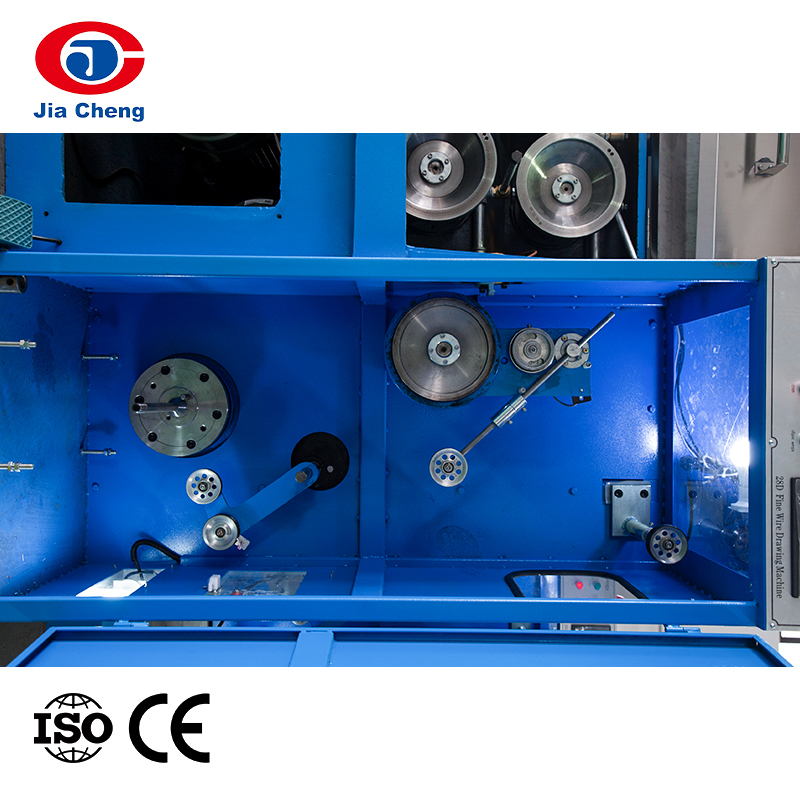

Take-up bobbin size(mm)	Φ250				Φ160
Traversing type	Synchronous motor+belt				Shaft move type
Tension control	Weight balance type
Brake	Magnetic Brake
Lubrication type	Spray
