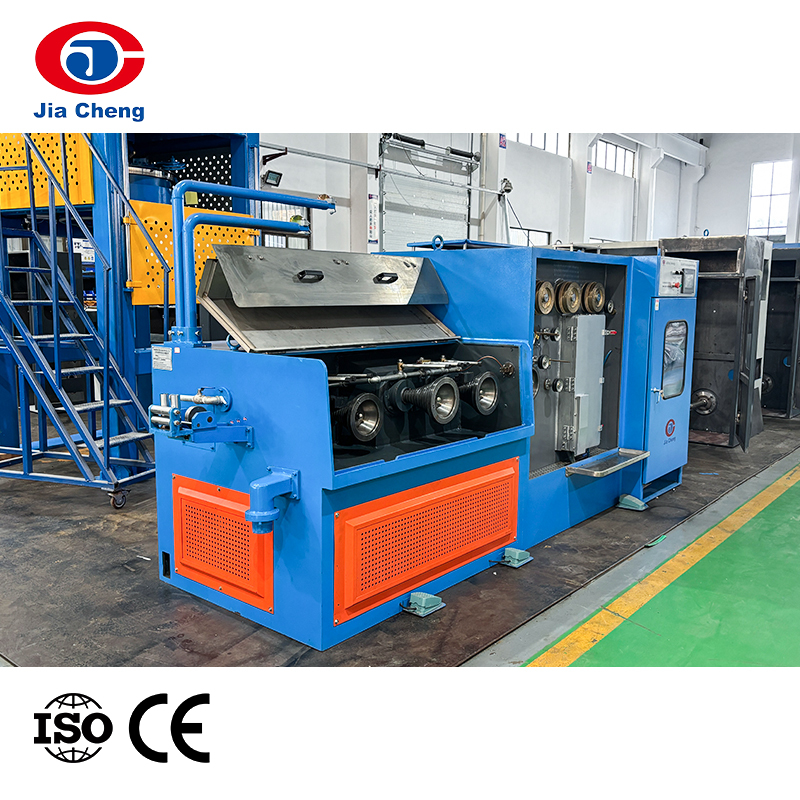

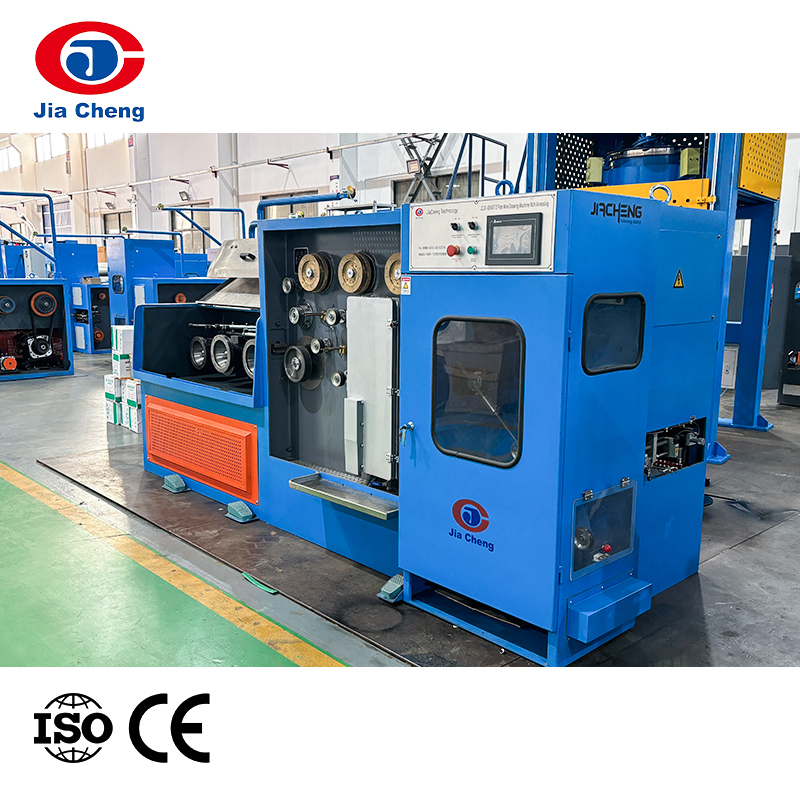

Double Fine Wires Drawing Machine

Product Introduction

Two wires can be drawn at the same time, improving production efficiency. Equipped with a sophisticated control system, it can accurately control various parameters during the drawing process and produce wire with surface quality and dimensional accuracy.

Input diameter range: can range from 1.0mm to 1.83mm depending on the model

Output diameter range: can be selected from 0.15mm to 0.7mm according to different models

PREV：No previous article NEXT：Fine Wire Drawing Machine M/C With Annealer

Feature
Specification

Description:

1) Double motors inverters, small slip high quality
2) Tension auto control system
3) High tension durably flat belt gain convenient replacement and low noise in operating

Applications:

This machine is suitable for manufacturing plants, especially in the cable industry, for efficient continuous production.

Specification：

Machine type	B24/2	B22/2	B17/2
Drawing Wire No.	2 Wires
Inlet Dia.(mm)	Φ1.0	Φ1.2	Φ1.83
Outlet Dia.(mm)	Φ0.15~Φ0.35	Φ0.15~Φ0.35	Φ0.25~Φ0.70
Max. Die No.	24	22	17
Max.Line Speed(m/min)	2000		1800
Main Motor Power(KW)	22/18.5	22	30
Take-up Motor(KW)	4		5.5
Fix Speed Capstan Dia.(mm)	Φ160		Φ200
Take-up bobbin size(mm)	Φ300/Φ400(bore Φ 127) or changed by requirement

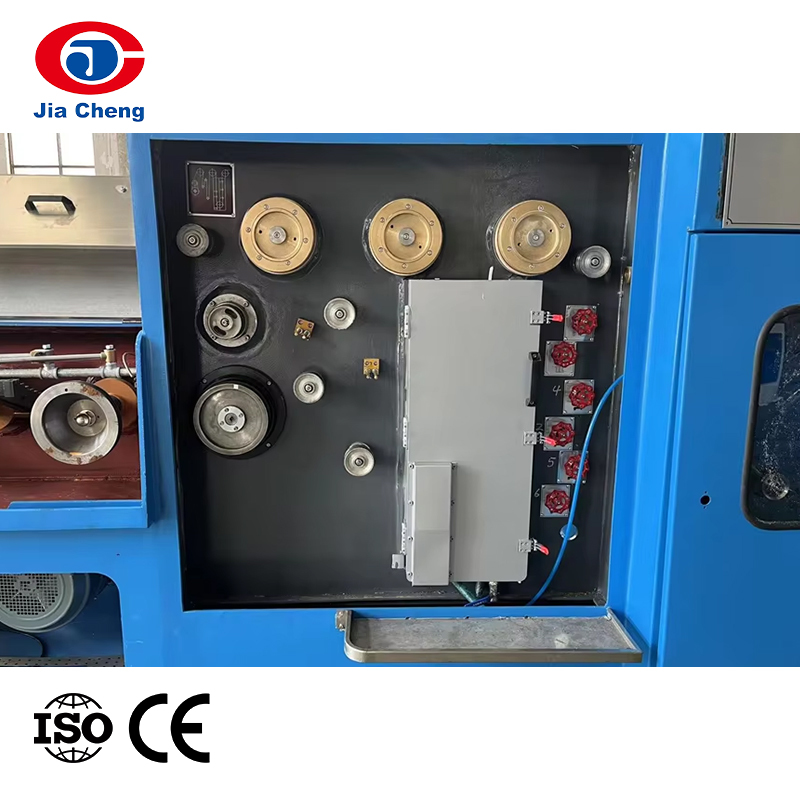

On-line Continuous Annealing Device Specification

Machine Type	160T-2	200T-2
Annealing Wire No.	2 Wires
Annealing WIre Dia.(mm)	Φ0.15~Φ0.35	Φ0.25~Φ0.70
Annealing Voltage(V)	0~60	0~60
Annealing Current(A)	0~350A	0~600A
