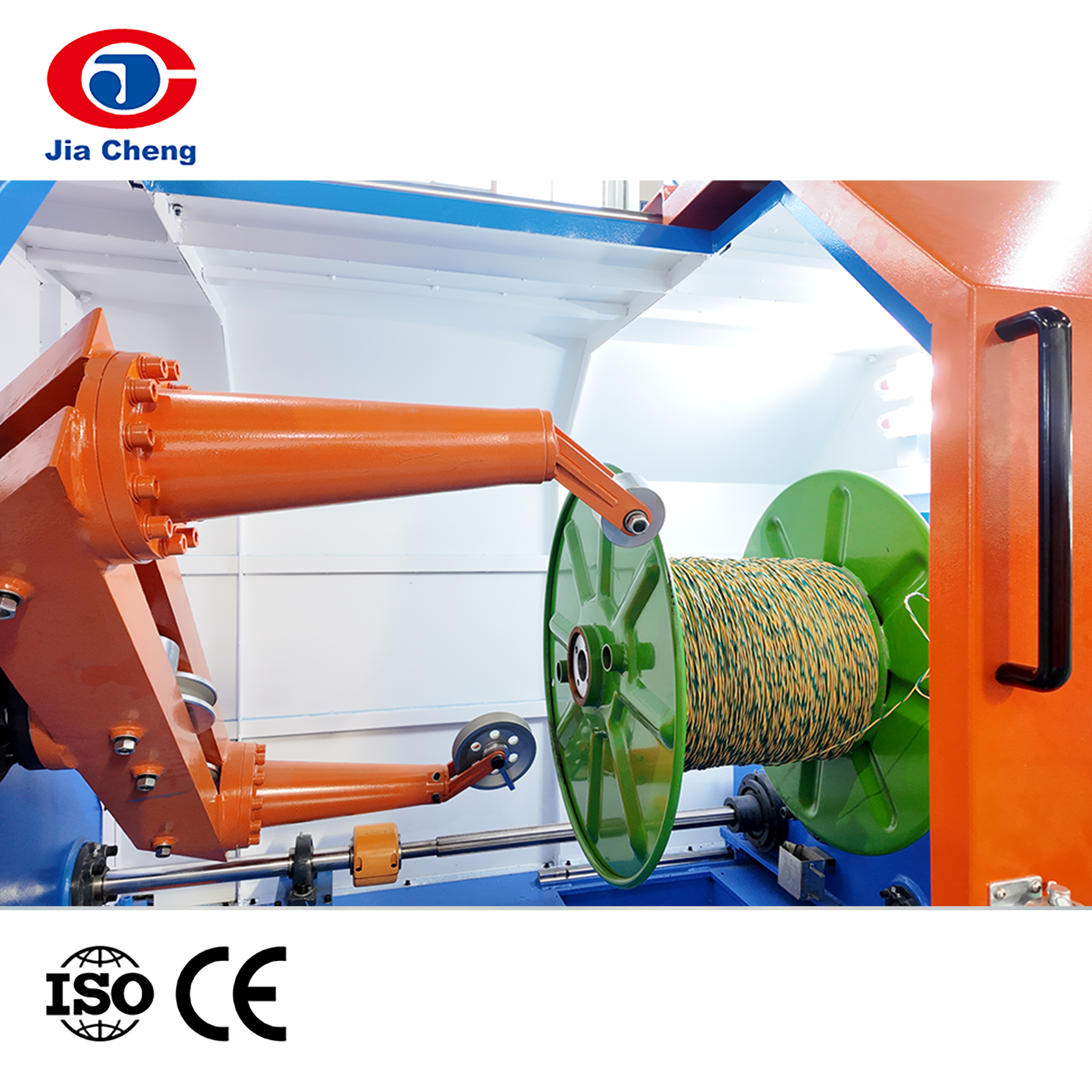

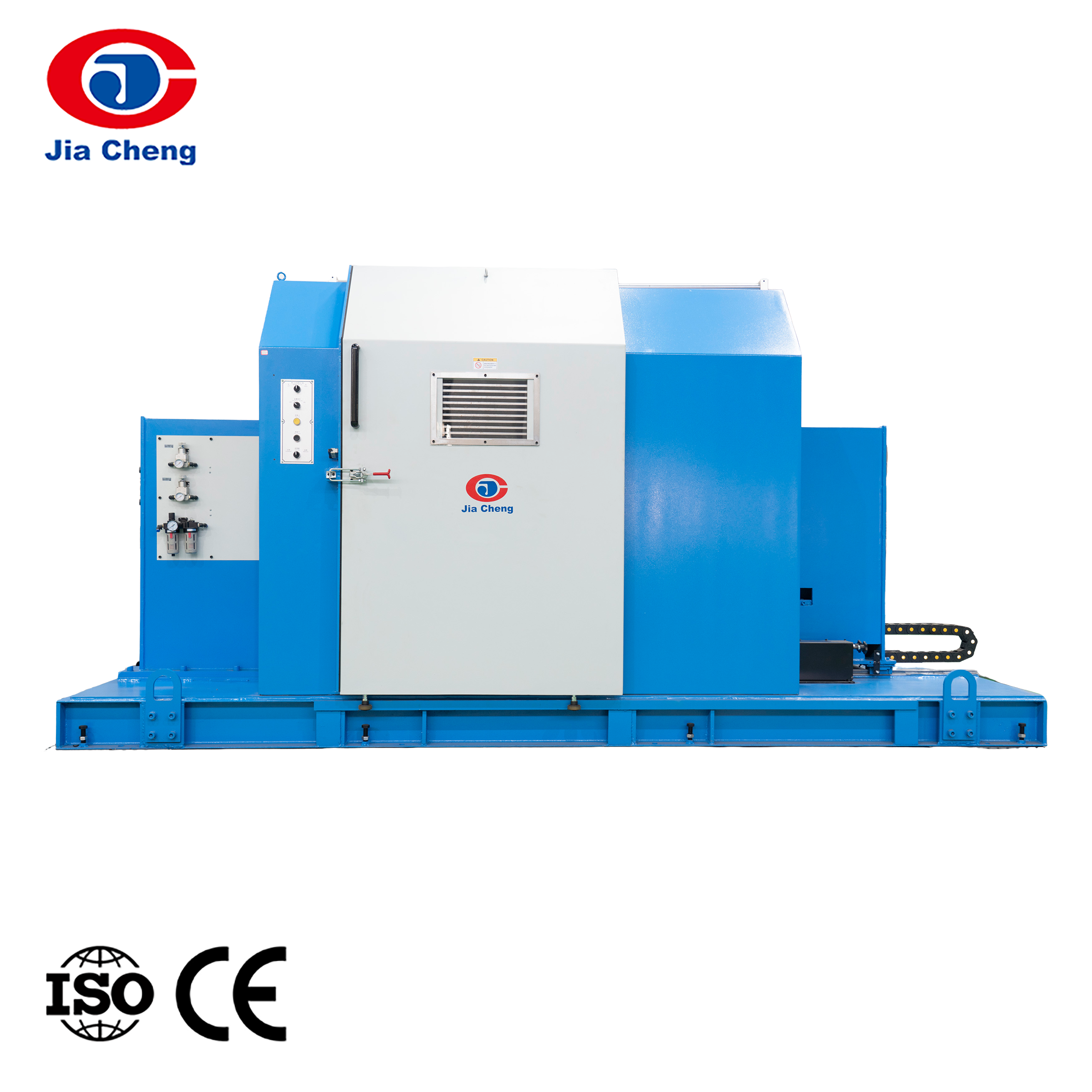

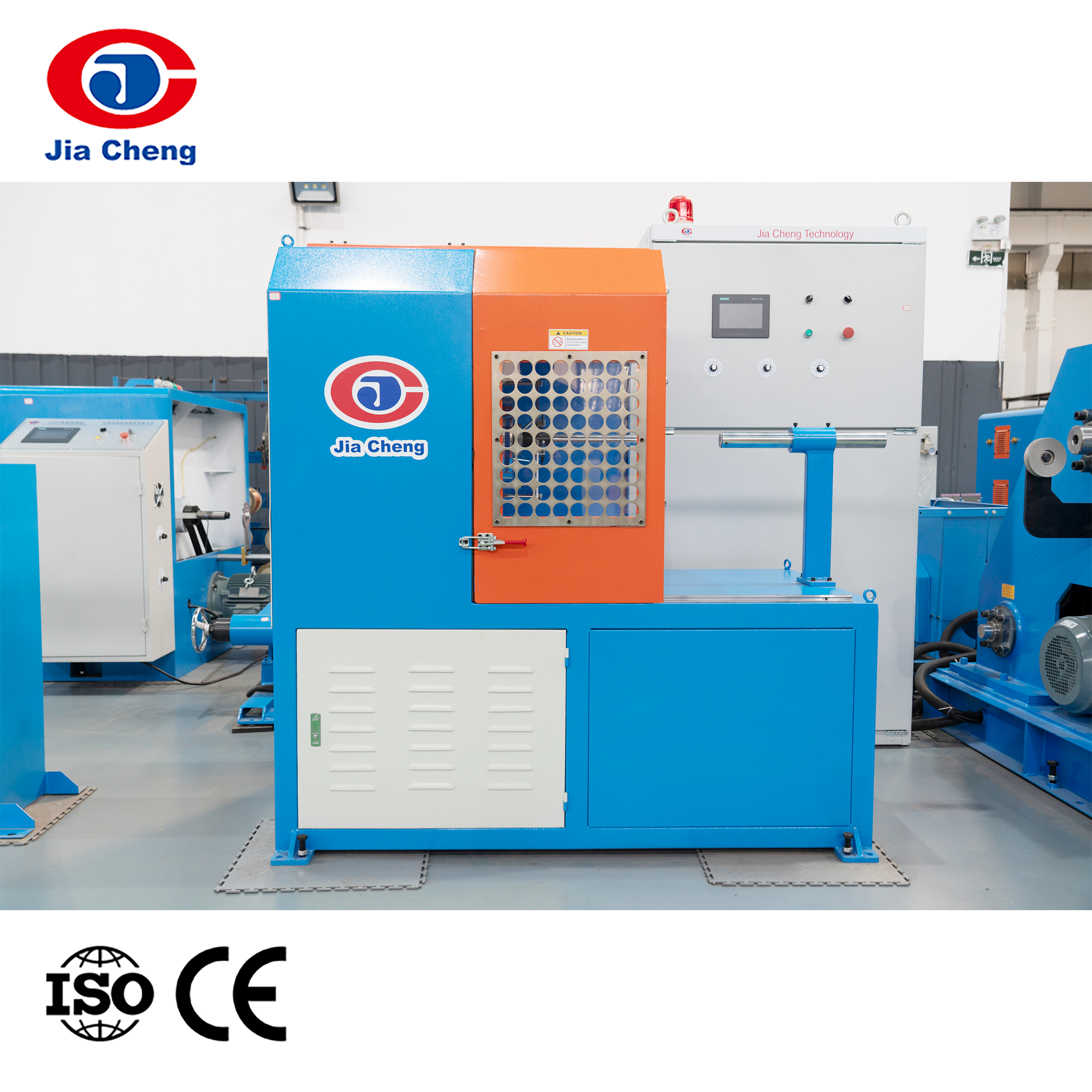

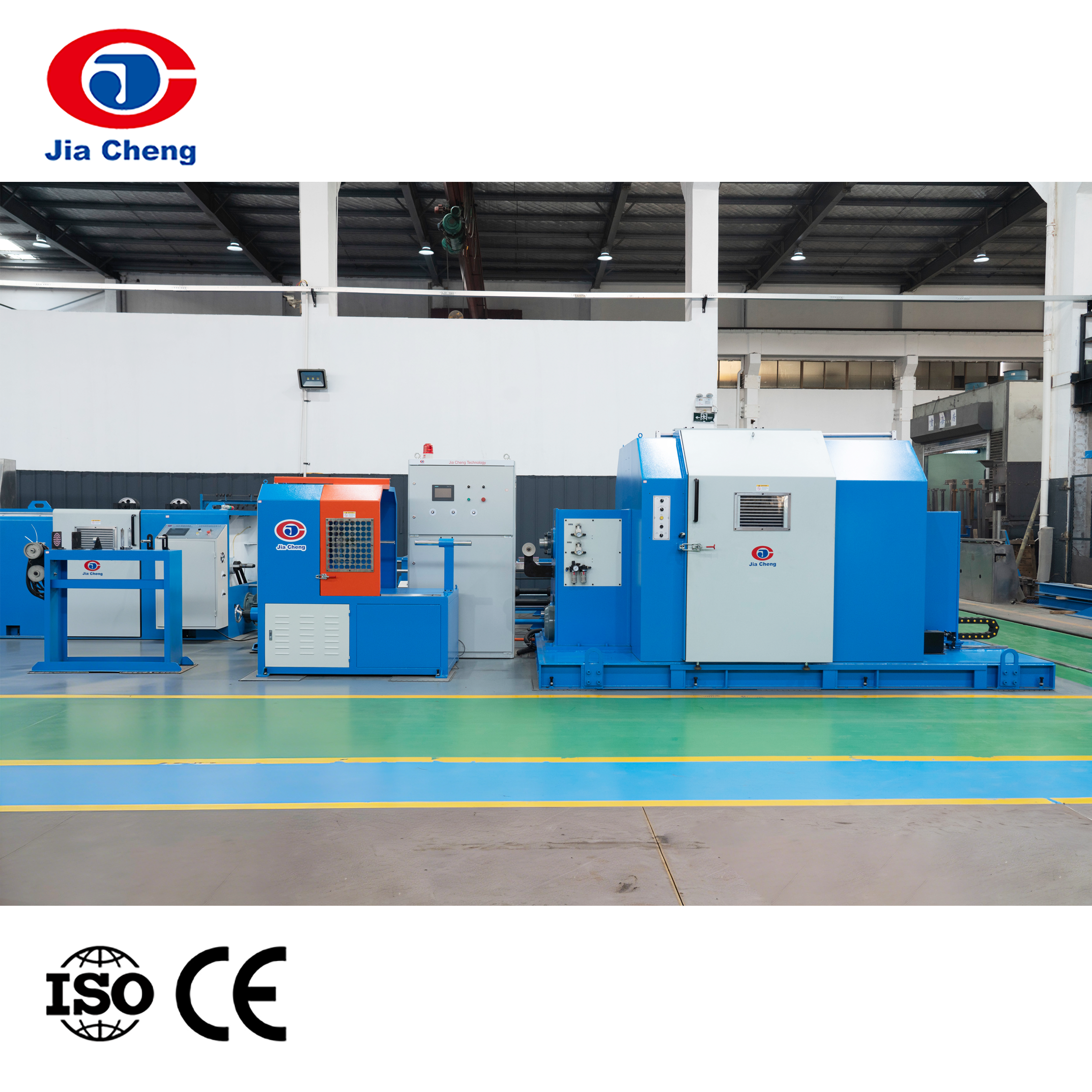

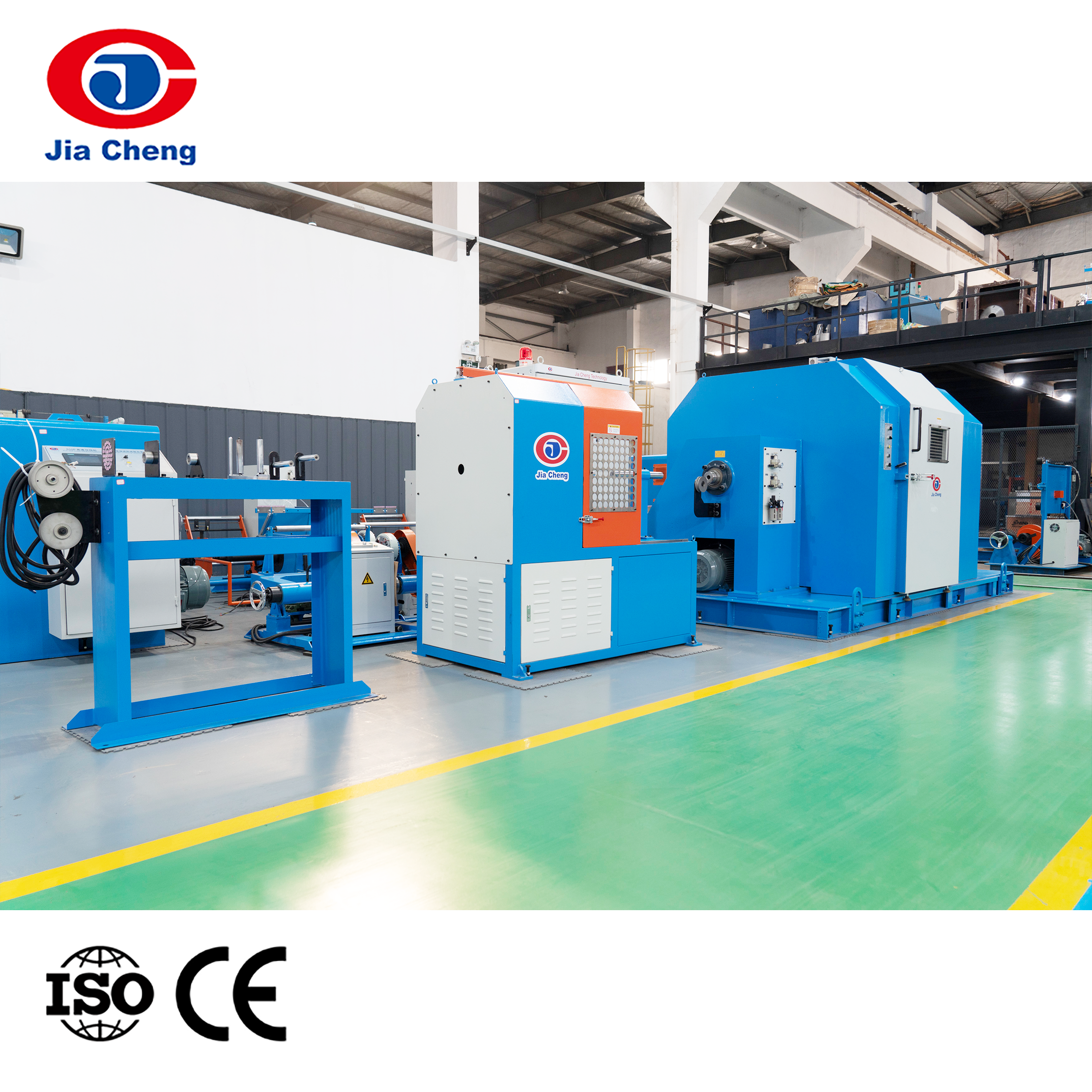

Suitable for controlling cables, communication cables, data cables, coaxial cables, data cables, HDMI digital cables, and other multi-core wires and cables to form a cable. It adopts a cantilever structure, with small rotational inertia of the rotating body, high speed, and smooth operation, resulting in stable product performance.
Specification：
| Model | JCJX-630 | JCJX-800 | JCJX-1000 | JCJX-1250 |
| Pay-off bobbin dia. (mm) | Φ400-Φ500-Φ630 | |||
| Take-up bobbin dia. (mm) | Φ630 | Φ800 | Φ1000 | Φ1250 |
| Applicable wire dia. (mm) | Φ0.6-Φ3.0 | Φ1.0-Φ5.0 | ||
| Main Motor Power (kw) | 11 | 15 | 15 | 20 |
| Max. lay-up dia. (mm) | Φ15 | Φ20 | Φ25 | Φ30 |
| Twisting pitch (mm) | 20-200 | 30-300 | 30-350 | 30-350 |
| No. of rotate (r/min) | 1000 | 800 | 600 | 550 |
| Take-up tension | Pneumatic tension | |||
| Traversing style | Stepless regulation, according to bobbin rotation speed and reciprocating motion | |||
| Traversing distance (mm) | 2-12 | 3-20 | 3-30 | 3-30 |
| Twisting direction | S or Z Direction free designation | |||
| Wrapping type | Center wire-wrapping or side wrapping | |||
