24 Wires Multiwire Drawing Machine

Product Introduction

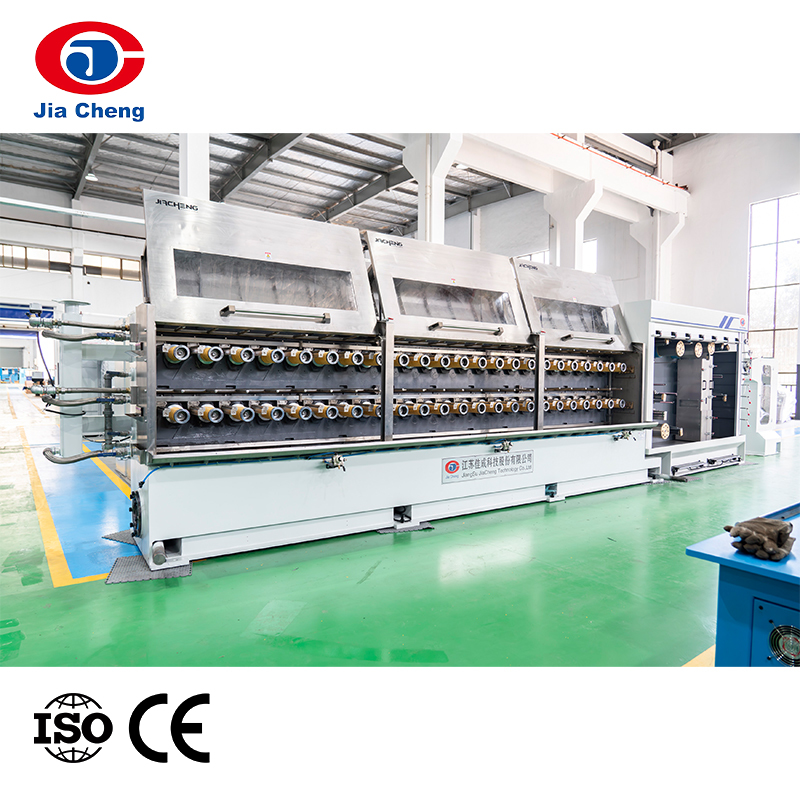

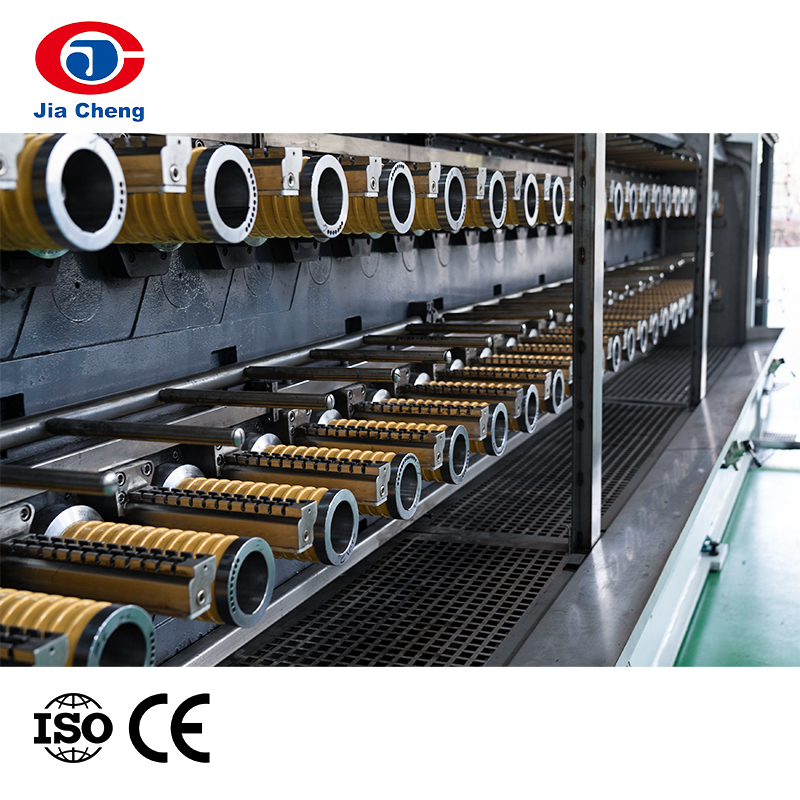

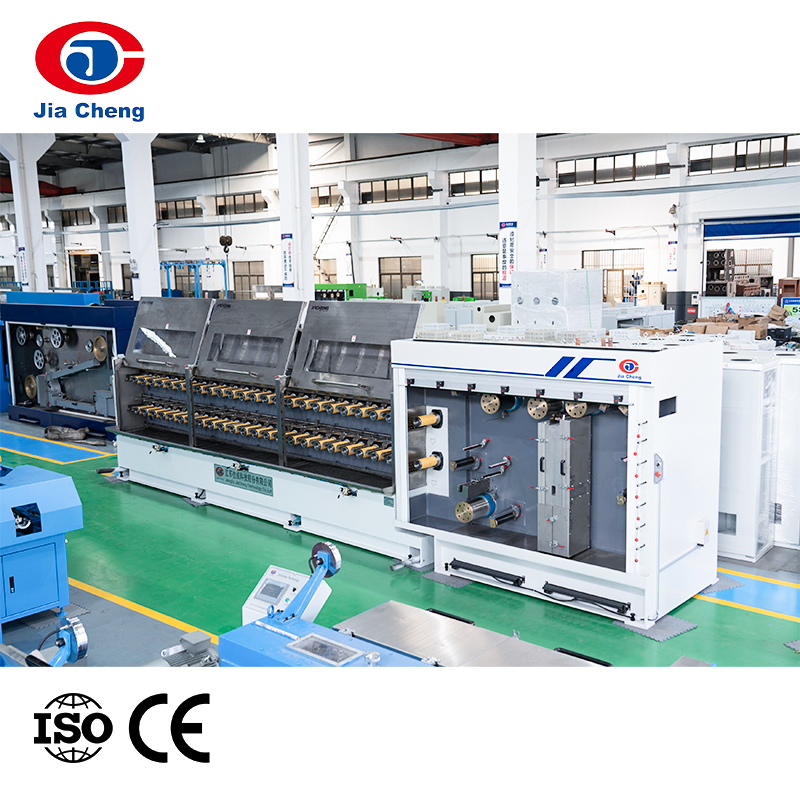

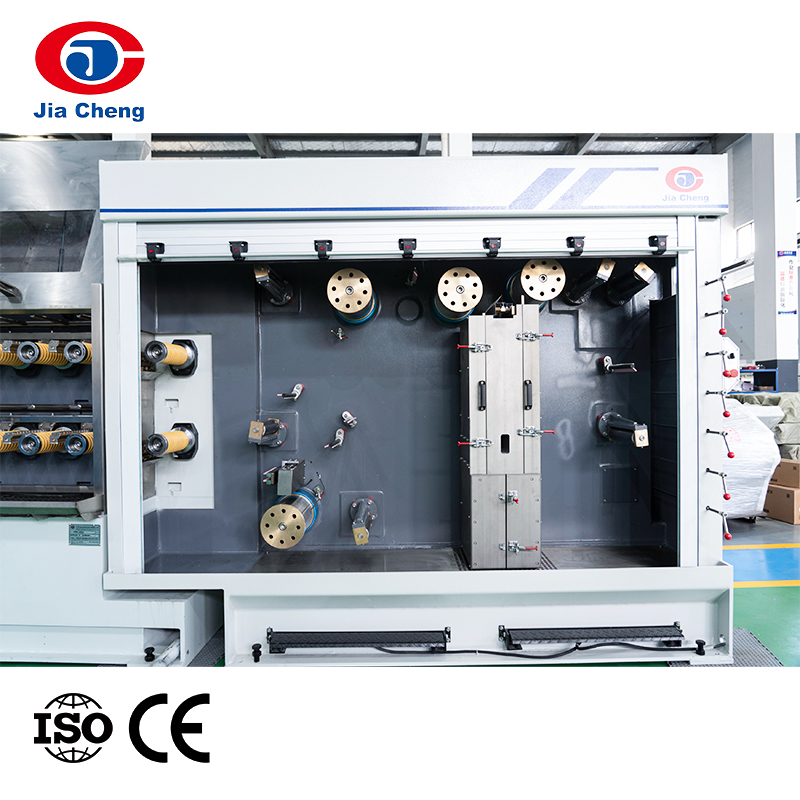

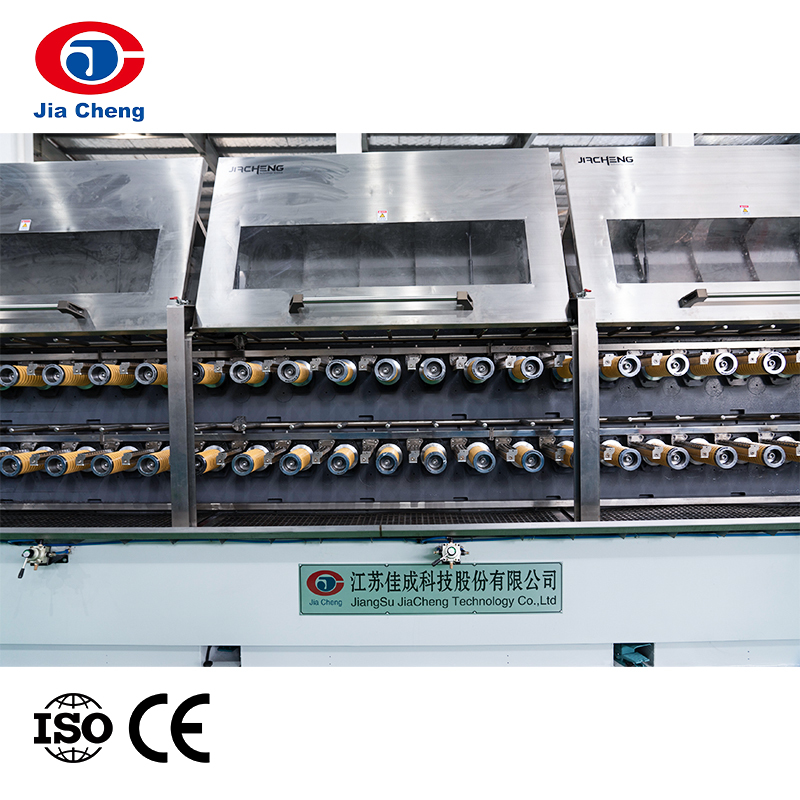

24 wires Multiwire drawing machine utilizes multiple drawing dies and traction devices to simultaneously draw 24 wires, significantly improving production efficiency compared to ordinary drawing machines and meeting large-scale production needs. Equipped with advanced tension control and an online detection system, adopting an advanced PLC control system and a human-machine interface, the drawing parameters can be preset and adjusted.

PREV：No previous article NEXT：16 Wires Multiwire Drawing Machine

Feature
Specification

Specification：

Machine type	DT18/120.4	DT24/100.16	DT24/100.20
Drawing wire No.	4 wires	16 wires	20 wires
Max .die No.	18	24	24
Max .inlet dia.(mm)	Φ1.85	Φ2.6	Φ2.6
outlet dia.(mm)	Φ0.25-Φ0.7	Φ0.16-Φ0.4
Drawing capstan dia.(mm)	Φ120	Φ100
Max. drawing speed(m/s)	25m/s	30m/s
