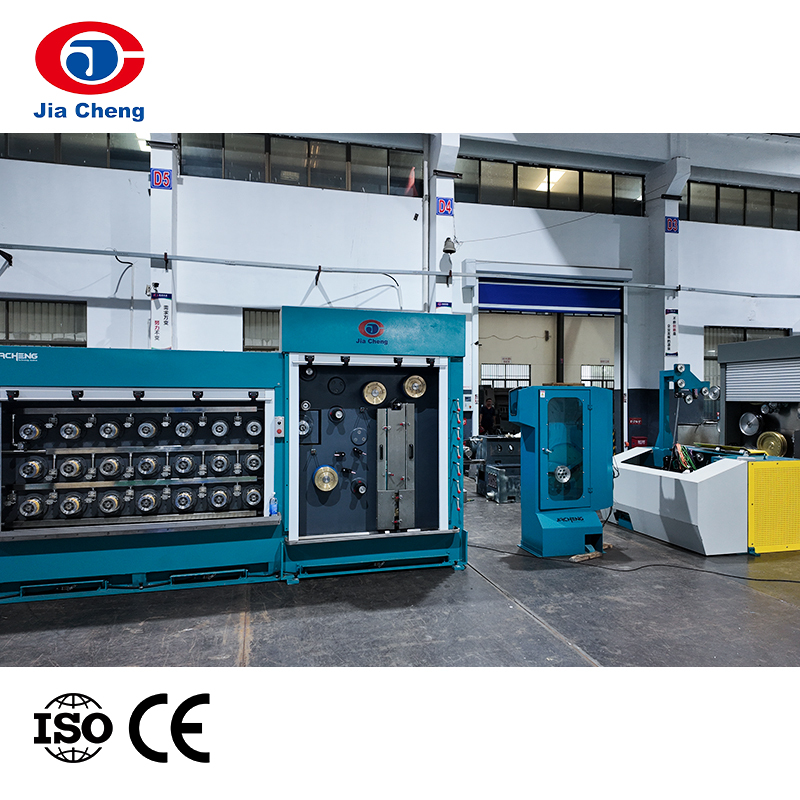

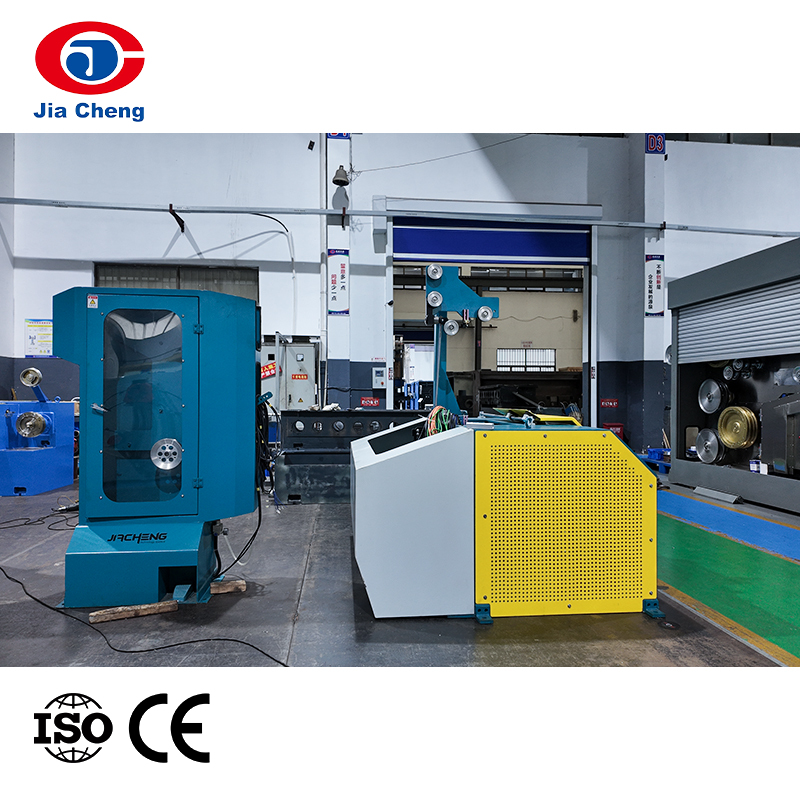

1. Multi-wire drawing machine for 8wires, 4wires, 16wires, 20wires.
2. A 16-wire multi-wire drawing machine is used for drawing copper wire from 2.6mm to 0.16-0.4mm.
3. The machine's advantage is save space, save time, save manpower, and high production.
Usage: It is used for drawing and annealing multiple copper wires
Main feature:
1. Space saving 50%
2. Electric saving 10%
3. Quick die change system for saving die quantity by 30%.
4. Multi-wire, high efficiency
5. Third-section-annealing system, outside electrically neutral (no current flow to other unit)
Specification：
| Machine type | DT18/120.4 | DT24/100.16 | DT24/100.20 |
| Drawing wire No. | 4 wires | 16 wires | 20 wires |
| Max .die No. | 18 | 24 | 24 |
| Max .inlet dia.(mm) | Φ1.85 | Φ2.6 | Φ2.6 |
| outlet dia.(mm) | Φ0.25-Φ0.7 | Φ0.16-Φ0.4 | |
| Drawing capstan dia.(mm) | Φ120 | Φ100 | |
| Max. drawing speed(m/s) | 25m/s | 30m/s | |
