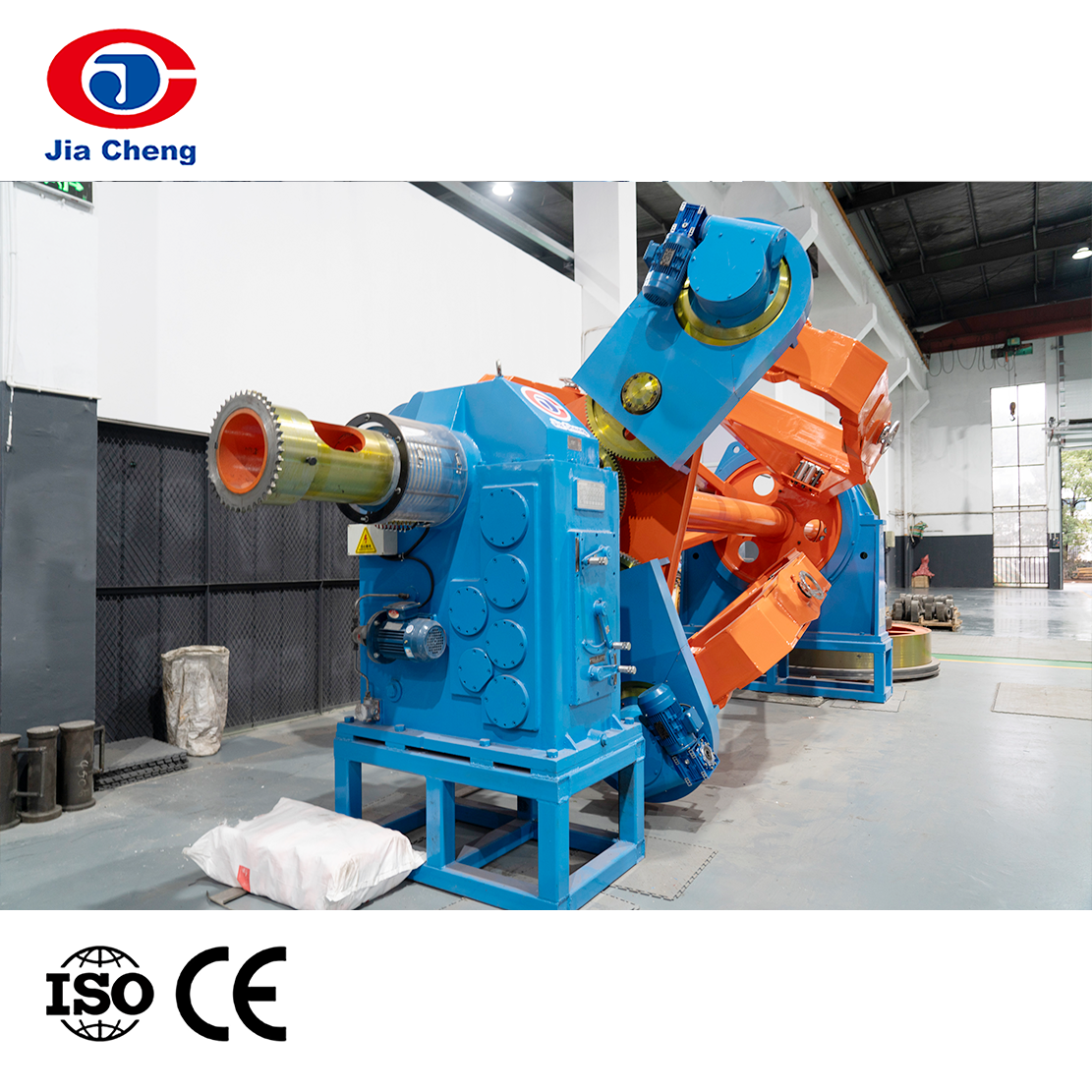

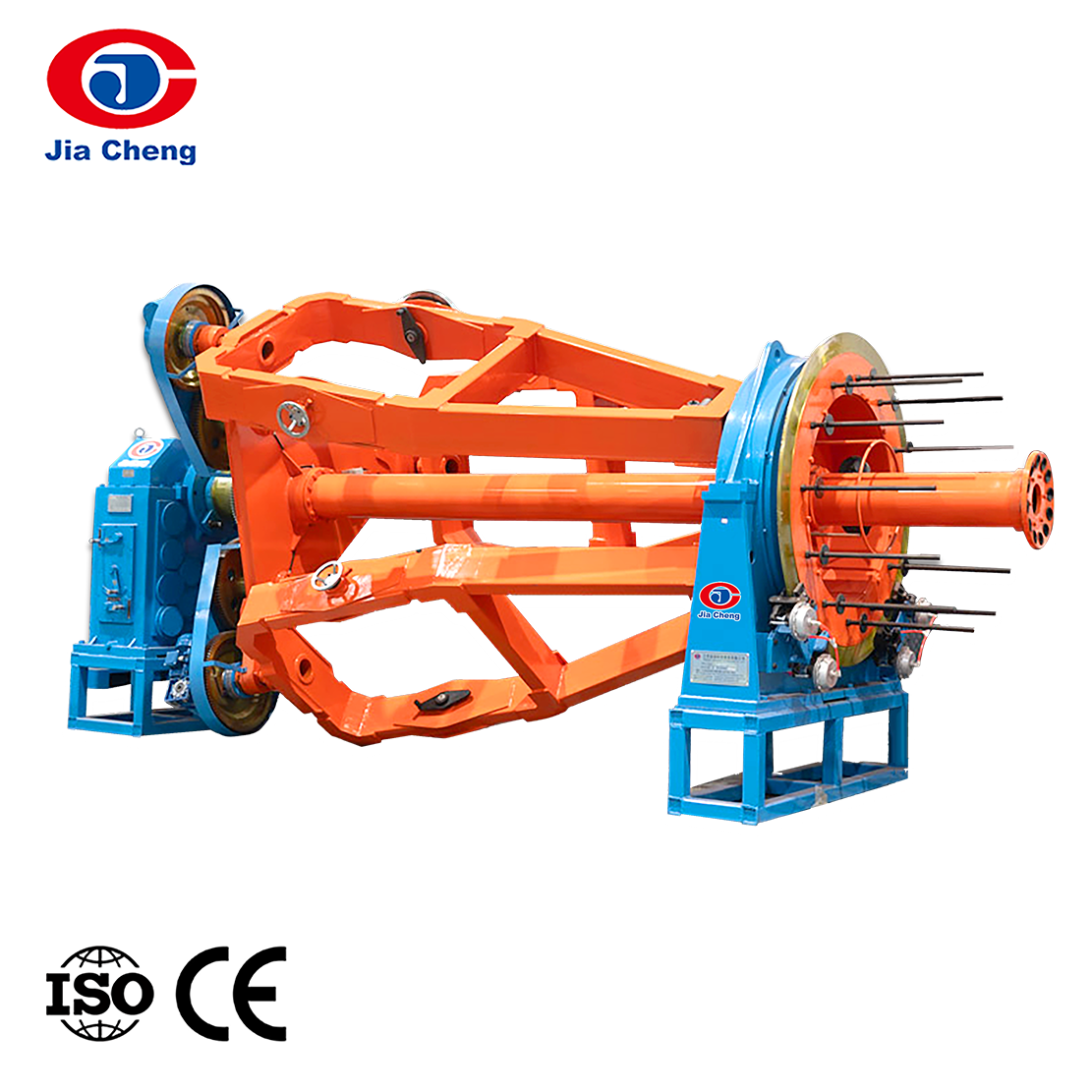

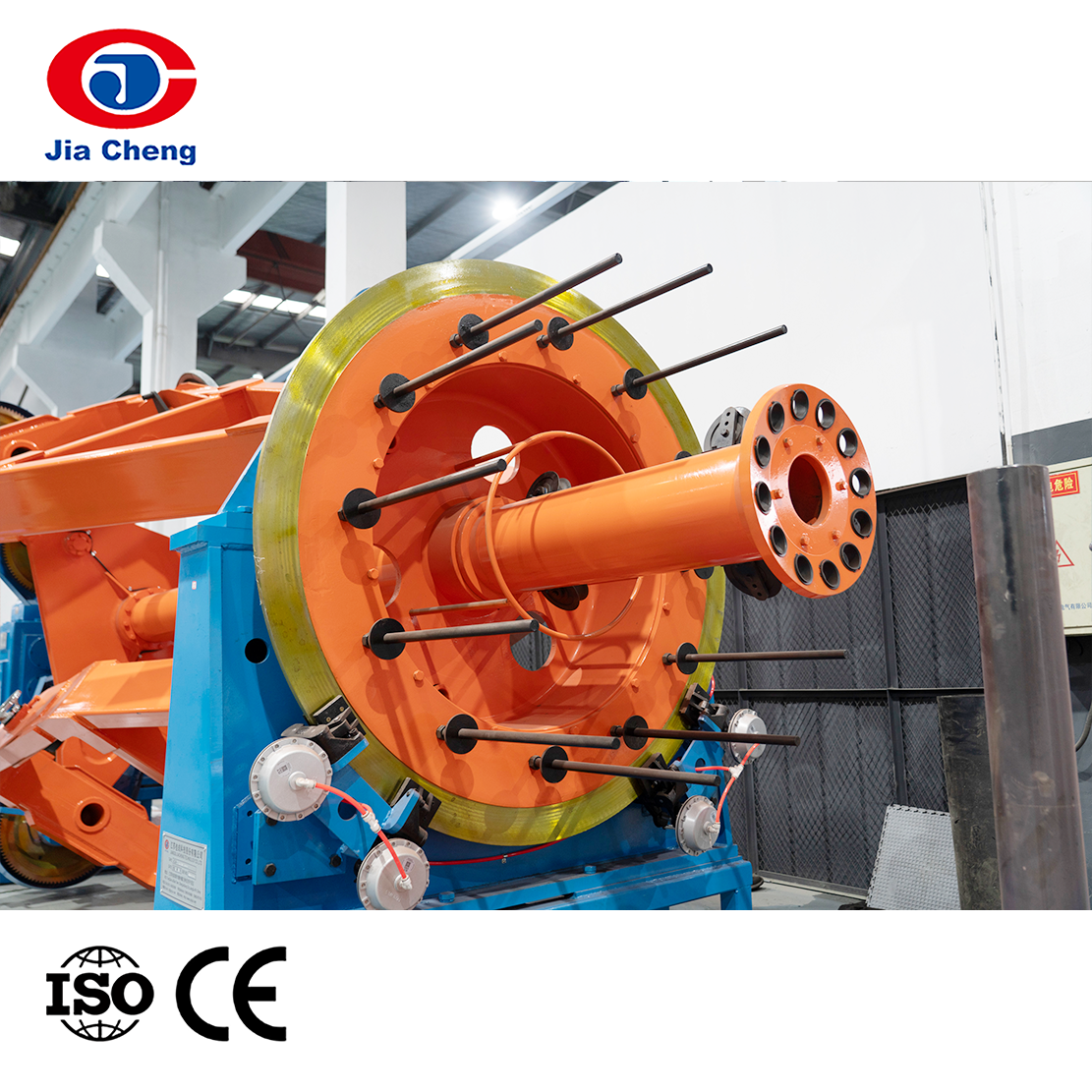

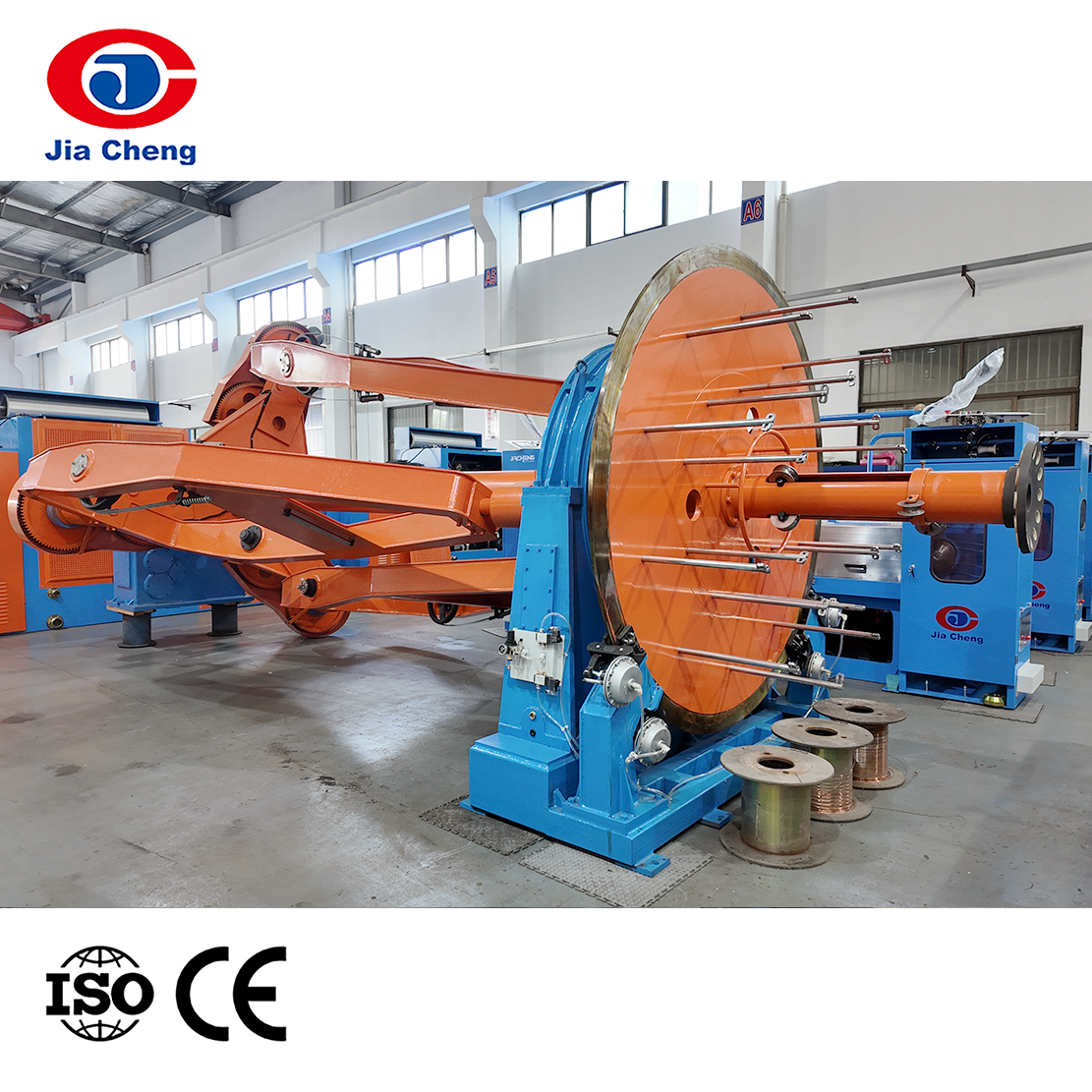

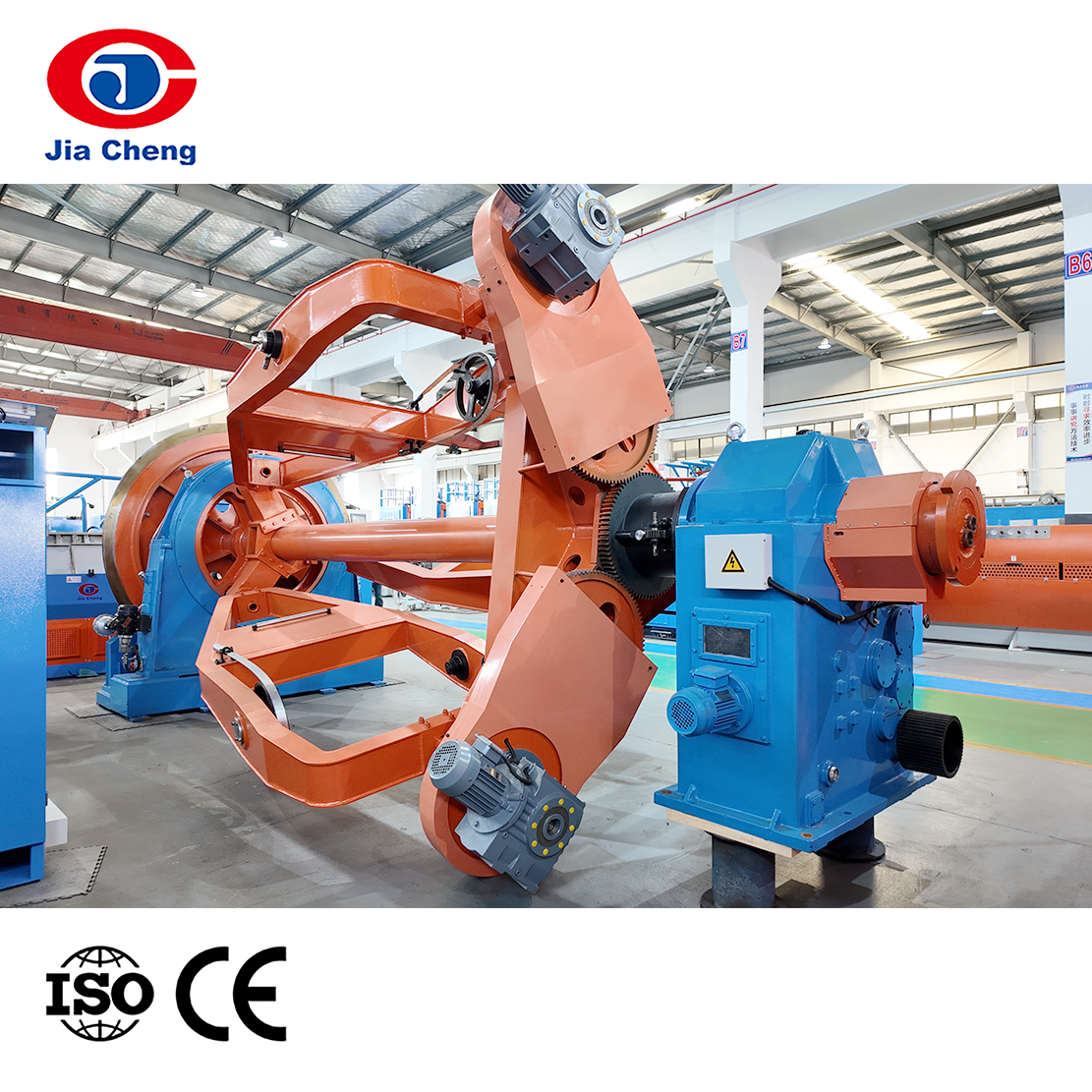

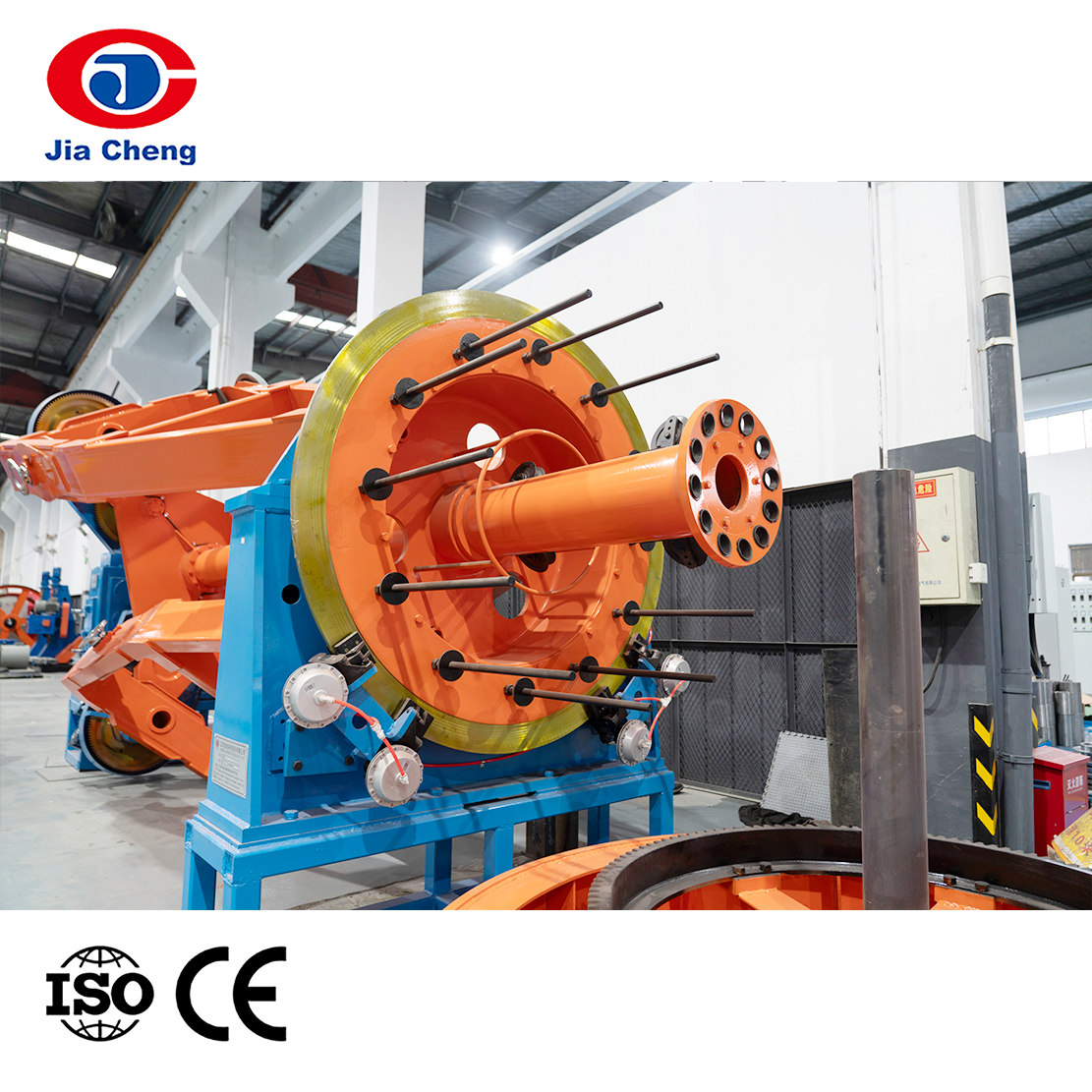

Cradle Type Cabling Machine

Product Introduction

The machine is mainly used for cabling 3 to 7-core wires in the wire and cable manufacturing industry. It is named after its unique cradle-like structural design and is suitable for the cable production of various types of cables, such as medium and low voltage power cables and control cables.
It manufactures both back-twist round cable and sector-shaped cables without back-twist. This type of machine can be used for telephone cable, control cable, main cable, plastic cable, and crosslinked cables. Non-metal wrapping and metal armoring can be done at the same time with stranding.

PREV：Skip Stranding Machine NEXT：No next article

Feature
Specification

Specification：

Name	Part	CLY630/1+6 CLY630/1+1+3	CLY800/1+6 CLY800/1+1+3	CLY1000/1+6 CLY1000/1+1+3	CLY1250/1+6 CLY1250/1+1+3	CLY1600/1+1+3	CLY2000/1+1+3
Main machine	Twisted section	2-25mm²	6-50mm²	25-185mm²	25-240mm²	35-300mm²	35-400mm²
	Cable diameter	φ25mm	Φ35mm	Φ75mm	Φ90mm	Φ100mm	Φ120mm
	Pay-off reel	φ630mm	Φ800mm	Φ1000mm	Φ1250mm	Φ1600mm	Φ2000mm
	Main motor speed	10-40r/min	10-40 r/min	11.2-26.7 r/min	11.2-26.7 r/min	6.9-12 r/min	4.9-9.8 r/min
	Gear box	6-stage
	Main motor power	15kw	18.5kw	37kw	37kw	45kw	55kw
Wrapping machine	Wrapping speed	112-350r/min	112-350 r/min	125-350 r/min	125-350 r/min	116-300 r/min	116-300 r/min
	Wrapping pitch	12-260mm				16-319mm
	Gear box	6-stage
Armouring machine	Armoured speed	94-292r/min				112-292r/min
	Armoured distance	14-230mm	14-260mm	14-350mm	14-350mm	16-330mm	16-330mm
	Gear box	6-stage
Traction	Haul-off type	capstan type
	Capstan diameter	1250mm double capstan	1600mm double capstan	2000mm single capstan	2000mm single capstan	2500mm single capstan	2500mm single capstan
	Traction speed	7.4-40m/min	7.4-40 m/min	4.2-43 m/min	4.2-43 m/min	4.8-37 m/min	4.8-37 m/min
	Gear box	36-stage
Traversing and take-up	Bobbin size	PN800-1250	PN800-1600	PN1000-2000	PN1250-2500	PN1600-3150	PN2000-3150
	Traversing type	lead screw					/
	Take-up type	shaft-less					Rail traversing
	Torque motor	4kg.m	4kg.m	6kg.m	6kg.m	8kg.m	8kg.m
Equipment control	Main motor DC/AC
Operating direction	Machine's direction is from left to right
