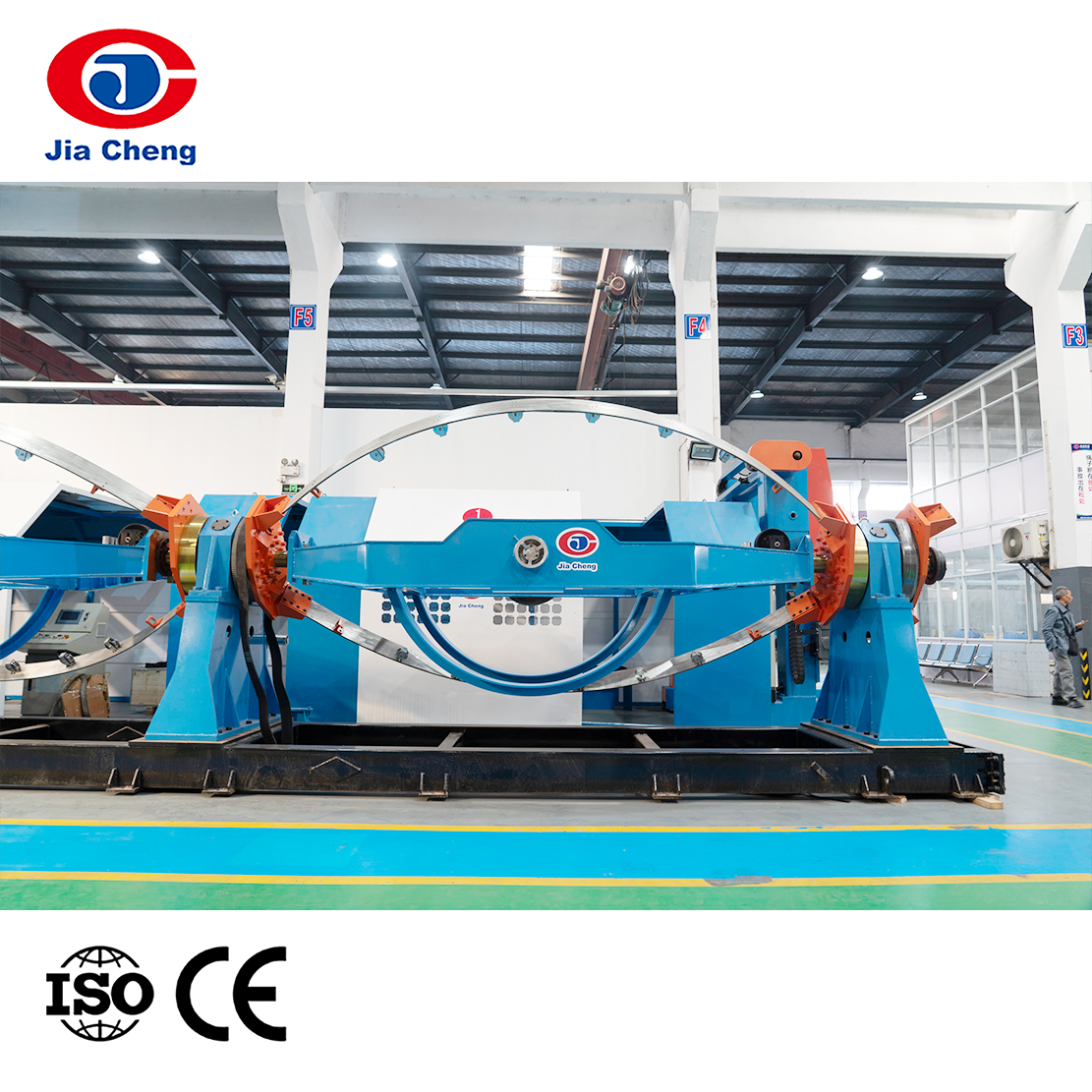

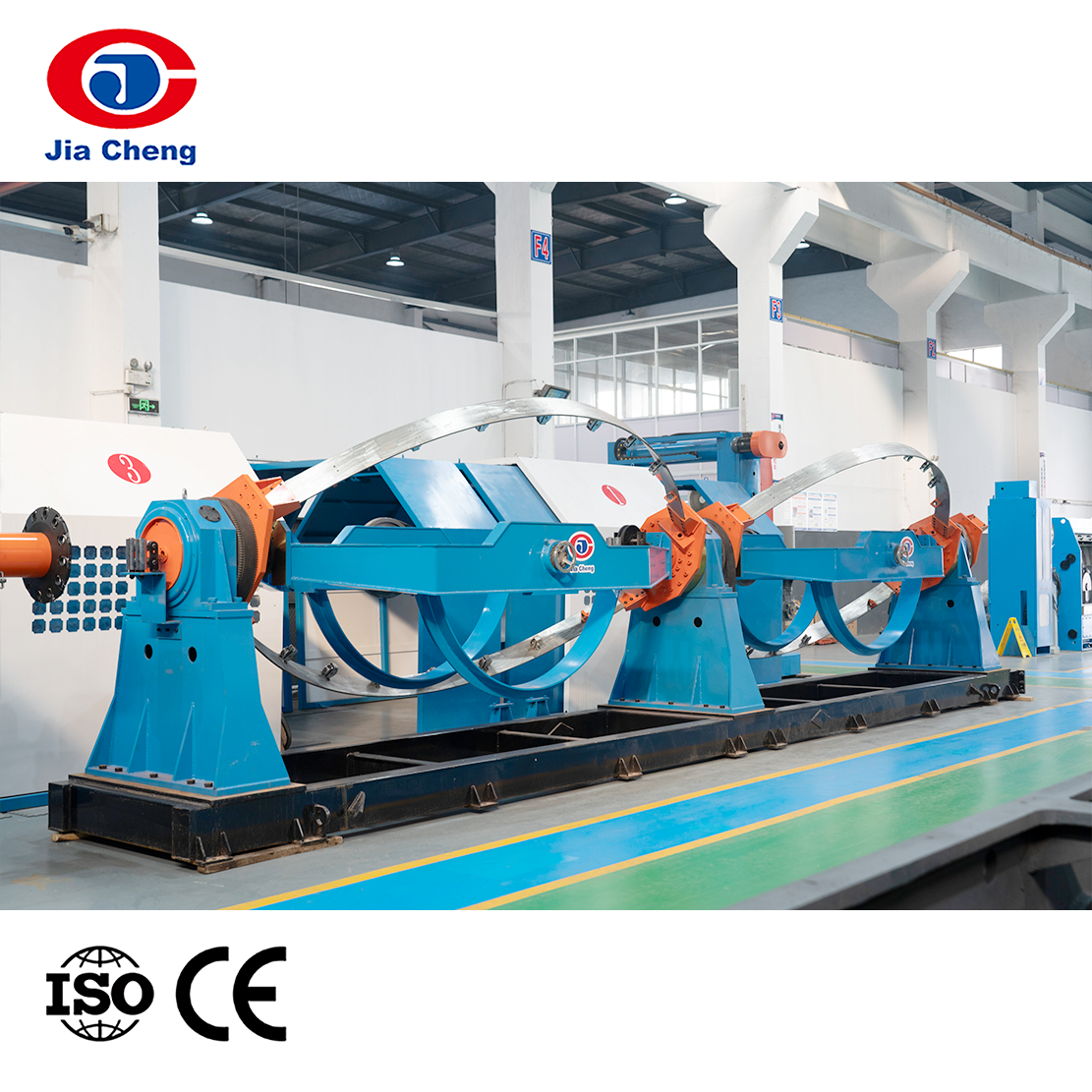

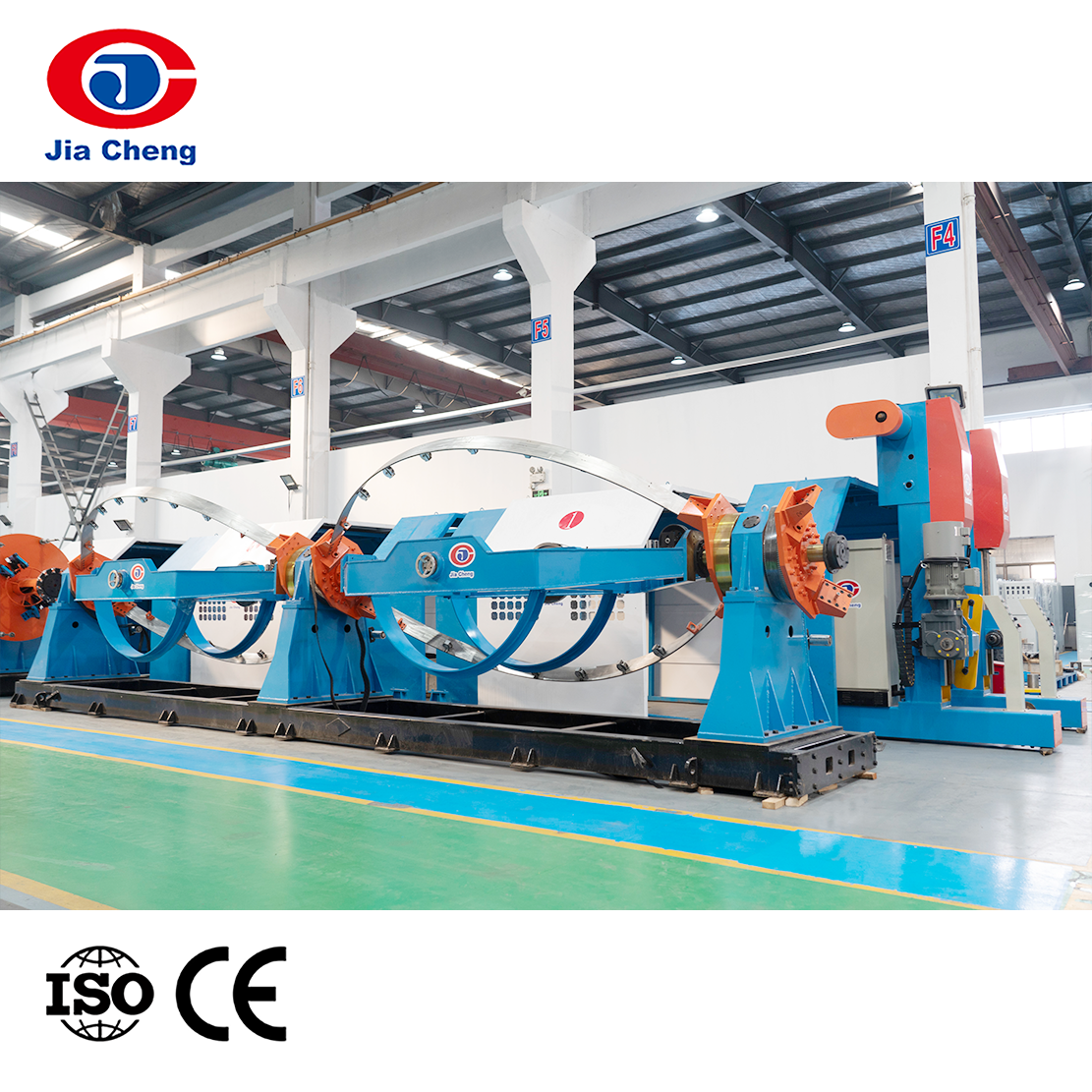

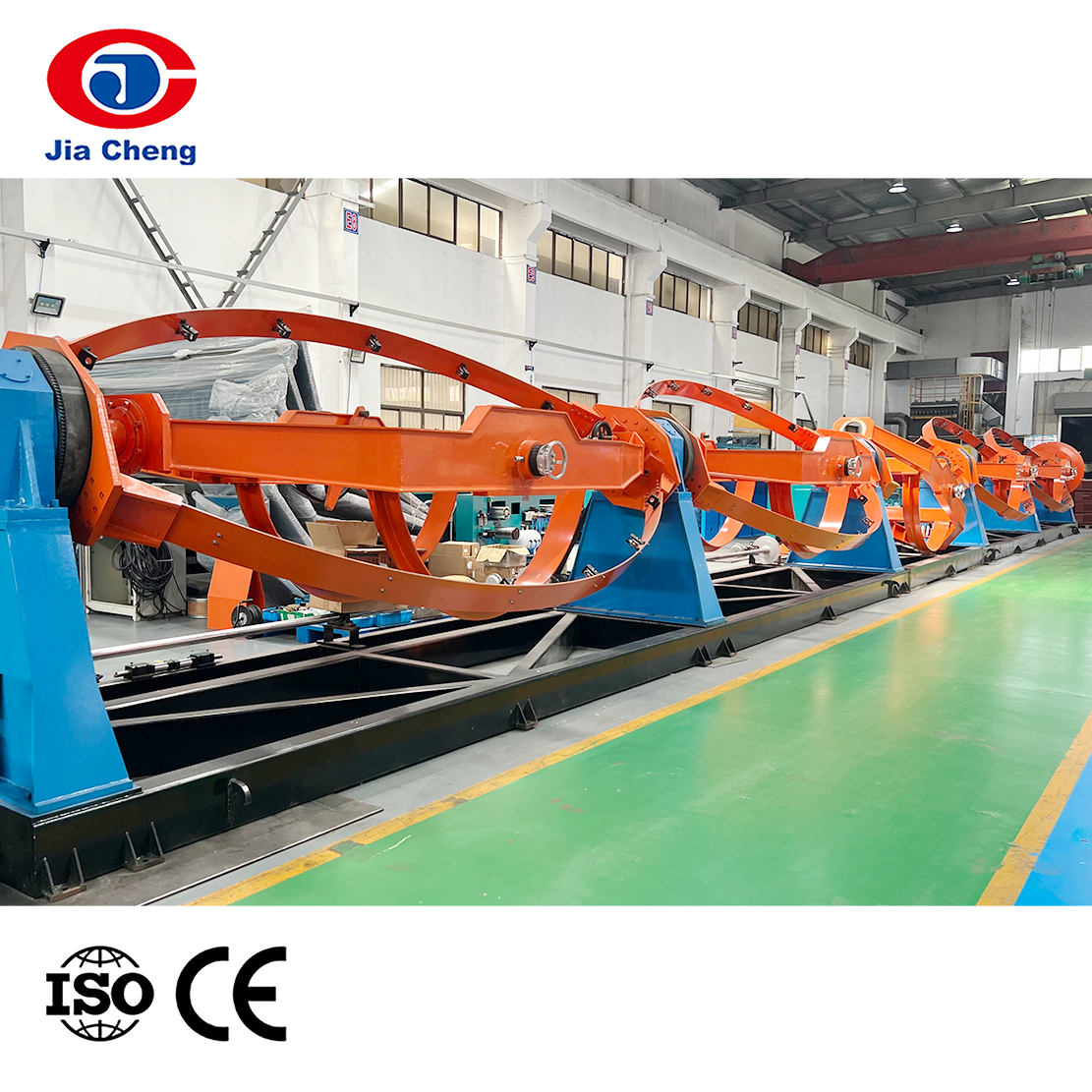

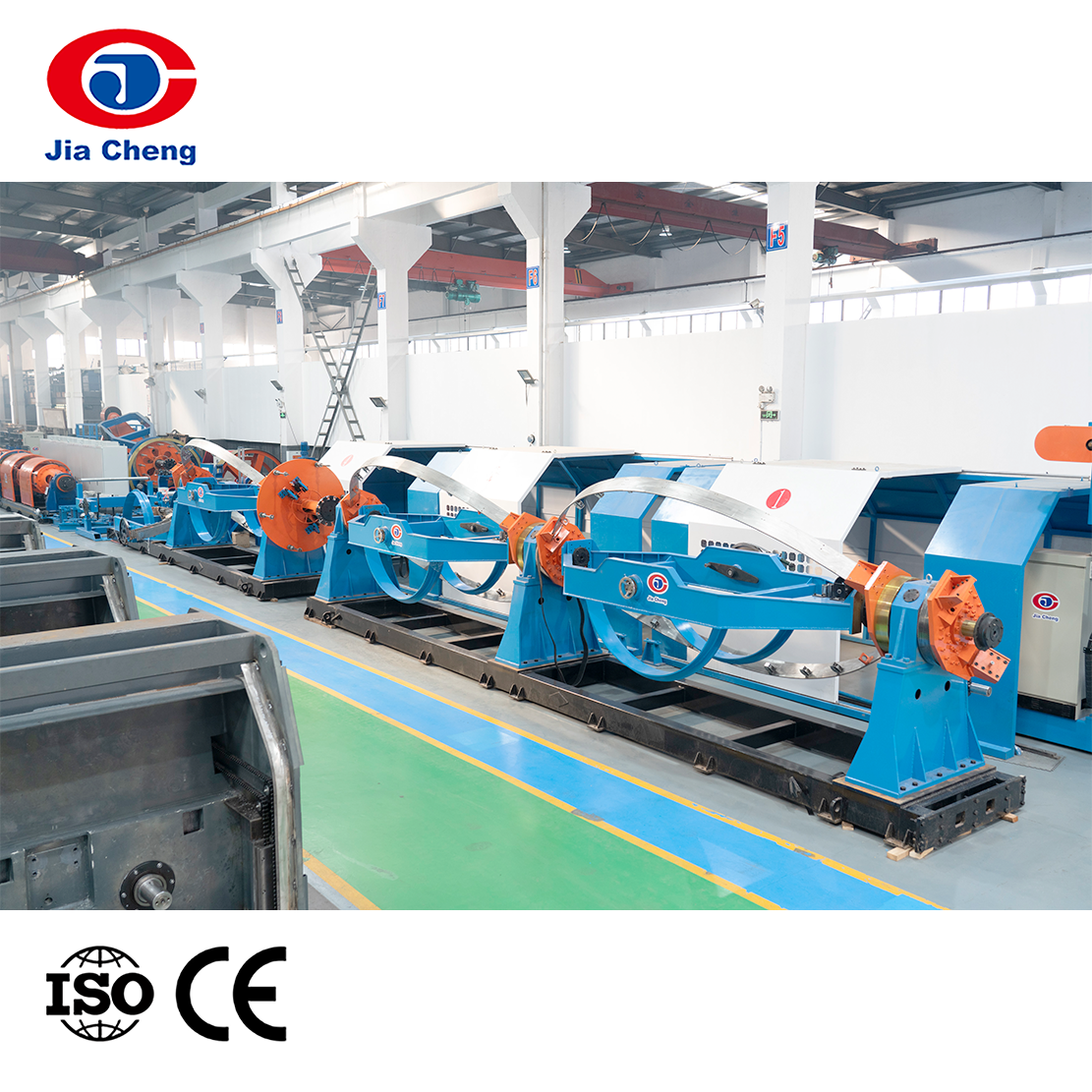

Skip Stranding Machine

Product Introduction

Skip stranding machine is mainly used to twist multiple single wires into stranded wires with certain structural and performance requirements. It is widely used in the production of various wires and cables such as power cables, communication cables, overhead lines, etc. The unique structure of the bow-shaped stranding frame makes the single wires evenly stressed during the stranding process, tightly stranded, with good roundness, smooth surface, and no obvious stranding defects, which can effectively improve the electrical and mechanical properties of the stranded wire.

PREV：Planetary Stranding Machine NEXT：Cradle Type Cabling Machine

Feature
Specification

Specification：

Model		JSJC-GJ500/630(1+6)
Single Wire Dia.(mm)	Copper	Φ1.35-5
	Aluminum	Φ1.5-5
	Steel	Φ1.0-4
Max. Stranded Conductor Dia.(mm)		Φ15
Pitch Range	6 Bobbin Stranding Cage	31.1-372.7mm
Rotate Speed	6 Bobbin Stranding Cage	1000r/min
Traction Device	Capstan Wheel Dia.	1200mm
Motor Power		37KW
Pay-off Bobbin Size		PND500&PND630
Center Pay-off Bobbin		PND500&PND630
Take-up Bobbin		PN630-PN1600
Max. Haul-off Linear Speed		290m/min
