It is used for drawing S.S wire from a big size to a small size

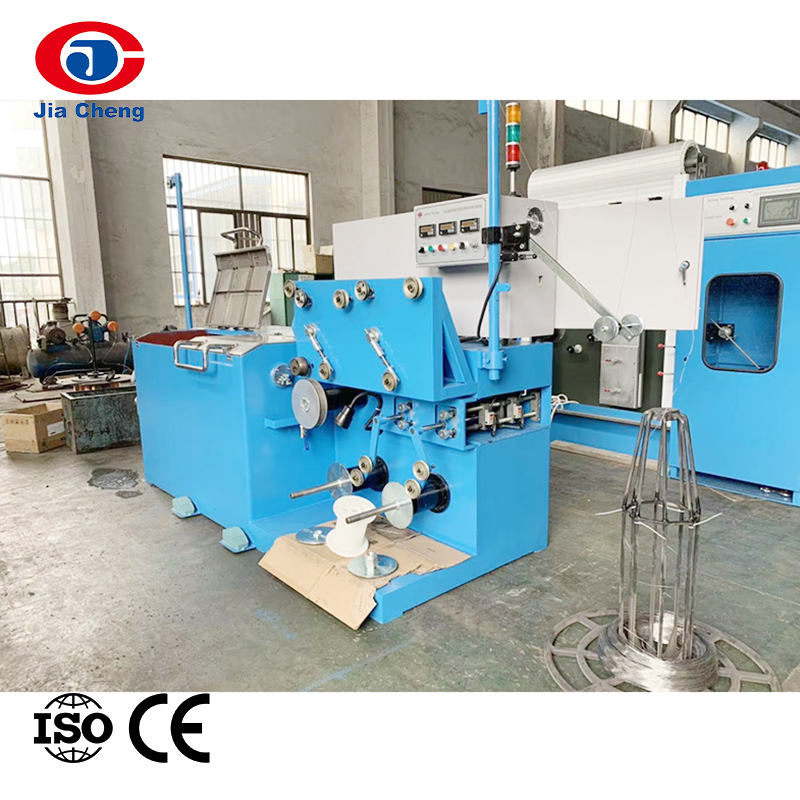

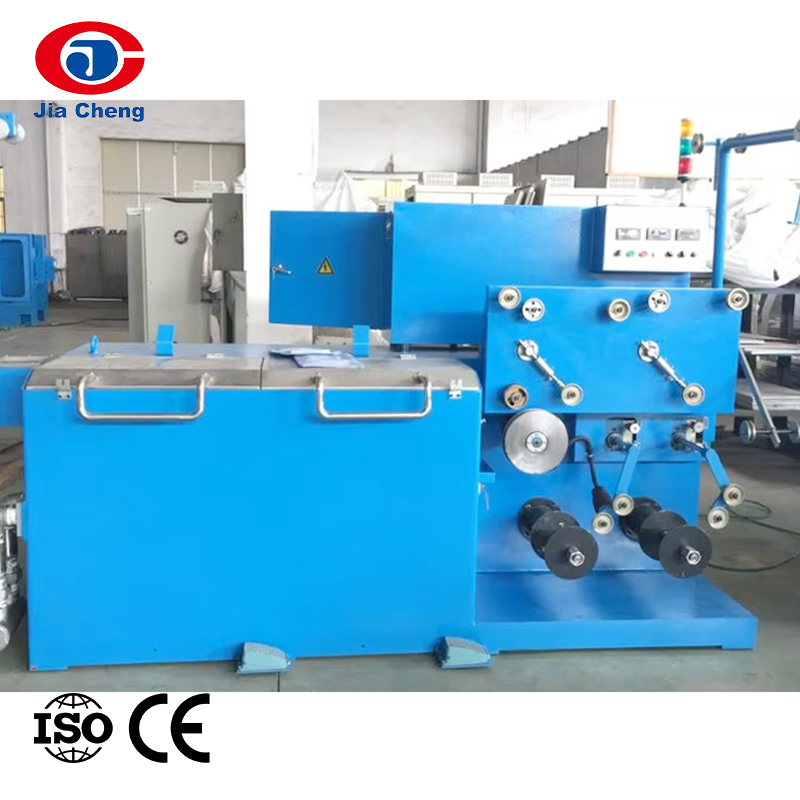

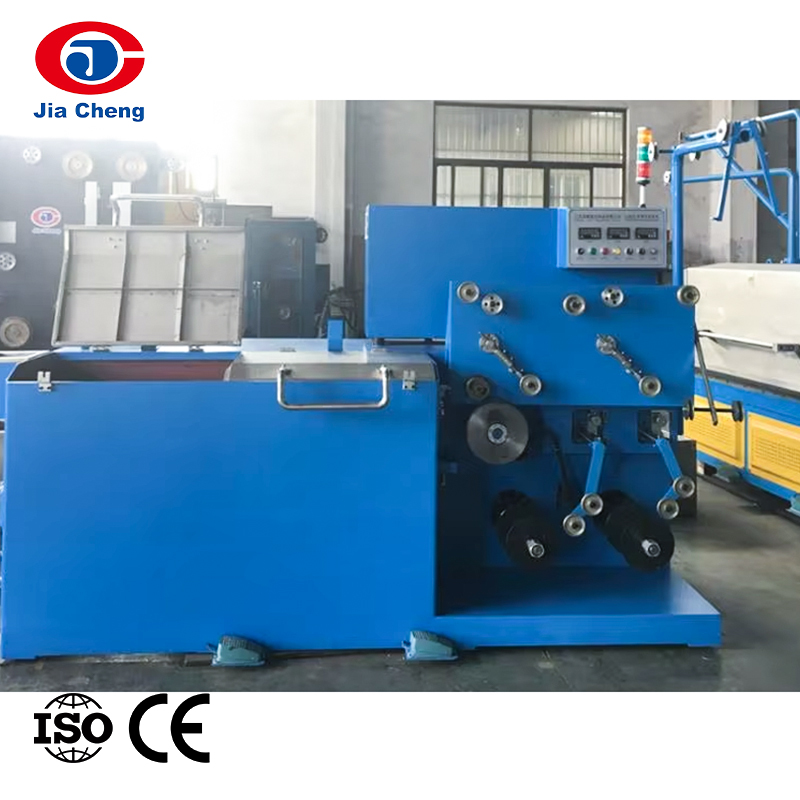

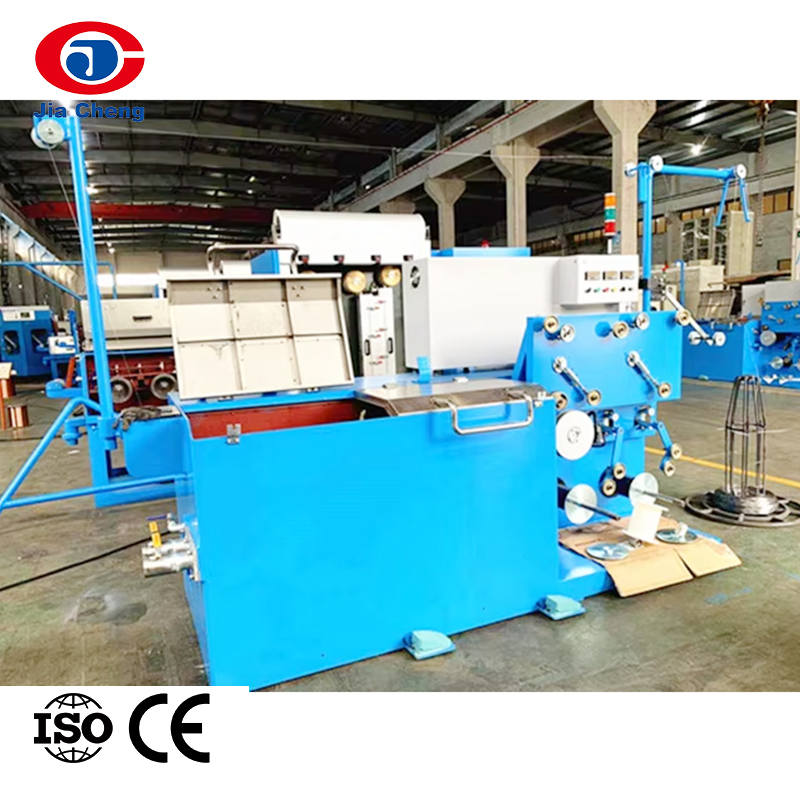

0.13mm SS wire drawing machine for cleaning ball/SS scourer
Product Application
This kind of machine is mainly used for drawing stainless steel wire, low carbon wire, galvanized iron wire, etc, the wire which can be used for clean ball.
Main feature:
1. Fully immersed lubricant system, transmission by teeth belt, constant tension, low noise, high efficiency.
2. Capstan made by special tool steel.
3. PLC control, dual motor, dual inverter, color touchscreen.
4. Special alignment device at final die position, keep wire verticality and quality, which is good for the next process.
5. Stepping motor traverse, pitch adjustable, smooth traversing.
6. Protection device for wire disorder; the machine auto stops if the mother wire disorder or break.
Specification：
|
Max eye mold No |
20 |
|
Max inlet wire dia. |
Φ0.7mm |
|
Finish wire dia. |
Φ0.1mm~Φ0.2mm |
|
Main motor |
7.5KW |
|
Max line speed |
800m/min |
|
Take-up bobbin size |
200mm(or according to you) |
|
Traversing type |
100kw Synchronous motor + flat belt |
|
Brake type |
Electromagnetic brake |
|
Take-up motor |
2.2Kw |
|
Max loading |
25Kw |
|
Lubrication type |
Full immersion |
|
Transmission type |
Flat belt |
Jiangsu Jiacheng Technology Co., Ltd. was founded in 1990 and is located in the beautiful and newly developed city of Zhangjiagang. It is close to the north of the Shanghai-Nanjing expressway, the east is Shanghai, and the north is Nantong. Land-and-water transportation is convenient. The company's occupied area is 28,800 square meters, with 9 layers of office buildings and multiple modern and standardized workshops.
Jiacheng is a professional manufacturer of all kinds of Wire Drawing Machines, Twisting Machines, Extruder Machines, Coiling and Wrapping machines, Stranding Machines, Annealing and Tinning Machines, and related wire and cable-making machines.
As China Wet Type S.S Wire Drawing Machine Suppleirs and Wet Type S.S Wire Drawing Machine Factory, JIACHENG's technical team consists of many experts and engineers from China and worldwide. Our company concentrates on making high-quality Wire and Cable Making Machines. Our products have been exported to more than 100 different countries around the world, such as Italy, Spain, Britain, Brazil, Vietnam, Algeria, Nigeria, Türkiye, South Africa, Egypt, Russia, India, Pakistan etc.
At the same time, we are able to provide customer 24/7 After-sale customer service for our customers. We would like to serve all worldwide customers with our JIACHENG's warmest heart.
Please feel free to let us know if you need any help? We will provide a professional guidance for you!
