Tubular Strander

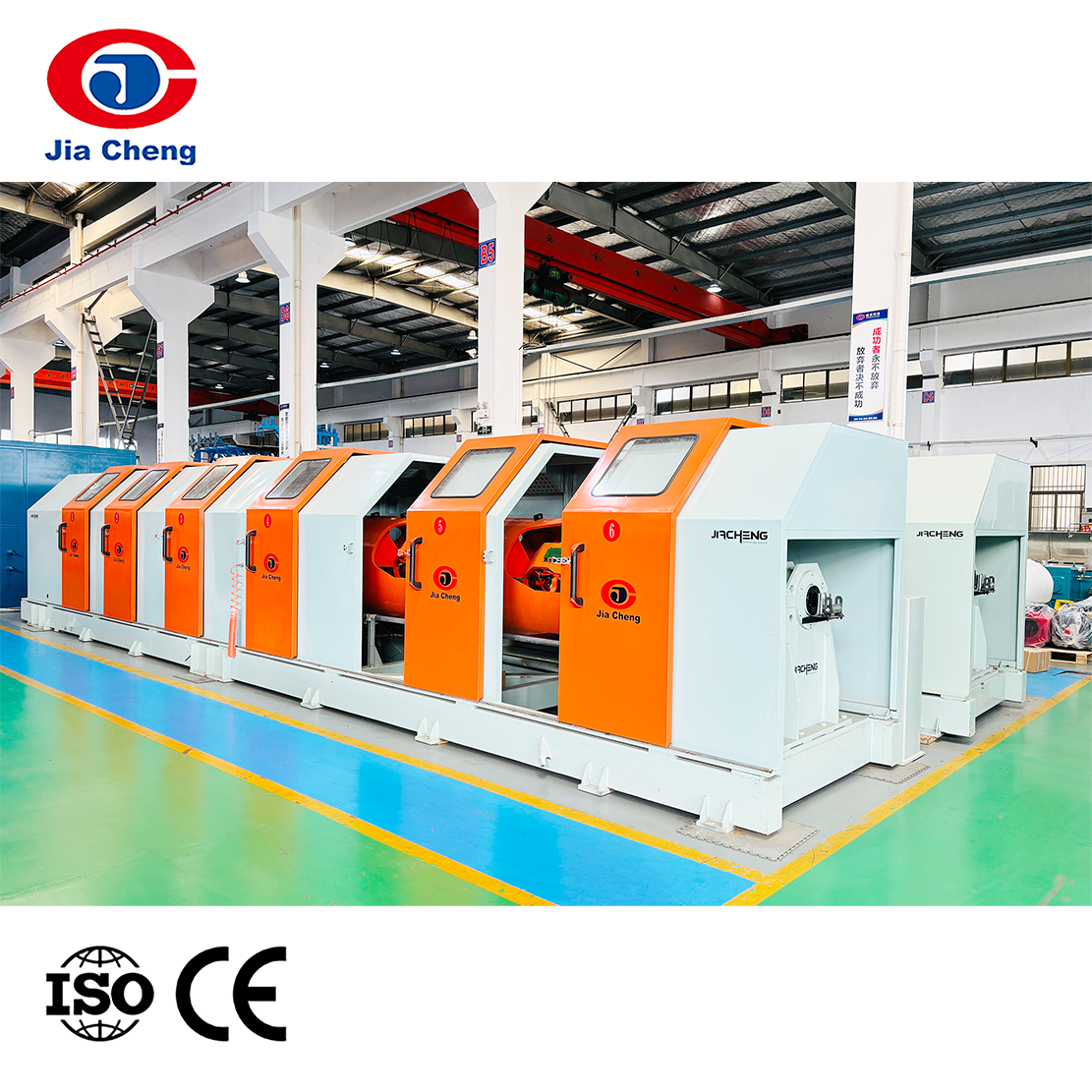

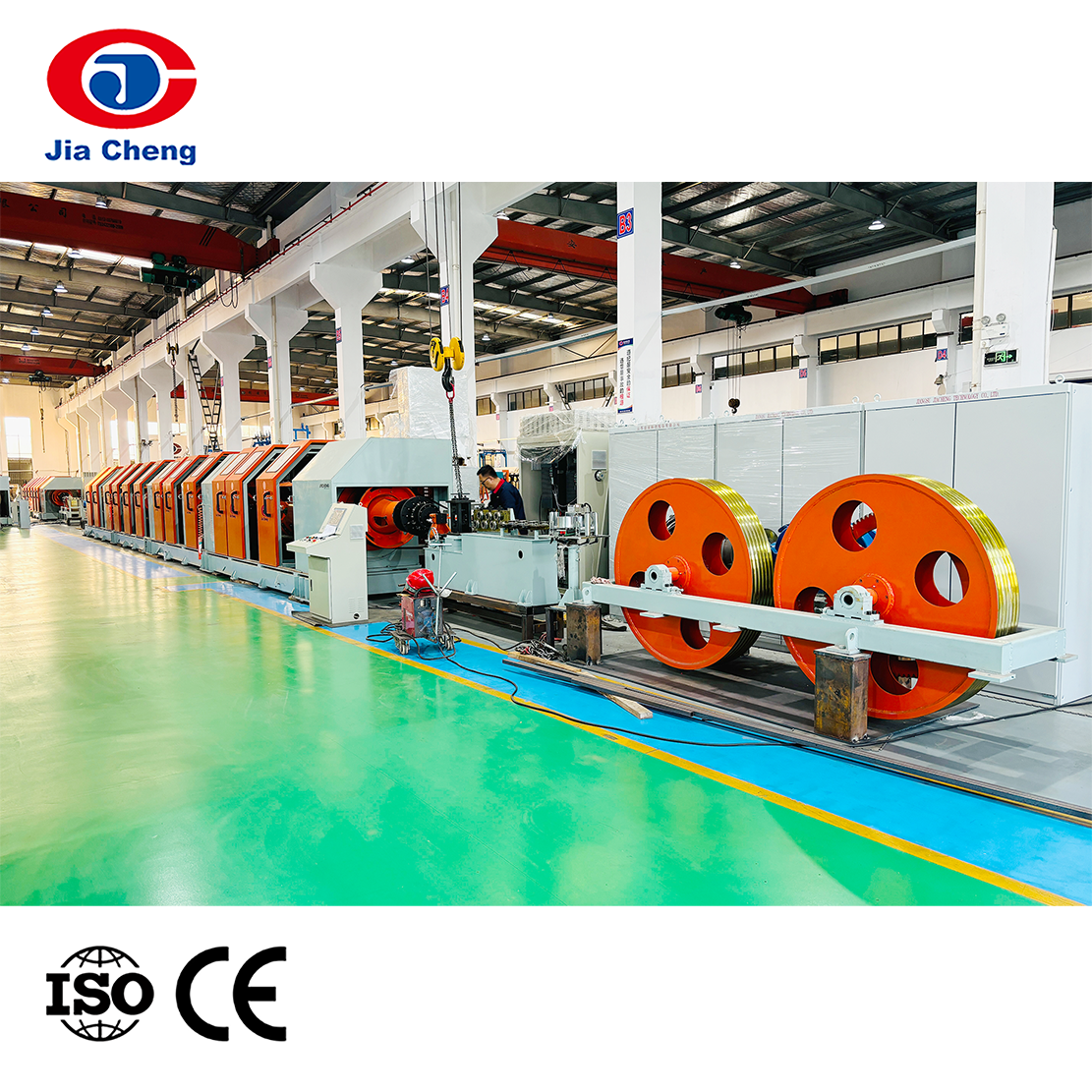

Tubular Stranding Machine

Product Introduction

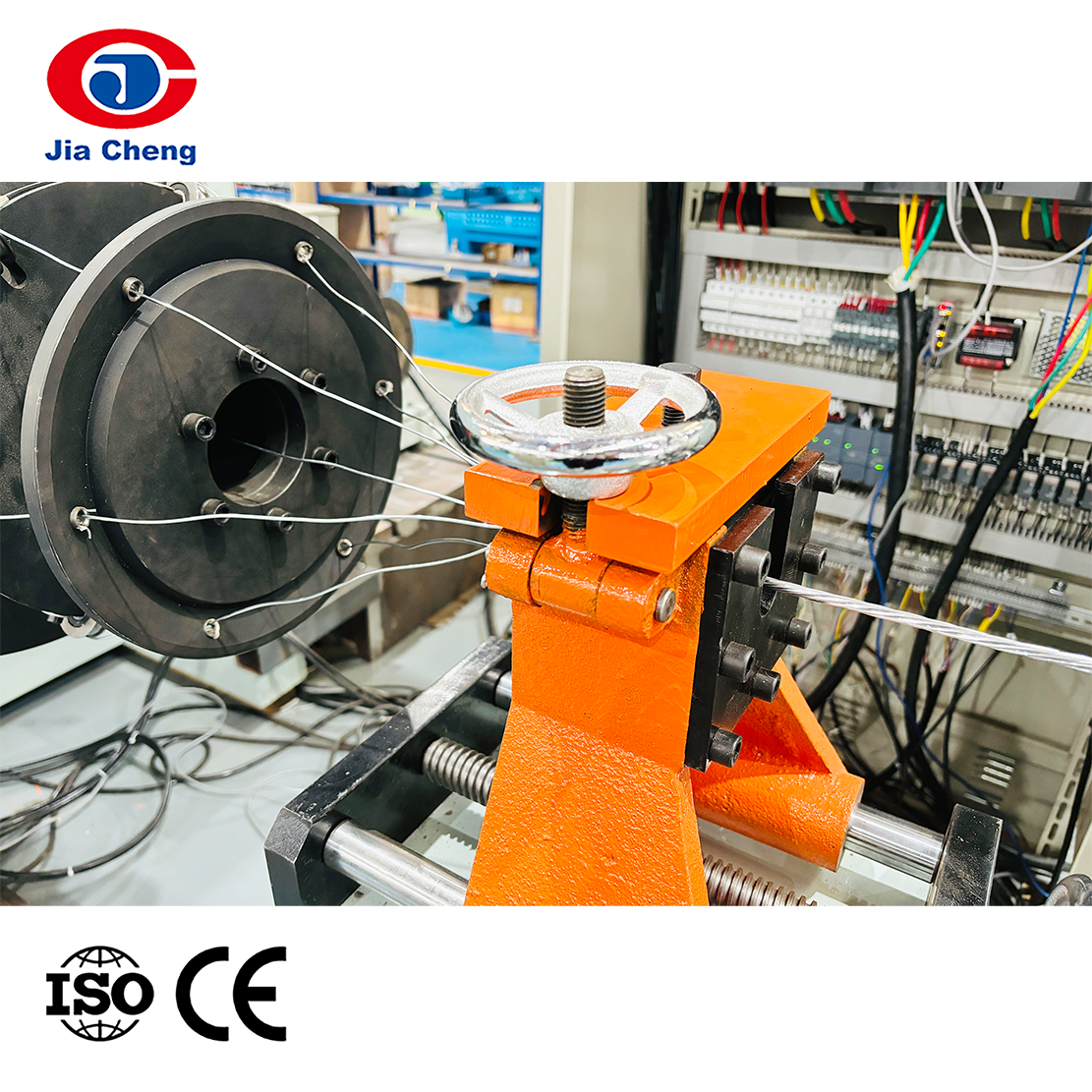

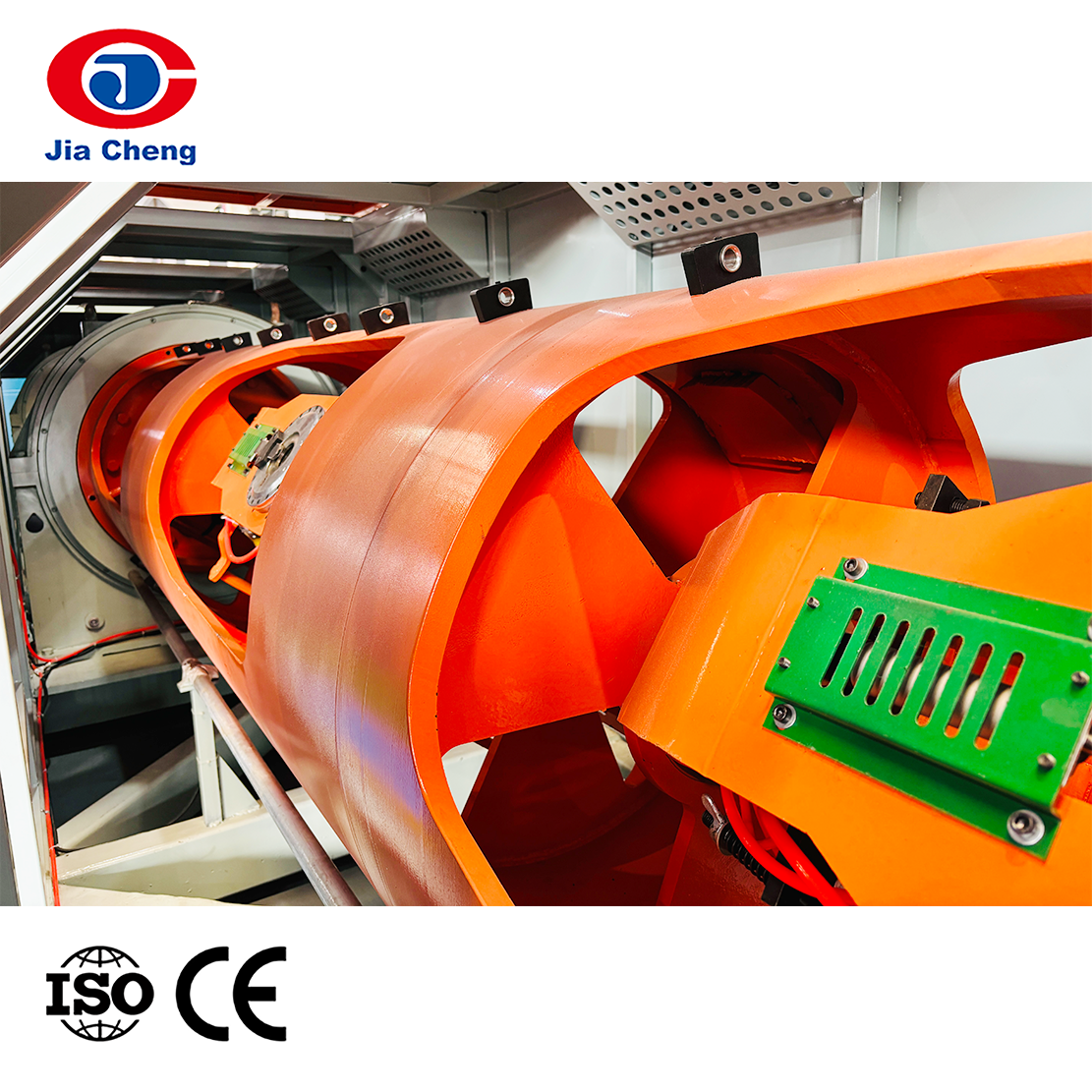

The Tubular Strander is designed specifically for cable twisting processes, achieving efficient and precise twisting of multiple single wires through its unique tubular structure. It is widely used in the production and manufacturing of various types of wires and cables. Equipped with a high twisting speed, it can complete a large amount of single wire twisting in a unit of time, significantly improving production efficiency. It can flexibly adjust the twisting pitch and achieve different pitch settings through simple operations.

PREV：No previous article NEXT：No next article

Feature
Specification

The machine is used to make copper stranded wire,steel-core aluminium stranding wire, and steel rope. It can also be used to strand wire and insulated wire.

Specification：

Machine type	400 type	500 type	630 type
Single copper wire diameter	Φ1.0-2.5mm	Φ1.3-4.5mm
Single steel wire diameter	Φ1.5-3.0	Φ1.3-3.5mm
Single aluminum wire diameter	Φ1.5-4.0mm	Φ1.8-5mm
Max stranded dia.	12mm	15mm
Pitch range	20-181mm	20-331mm	36-274mm
Tube rotate speed	700r/min	Large bearing type 600r/min	Large bearing type 500r/min
Tube rotate speed	700r/min	Supporting wheel 500r/min	Supporting wheel 350r/min
Traction wheel dia	Φ800+400mm	Φ1250mm	Φ1250mm
Pay-off bobbin inside of strander	400mm	500mm	630mm
Take-up bobbin size	PN800-1250mm	PN800-1600mm	PN1200-2000mm
