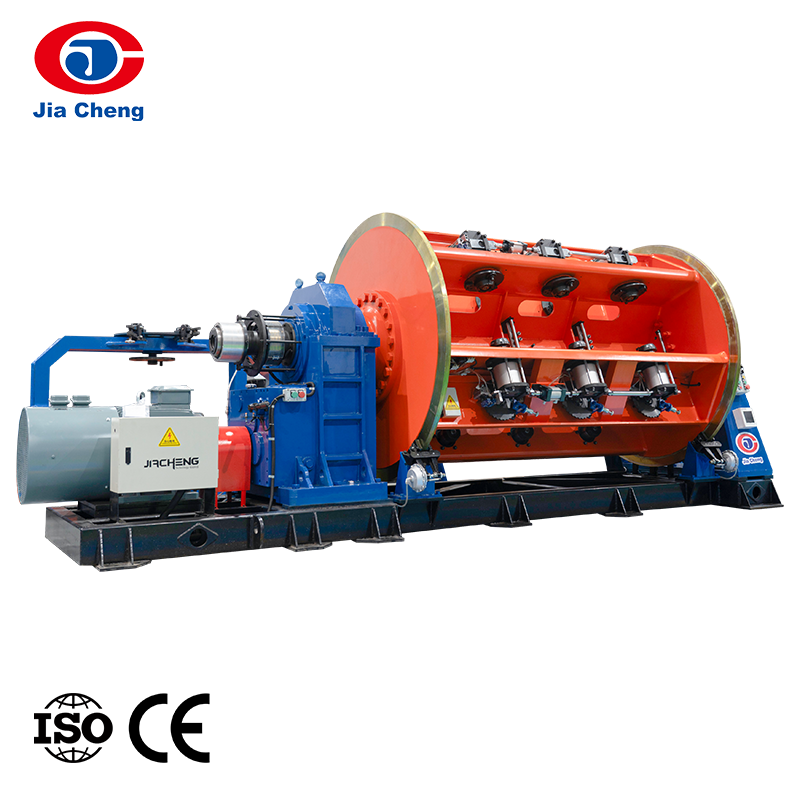

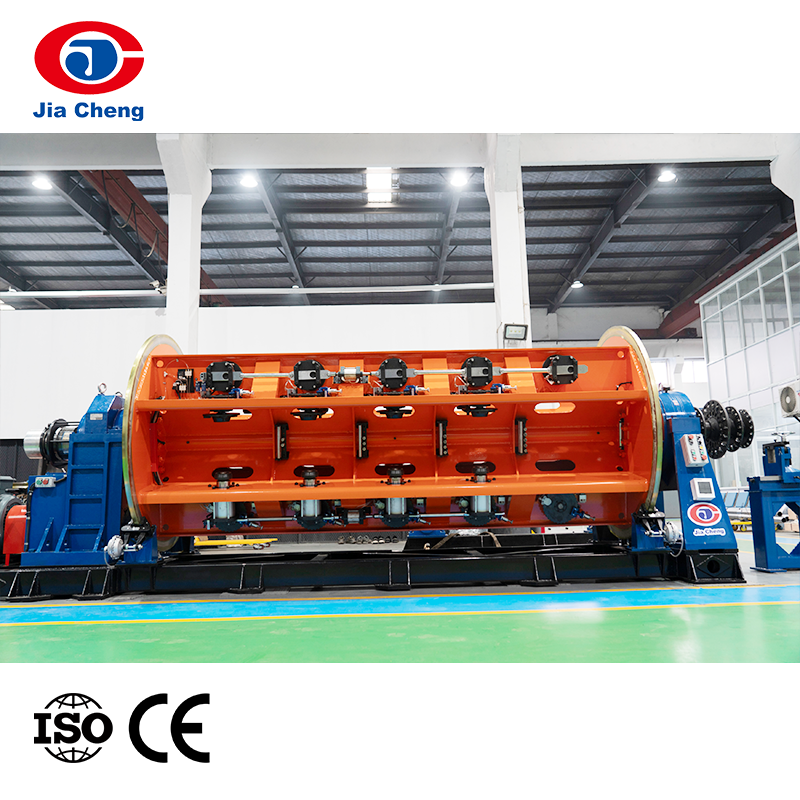

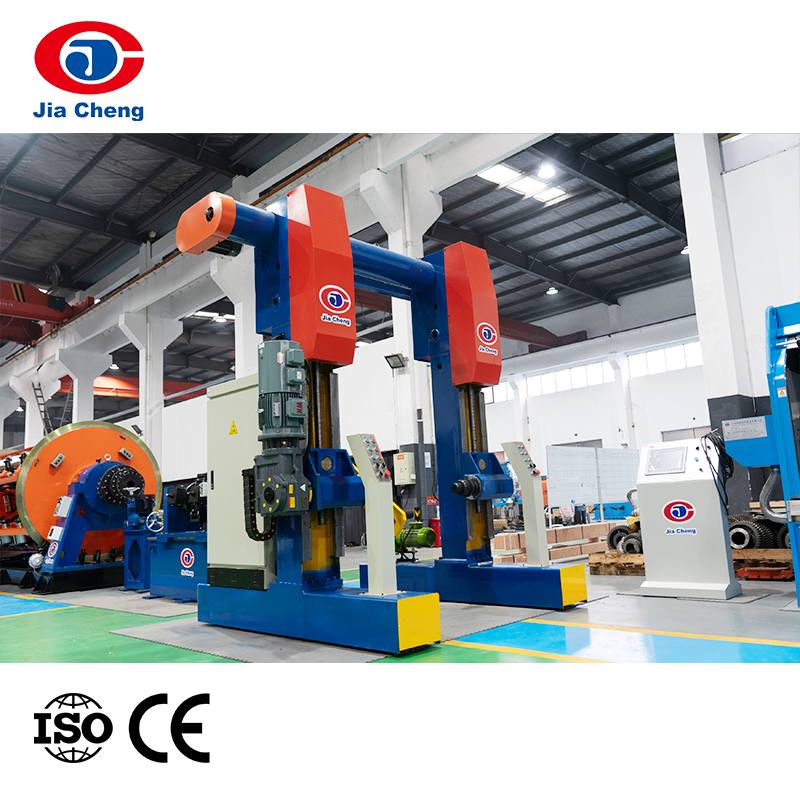

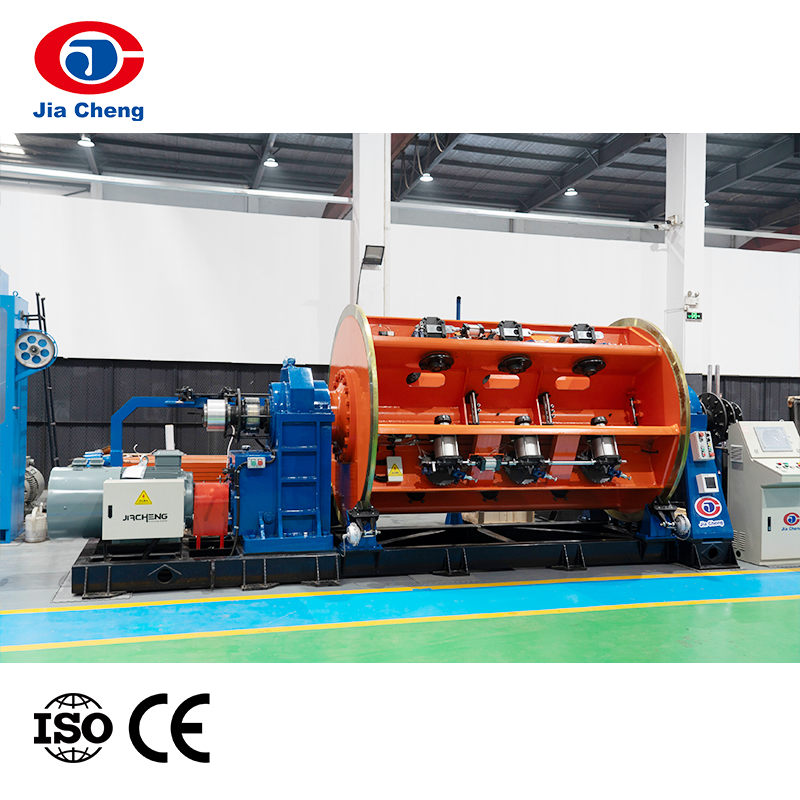

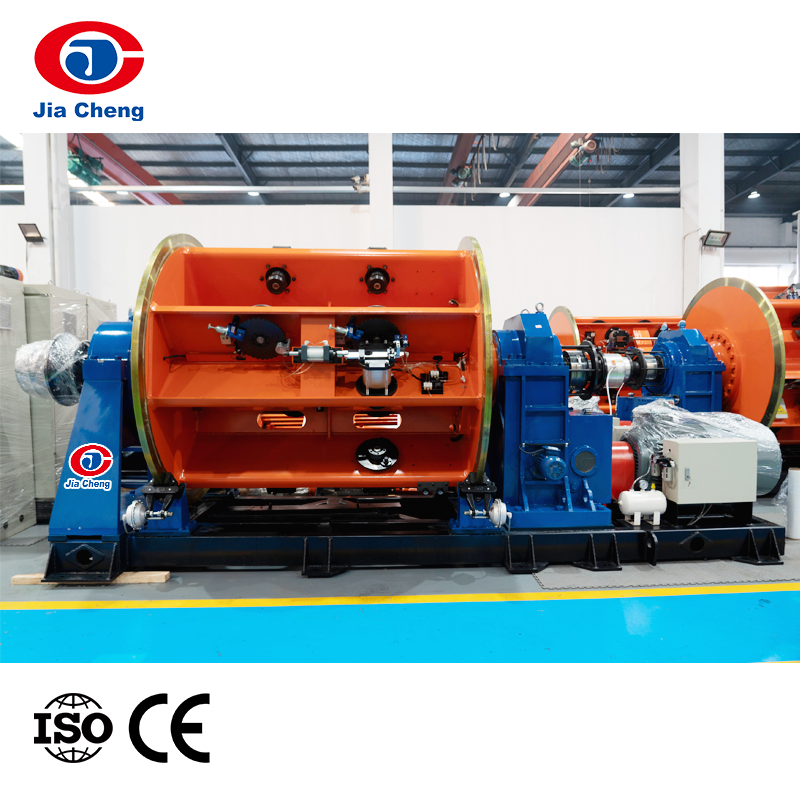

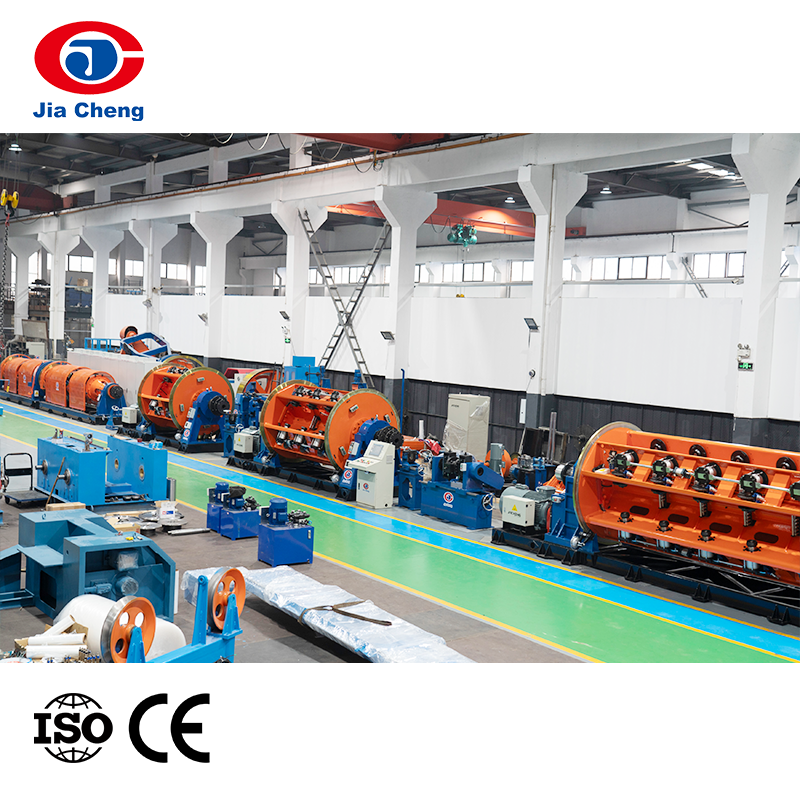

Rigid Frame Stranding Machine

Product Introduction

The Rigid Frame Stranding Machine is a mechanical device specifically designed for cable twisting, using a sturdy rigid frame to ensure high stability during operation. Capable of handling various types of cable materials, including common metal wires such as copper, aluminum, and steel, and can adapt to cable twisting with different wire diameters and core quantities. Whether it is ordinary power cables or special cables, this equipment can effectively complete the twisting work and has strong universality.

PREV：No previous article NEXT：No next article

Feature
Specification

Main feature:
1. Reels are arranged quartering around the cages. The centralized side-loading system can increase efficiency much more; the equipment has high power and high speed.
2. It is driven by a 36-stage gear-box, the two wheels of the double wheel capstan are overhung position and supported on shafts. One wheel is straight and the other is inclined position, arranged to ensure good care of the material to be pulled out. The maximum pulling force reaches 15T. Each reel is equipped with an advanced broken wire detector, allowing the machine to stop automatically in case of a broken wire.

Usage:
The machine is suitable for stranding long lengths and sections of bare aluminum, copper, aluminum alloy, aluminum cable, steel reinforcing wires to produce the following power cables. Sector-shaped conductors, round compacted, single core, prespiralled.

Specification：

Machine Type		JCJX-KJΦ500	JCJX-KJΦ630
Stranded single wire diameter.（mm）	Copper	Φ1.5～Φ5.0mm	Φ1.5～Φ5.0mm
Stranded single wire diameter.（mm）	Aluminum	Φ1.8～Φ5.0mm	Φ1.8～Φ5.0mm
Maximum frame speed	6B	250r/min	230r/min
	12B	230r/min	198r/min
	18B	200r/min	178r/min
	24B	180r/min	158r/min
	30B	/	135r/min
Maximum Stranded outer diameter		Φ45mm	Φ50mm
Twisted motor power	6B	55kw(AC variable frequency motor)	90kw (AC variable frequency motor)
	12B	55kw(AC variable frequency motor)	90kw (AC variable frequency motor)
	18B	55kw(AC variable frequency motor)	90kw (AC variable frequency motor)
	24B	55kw(AC variable frequency motor)	90kw (AC variable frequency motor)
	30B	55kw(AC variable frequency motor)	90kw (AC variable frequency motor)
Pay-off tray specifications		PN800～PN1600mm	PN800～PND1600mm
Take-up reel specification		PN1000～PN2000mm	PN1600～PN3150mm
Maximum take-up speed		60m/min	60m/min
