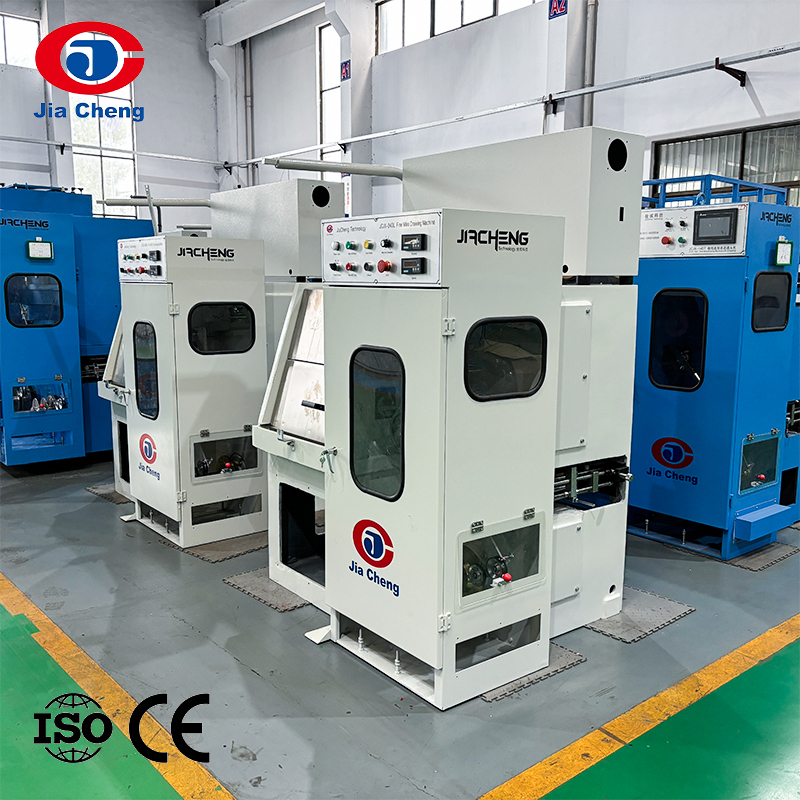

Intermediate Wire Drawing Machine for CCA Wire

Product Introduction

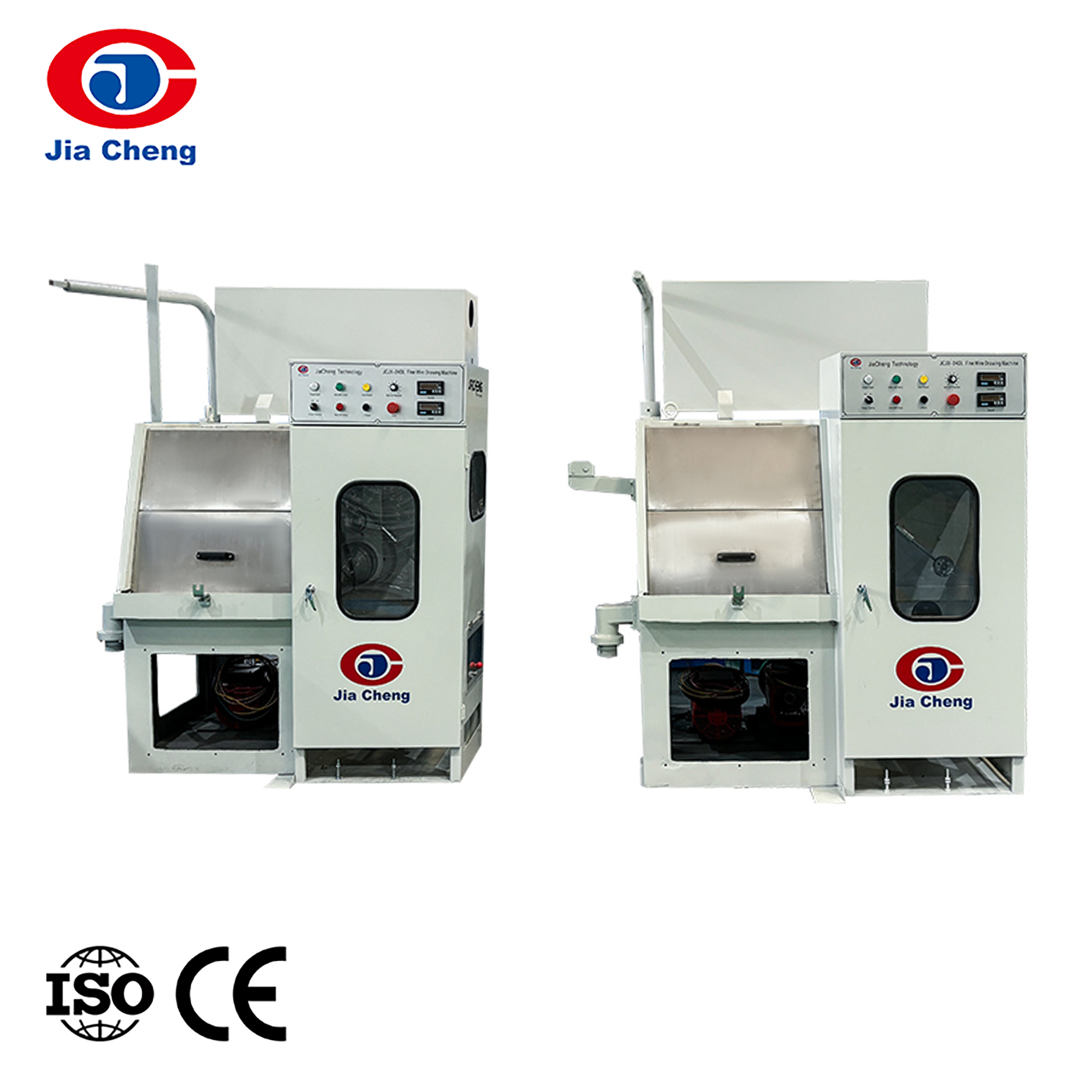

The Intermediate Wire Drawing Machine for CCA wire is a specialized equipment for drawing copper-clad aluminum wires, playing an important role in industries such as wire and cable. It can process preliminarily processed copper-clad aluminum coarse wire into copper-clad aluminum wire of intermediate thickness that meets specific specifications and performance requirements through a series of drawing processes.

PREV：Wire Drawing Machine(Alloy Wire Series)NEXT：Extremely Fine Wire Drawing Machine

Feature
Specification

Drawing CCA(copper-clad aluminum) wire from a big size to a small size.

Feature:

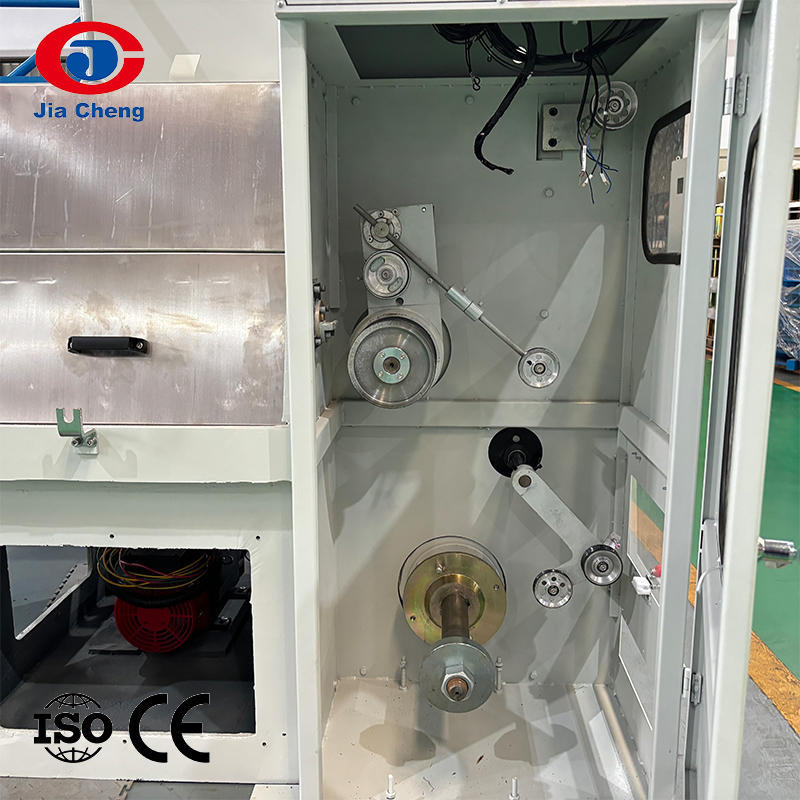

1. Double inverter auto tension control system.
2. Unify 250 cast-iron main frame, precision machinery, no shock.

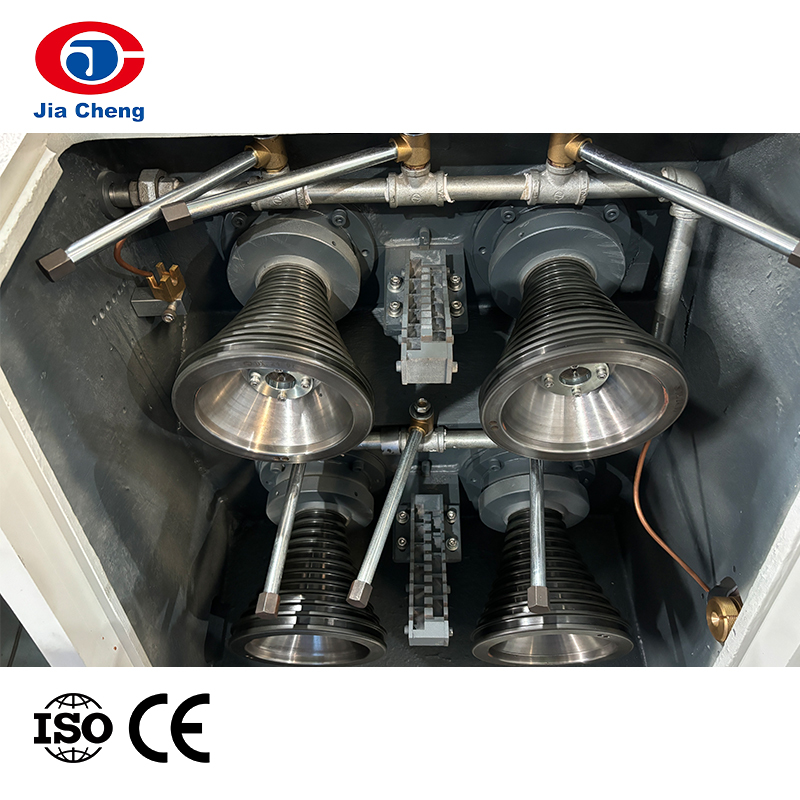

3. Capstan treated with wear-resistant tungsten.
4. Suitable for continuous annealer, take-up machine with and without shaft, coilier machine.

Specification：

Machine type	250/17DLH	260/17D-C	260/17D	260/17DL
Max.Inlet Dia.(mm)	Ф3.5
Outlet Dia.( mm )	Ф0.65~Ф1.5	Ф1.2~Ф2.8	Ф0.5~Ф1.5	Ф0.65~Ф1.60
Max.Die No.	17	17	17	17
Max.line speed(M/Min）	1500	1500	1200	1200
Body structure	Ironed cast
Slip ratio of the machine	15%	18%	18%	15%
Fix speed capstan Dia. (mm)	250	260
Transmission type	By gear		By chain
Main motor power (KW)	45	37	30
Take-up motor power (KW)	7.5
Lubrication type	Full immersion	Spray type
Take-up bobbin size (mm)	Φ500/Φ630 (Bore is Φ127mm) or changed by requirement
The bobbin fixed type	Clamping and relaxing by air
