Intermediate Wire Drawing Machine

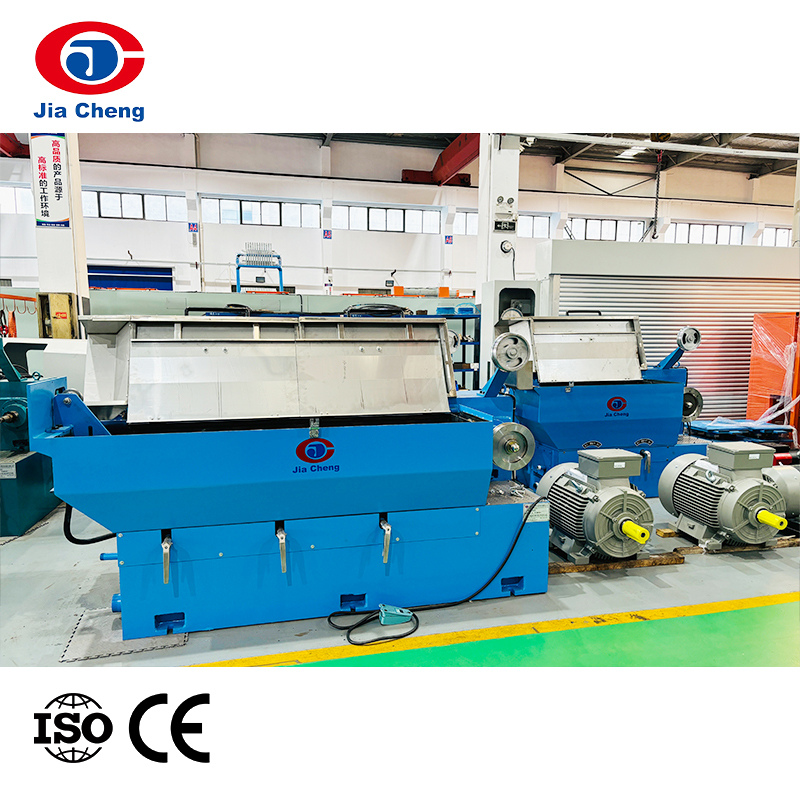

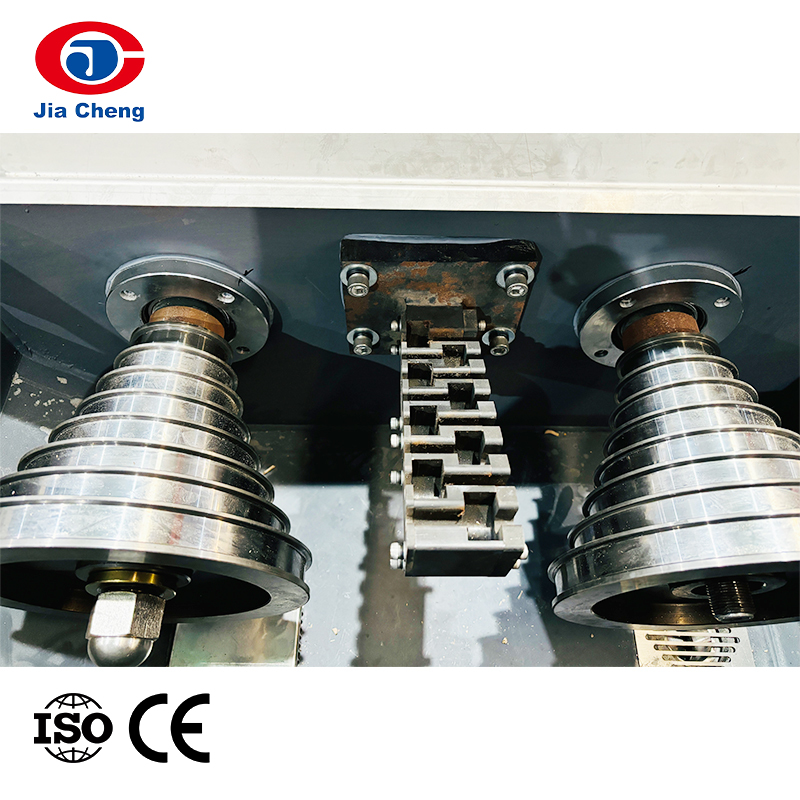

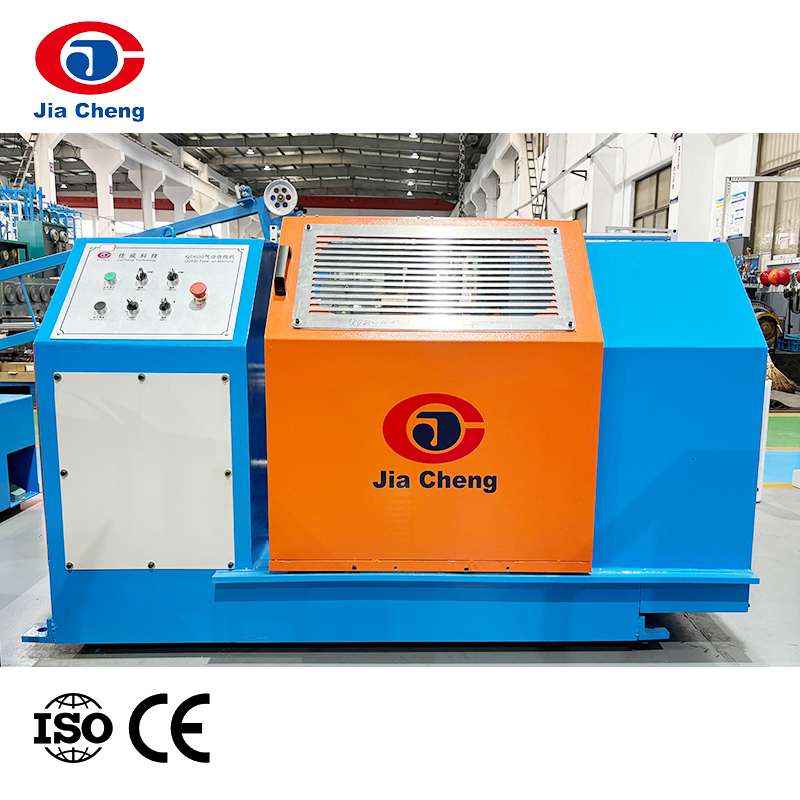

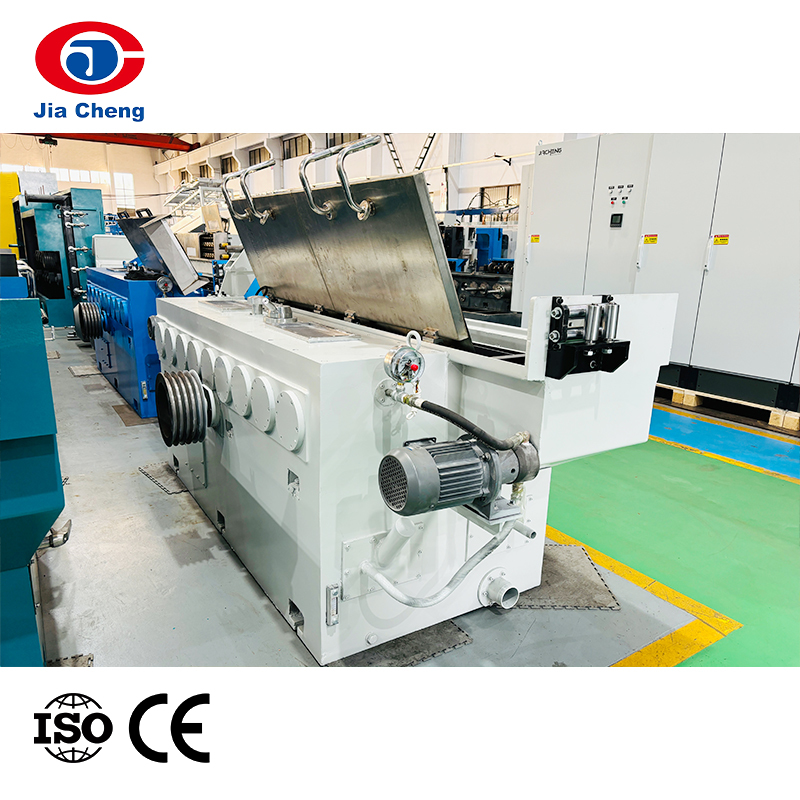

Intermediate Wire Drawing Machine M/C With Annealing

Product Introduction

Intermediate wire drawing machine M/C with Annealing is a device used for metal wire processing, which combines two key processes of drawing and annealing. It is mainly used to draw medium-sized metal wires to smaller diameters and perform annealing treatment on the wires during or after the drawing process to improve their performance. It is widely used in industries such as wire and cable, electronic components, and metal products.

PREV：Double Intermediate Wire Drawing Machine NEXT：No next article

Feature
Specification

Specifications：

Main Machine Specification

Machine type	280/13DH	300/9DH	250/17DH	260/17D
Max. Inlet Dia.(mm)	Φ3.5
Outlet Dia.(mm)	Φ0.65-Φ2.80	Φ1.2-Φ2.8	Φ0.4-Φ1.6	Φ0.4-Φ1.2
Max. Die No.	13	9	17	17
Max. Line Speed(m/min)	2000	1200	1800	1200
Body Structure	ironed cast
Slip ratio of machine	20%	18%	20%	18%
Transmission Type	280	300	250	260
Fixed Speed Capstan Dia.(mm)	By high precision grinding gear			By chain
Main Motor Power(KW)	55(45)			37
Take-up Motor Power(KW)	11(15)			11
Lubrication Type	Full immersion		Spray type
Take-up Bobbin Size(mm)	Φ500/Φ630(Bore is Φ127mm) or changed by requirement
Optional Equipment	1.Continuous annealing device 2.Coiler

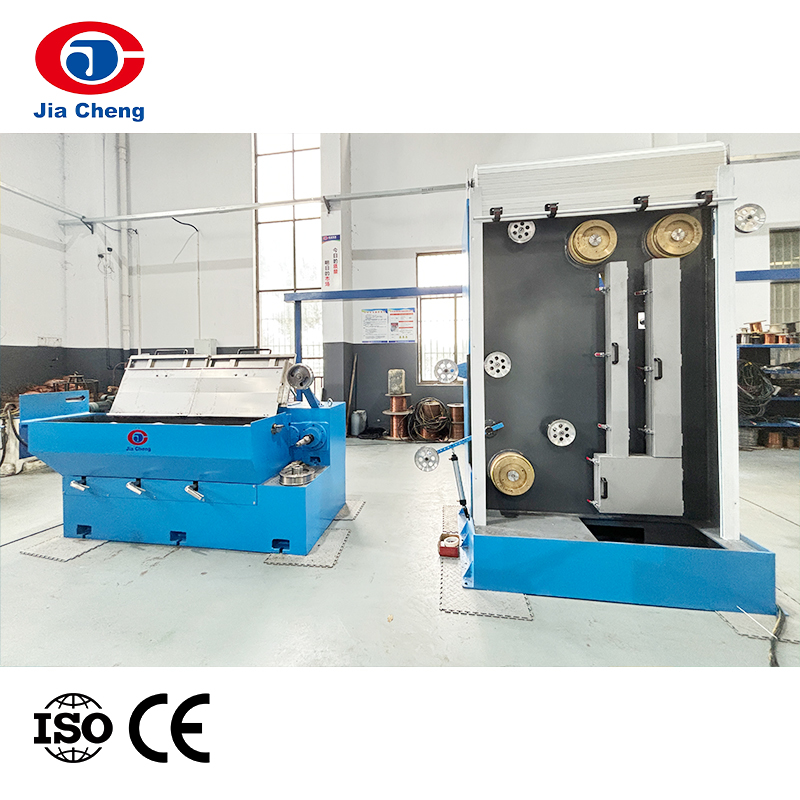

On-line Continuous Annealing Device Specification

On-line Continous Annealing Device
Type	350T	250T/B	250T/A
Machine Structure	Horizontal	Vertical	Vertical
Annealing Wheel Dia.(mm)	Φ350	Φ250	Φ250
Annealing Wire Dia.(mm)	Φ0.8-Φ2.8	Φ0.6-Φ2.2	Φ0.4-Φ1.6
Annealing Protection Type	Steam or Nitrogen
Annealing Votage	0-65V(DC)	0-60V(DC)
Annealing Current	0-2500A(DC)	0-(2000A,1500A,1200A)(DC)
