LSD450 Non-silp Rod Breakdown Machine

Product Introduction

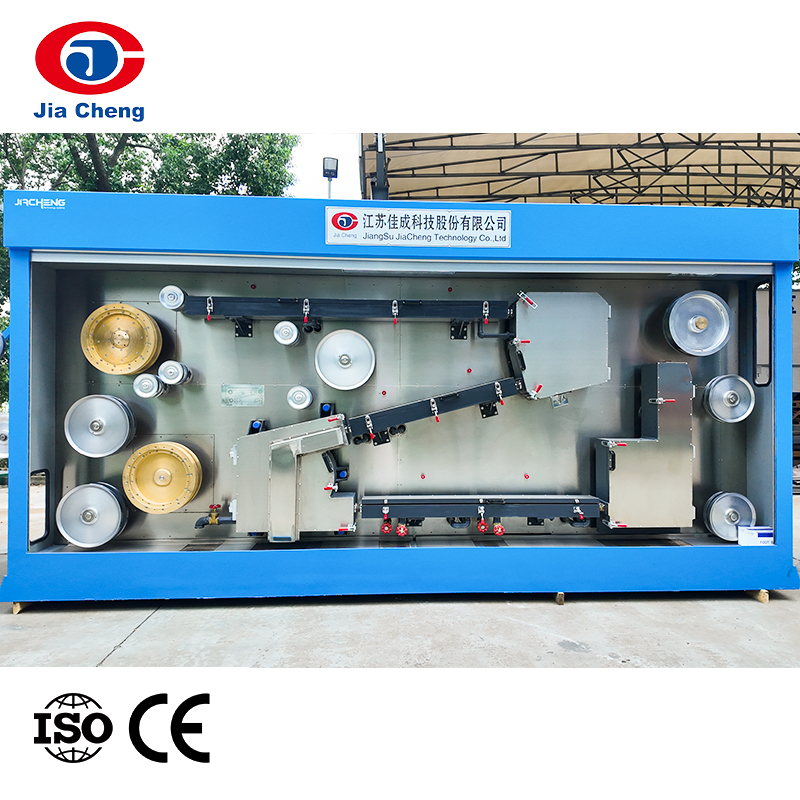

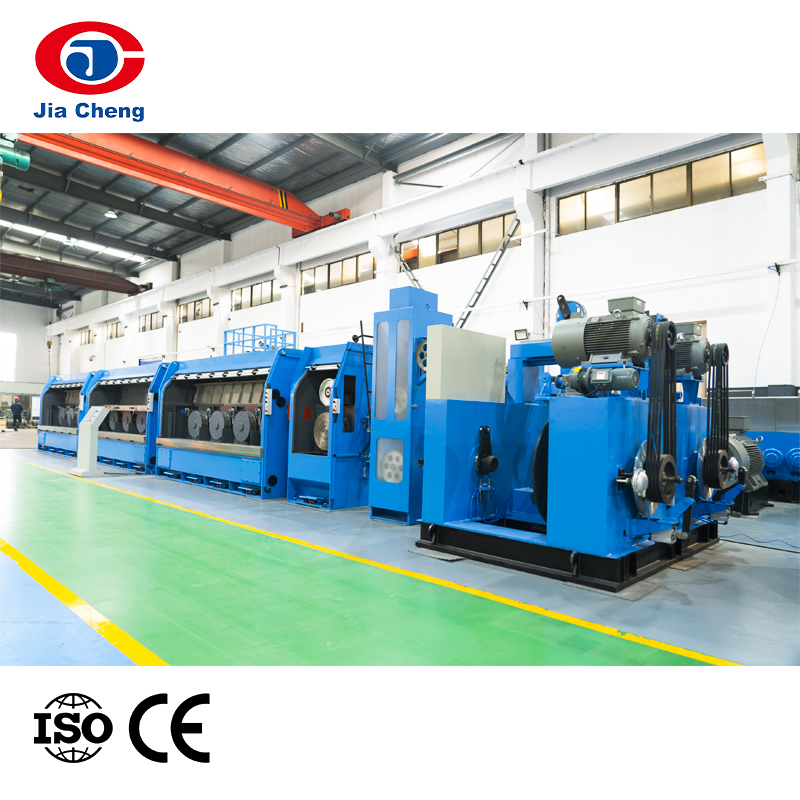

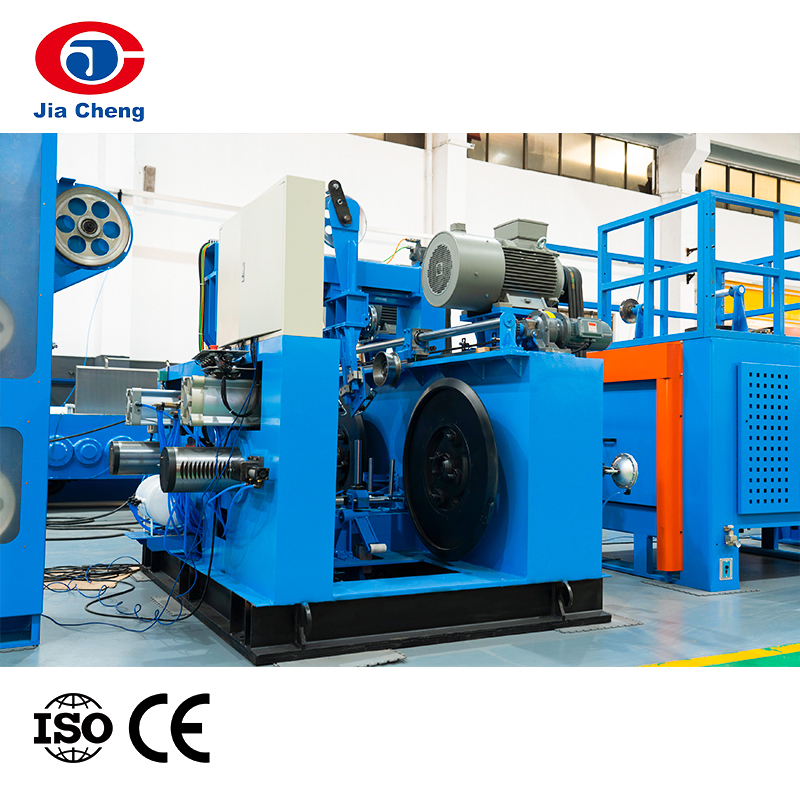

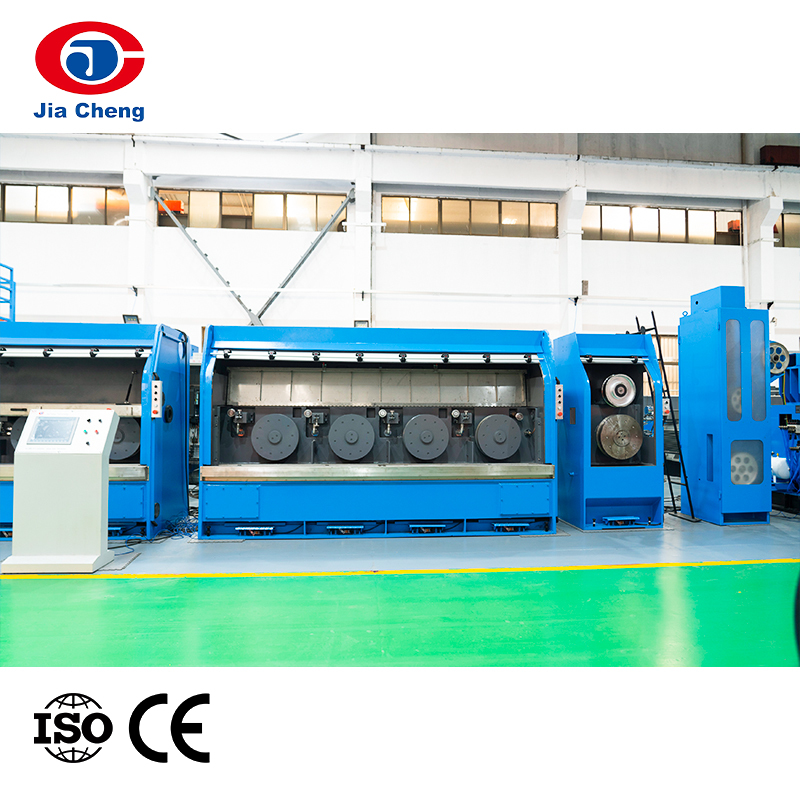

LSD450 Non slim Rod Breakdown Machine is a highly competitive professional copper/aluminum rod drawing equipment in the industrial manufacturing field, designed for efficient and precise processing of copper/aluminum rod drawing. This machine is designed by apply advanced international drawing machine technology. With individual motor traverse. It is made of pay off, main drawing machine, annealing device, accumulate device, dual take up, coil take up device etc. It is suitable for take up wire in 500 or 630mm bobbin or take up the wire in frame.

PREV：LHT450 Copper Rod Breakdown Machine NEXT：LSD450-2 Two Wires Rod Breakdown Machine

Feature
Specification

It has the feature of save space, save time, save manpower, high efficiency, high output, good quality, favorable price.

Specification：

Machine Type		LSD450/13	LSD450/11	LSD450/9
Drawing Capstan Dia.(mm)		Φ450
Max. Die No.		13	11	9
Inlet wire dia.(mm)	Copper	Φ8
	Al, Al Alloy	Φ9.5
Outlet wire dia.(mm)	Copper	Φ1.2-Φ4.2	Φ1.5-Φ4.2	Φ2.0-Φ4.2
	Al, Al Alloy	Φ1.7-Φ5.0	Φ2.2-Φ5.0	Φ2.8-Φ5.0
Max. Drawing Speed(m/s)		30	25	20
Main Motor(KW)		37/55 (AC)
Capstan Arrangement		Horizontal Type
Lubrication type		Full immersion
Take-up Type(Optional)		Double Take-up/Single Take-up/Coiler
Optional Equipment		On-line horizontal annealing

On-line Continous Annealing Device
Machine Type	450T	450TB
Annealing Wire Dia. (mm)	Φ1.2-Φ3.5	Φ1.2-Φ4.2
Annealing Voltage(V)	0-60	0-60
Annealing Current(A)	0-6000A (DC)	0-5000A (AC)
Max. Annealing Speed(m/s)	25m/s
