LHD450 Al or Al-alloy Rod Breakdown Machine

Product Introduction

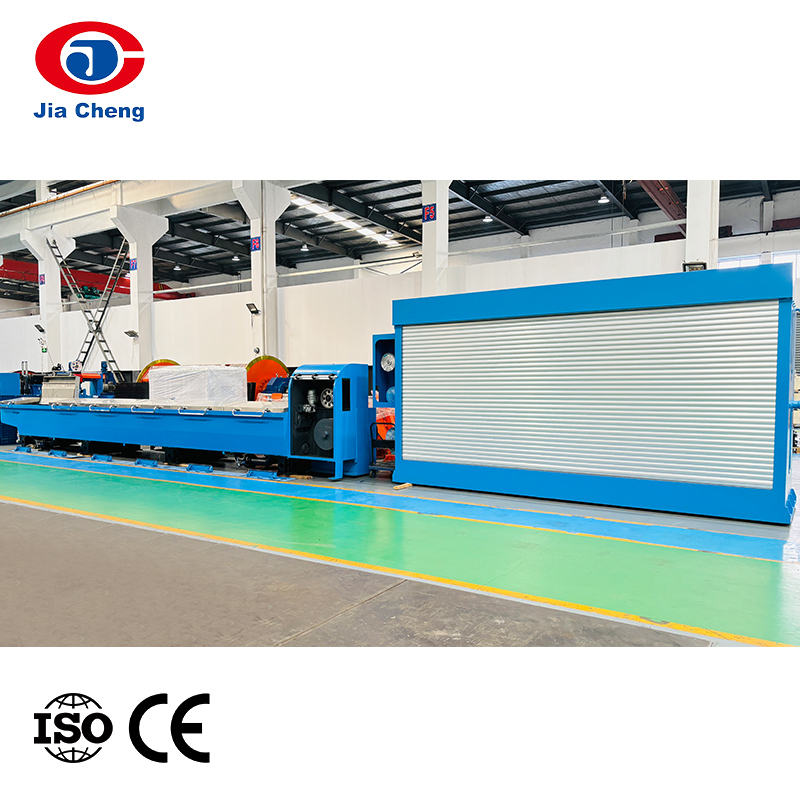

LHD450 Al or Al alloy Rod Breakdown Machine is an equipment used for aluminum and aluminum alloy rod drawing processing. It can process aluminum or aluminum alloy rods into wires of different diameters to meet the production needs of the wire and cable manufacturing industry. Adopting a horizontal structure, the body is stable and occupies a relatively small area. The cast iron gearbox body has high strength and good rigidity, and can withstand large tensile and torque forces, ensuring the stability of the equipment during long-term operation.

PREV：JCJX-LHD400 AI or AI-alloy Rod Breakdown Machine NEXT：LHT450 Copper Rod Breakdown Machine

Feature
Specification

Main feature:
1. Ironed cast.

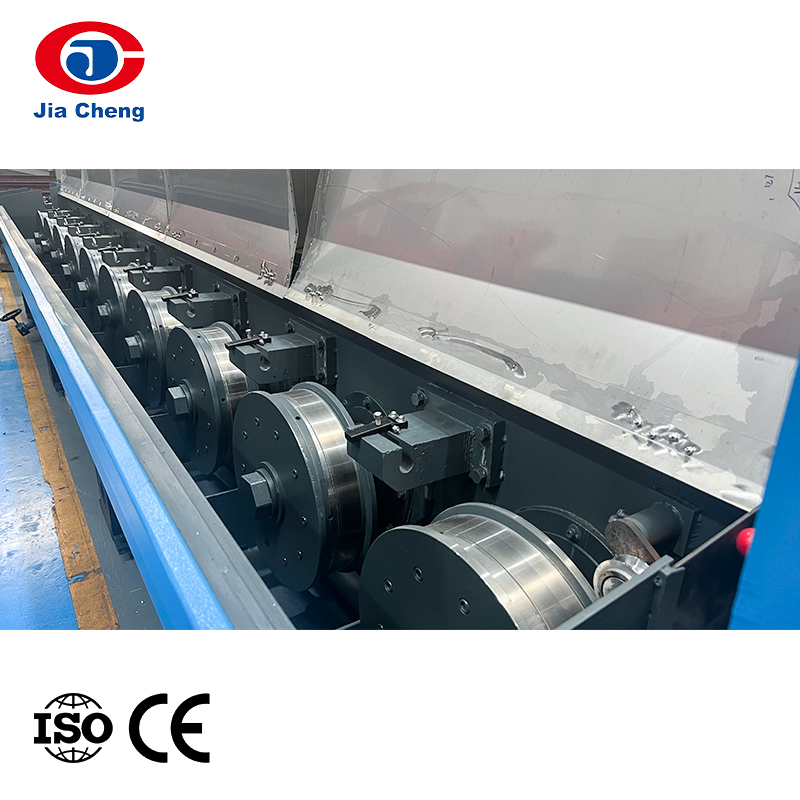

2. Horizontal structure, dual driving motors, owning a rapid die change system.
3. High precision gear transmission, high efficiency, low noise.
4. Fully immersed way to lubricate and cool, which can guarantee the quality of drawing wire.

Specification：

Machine Type		LHD450/13	LHD450/11	LHD450/9
Inlet Dia.(mm)		Φ9.5( Φ12)
Outlet wire dia.(mm)	Al	Φ1.7-Φ4.8	Φ2.2-Φ4.8	Φ2.8-Φ4.8
	Al-alloy	Φ2.3-Φ4.5	Φ2.8-Φ4.5	Φ3.2-Φ4.5
Max. Die No.		13	11	9
Drawing Capstan Dia.(mm)		Φ450	Φ450	Φ450
Fix Speed Capstan Dia. (mm)		Φ450	Φ450	Φ450
Max. Drawing Speed(m/s)		25m/s	22m/s	20m/s
Main Motor(KW)	AI	250(DC)	220(DC)	220(DC)
	Al-alloy	315(DC)	280(DC)	280(DC)
Fix Speed Capstan Motor		75(DC)
Capstan Arrangement		Horizontal Type
Drawing Capstan		Coated by tungsten
Lubrication type		Immersion type

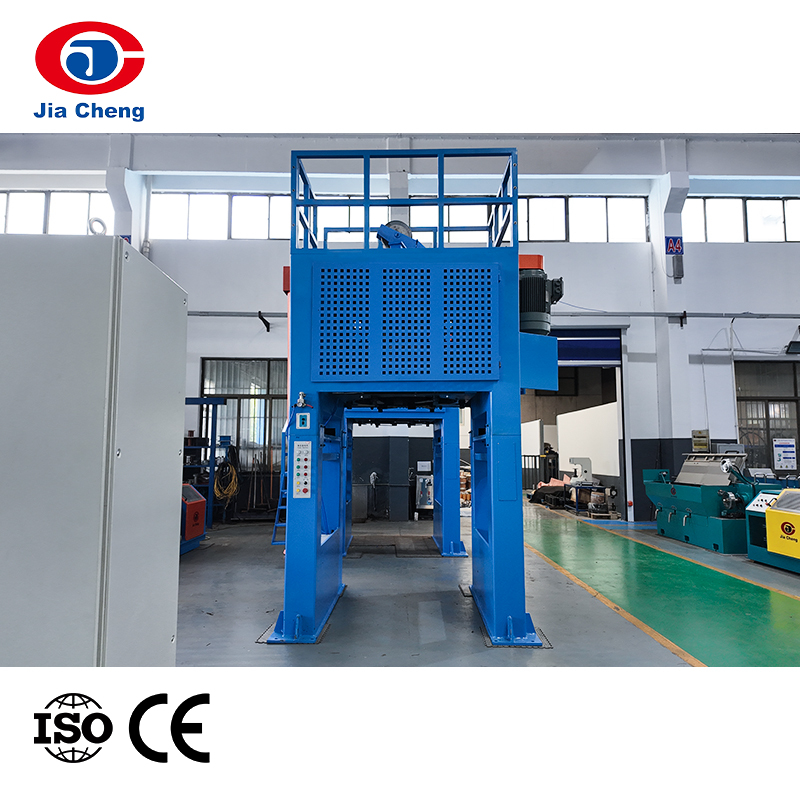

Take-up Bobbin		PND630/ PND560/ PND500
Take-up Motor(KW)		22*2
Take-up bobbin loading type		Pneumatic type
