The machine is mainly used for drawing copper from Dia. 8mm to Dia. 1.5-4mm for wire and cable manufacturers.
Elements: pointing and threading machine, copper dust filter, pay-off stand, wire drawing machine, annealing machine, tension device, dual bobbin take-up machine, electrical controlled parts, etc.

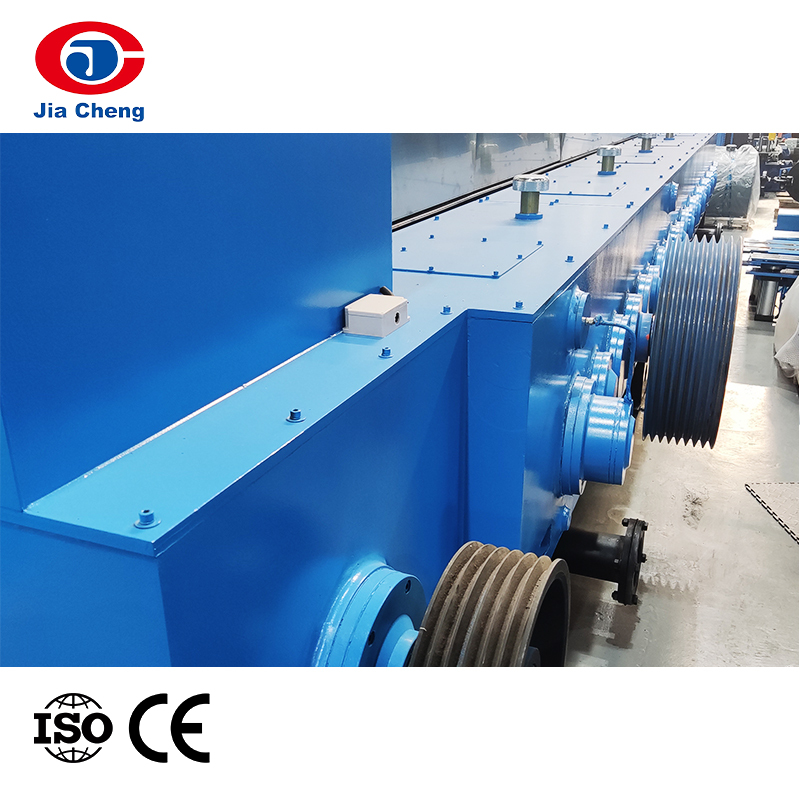

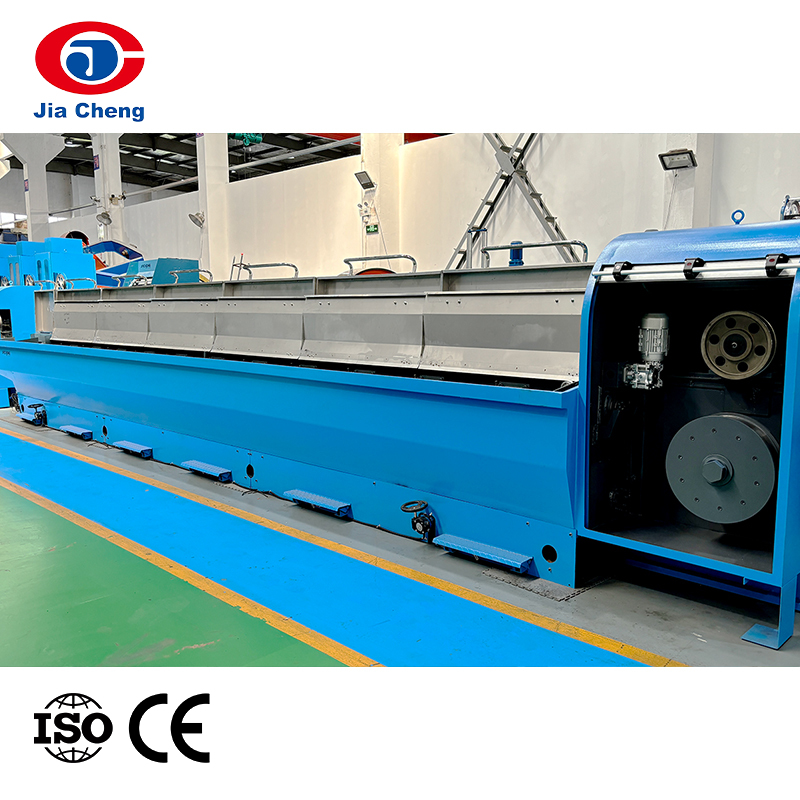

1. LHT450 Copper Rod Breakdown Machine is used for drawing copper wire from 8mm to 1.2-4.0mm.
2. Ironed cast.Horizontal structure, dual driving motors, and owning a rapid die change system.
3. High precision gear transmission, high efficiency, low noise.
Main feature:
1. Little investment, high yield ( between the low and high speed machines), is the preferred model that can replace the low and high speed machines.
2. Capstan treated with wear-resistant tungsten, high hardness, no wear groove, low noise, extending the service life of the pulley.
3. This kind of machine applies the DC resistance contact annealing method, so that it can realize the online continuous annealing, annealing speed tracking, the annealing cycle is short, and the yield is high yield.
4. When using the dual spooler / fallen plum line, it can achieve non-stop production, greatly improving the working efficiency.
5. Quick die change system, saving time, saving die.
Specification：
|
Machine Type |
LHT450/13 |
LHT450/11 |
LHT450/9 |
|
Max.Inlet Dia.(mm) |
Φ8 |
||
|
Outlet Dia.(mm) |
Φ1.2-Φ4.0 |
Φ1.5-Φ4.0 |
Φ2.1-Φ4.0 |
|
Max. Die No. |
13 |
11 |
9 |
|
Max. line speed(m/s） |
25m/s |
22m/s |
20m/s |
|
Body structure |
Ironed cast |
||
|
Transmission type |
By high-precision grinding gear |
||
|
Fix speed capstan Dia. (mm) |
Φ450 |
||
|
Drawing capstan |
Coated by tungsten |
||
|
Main motor power(KW) |
280 |
||
|
Fix speed capstan motor(KW) |
75 |
||
|
Lubrication type |
Immersion |
||
|
Optional equipment |
1. 450T continuous annealing device 2. Double rake-up 3. Coiler 4. WS-1000 take-up |
||
|

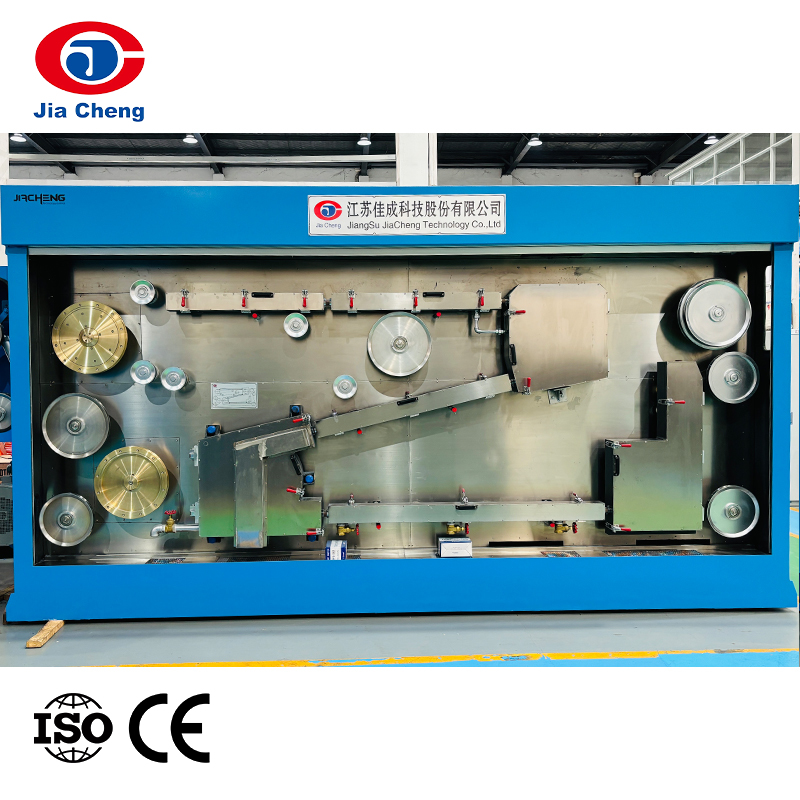

On-line Continous Annealing Device |
||
|
Machine Type |
450T |
450TB |
|
Annealing Wire Dia. (mm) |
Φ1.2-Φ3.5 |
Φ1.2-Φ4.2 |
|
Annealing Voltage(V) |
0-60 |
0-60 |
|
Annealing Current(A) |
0-6000A (DC) |
0-5000A (AC) |
|
Max. Annealing Speed(m/s) |
25m/s |
|
