Rod Breakdown Machine

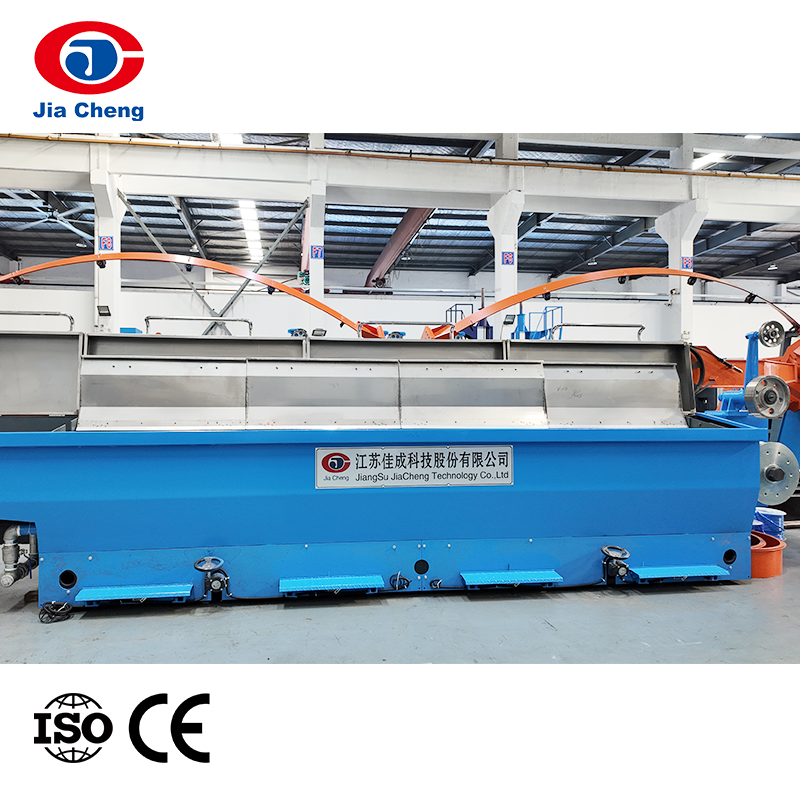

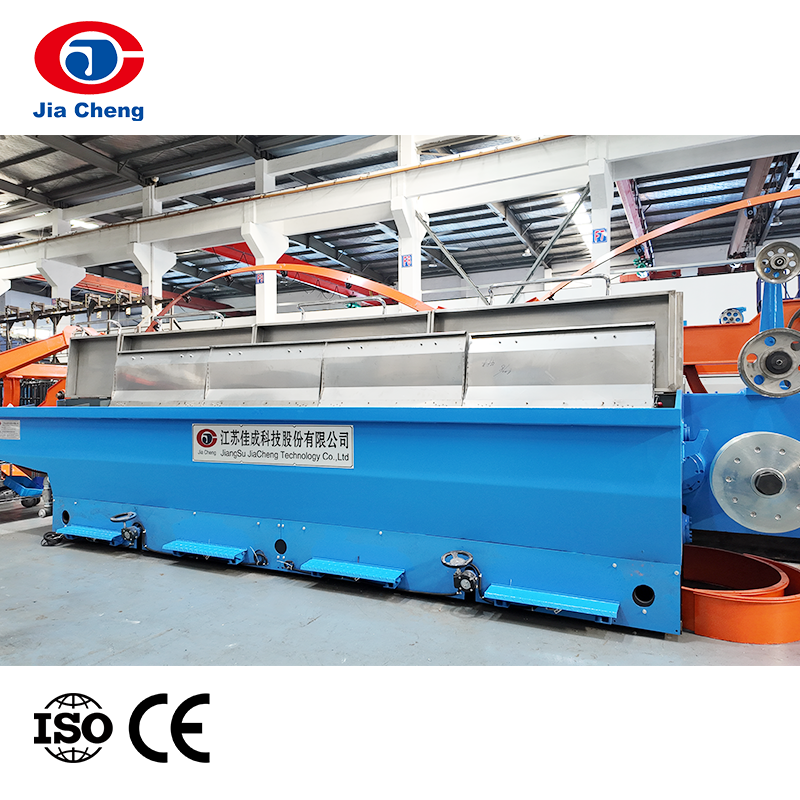

JCJX-LHD400 AI or AI-alloy Rod Breakdown Machine

Product Introduction

The LHD450 series converts AI or AI alloy from diameter Φ 9.5mm (or Φ 12mm wire drawing to aluminum rod from Φ 9.5mm wire drawing to Φ 1.7- Φ 4.8mm, or remove the aluminum alloy rod from the Φ 9.5mm wire drawing to Φ 2.3- Φ 4.5mm. This machine is characterized by its high efficiency, good product quality, and easy operation. The equipment is easy to operate and the drawing and annealing processes are continuous.

PREV：JCJX-LHT400 Middle Speed Copper Rod Breakdown NEXT：LHD450 Al or Al-alloy Rod Breakdown Machine

Feature
Specification

Description:

1. Ironed cast.

2. Horizontal structure, dual driving motors, owning rapid die change system.

3. High precision gear transmission, high efficiency, low noise.

4. Fully immersed way to lubricate and cool, which can guarantee the high quality wire.

Applications:

This machine is suitable for manufacturing plants, especially in the cable industry, for efficient continuous production.

Specification：

Machine Type	LHD400/13	LHD400/11	LHD400/9
Inlet Dia.(mm)	Φ9.5
Outlet wire dia.(mm)	Φ1.8-Φ4.2	Φ2.3-Φ4.2	Φ3.0-Φ4.2
Max. Die No.	13	11	9
Max.line Speed(m/s)	20m/s	18m/s	15m/s
Body Structure	Ironed cast
Transimission Type	By high precision grinding gear
Fix Speed Capstan Dia.(mm)	Φ400

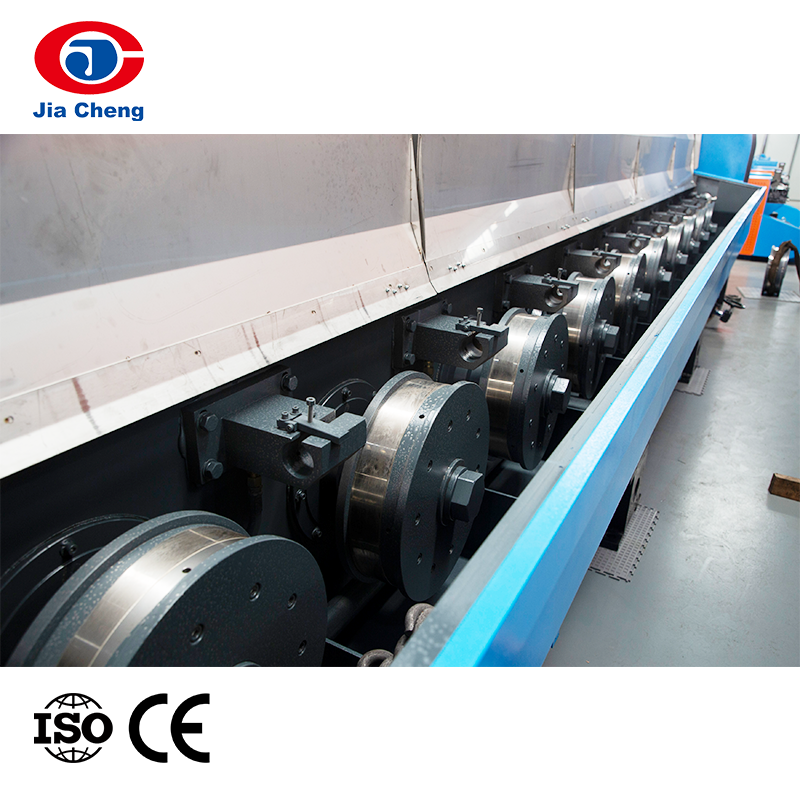

Drawing Capstan	Coated by tungste
Main Motor Power(KW)	132		110
Lubrication type	Immersion type
Take-up Type	1.Double take-up 2.QD630 Single take-up
Optional Function	Fast die change (PLC automatic compute)
